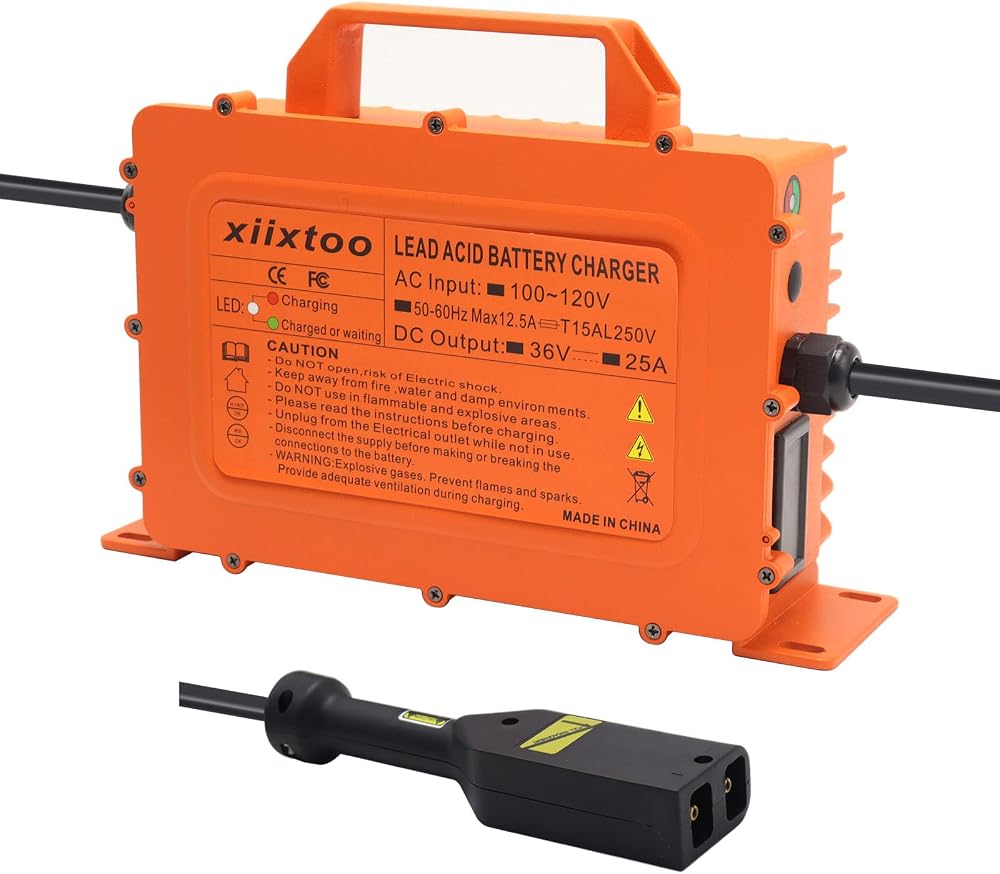

PRODUCT SPECIFICATIONS:
AC Input: Standard 110V
DC Voltage: 36 Volts (Max Charging output is: 44.1V)
DC Current: 25 Amp
Compatible battery: 36V 200Ah or less then 200Ah

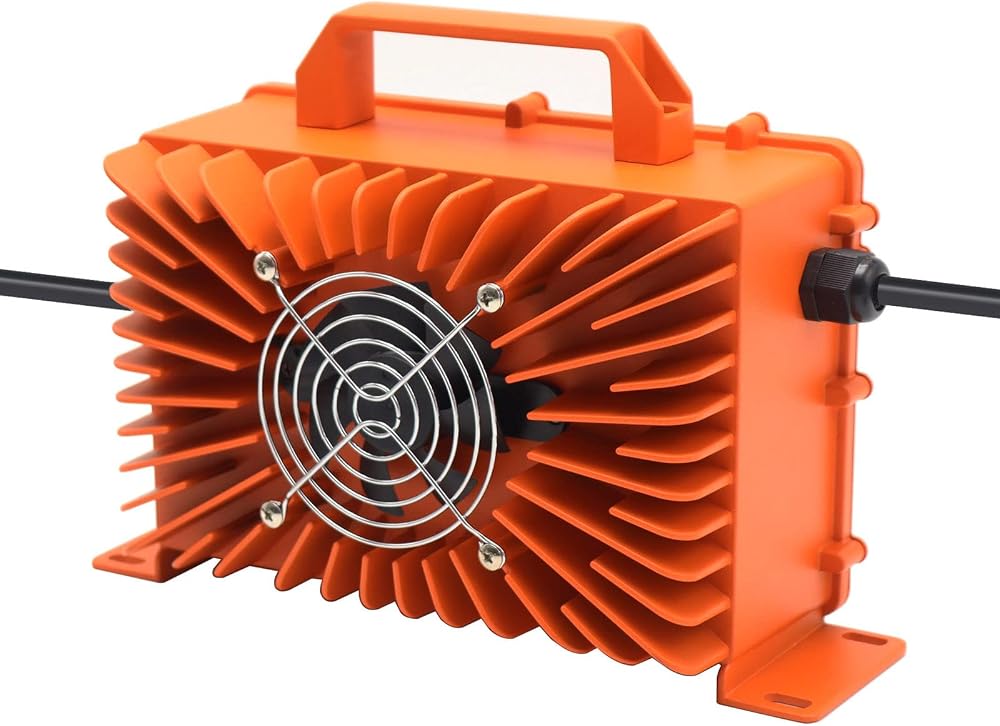

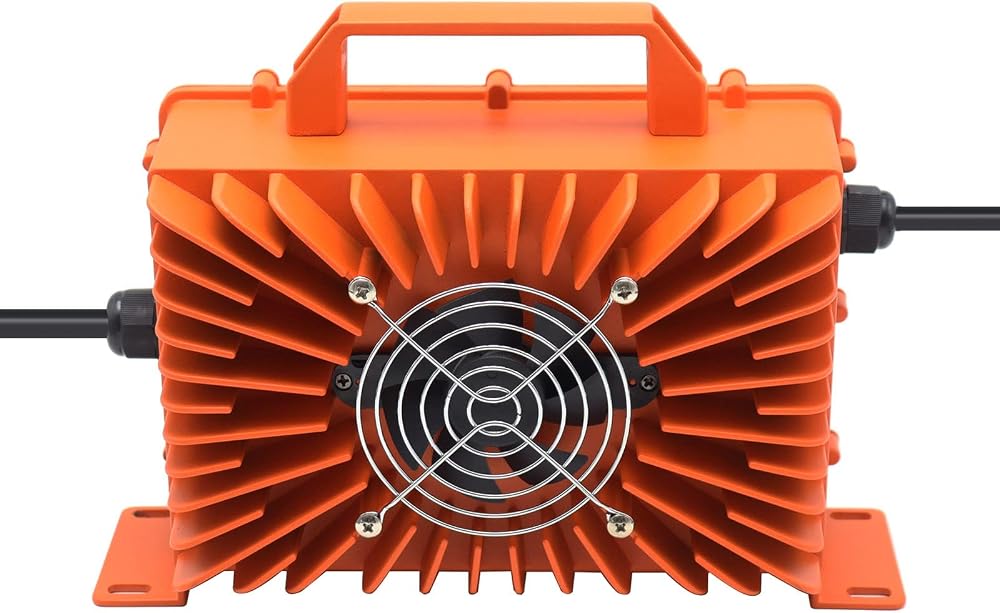

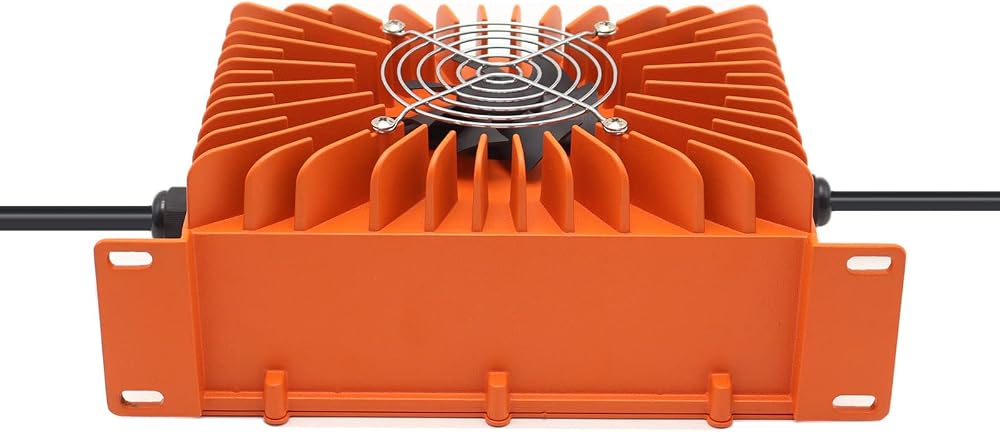

Silver Aluminum with fins design as heat sink
Waterproof: IP68

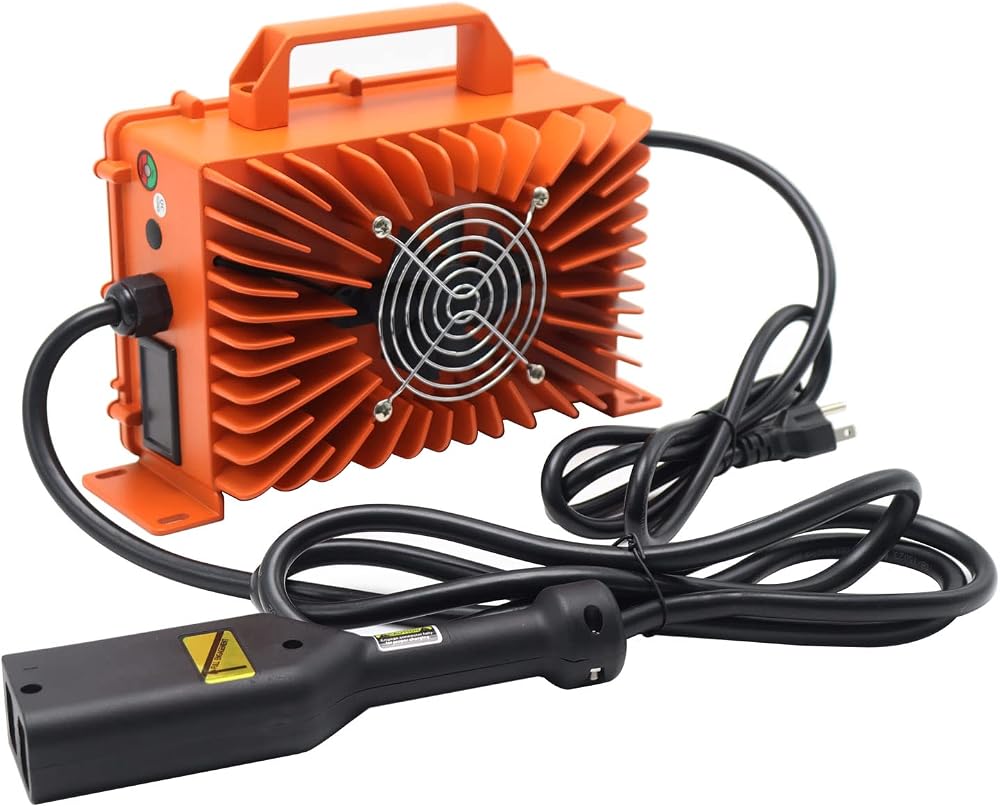

Plug Standard: D-Style / Powerwise Plug
Equipped with LED Light as indicators to show charging status:
standby state( connect the ac power, not connect the battery), the green and yellow lights flash alternately
charging, the power  charging, the power >80%, yellow light on
Fully charged, green light on

Compatible for 36 volt EZGO golf carts or any other cart with a receptacle that fits the “D-Plug”, a rectangular shaped plug head with a curved side that houses two circular pins inside and plugs in at an angle (1995/1996+)

Replaces OEM Part Number: 1930088, 28115-G04, 20484, 5-002AP, CP602718, 25970-A88, 28080, 28115GO4, 28115G04, 602718, 28115G01, 14390, 9153610,605747, 611119, 25900, 25970

Replaces:
E-Z-GO Mfg. Year: 1995-2009
E-Z-GO Models: TXT, TXTE, TXT PDS, Freedom TXT, Medalist, Shuttle
Replaces: PowerWise, PowerWise II, Lestronic II, Lestermatic, E-Series Delta Q.

Before your purchase, please make sure the OUTPUT and CONNECTOR size matches your golf cart.

PACKAGE INCLUDES:
1x Power Charger
1x US Mains Lead Cable
