2Pcs DB9 Breakout Connector(1 Male + 1 Female), DB9 Solderless Connector RS232 D-SUB Serial Adapters 9 Pin Port Terminal Breakout Board with Case Long Bolts Tail Pipe in Saudi Arabia 2Pcs DB9 Breakout Connector(1 Male + 1 Female), DB9 Solderless Connector RS232 D-SUB Serial Adapters 9 Pin Port Terminal Breakout Board with Case Long Bolts Tail Pipe in Saudi Arabia 2Pcs DB9 Breakout Connector(1 Male + 1 Female), DB9 Solderless Connector RS232 D-SUB Serial Adapters 9 Pin Port Terminal Breakout Board with Case Long Bolts Tail Pipe in Saudi Arabia 2Pcs DB9 Breakout Connector(1 Male + 1 Female), DB9 Solderless Connector RS232 D-SUB Serial Adapters 9 Pin Port Terminal Breakout Board with Case Long Bolts Tail Pipe in Saudi Arabia 2Pcs DB9 Breakout Connector(1 Male + 1 Female), DB9 Solderless Connector RS232 D-SUB Serial Adapters 9 Pin Port Terminal Breakout Board with Case Long Bolts Tail Pipe in Saudi Arabia 2Pcs DB9 Breakout Connector(1 Male + 1 Female), DB9 Solderless Connector RS232 D-SUB Serial Adapters 9 Pin Port Terminal Breakout Board with Case Long Bolts Tail Pipe in Saudi Arabia 2Pcs DB9 Breakout Connector(1 Male + 1 Female), DB9 Solderless Connector RS232 D-SUB Serial Adapters 9 Pin Port Terminal Breakout Board with Case Long Bolts Tail Pipe in Saudi Arabia 2Pcs DB9 Breakout Connector(1 Male + 1 Female), DB9 Solderless Connector RS232 D-SUB Serial Adapters 9 Pin Port Terminal Breakout Board with Case Long Bolts Tail Pipe in Saudi Arabia

daier 2Pcs DB9 Feamle Breakout Connector, DB9 Solderless Connector RS232 D-SUB Serial Adapters 9 Pin Port Terminal Breakout Board with Case Long Bolts Tail Pipe

SAR 51
Brand
daier
Weight
50 g
SizeFemale
– 1 +

Special Features

  • Upgraded 16mm/0.62inch DB9 Connector: No soldering needed! The Upgraded DB9 connector is thinner than others. Thin but hard. Easier to install and disassembly. And has fine solder joints, which can withstand 2,000+ pluging and unpluging tests. Shell with non-slip design.

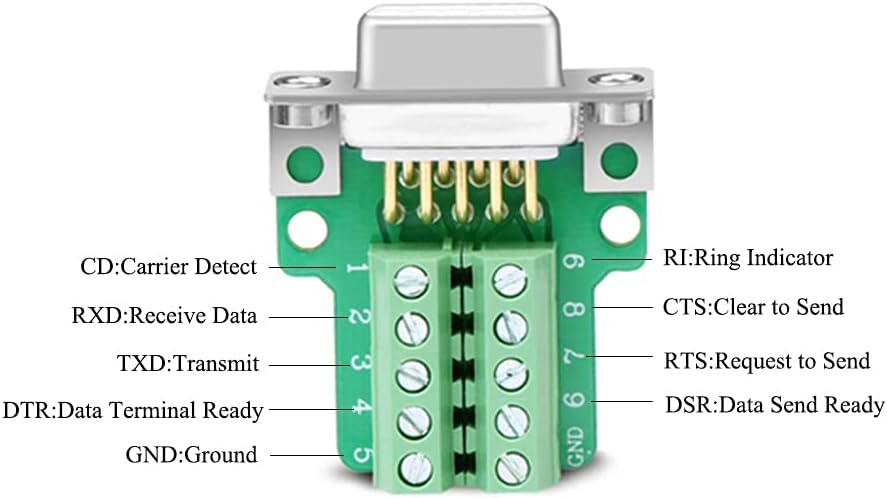

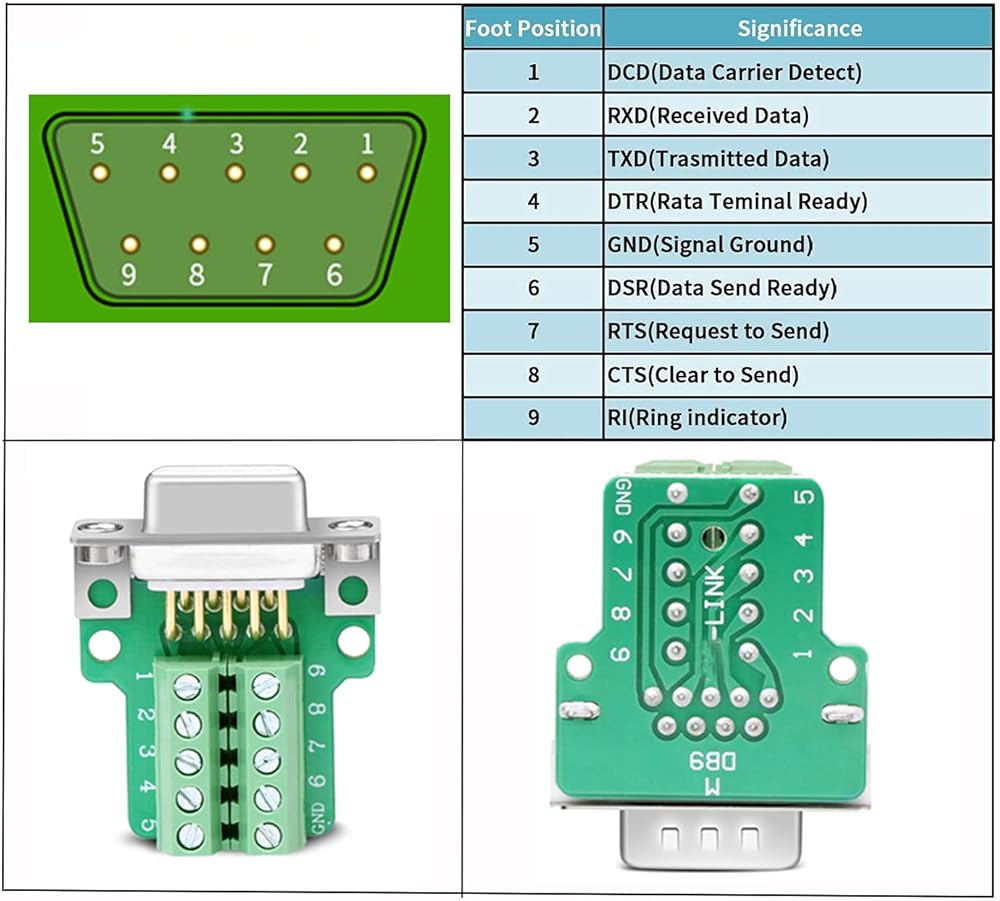

  • Easy instal:All signal ports are clearly named and labeled on both sides of the board for quick wiring. Terminal wire range : 16-26AWG.
  • Material:The DB9 breakout connector use white environmental protection rubber core, which is RoHS compliant. The outer casing is made of environmentally friendly PP engineering material, which is durable.
  • Wide Compatibility:The DB9 solderless connector compatible with digital camera, set-top box, barcode machine, PLC, PDA, MODEM, tax control machine and more.

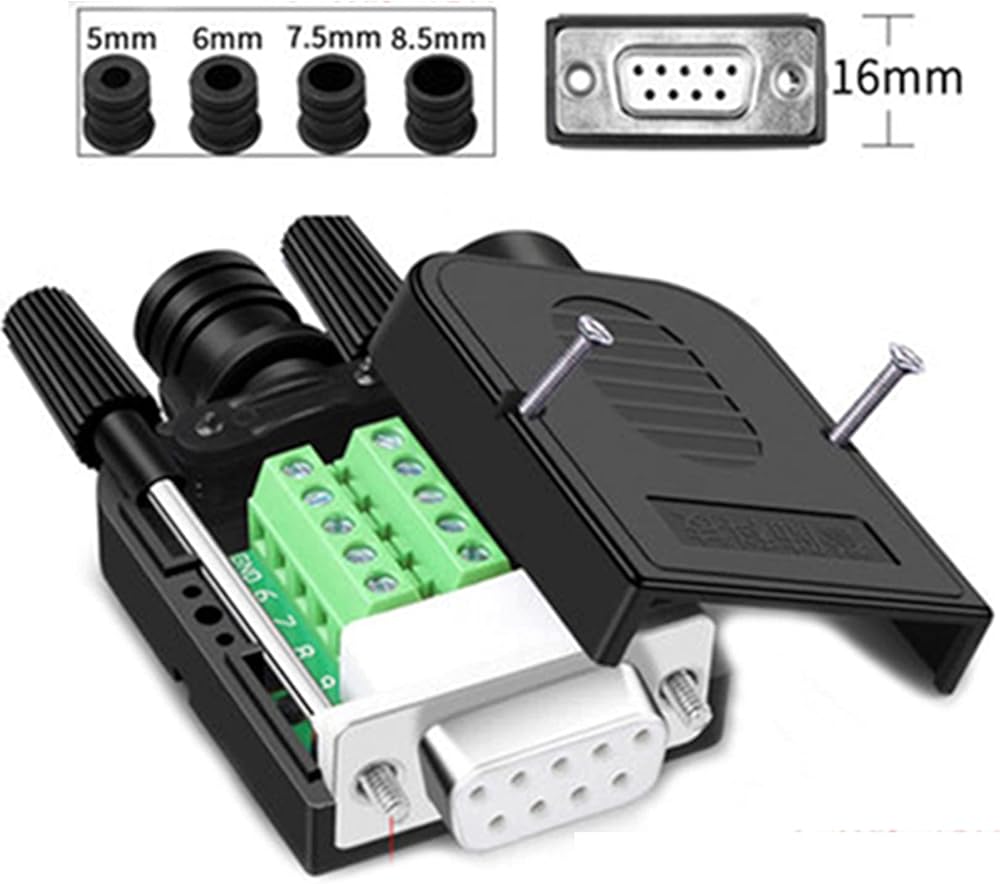

  • Package include:2Pcs db9 breakout connector with 4 size adapter( 0.19' 0.23" 0.29" 0.33" ).

Description

Feature:
Shell type: screw fix
Thickness: 16mm/0.62inch
Name: DB9 solderless module
Connector material: pure copper plated joint
Size : 49 x 34 x 16mm/1.92" x 1.33" x 0.62"(L*W*H)
Cable Hole Dia.:0.19' 0.23" 0.29" 0.33"
Housing material: environmentally PP engineering materials
Copper core gold plated joint, durable, pluggable, good contact, copper-plated copper terminal, good transmission, allowable current 10A
