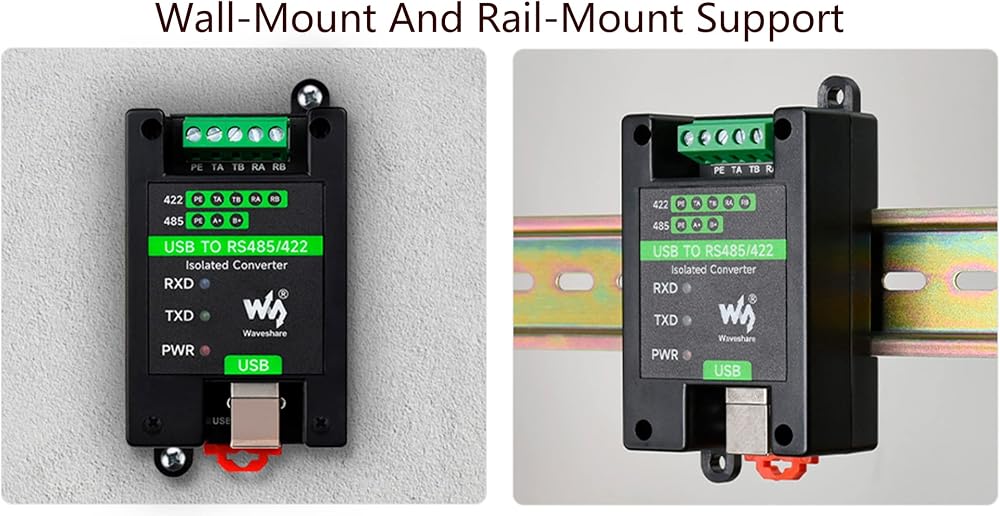

USB to RS485/422 Industrial Grade Isolated Converter, Onboard Original FT232RL and SP485EEN Chip, provids stable communication with built-in galvanic isolation, lightningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement. Support Wall-mount And Rail-Mount.

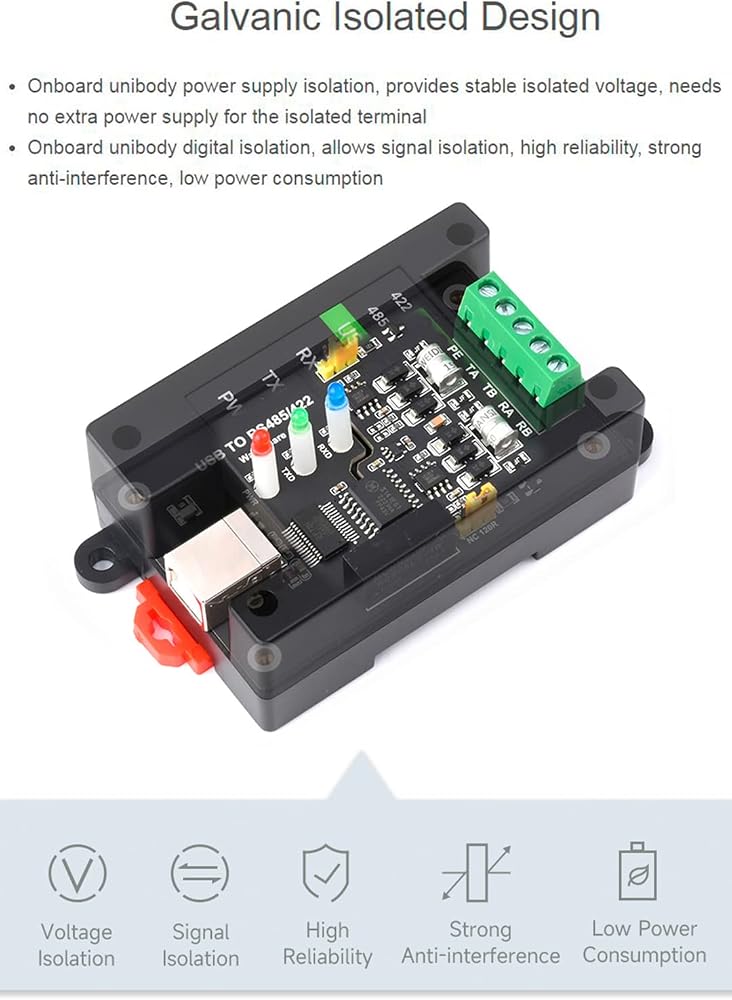

Galvanic isolated Design】 Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.

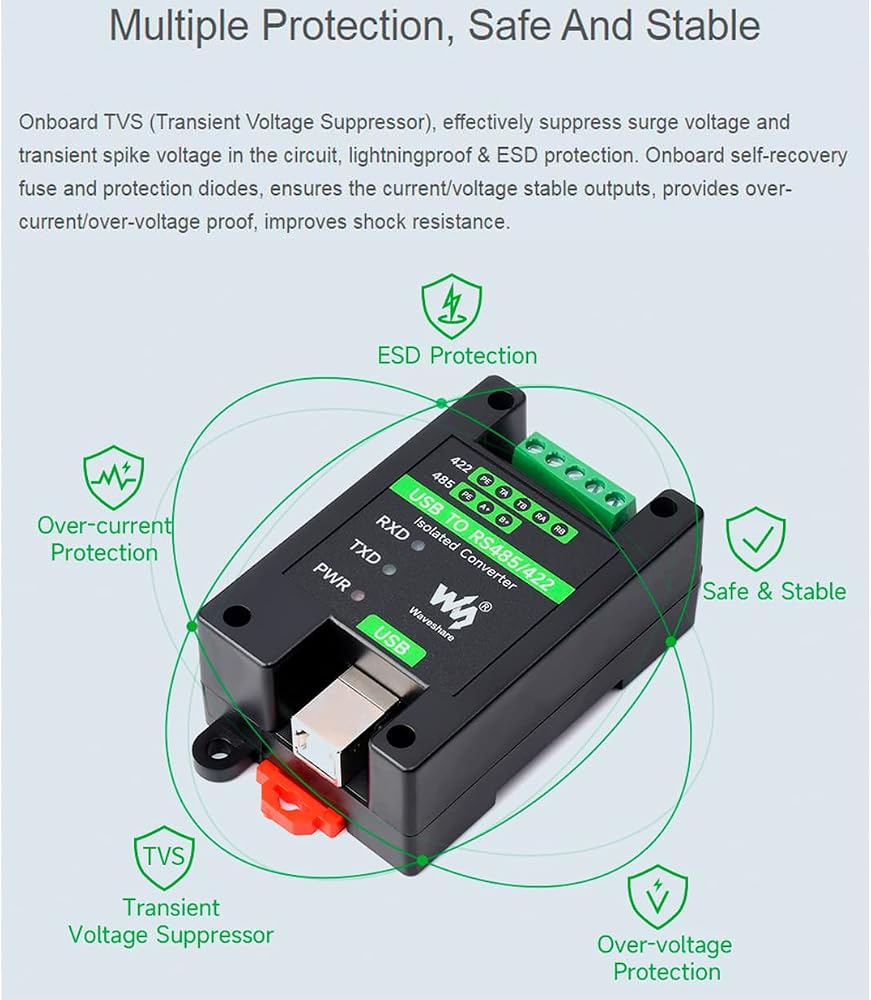

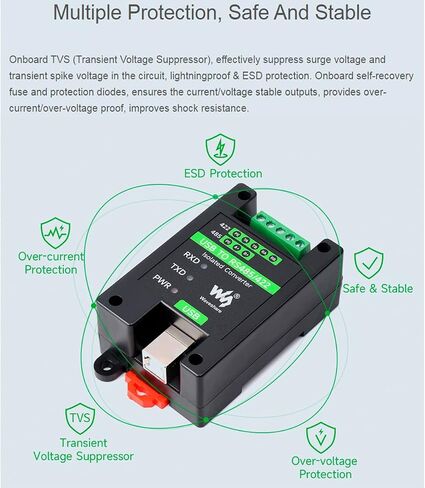

【Multiple Protection, Safe And Stable】 Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes,ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance. Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection.
【Transmission distance up to 1.2km】 The USB signal can be converted into a balanced differential RS485/422 signal and the transmission rate is stable. The transmission distance is about 1.2km for RS485/422, and about 5 meters for USB.
【Multi system Support】 Supports Mac, Linux, Android, WinCE, Win11/10/8.1/8/7/XP, etc. Onboard 120R terminal resistor on the RS485/RS422 ports, enable by default, configurable by jumper. 3 LEDs for indicating the power and transceiver status.

وصف

Introduction

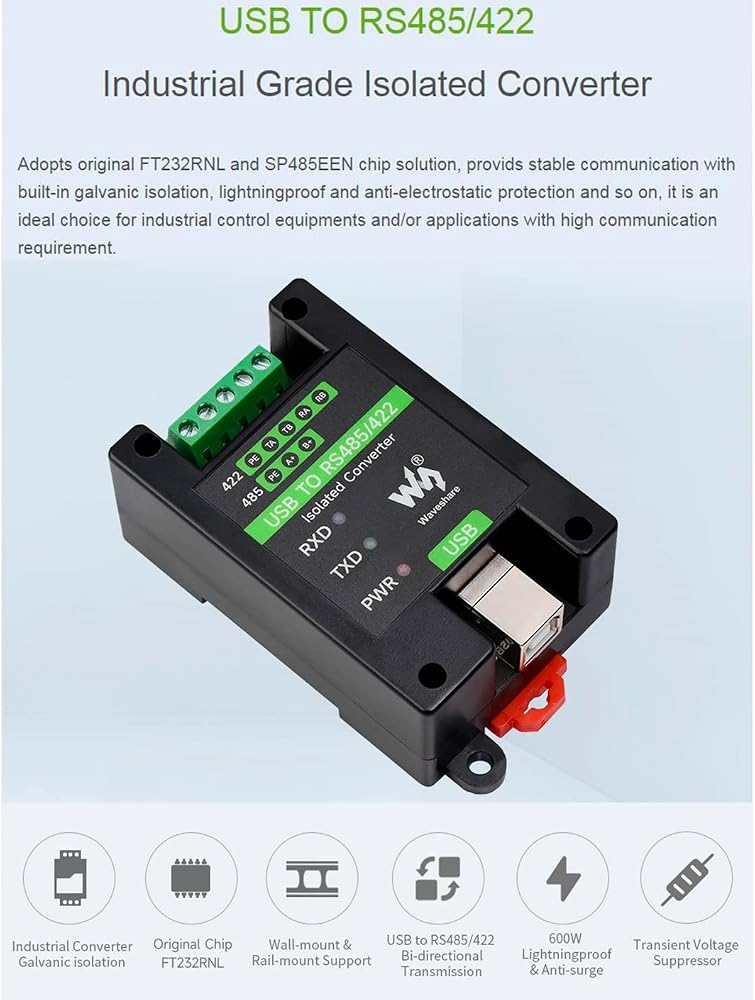

USB TO RS485/422, an industrial-grade USB to RS485/422 isolated converter, adopts the original FT232RNL, an industrial rail case design, built-in protection circuits such as power isolation, ADI magnetic coupling isolation, and TVS. USB TO RS485/422 is easy to operate, and can automatically transmit and receive without delay. It features fast communication speed, stability, reliability, and safety, which can be applied to various industrial control devices or applications with high communication requirements.

Specification Model : Industrial grade isolated USB to RS485/422 converter Baud Rate: FT232RNL : 300bps ~ 3Mbps Host Port: USB Device Port: RS485/422
USB
Operating voltage: 5V
Connector : USB-B
Protection : 200mA self-recovery fuse, ESD protection
Transmission distance: About 5m

RS485/422
Connector : Screw terminal
Pins : A+, B-, PE
Direction control : Hardware automatic control
Protection : 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance : About 1.2km(low rate)
Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

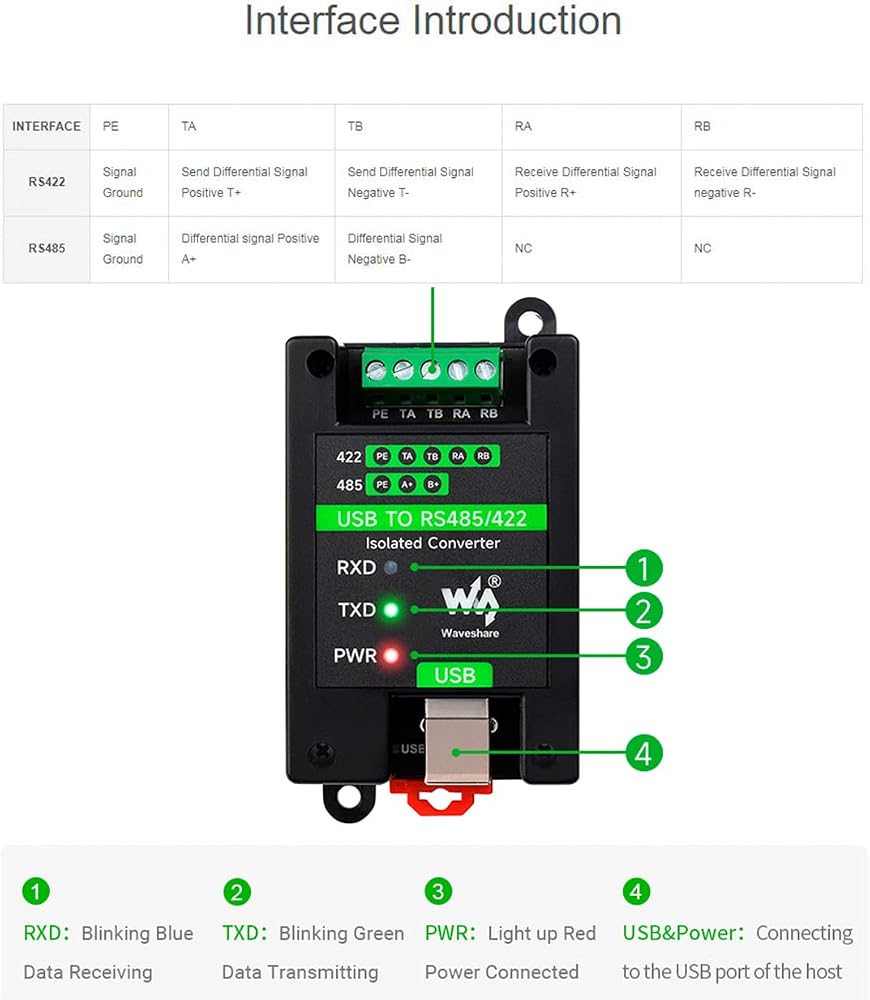

LED indicators
PWR : Red power indicator, light up when there is USB connection and voltage is detected
TXD : Green TX indicator, light up when the USB port sends data
RXD :Blue RX indicator, light up when the device ports send data back

Operating environment
Temperature : -15℃ ~ 70℃
Humidity: 5%RH ~ 95%RH

Appearance
Enclosure: Rail-mount ABS case, suitable for 35mm DIN rail

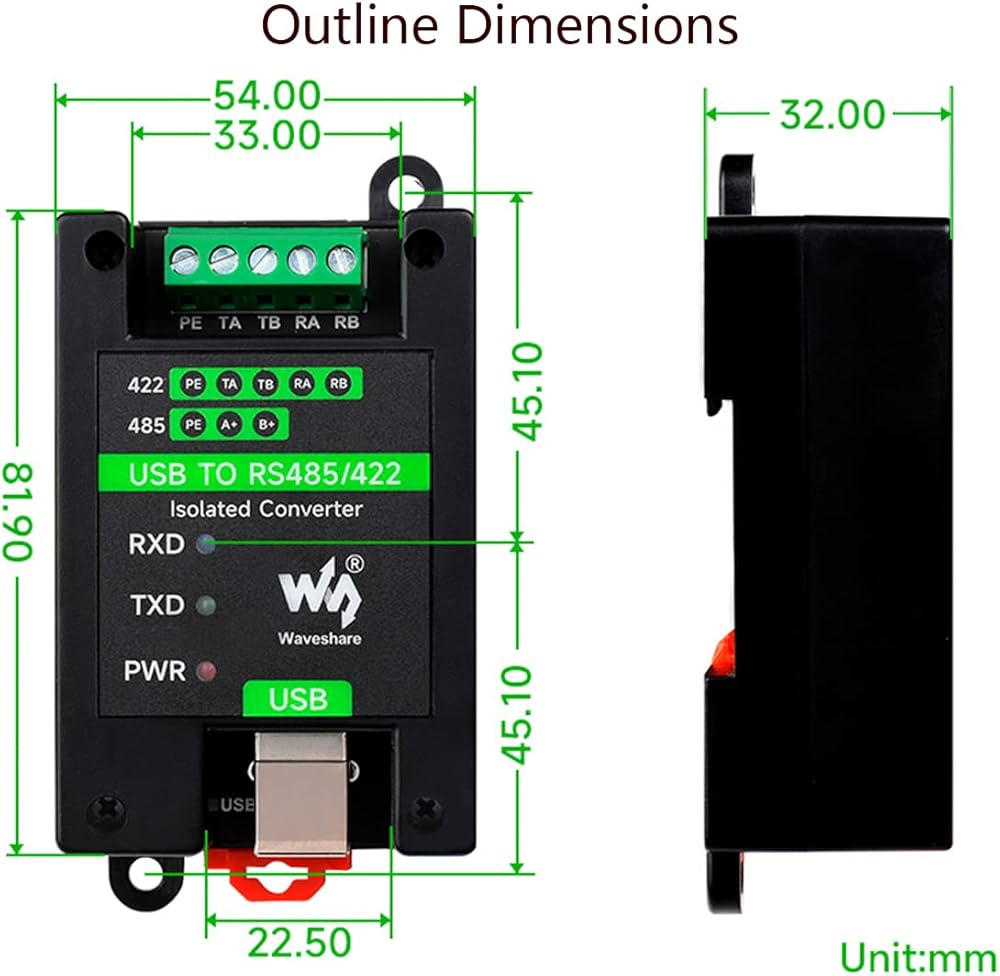

Dimensions :81.9 × 54.0 × 32.0mm

Operating system : Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP

Online Document: n9.cl/86gup

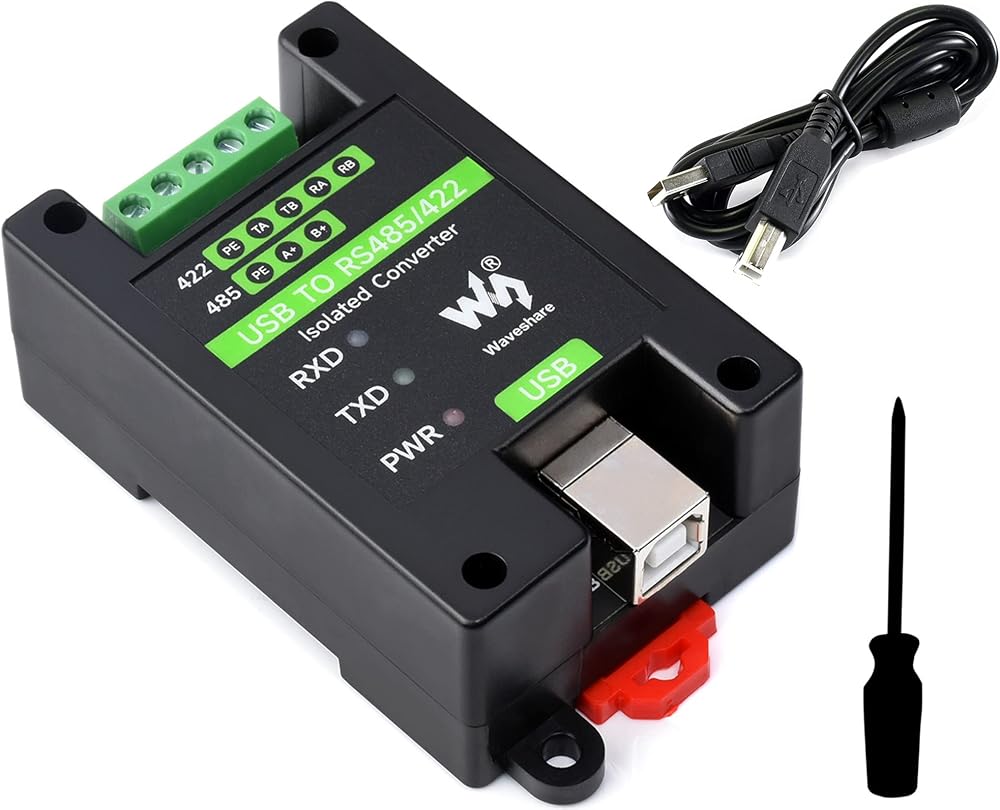

PACKAGE CONTENT

USB TO RS485/422 x1
USB-A male to USB-B male cable ~1.2m x1
Screwdriver x1
