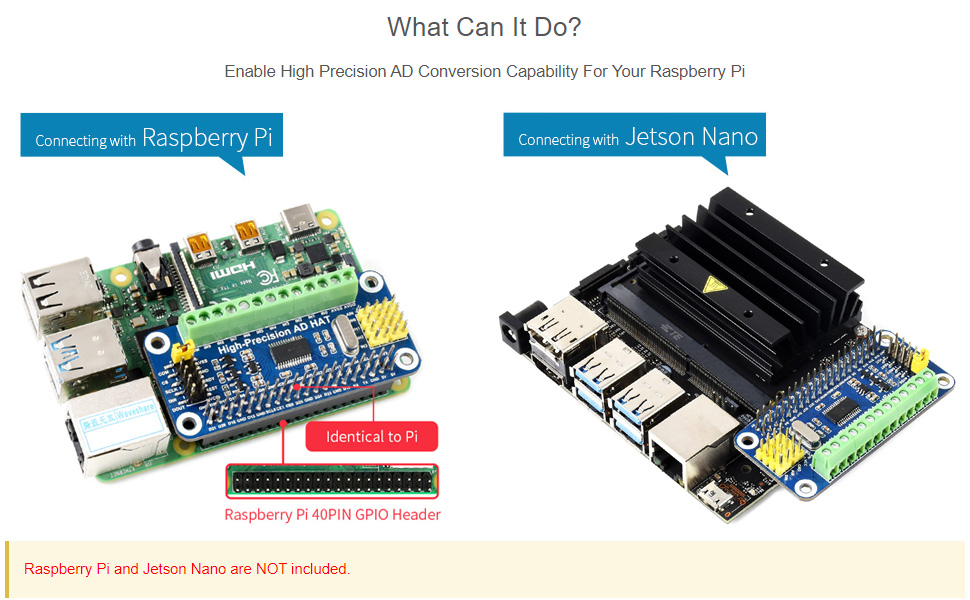

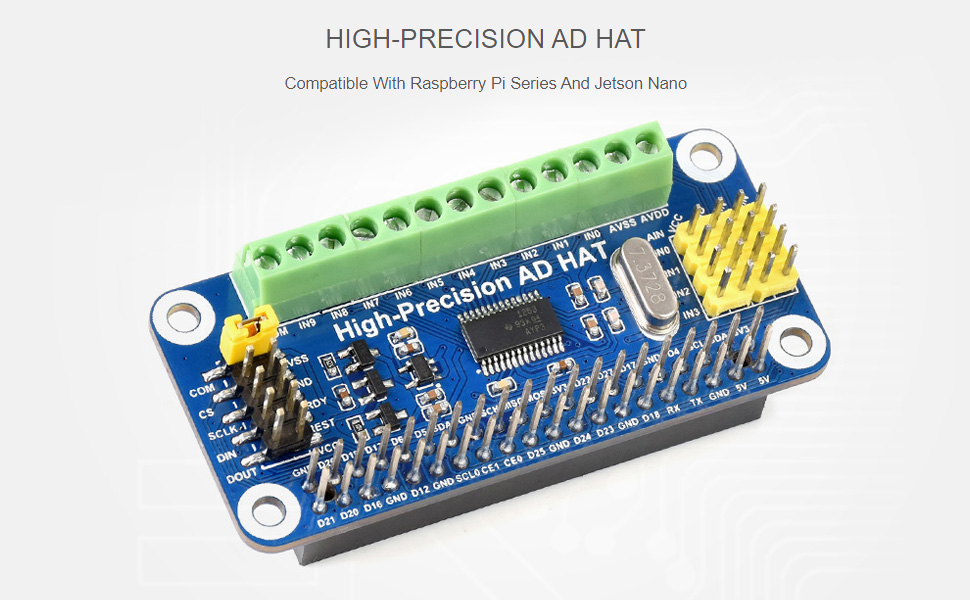

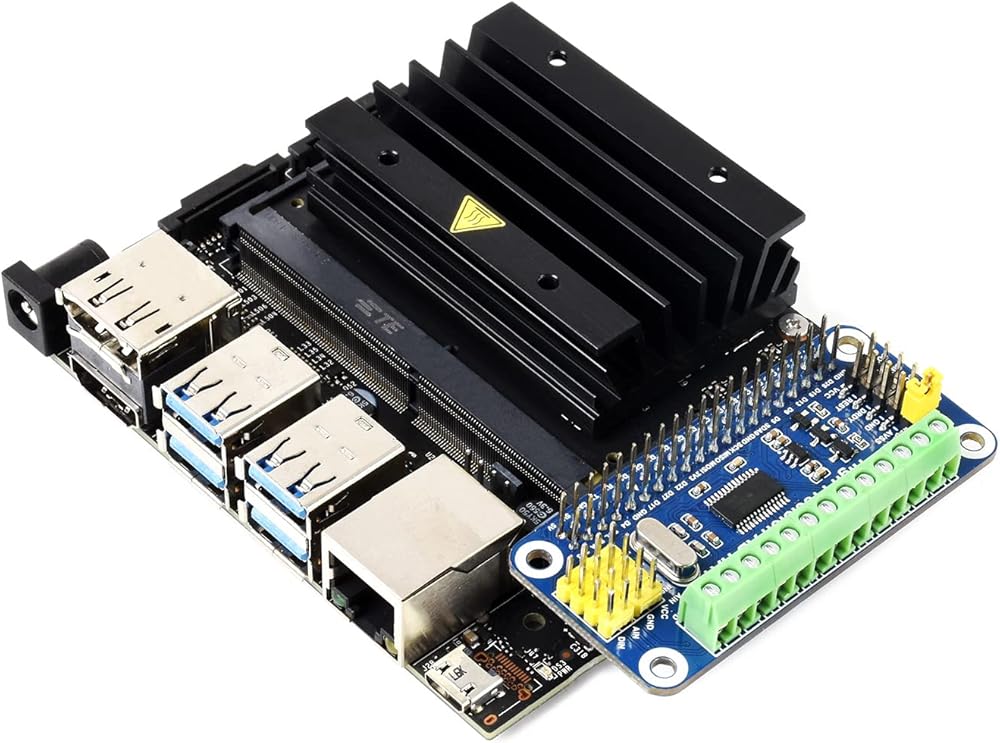

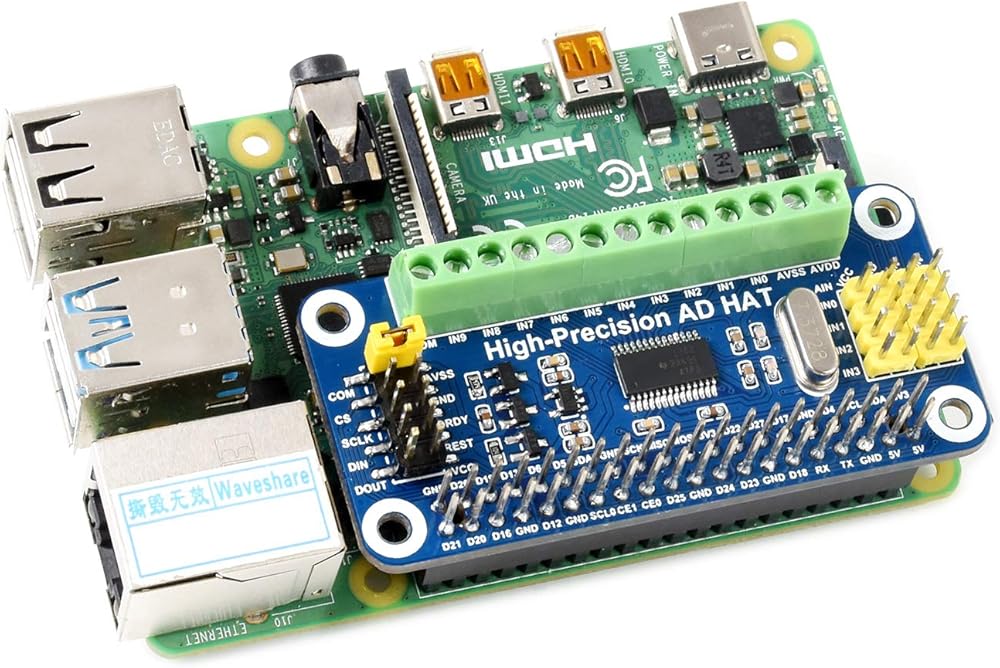

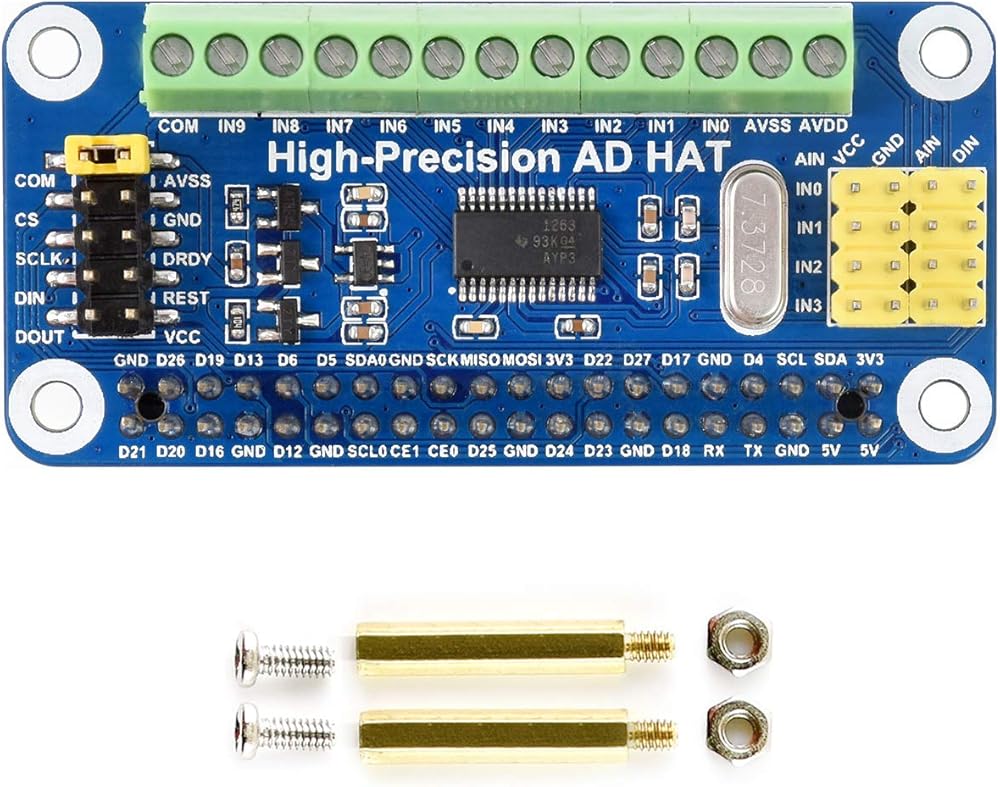

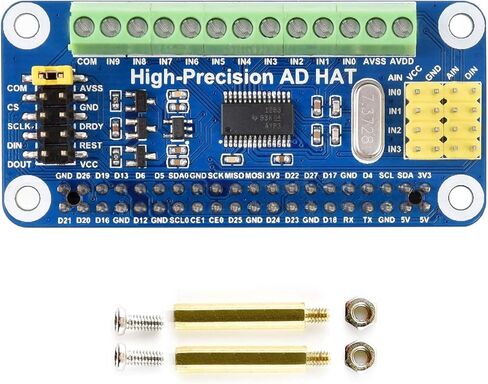

Waveshare High-Precision AD HAT, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH and Jetson Nano, ADS1263 10-ch 32-bit ADC

SAR 261
Brand
waveshare
Weight
10 g
ColorHigh-Precision AD HAT
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

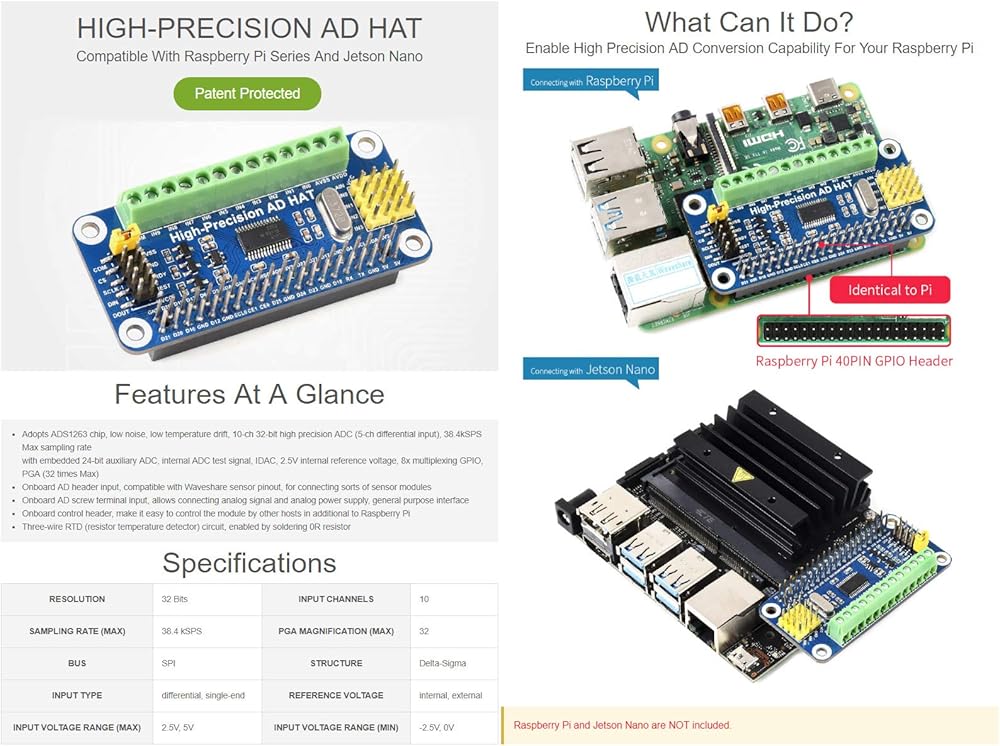

Special Features

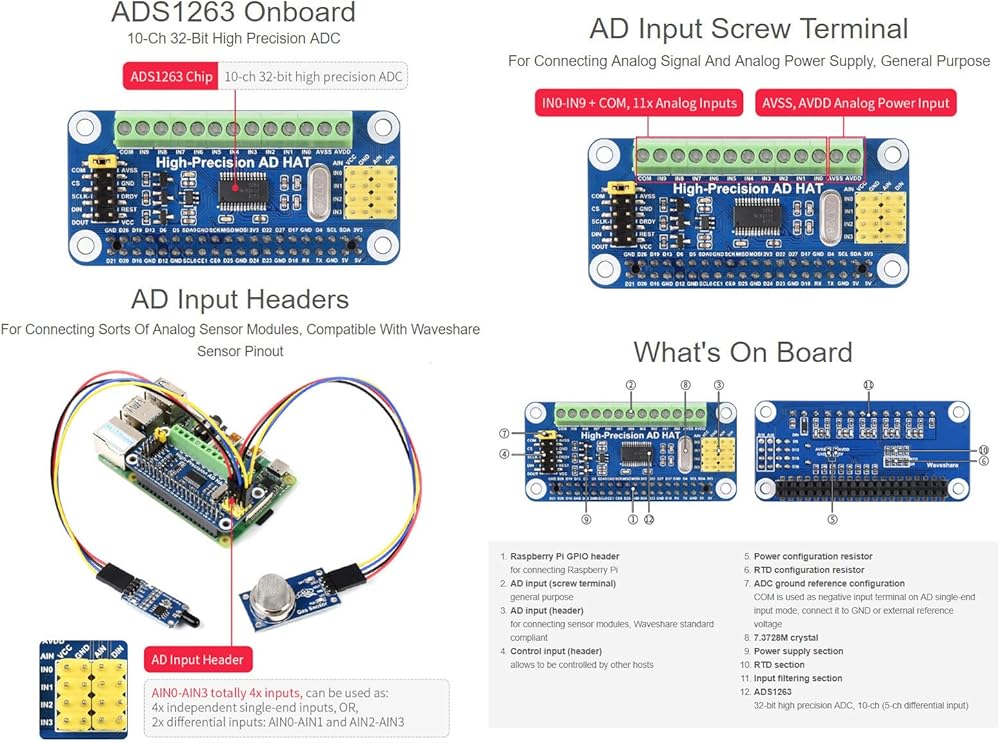

  • Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)
  • Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules
  • Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface
  • Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi
  • Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
