Model: RBmAP2nD

Mikrotik Wireless Dual-Chain 2.4GHz Micro Access Point

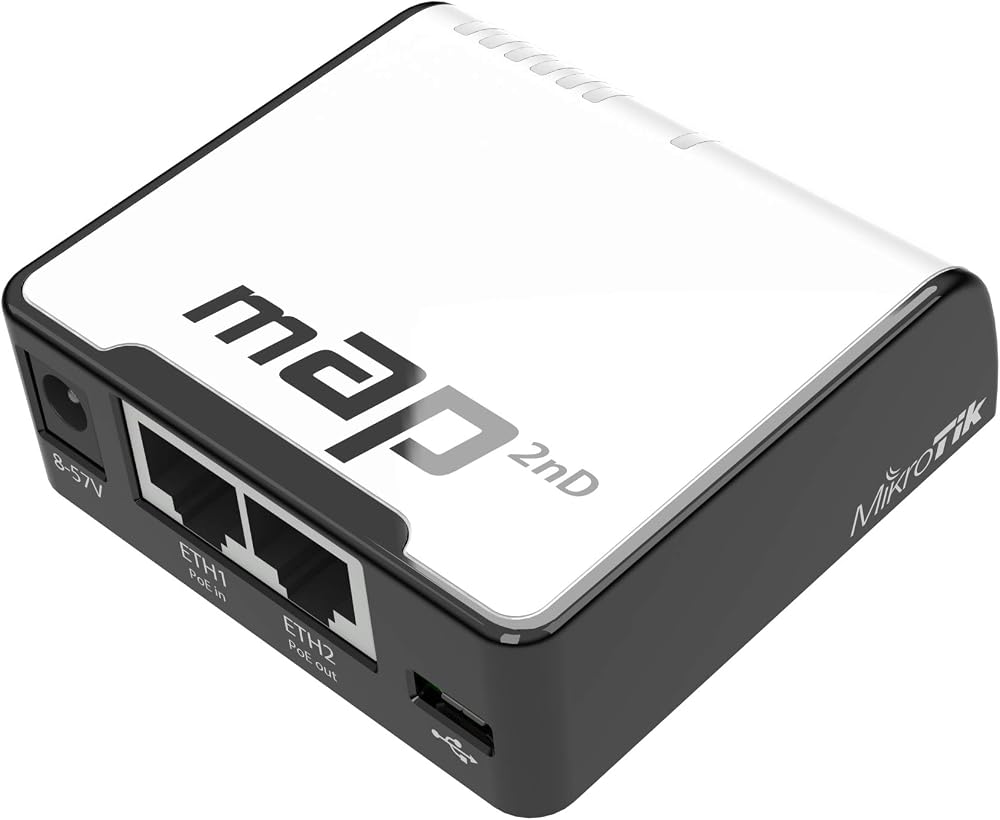

The mAP (micro Access Point) also known as RBmAP2nD is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

Technical Description
Architecture    MIPSBE
CPU    QCA9531
CPU core count    1
CPU nominal frequency    650 MHz
Dimensions    68x68x19mm
License level    4
Operating System    RouterOS
Size of RAM    64 MB
Storage size    16 MB
Storage type    FLASH
Tested ambient temperature    -20°C to 70°C
MicroUSB input Voltage    5-5 V
PoE in    802.3af/at
PoE in input Voltage    12-57 V
PoE out    Passive PoE
PoE-out ports    Ether2
Number of DC inputs    3 (PoE-IN, DC jack, MicroUSB)
DC jack input Voltage    8-57 V
Max out per port output (input Max total out (A)    0.5 A
Max power consumption    5 W
Wireless 2.4 GHz Max data rate    300 Mbit/s
Wireless 2.4 GHz number of chains    2
Wireless 2.4 GHz standards    802.11b/g/n
Antenna gain dBi for 2.4 GHz    1.2
Wireless 2.4 GHz chip model    QCA9531
Wireless 2.4 GHz generation    Wi-Fi 4
10/100 Ethernet ports     2
Number of USB ports    1
USB Power Reset    Yes
USB slot type    microUSB type AB
Max USB current (A)    1
PCB temperature monitor    Yes
Voltage Monitor    Yes
