Note: Do not support HDMI in, Cable trace and Video level meter After receiving the product,you need to open the back battery cover and take out the insulation sheet first,then you can use the lithium battery normally.

Features:

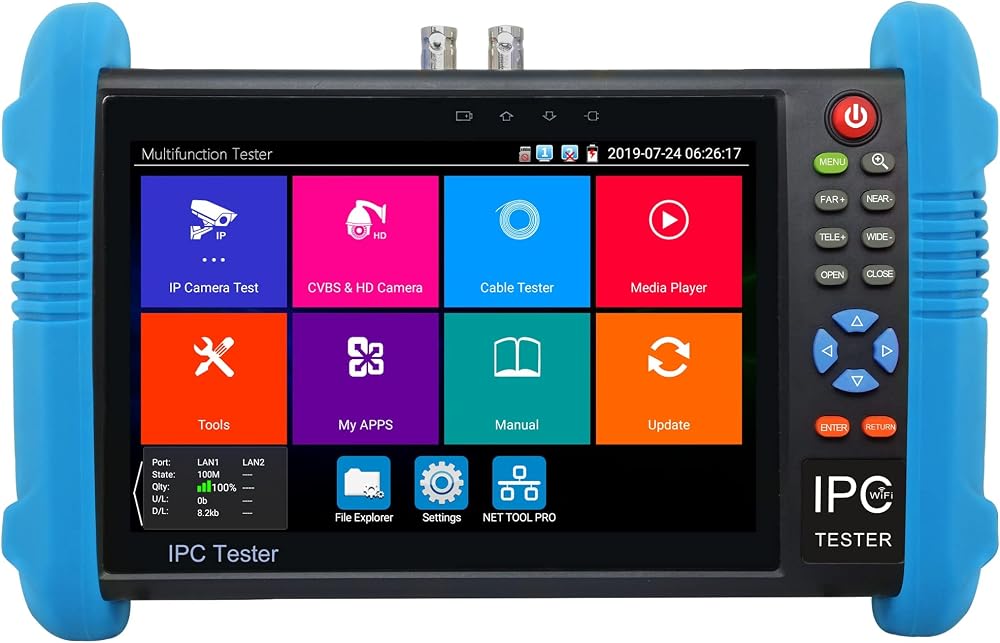

IP & CVBS camera test ,PTZ controller
Rapid video, just by one key to detect all network cameras and auto display
RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
HDMI signal output, support 1080p display image, record and snapshot
CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters
Customers self update software, you can install apps with android versions, such as Skype, wechat etc
4K video files and MKV/MP4 media files play
8GB SD card including
IP camera test, support 2592*1520, Network PTZ controller
PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank
IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester's IP address
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
POE voltage measurement, PING test, IP address scan, port flashing etc
Shortcut button, drop-down menu, can select PoE power, IP setting, WLAN switch, HDMI out functions etc in any interface
Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools
7.4V/5000mAh Lithium Ion Polymer Battery, after 6-7 hours charging, working time lasts 10 hours
