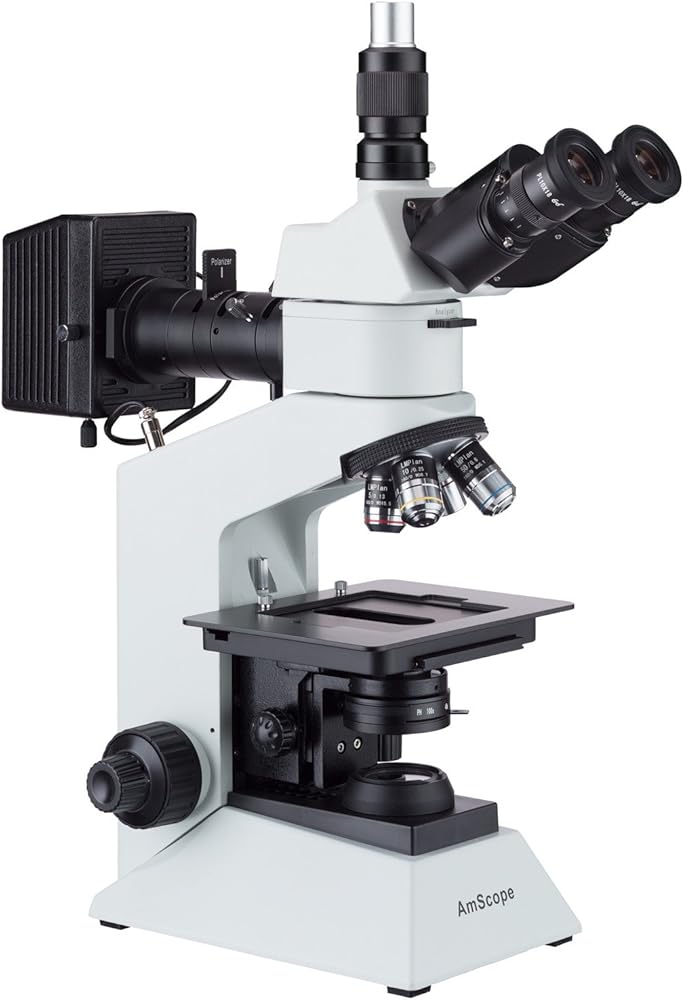

This is a feature-packed, economical metallurgical microscope with an upright design, and both trasmitted and incident illumination. The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction. With 10X and 16X eyepieces, twelve magnification settings are provided: six metallurgical (50X, 80X, 100X, 160X, 500X & 800X), and six bright-field (40X, 64X, 100X, 160X, 400X & 640X). The Siedentopf head with dual diopters and high-eyepoint eyepieces provides a comfortable and adjustable viewing platform. There is also a dedicated photo port for simultaneous viewing and imaging.
The 18MP digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
Features:
An advanced metallurgical microscopy system with incident and transmitted illumination
Polarized lighting for structural analysis
Includes a range of filters for lighting manipulation
Six metallurgical magnification settings: 50X, 80X, 100X, 160X, 500X & 800X
Six bright-field magnification settings: 40X, 64X, 100X, 160X, 400X & 640X

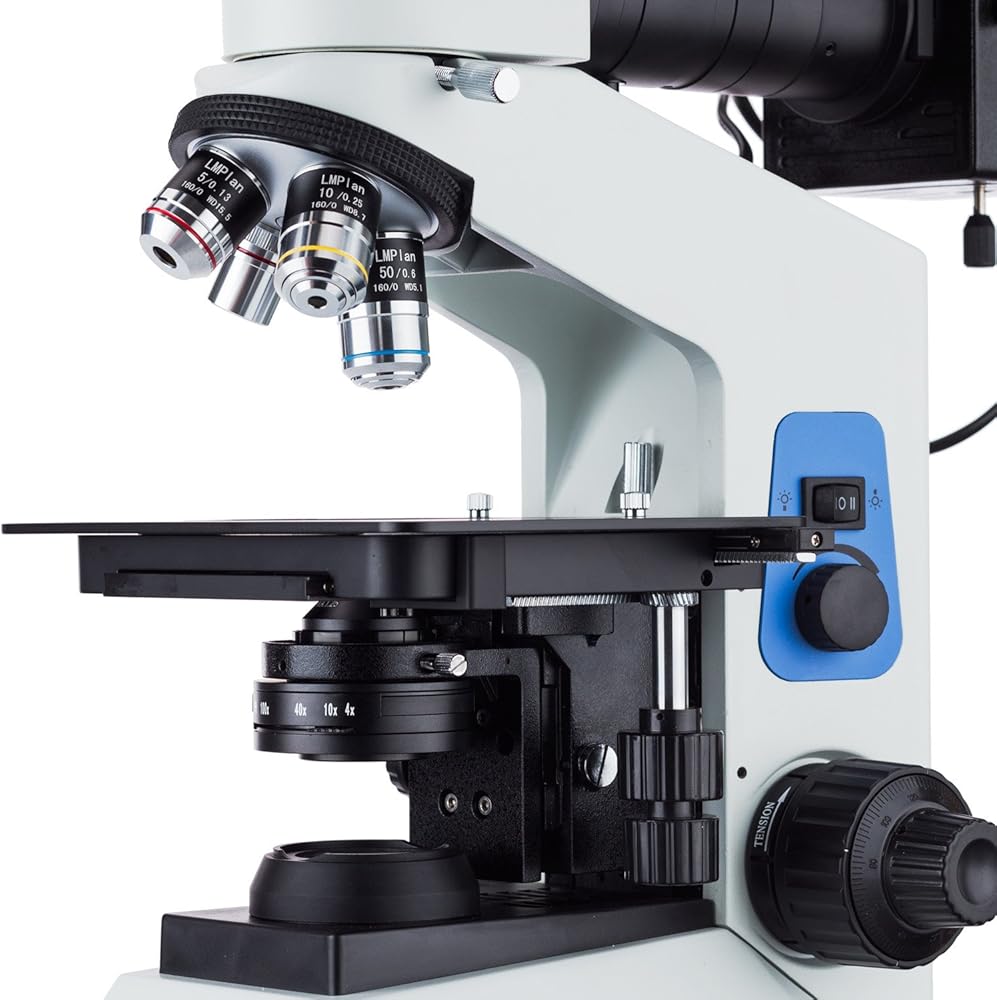

5X, 10X, and 50X long-working-distance metallurgy plan achromat objectives
4X, 10X, 40X achromat objectives
10X plan eyepieces for flat-field viewing
16X wide-field eyepieces for higher magnification
Co-axial coarse & fine focusing system

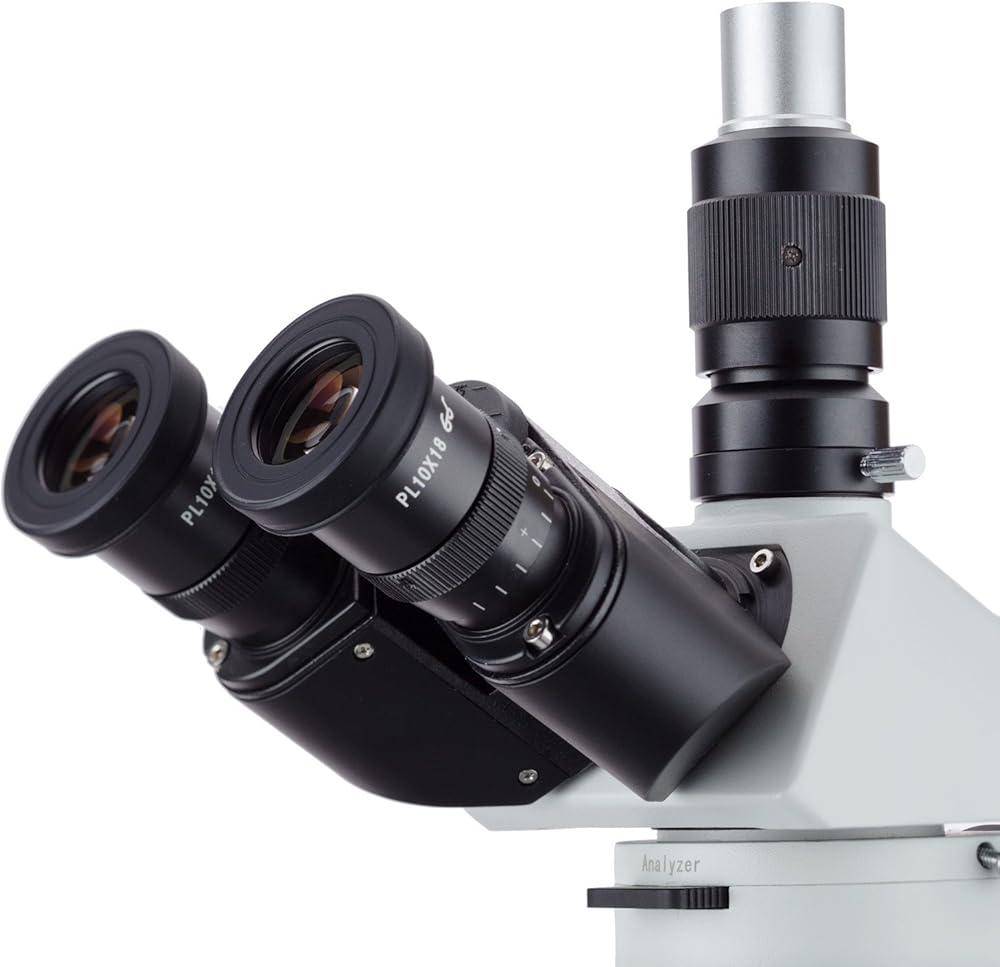

30 degree inclined 360 degree rotatable trinocular head
Full optical glass elements
Precise ground glass lens
All metal mechanical parts
Coaxial coarse and fine focusing
Dual focusing control knobs
Focusing tension control mechanism
Adjustable interpupillary distance
Adjustable diopters on both eye tubes
Solid metal frame construction with stain resistant enamel finish
Manufactured under ISO 9001 quality control standards
Excellent five (5) year factory warranty
Specifications:
Head: 30 degree inclined trinocular
Eyepieces: High-eyepoint WF10X/18
Interpupillary Adjustment: Siedentopf
Nosepiece: forward quadruple RMS thread
Tube length: 160mm
Metallurgical Objectives: 5X/0.13, 10X/0.25, 50X/0.6 long-working-distance plan achromatic DIN
Bright-field Objectives: 4X/0.1, 10X/0.25, 40X/0.65 achromatic DIN
Polarization System: removable analyzer/polarizer filters for episcopic lighting with +/- 25° adjustment
Focus System: coaxial coarse/fine focus
Focus Travel Range: 28mm
Fine-focus Precision: 0.002mm
Stage: 140x132mm double layer mechanical stage
Stage X-Y Movement: 75x50mm
Illumination: 30W reflected, 20W transmitted
Metallurgical Objective Lenses Magnification Corrections NA Working Distance Cover-glass Thickness 5X Plan-achromatic 0.13 15.5mm 0 10X Plan-achromatic 0.25 8.7mm 0 50X Plan-achromatic 0.60 5.1mm 0 Biological Objective Lenses Magnification Corrections NA Cover-glass Thickness 4X Achromatic 0.10 — 10X Achromatic 0.25 0.17 40X Achromatic 0.60 0.17
Camera Specifications:
Sensor: Aptina (color)
Sensor Type: CMOS
Sensor Size: 6.14x4.61mm
Pixel Size: 1.25
Resolution: 18.0MP
Frame Rate: 32.2fps @ 1228x922, 18.1fps @ 2456x1842, 5.6fps @ 4912x3684
Sensitivity: 0.62 V/lux-sec
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Software Specifications:
OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed

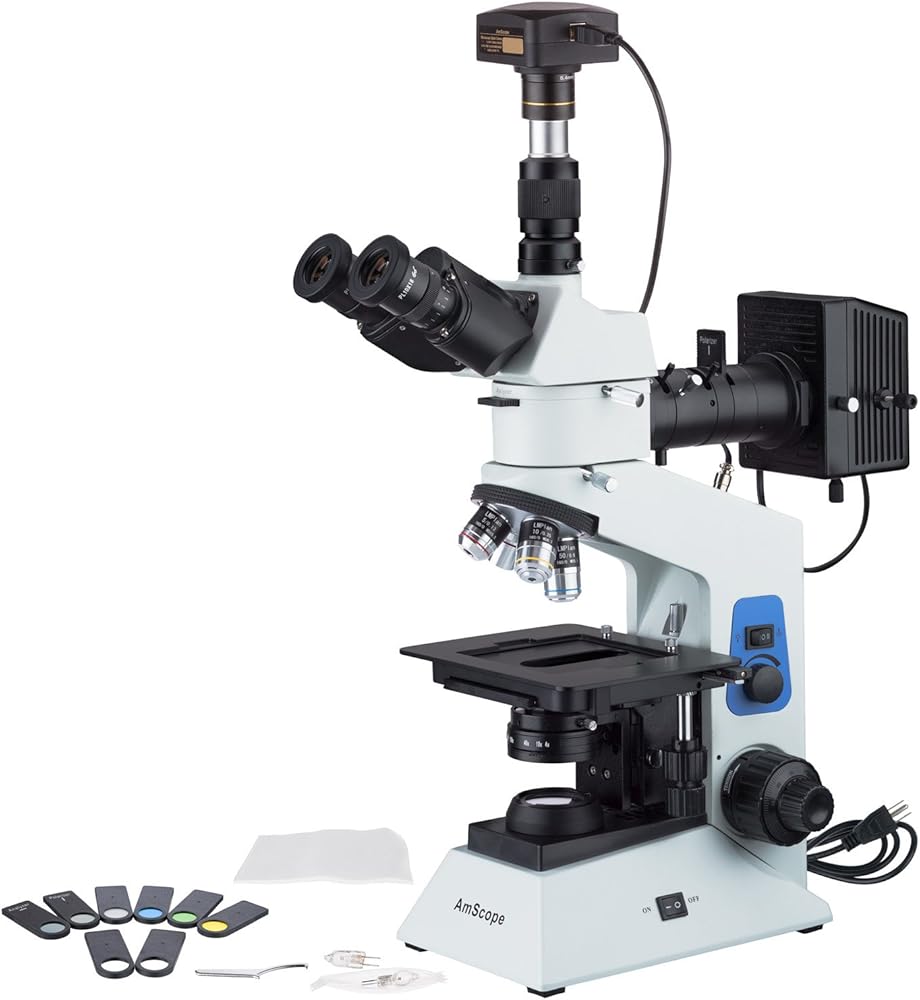

Packing List :
One ME580-2L microscope with trinocular Siedentopf head
One photo tube
Three LM Plan achromatic objectives (5X, 10X, 50X)
Three achromatic objectives (4X, 10X, 40X)
One pair of PL10X18 eyepieces
One Pair of WF16X eyepieces
One sub-stage condenser
One Halogen episcopic illuminator module
One 6V 30W G4 halogen bulb
One 6V 20W G4 halogen bulb
Six filters (polarizer, analyzer, green, blue, yellow, diffuser
One AC cord
One pack of lens tissues
One dust cover
One tension wrench
One 18MP USB3.0 digital camera
One reduction lens
Two camera mounting adapters
One USB cable
One software CD
