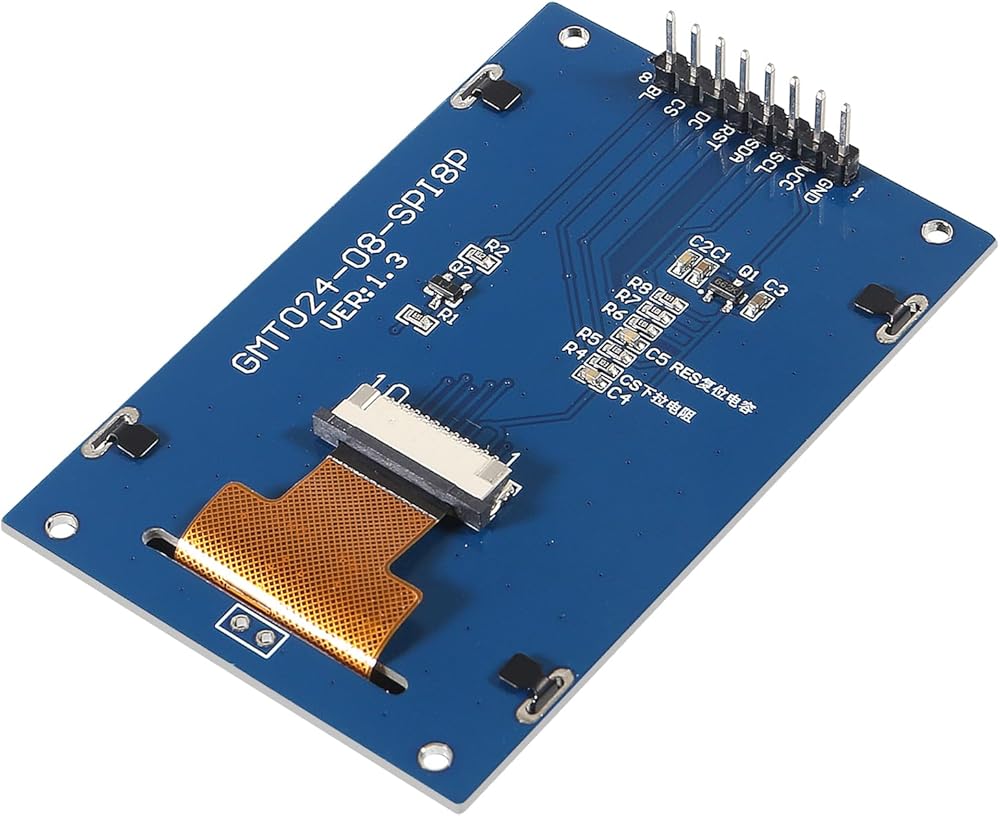

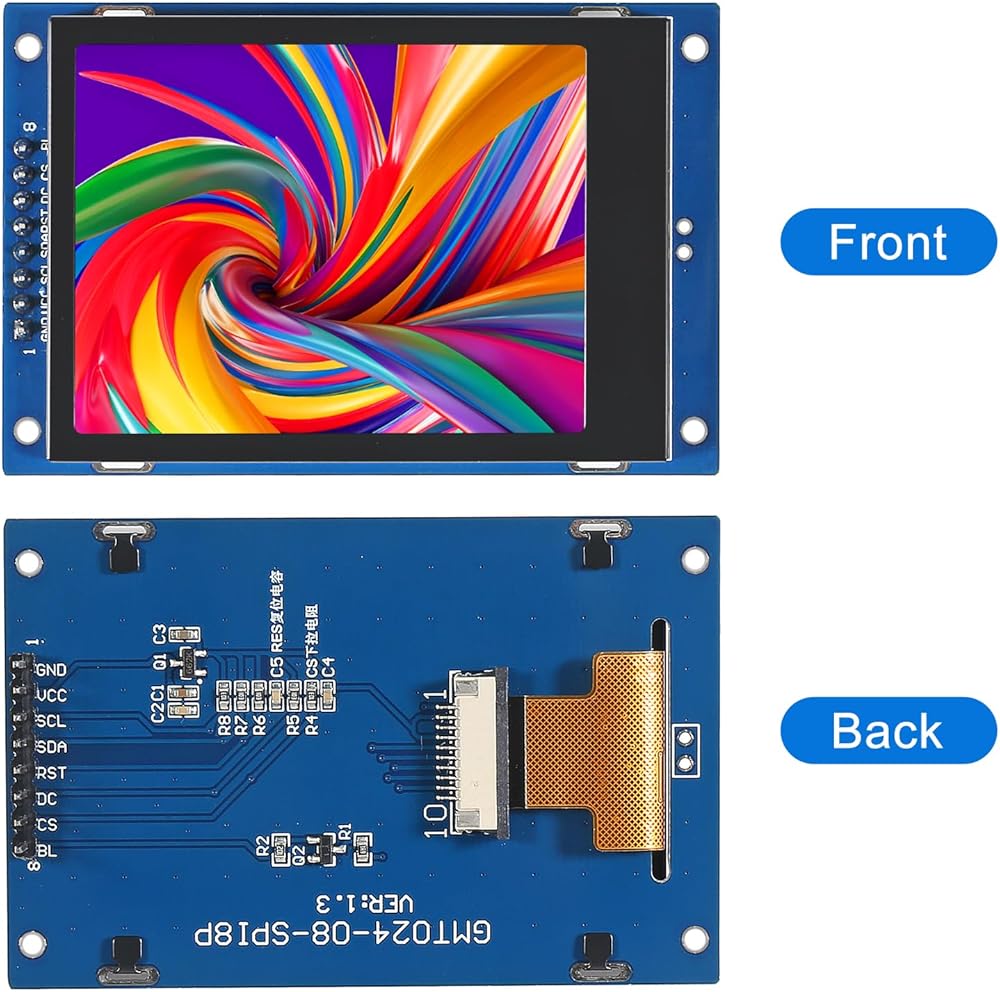

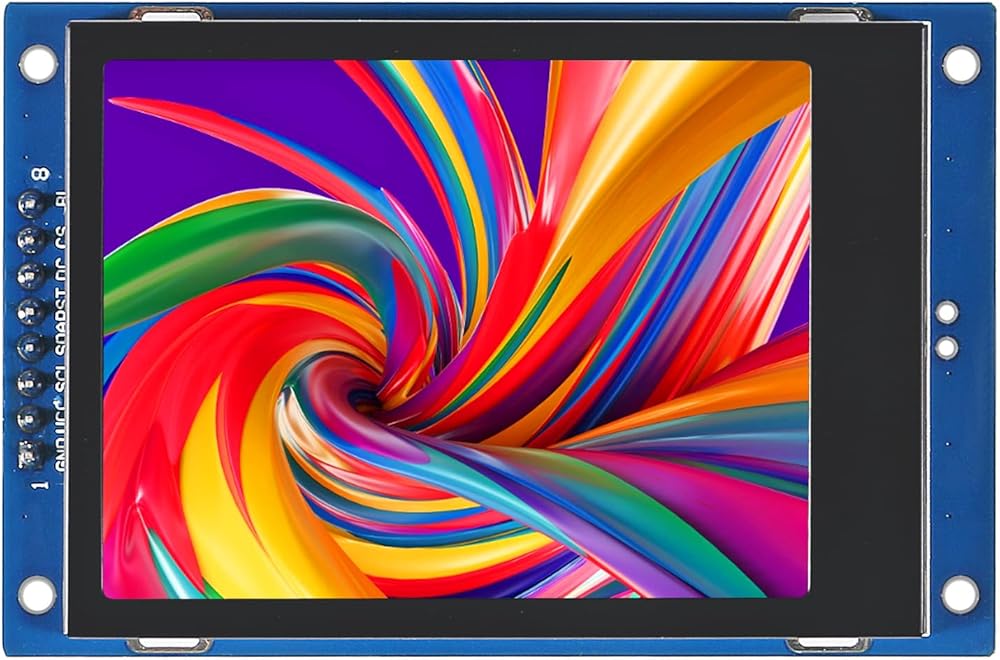

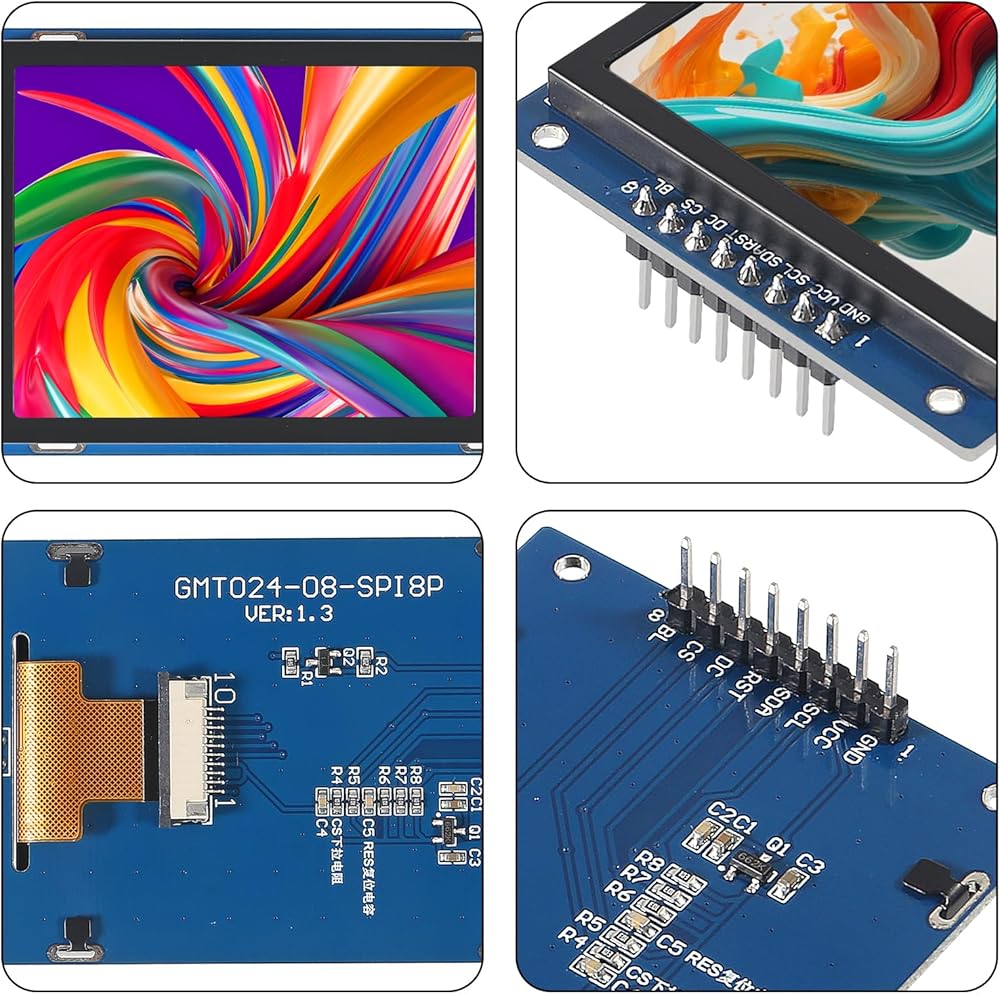

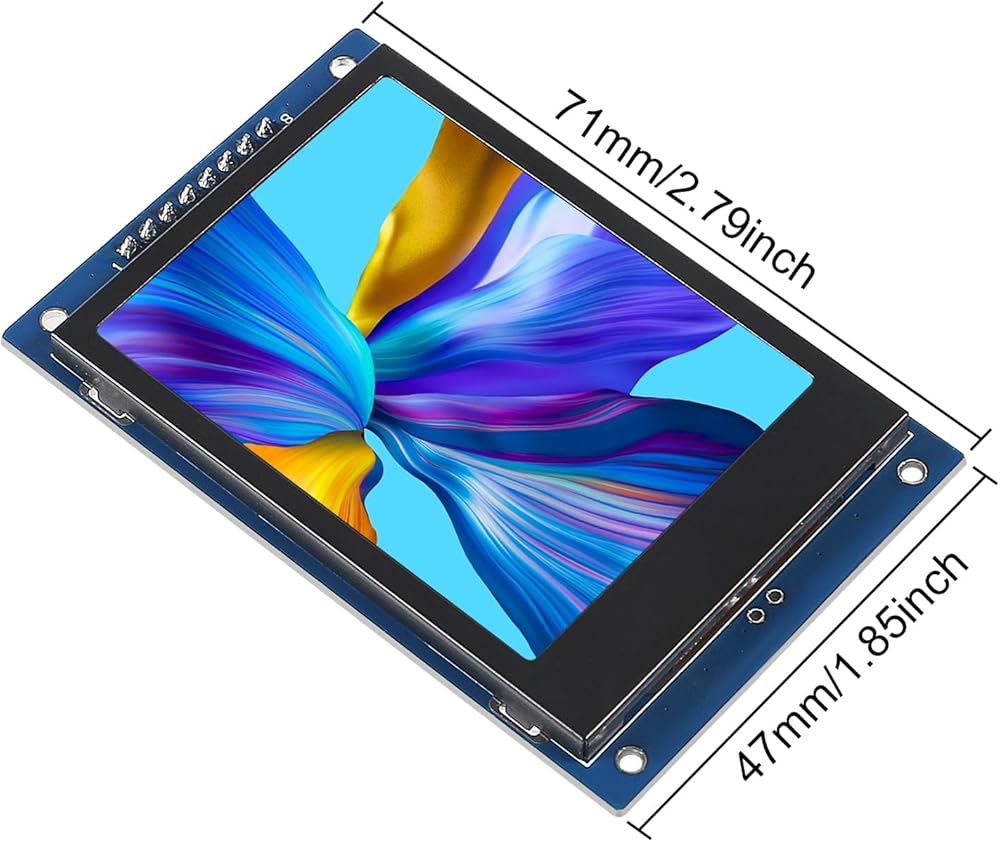

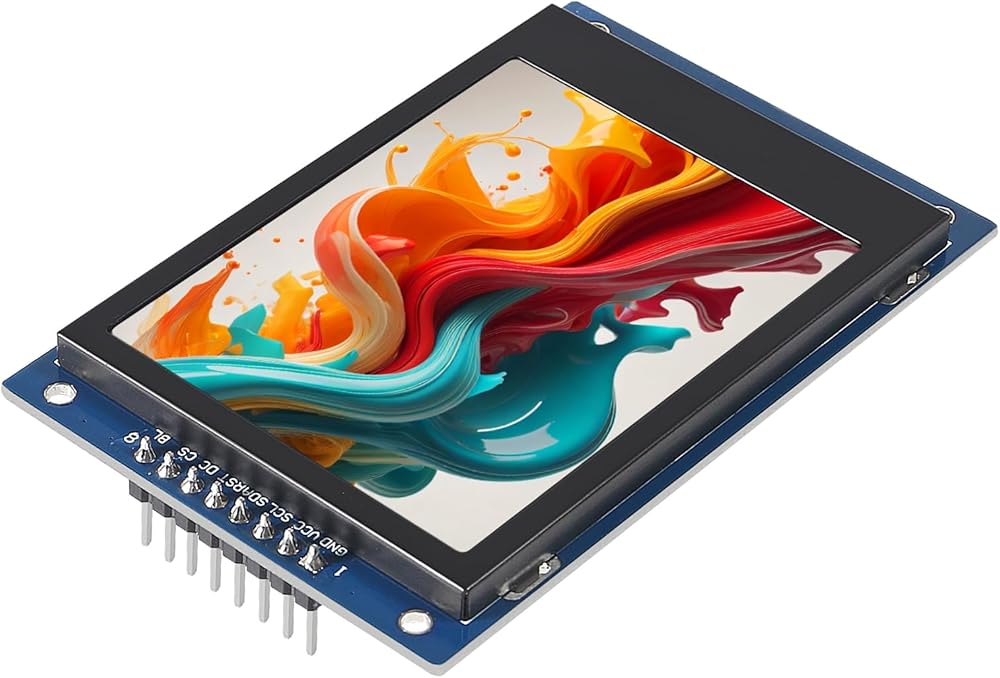

2.4inch LCD Display Module 240×320 Resolution RGB Colors LCD Monitor 2.4" TFT Screen SPI Interface Board

SAR 58
Brand
Shutao
Weight
40 g
ColorMulticoloured
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 2.4" LCD display module 240×320 resolution, RGB colors, clear and colorful displaying effect
  • 2.4 inch LCD display panel : TFT ; operating voltage : 3.3V
  • SPI interface, minimizes required IO pins, supports controller boards for raspberry pi//STM32
  • 2.4in colors monitor enabling seamless communication via the SPI interface

Description

Resolution: 240 * RGB * 320
Panel type: TFT (IPS)
Polarizer Mode:Transmissive/Positive
LCM working voltage: 2nd pin VCC: 3-5
Screen working voltage: Vdda=Vddio=2 8V Typical
Backlight 4 white LEDs in parallel, Vf=3.0V, If=60mA (15mA/LED)
Working temperature: -20 °C ~ 70 °C
Storage temperature: -30 °C ~ 80 °C
Connection method/drive IC: COG/ST7789V Or Compatible
10P spacing 1.0mm plug connection
Interface: 4-SPI
Angle of view: 12 o'clock angle of view

Package include:
1 x 2.4inch 240x320 SPI TFT LCD module
