CX 7250 switch combines enterprise-class features, manageability and the flexibility and “pay as you grow” scalability of a stackable solution. The switch delivers the performance required for enterprise Gigabit Ethernet (GbE) access deployment. It raises the bar with up to 8×10 GbE ports for uplinks or stacking and market-leading stacking density with up to 12 switches (576×1 GbE) per stack.

ICX 7250 switches also offer an external power supply for failover resiliency, as well as increased PoE/PoE+ port availability. The Ruckus ICX 7250 is easy to deploy, manage, and integrate into both new and existing networks.

Designed for small to medium-size enterprises, branch offices, and distributed campuses, these scalable edge switches deliver enterprise-class functionality at an affordable price—without compromising performance and reliability.

ICX 7250 delivers wire-speed, non-blocking performance across all ports to support latency-sensitive applications, such as real-time voice/video streaming and Virtual Desktop Infrastructure (VDI).

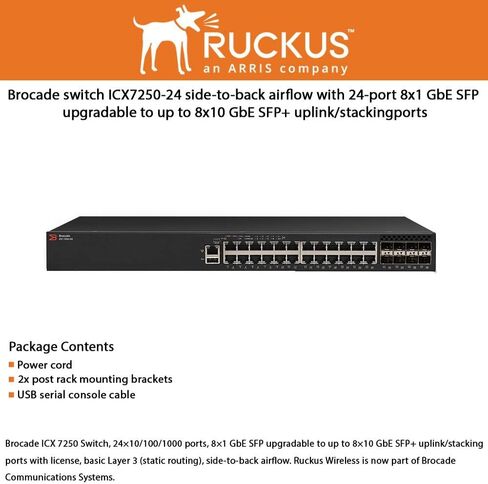

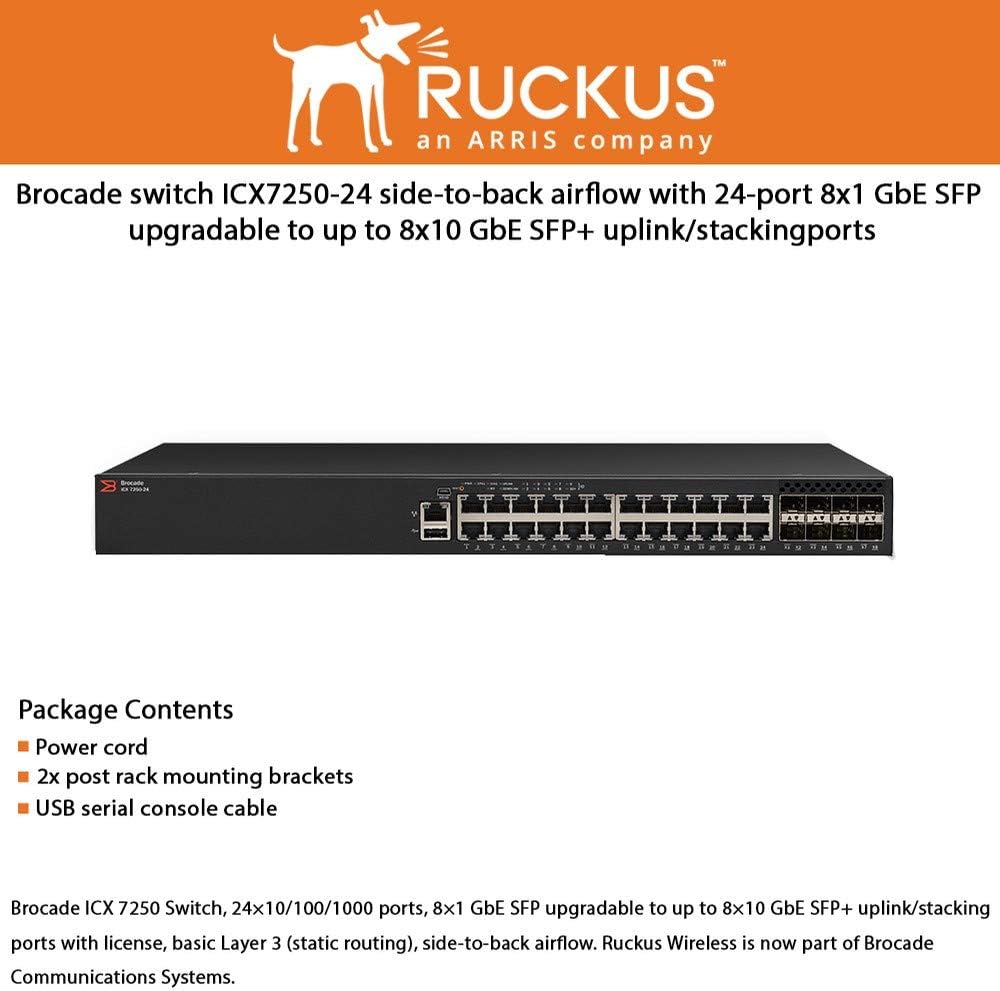

Notes: ICX 7250 switches come with a power cord, two-post rack mounting brackets, and a USB serial console cable. Stacking cables and optics must be ordered separately. Ruckus Wireless is now part of Brocade Communications Systems.

24×10/100/1000 ports
8×1 GbE SFP upgradable to up to 8×10 GbE SFP+ uplink/stackingports with license
Side-to-back airflow
Switching capacity (data rate, full duplex): 208 Gbps
Forwarding capacity (data rate, full duplex): 154 Mpps
Aggregated stacking bandwidth: 480 Gbps
Stacking density (maximum switches in a stack): 12
