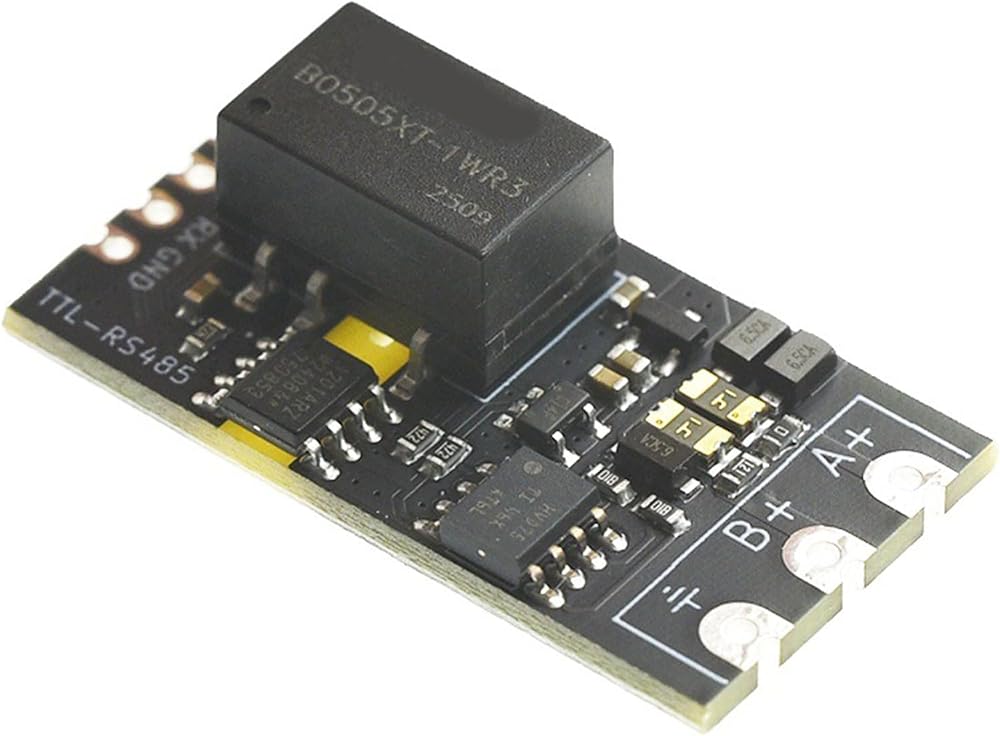

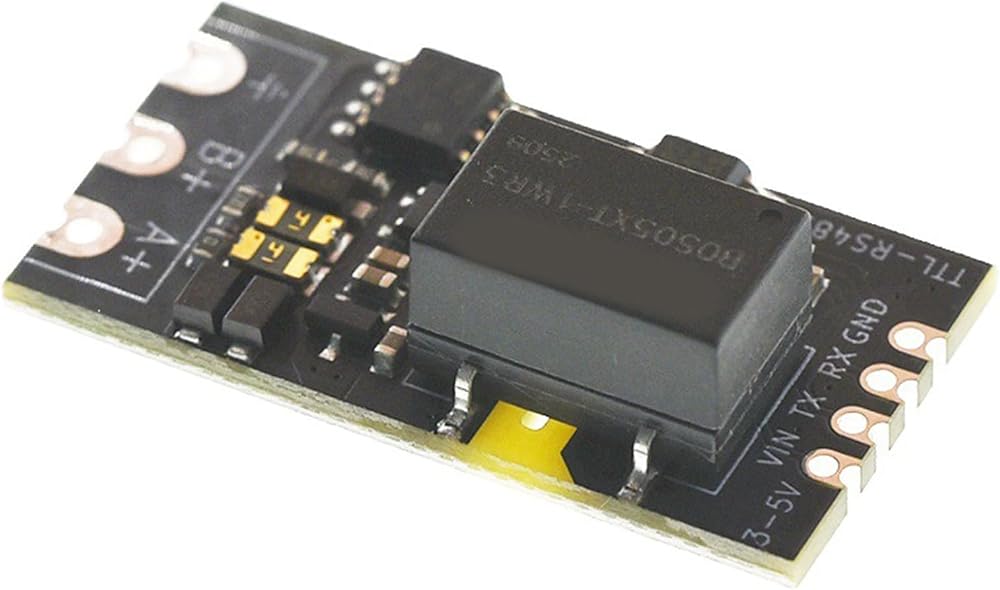

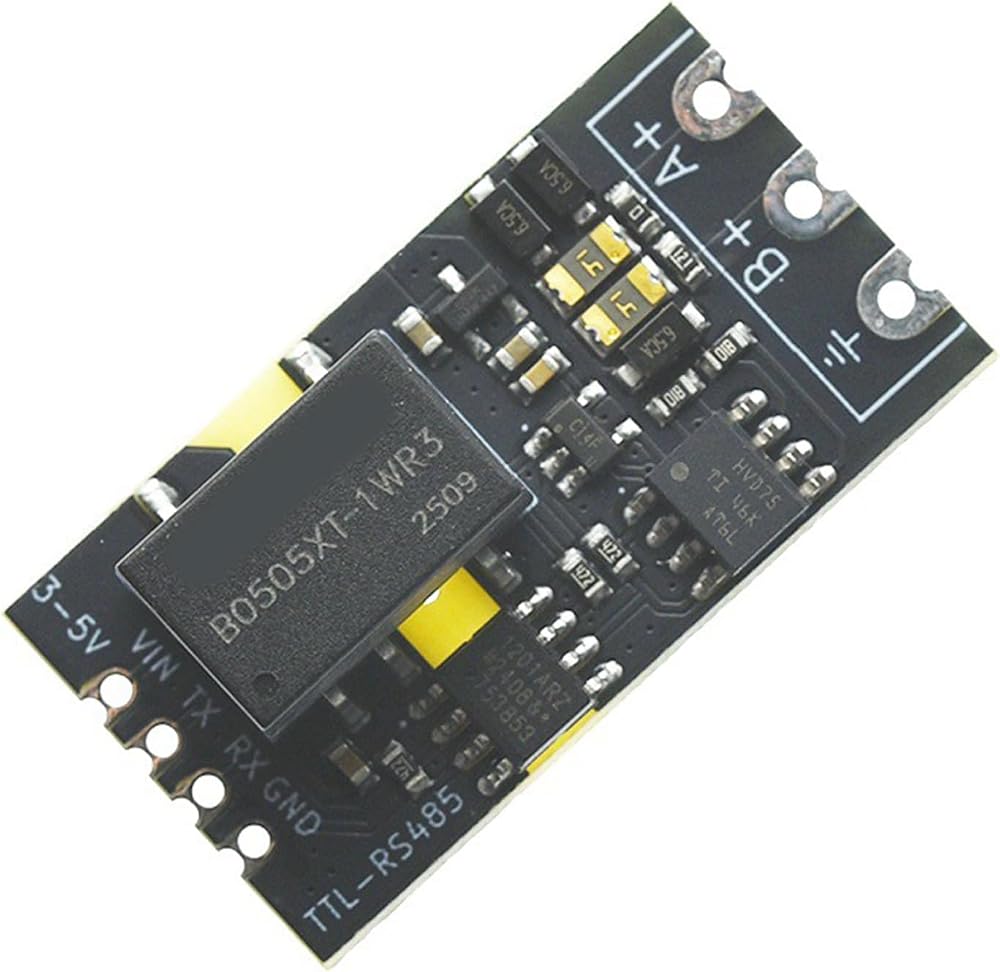

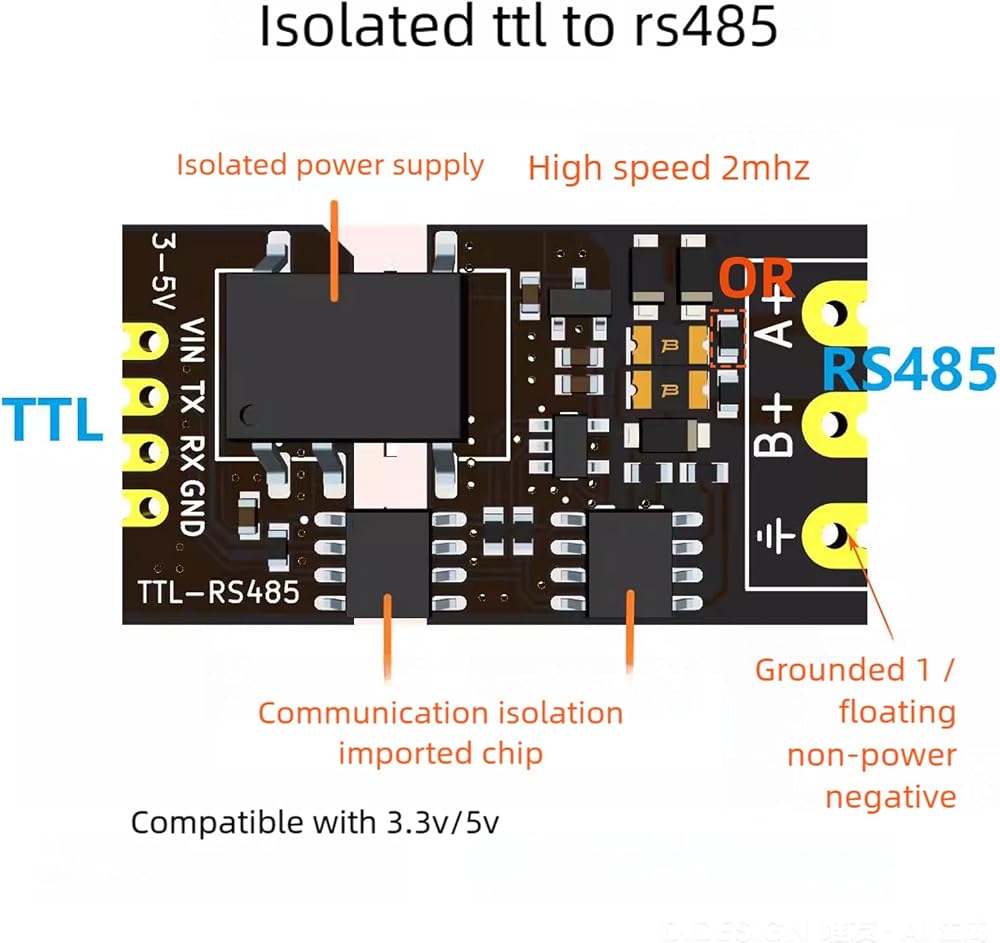

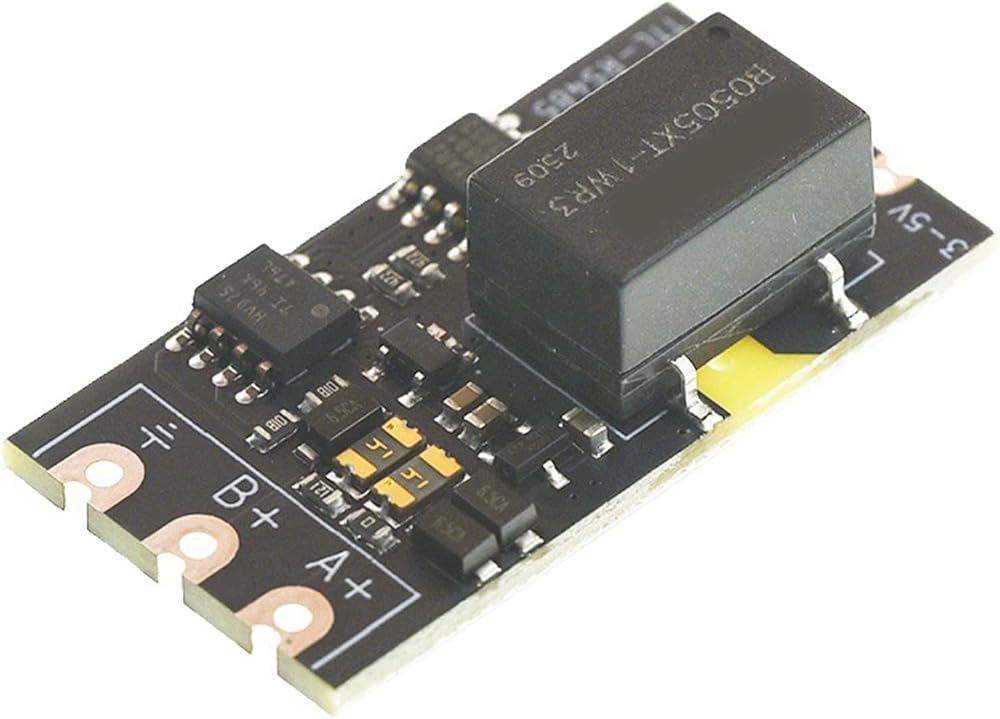

RS485 Converter Module With Full Isolation Design TVS Protections

Features:

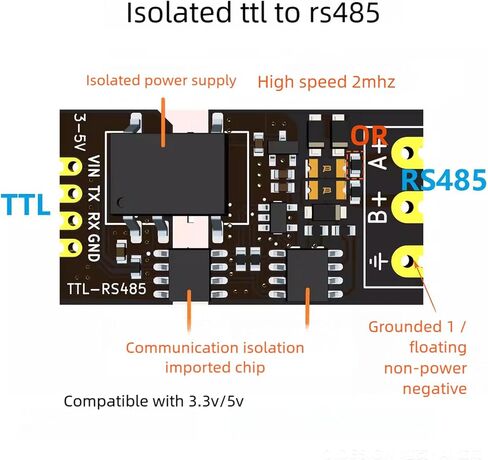

This fully isolated RS485 converter module ensures stable 3.3V / 5V communication for high speed data transmission up to 2Mbps in industrial applications
Featuring TVS protections the module combines industrial grade with versatile 3.3V / 5V compatibility and gold plated semi immersions pad for secure PCB integration
Designed for embedded systems developers, industrial automation professional, and electronics engineers requiring reliabled communication in electrical environments
Perfect for industrial automation controls remote sensoring networks, and data acquisition setups where immunitied and high speed RS485 conversion are critical
Its compact ABS housing with gold plated points enables effortless installation in space constrained applications while maintaining optimal integrity across extended cable runs

Specifications:
Power supply voltages DC3.3 / 5V
Communication rate: 2Mbps
Vehicle balancing resistor: 120Ω

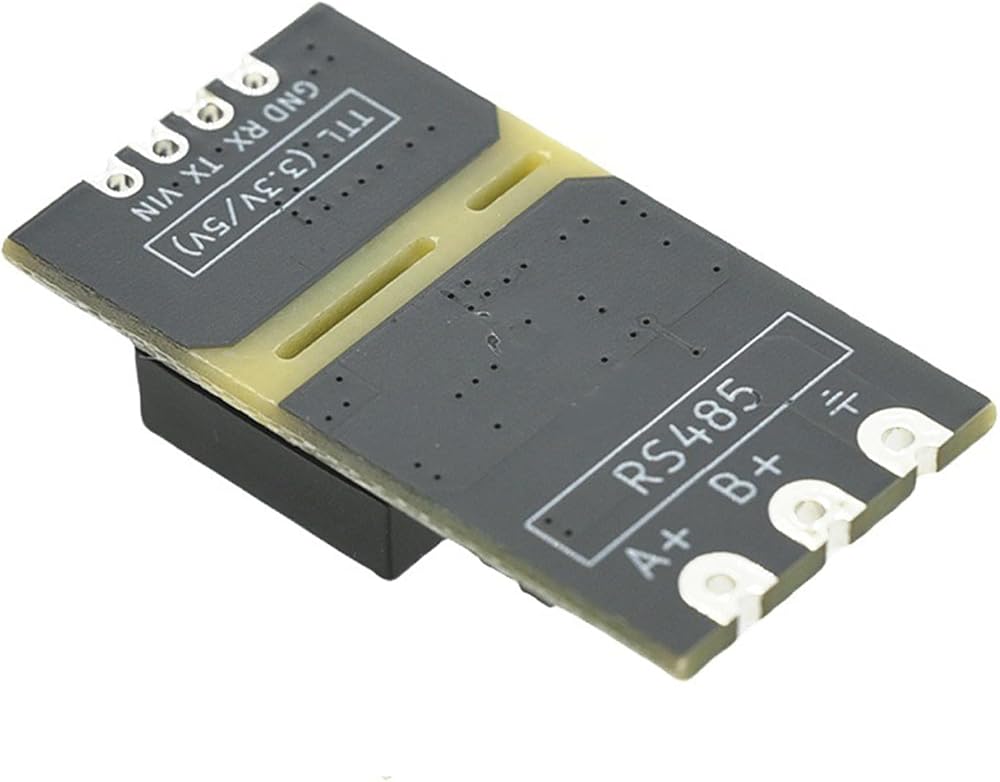

spacing: 2.54mm solderable pin header
RS485 spacing: 5.08mm, KF301 can be welded

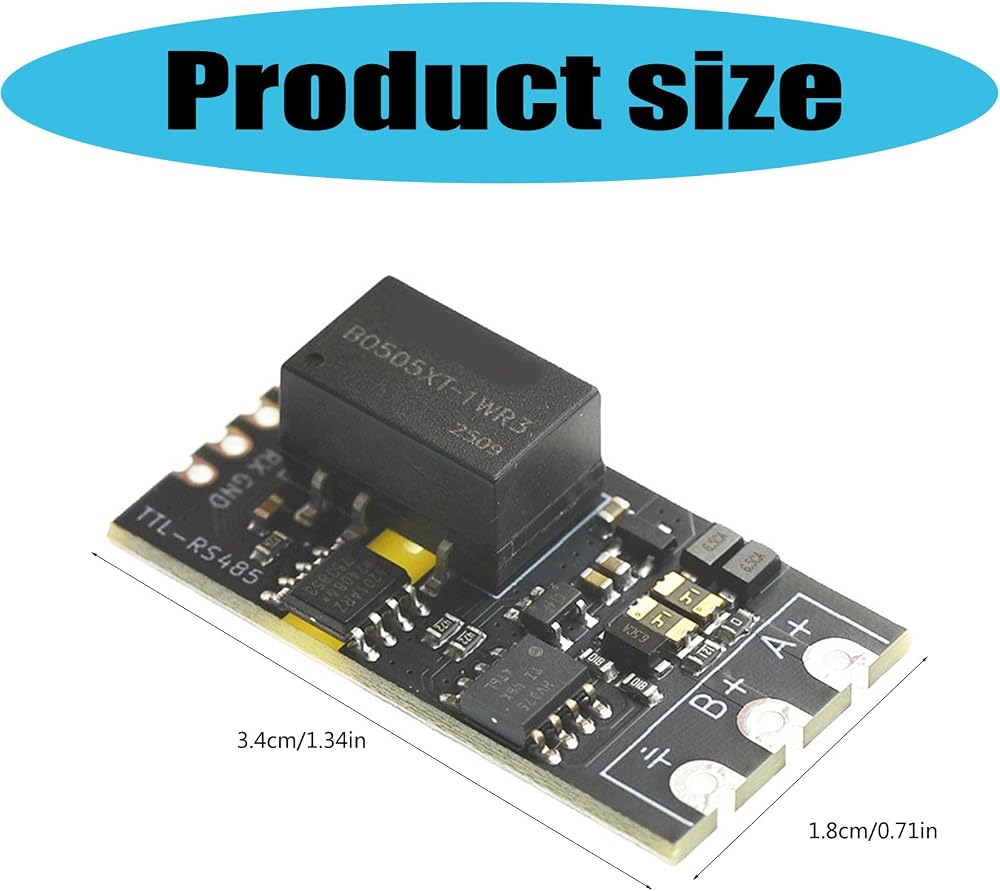

Product size: 34x18x9mm
Practicality: widely used in industrial automation, smart home, data collection and other scenarios to provide reliabled data communication

Package Includes:
1PC DC3.3V / 5V isolated RS485 module

Note:
Please allow 1-2cm errors due to manual measurement
Please allow for slight color differences due to different display resolution
