DS3231 AT24C32 IIC RTC Module Clock Timer Memory Module Beats Replace DS1307 I2C RTC Board (Batteries not Included) + 20 PCS Male to Female Jumper Wire Cable in Saudi Arabia

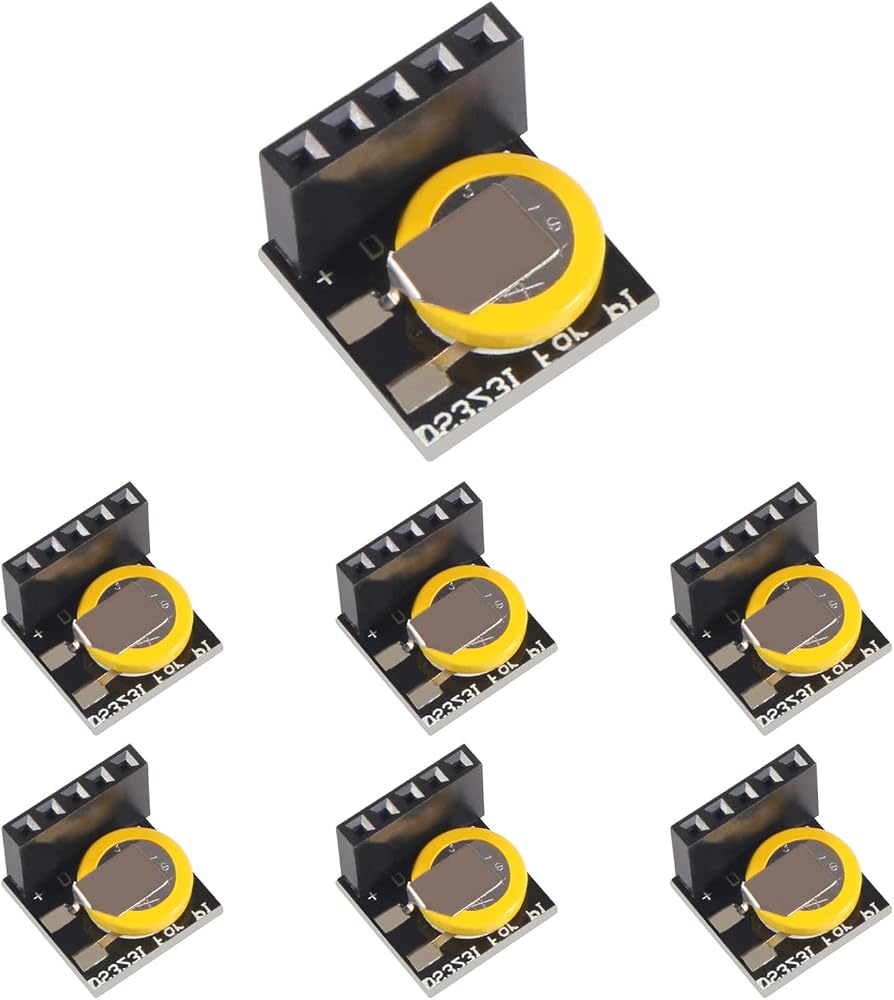

DS3231 AT24C32 IIC RTC Module Clock Timer Memory Module Beats Replace DS1307 I2C RTC Board (Batteries not Included) + 20 PCS Male to Female Jumper Wire Cable 7pcs

SAR 37
Color7pcs
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • DS3231 16-pin memory chips - AT24C32 ,extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal.
  • Integrated oscillator improve long-term accuracy of the device and reduces the number of components of the production line.
  • Provides two configurable alarm clock and a calendar can be set to a square wave output. Address and data are transferred serially through an I2C bidirectional bus.
  • Highly accurate RTC completely manages all timekeeping functions.The device incorporates a battery input, disconnect the main power supply and maintains accurate timekeeping.
  • A precision temperature-compensated voltage reference and comparator circuit monitors the status of VCC to detect power failures, provide a reset output. In addition, RST pin is monitored as generating a μP reset.

Description

Two time-of-day alarms
Operation voltage: 3.3-5.5V
Fast (400kHz) I2C Interface
Memory chips: AT24C32 (storage capacity 32K)
Application: Servers/Telematics/Utility Power Meters/GPS

DS3231 AT24C32 clock module real time clock module IIC RTC module .
Calendar alarm clock with two programmable square-wave output .
Generating seconds, minutes, hours, day, month and year information.

Wiring instructions :

SCL→A5
SDA→A4
VCC→5V
GND→GND

Package included:
2 X DS3231 AT24C32 IIC Module
20 X Female to Male Cable
