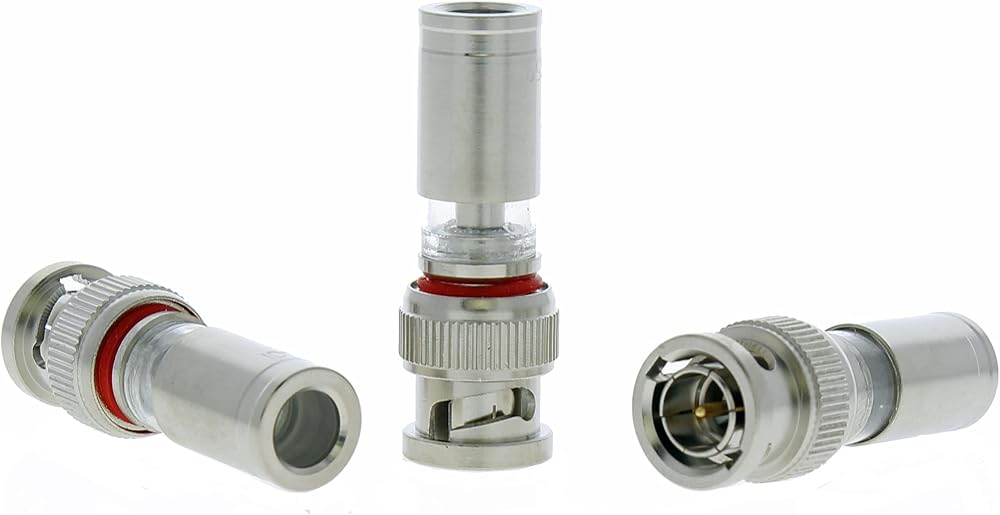

ADVANCED TECHNOLOGY: InSITE technology features a 360 clear window to enable the installer to verify the connection before the connector is compressed. It allows for a confident connection every time. Gold-plated fixed pin contact area and pin won't come lose or pop out of the connector
CONSTRUCTION: One piece connectors feature plastic and nickel-plated brass bodies that offer excellent corrosion resistance. The gold-plated fixed center pin accepts 23-18 AWG solid center conductors. A redesigned funneled pin entry - centers angled pins, reduces pin collapsing
COAX COMPRESSION CONNECTOR: Designed for optimal performance on 75 coaxial cables. These cable specific BNC connectors utilize standard 1/4 x 1/4 in. cable preparation and a smoother and easier mating with sockets through increased BNC head travel rangehave a
APPLICATIONS: These BNC connectors are used in security, CCTV, and analog camera installations. These can alo be used in other intrumentation and video based installations.
SPECIFICATIONS: Package includes [35] RG-59 BNC Compression Connectors. Compatible with cables that have a .142 - .148 in. dielectric diameter range, outer jacket diameter range of .230 - .250 in., 75-Ohm nominal impedance, frequency range: 0 MHz to 3 GHz
وصف
Installing one-piece compression BNC connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job. With the patented InSITE Technology feature, now standard on all IDEAL BNC and right angle (90°) compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all applications from CCTV to HD Video. The InSITE window is a 360° clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin-before the connector is compressed. All IDEAL compression connectors require a ¼” in.x ¼ in. industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork – a confident connection every time.
