chenyang 8 Port M.2 to SATA 3.0 Adapter,PCIe 3.0 to SATA III Expansion Card Adapter 6Gbps with Smart Indicator Light in Saudi Arabia

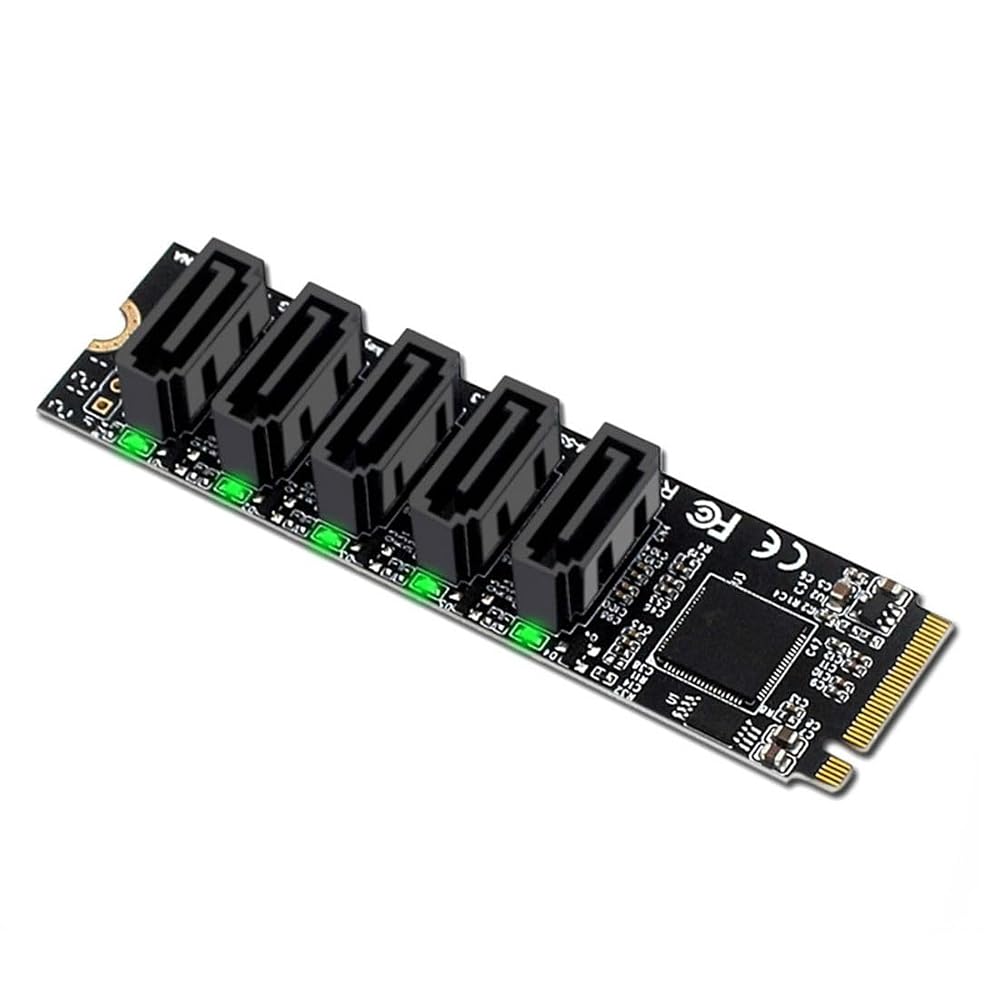

ChenYang USB 3.1 Gen 2 to 5 SATA 3.0 Port Multiplier Extension Card Adapter for Motherboard SATA Hard Drive Port Extension with JMB575 JMS580 Chipset 5 Port M-Key PCIe Protocol

SAR 198
– 1 +

Special Features

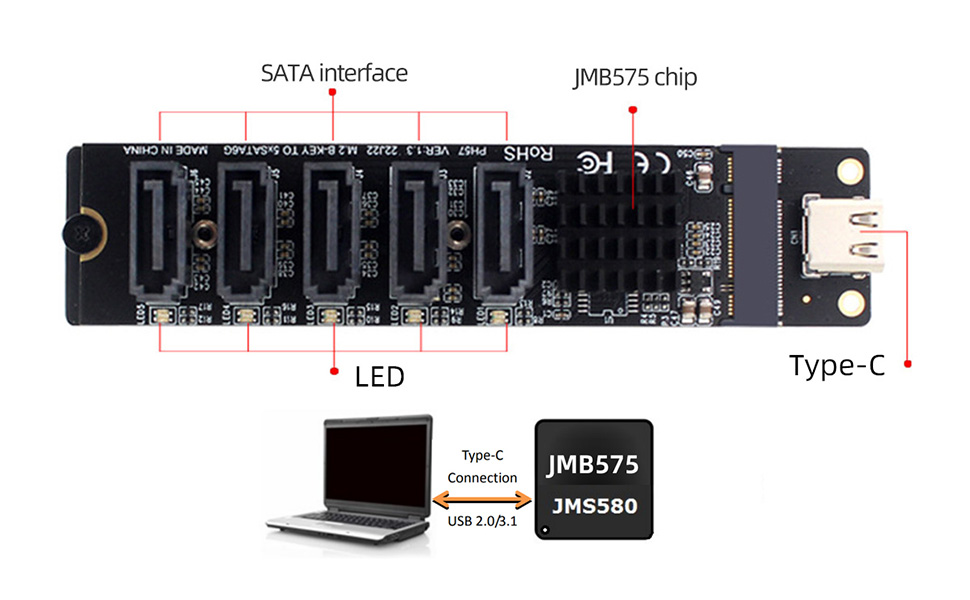

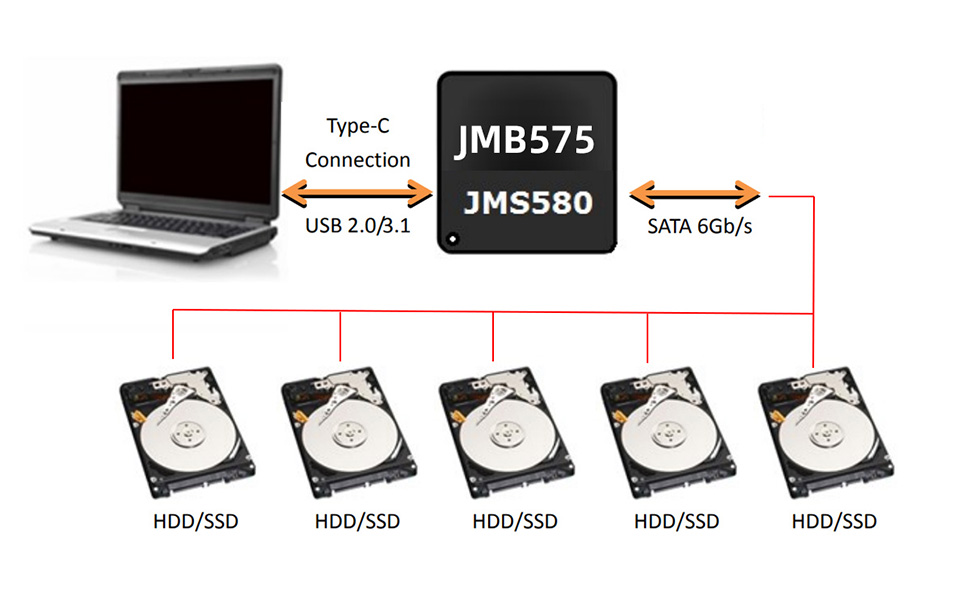

  • 1) Main control chip: JMB575+JMS580.
  • 2) Complies with Serial ATA 6Gbps Electrical Specification 3.2;
  • 3) Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification;
  • 4) Support 5 port SATA 6Gbps interface; Supports BIST and loopback mode;
  • 5) Support command-based and FIS-based switching; Support PM aware and non-PM aware host;

Description

1) NVMe to 8 SATA Adapter is designed for less SATA Ports but more spare M.2 NVMe Slots on Motherboard, This M.2 SATA Adapter will help you expand 8x regular SATA ports for storage appliances that use many SSDs and/or 3.5" hard drives.
2) Base on High Speed chip, more stable and wider compatible. Not support hot swaping. No additional software installation or setting required.
3) Adapter adopts dual-channel PCIe Gen3/Gen4 interface (M.2 M-Key 4x), SATA Ports Upload: total of 16Gbps transmission bandwidth, Download: Each of which supports 6Gbps.
4) Fully compatible with SATA interface mechanical hard drives/SSD solid state hard drives/optical drives, etc. Support Windows 7/8/10, Windows Server 2008 R2/2012 R2/2016/2019/ Mac OS / Linux / FreeNAS / Synology and various NAS operating systems.
5) Installation order: First plug in the SATA cable, then plug the expansion card into the host M.2 NVME interface.
