Special Features

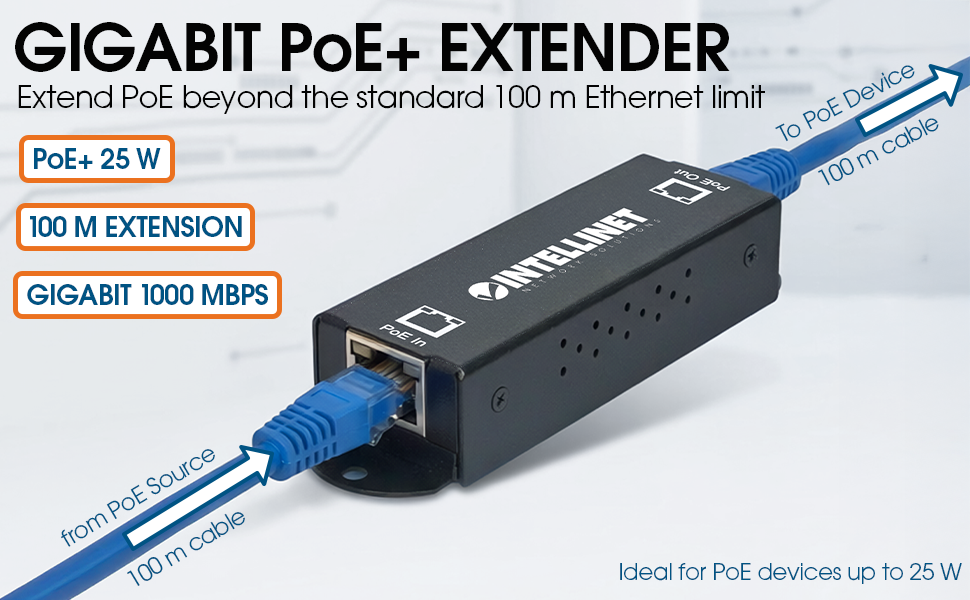

Extend an existing PoE connection beyond the 328 ft. limit using standard Cat5e or Cat6 RJ45 Ethernet cabling. This 1-port indoor extender repeater carries both data and power farther without requiring a separate local power source.
Daisy-chain multiple units to cover longer cable runs, with support for up to five extenders and a total distance of up to 1968 ft. Ideal for reaching remote network devices where the original PoE span would otherwise stop at 328 ft.

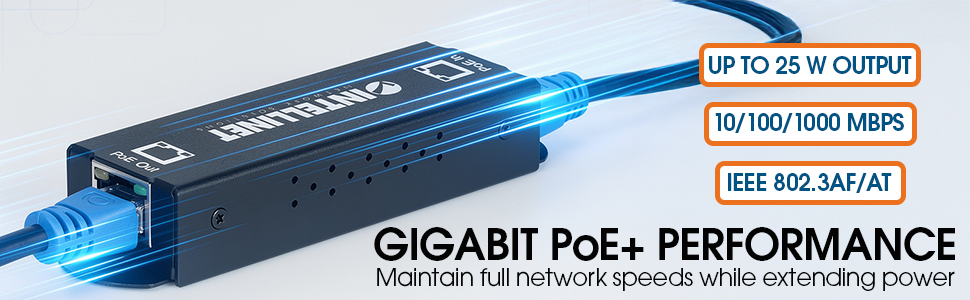

Supports 10/100/1000 Mbps Ethernet speeds and provides up to 25 W power budget to a connected PoE device. It draws power directly from the incoming PoE line, helping simplify installations by avoiding an added power supply.
PoE awareness sends power only to IEEE 802.3af and 802.3at compliant devices, while non-PoE equipment receives data only. Compatible with compliant PoE injectors and PoE switches on the input side and compliant PD devices on output.
Compact metal housing measures about 4.05 x 1.22 x 0.79 in. and uses a fanless design for silent operation. Wall-mounting holes and status LEDs for PoE and data make placement and connection checks easier in indoor network setups.
Designed with one RJ45 10/100/1000 input port for a 48V IEEE 802.3af/at compliant signal and one RJ45 10/100/1000 PoE output port. Supports Cat5 UTP/STP for 100Base-TX and Cat5e UTP/STP for 1000Base-T connections.
Power available at the far end varies by chain length, including 24.6 W at 656 ft. with one extender, 20 W at 984 ft. with two, 16.2 W at 1312 ft. with three, 12.5 W at 1640 ft. with four, and 8.6 W at 1968 ft. with five.
