Fiber Optic Connectors
Product Attributes

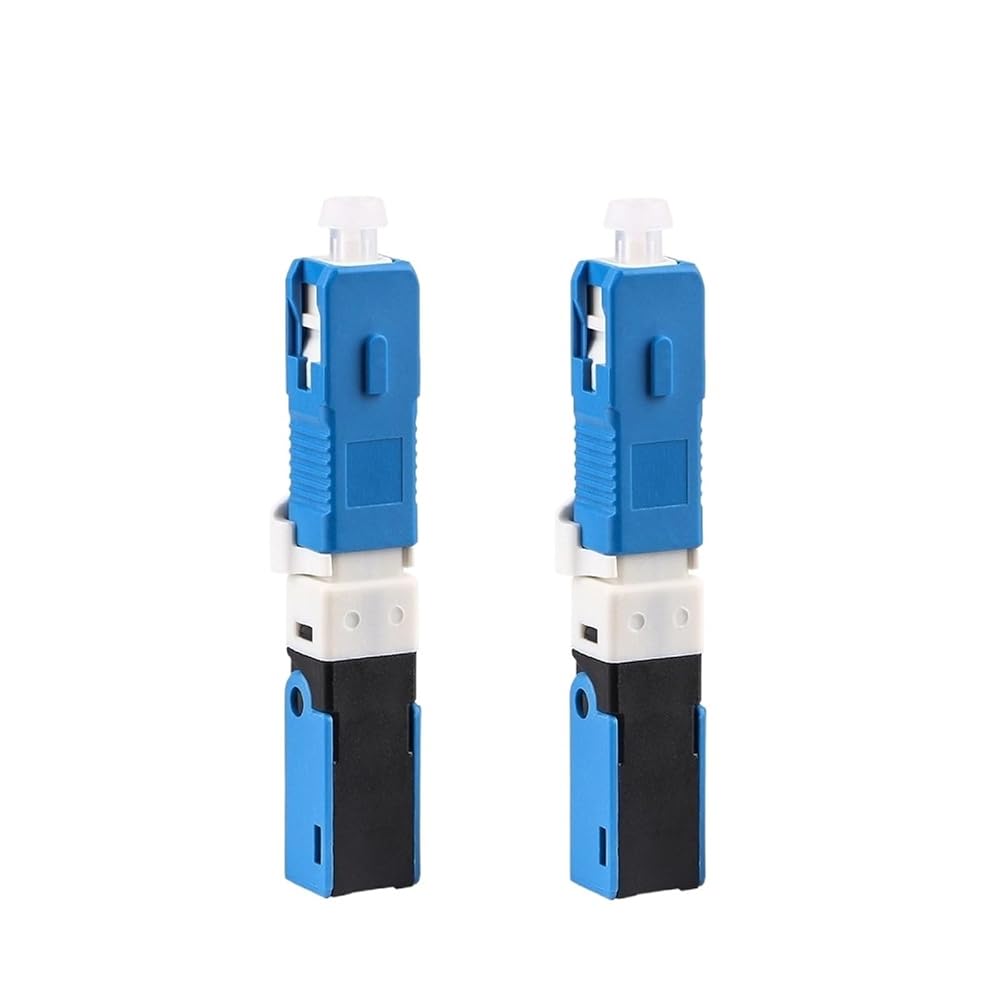

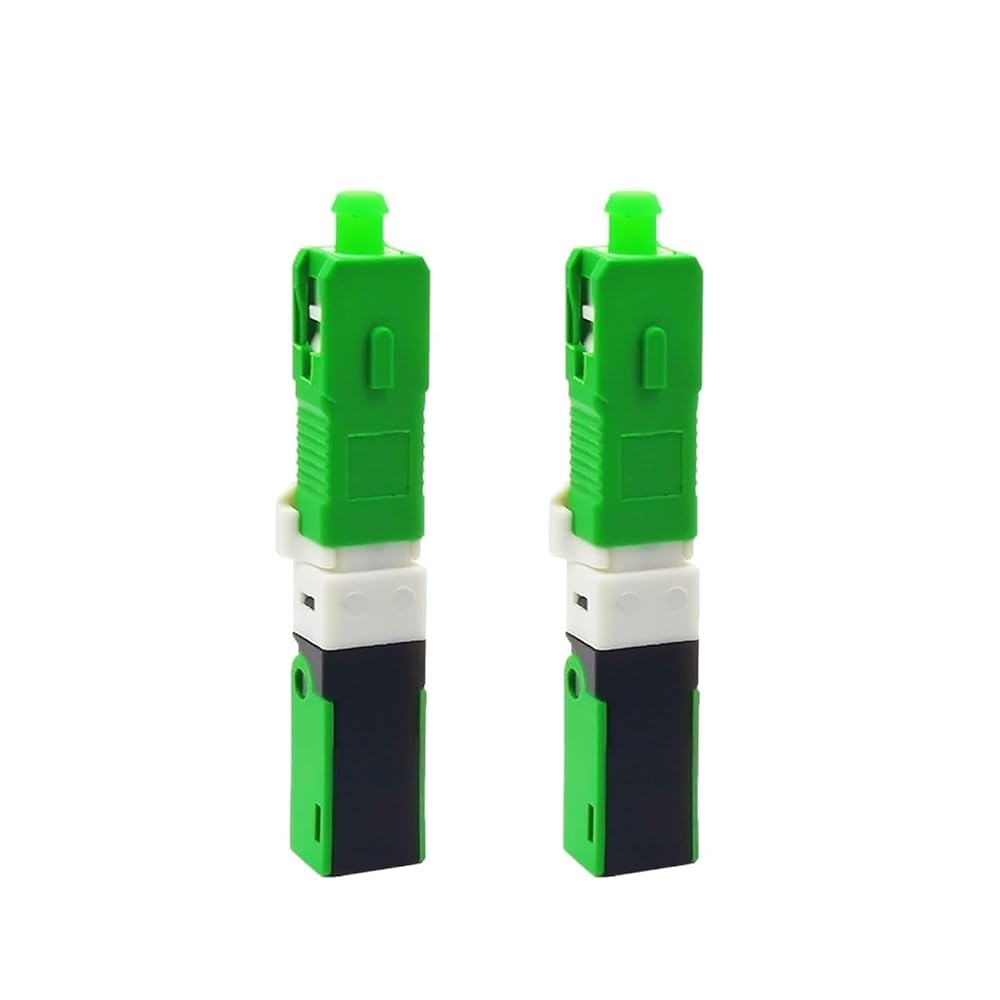

Field Assembly S C/PCfastconnectorfor FTTH can provide a quick and easy termination of fibers in the field. Options are available for 900 allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.
FEATURES
1.Low insertion loss, 0.2dB, 0.3dB, customer optional
2.High loss, 40dB, 45dB, 50dB, customer optional
3.Reliable, durability over 500 times mating
4.Low environmental sensitivity, adopt to complex environment
5.Application: Datacom telecom measurement equipment single-mode lasers ONU FTTH projects .
SPECIFICATION
Item
Paramete
Cable Scope
3.0 x 2.0 mm Bow-type Drop Cable
2.0/3.0 indoor cable
Fiber Diameter
125m ( 652 & 657
Coating Diameter
250m
Mode
SM
Operation Time
about15sexclude fiber presetting
Insertion Loss
03dB1310nm 1550nm
Loss
40dB
Success Rate
98
Reusable Times
10 times
Tighten Strength of Naked Fiber
5 N
Tensile Strength
50 N
Teperature
4085
Online Tensile Strength Test (20 N)
IL 0.3dB
Durabiltiy (500 times mating)
IL 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)
IL 0.3dB
==========
Wireless function : No
High-concerned chemical : None
Size : 3*5*3
Fiber Type : Single Mode
Compatible : Force10,HP,IBM,H3C,
Connector Type : Hybrid
Item Length : 30M
Model Number : JYD-LJ12
Origin : Mainland
Certification :
