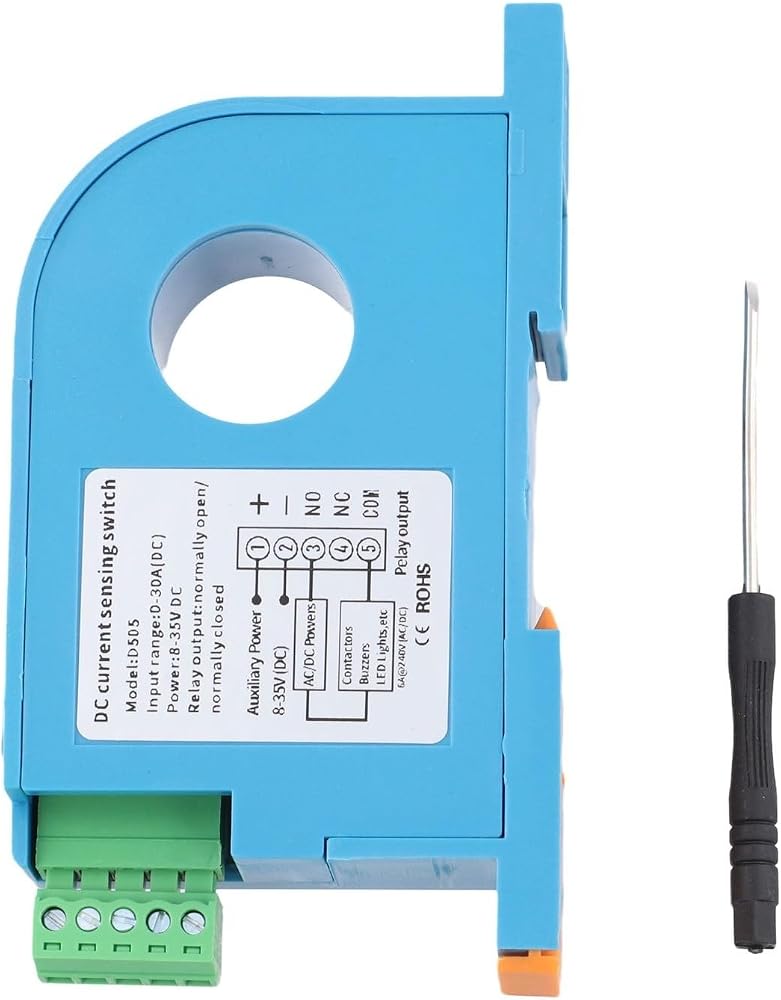

DC Current Sensor Switch 0-50A/0-100A, Hall Effect Current Detection Relay with Adjustable Threshold, 0-99s Delay, LED Indicator, DIN Rail Mount, 22mm Aperture(D366-300A DC) in Saudi Arabia

D505-0-30A DC

SAR 110
Brand
Nicpalintk
Weight
140 g
SizeD505-0-30A DC
– 1 +

Special Features

  • ADJUSTABLE DELAY CONTROL: Set power-off delay from 0 to 99 seconds via simple knob rotation for precise circuit timing without complex programming
  • VISUAL STATUS INDICATOR: Green light shows normal current while red signals overload, allowing for instant monitoring of DC ampere switch performance at a glance
  • AUTO for reset FUNCTION: Output switch triggers when current exceeds threshold and resets automatically once levels drop, safe operation for your system
  • COMPACT DIN RAIL DESIGN: Miniaturized DC current sensor fits standard 35mm rails easily, saving panel space in industrial control cabinets or test equipment
  • for versatile DETECTION RANGE: Select 0-50A or 0-100A models with 22mm aperture to monitor various loads using reliable electromagnetic induction technology

Description

Features:
1. Delay adjustment, power-off delay can be set to 0-99 seconds, clockwise adjustable to increase, counterclockwise adjustable to decrease
2. Action indicator light, the indicator light is off when there is no current, the green light is on when the current is lower than the threshold, and the red light is on when the current is higher than the threshold
3. Action threshold, when the perforation current exceeds the set value, the output switch action will automatically for reset when the perforation current is less than the set value
4. Product miniaturization
5. Simple to use

Specifications:
Part name: DC induction switch
Material: abs
Color: white
Model: D360/D366/D505/D506 (optional)
Accuracy: 0.5 level
capacity: 6A 240V AC/DC
Detection range: 0-50A/0-100Aaperture: 22mm
Response time:
Overload capacity:
Auxiliary power supply: DC 24V
Installation way: embedded
Induction way: electromagnetic induction
Load power W: DC 24V
Size: 108x22x60mm
Installation: Standard 35mm rail

Package contents:
DC current detection switch*1
