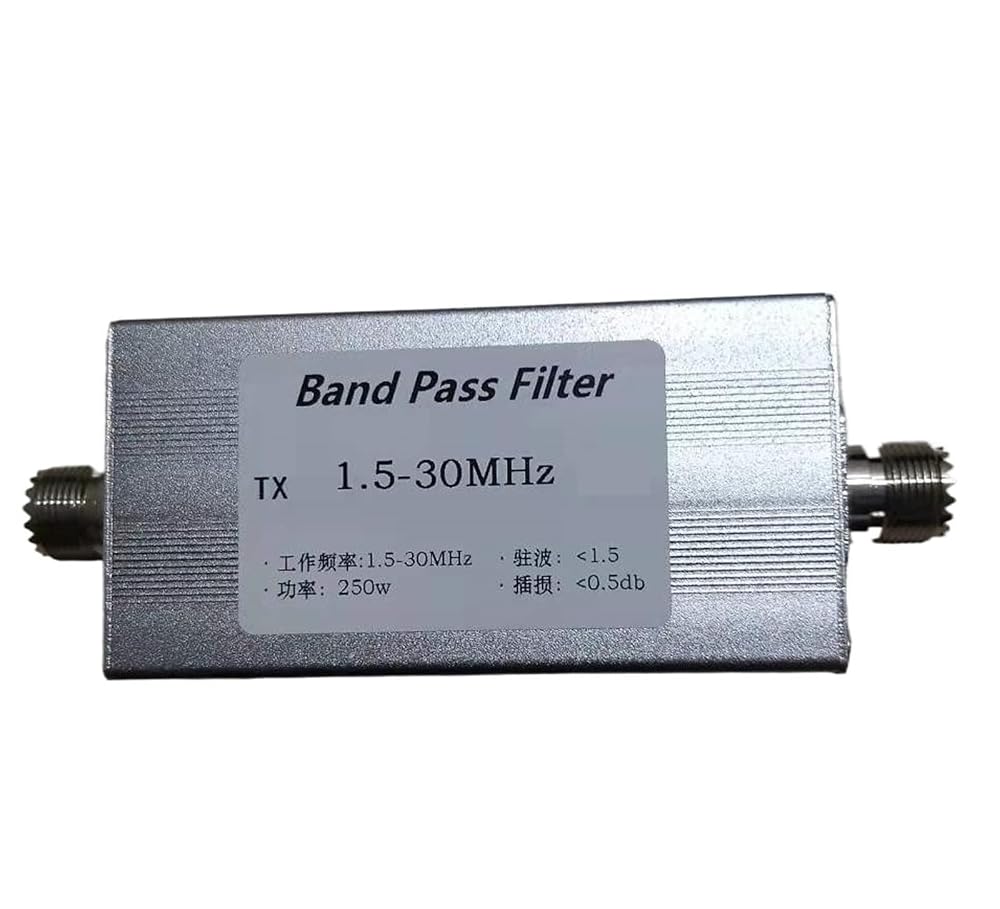

Radio Frequency Filters
1. Please refer to the above information for detailed technical parameters (2-30MHz or 3-30MHz or 7-30MHz can also )
2. Input impedance: 50 ohms; output impedance: 50 ohms.
3. The passable bandwidth is 1.5000-30.000MHz
4. Insertion loss: less than 0.5db
5. TX is connected to the radio, and ANT is connected to the antenna.
6. Power: 250w
7. Standing wave: less than 1.5
8. Interface: SL16-F (M block) (L-16F is also called N block, can also )
Net weight: 235 grams
Outer size: 140*53*38mm
