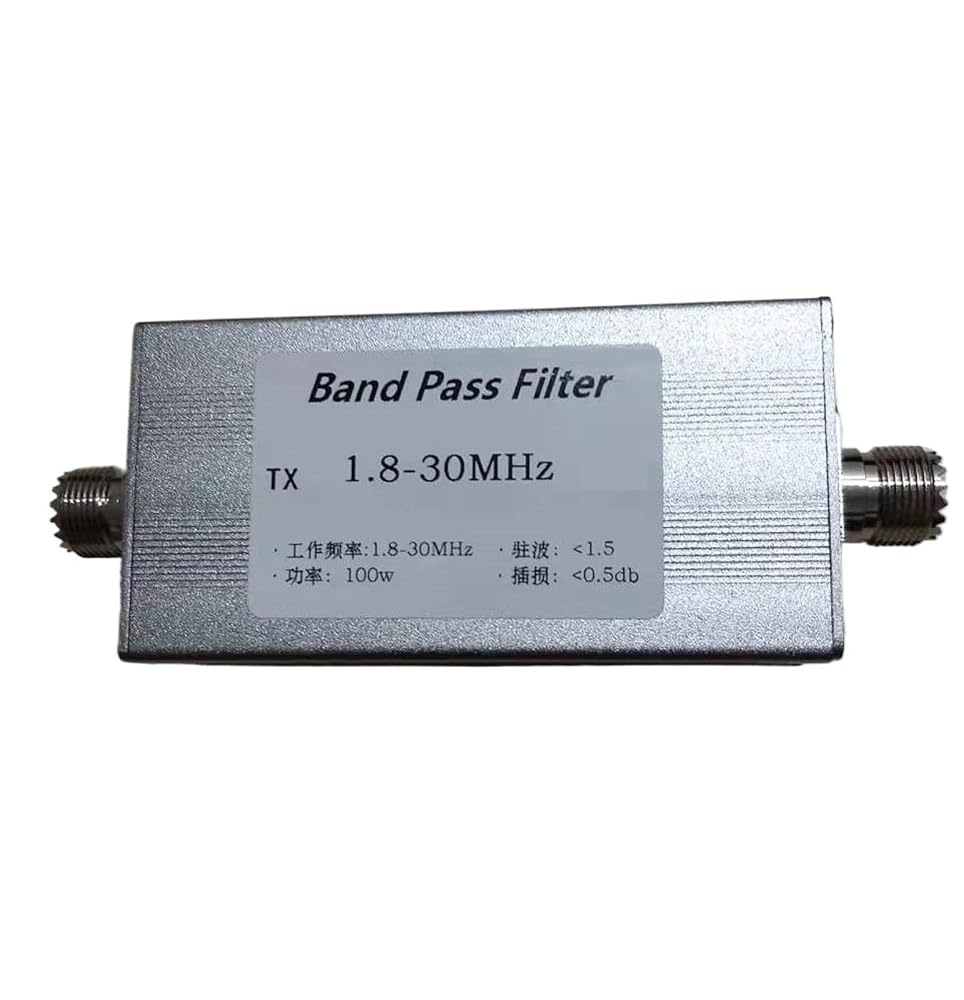

Radio Frequency Filters
1. Please refer to the above information for detailed technical parameters (1.5-30MHz or 3.5-30MHz can also )
2. Input impedance: 50 ohms; output impedance: 50 ohms.
3. The passable bandwidth is 1.8-30MHz
4. Insertion loss: less than 0.5db
5. The attenuation at 1MHz is 45db, and the attenuation at 56MHz is 45db.
6. Power: 100w
7. Standing wave: less than 1.5
8. Interface: SL16-F (M seat)
9. Net weight: 190 grams
10. External dimensions: 140*53*38mm
