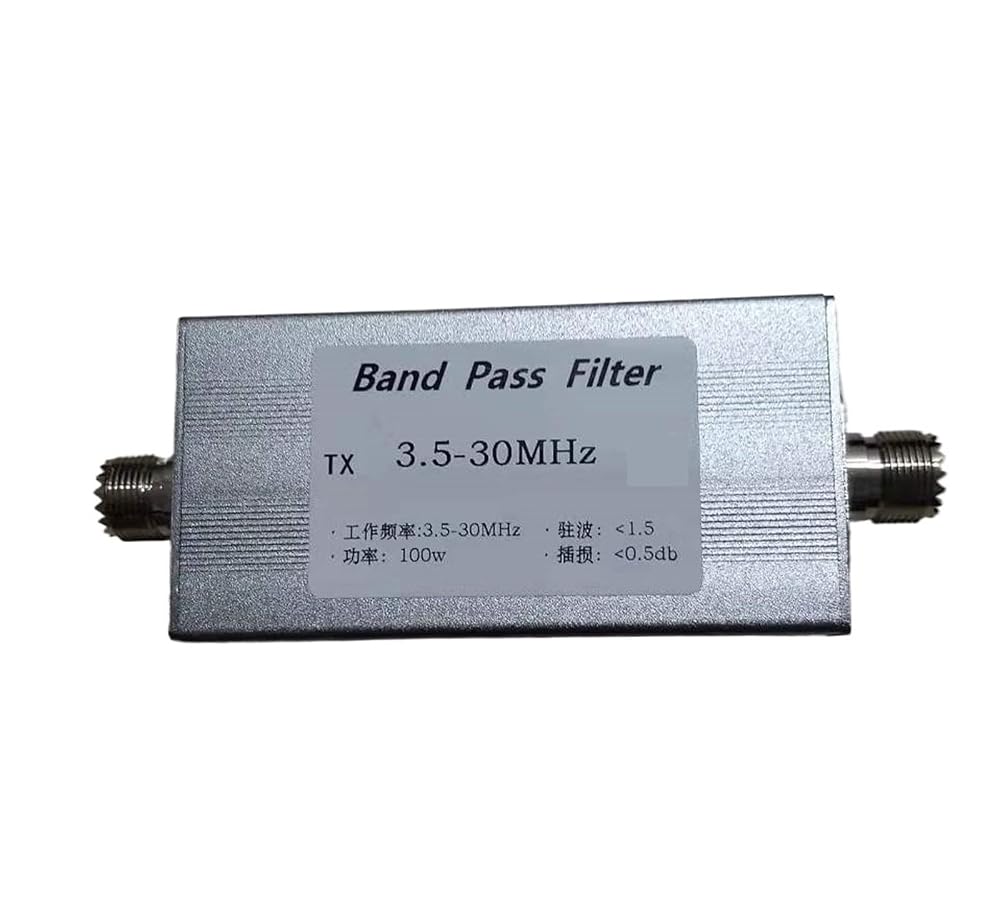

Short Wave Band Pass Filter (BPF): BPF-3.5-30
1. Please refer to the above information for detailed technical parameters (1.8-30MHz or 3-30MHz or 7-30MHz can also)
2. Input impedance: 50 ohms; output impedance: 50 ohms.
3. The passable bandwidth is 3.500-30.000MHz
4. Insertion loss: less than 0.5db
5. The attenuation at 1MHz is 50db, and the attenuation at 60MHz is 53db.
6. Power: 100w
7. Standing wave: less than 1.5

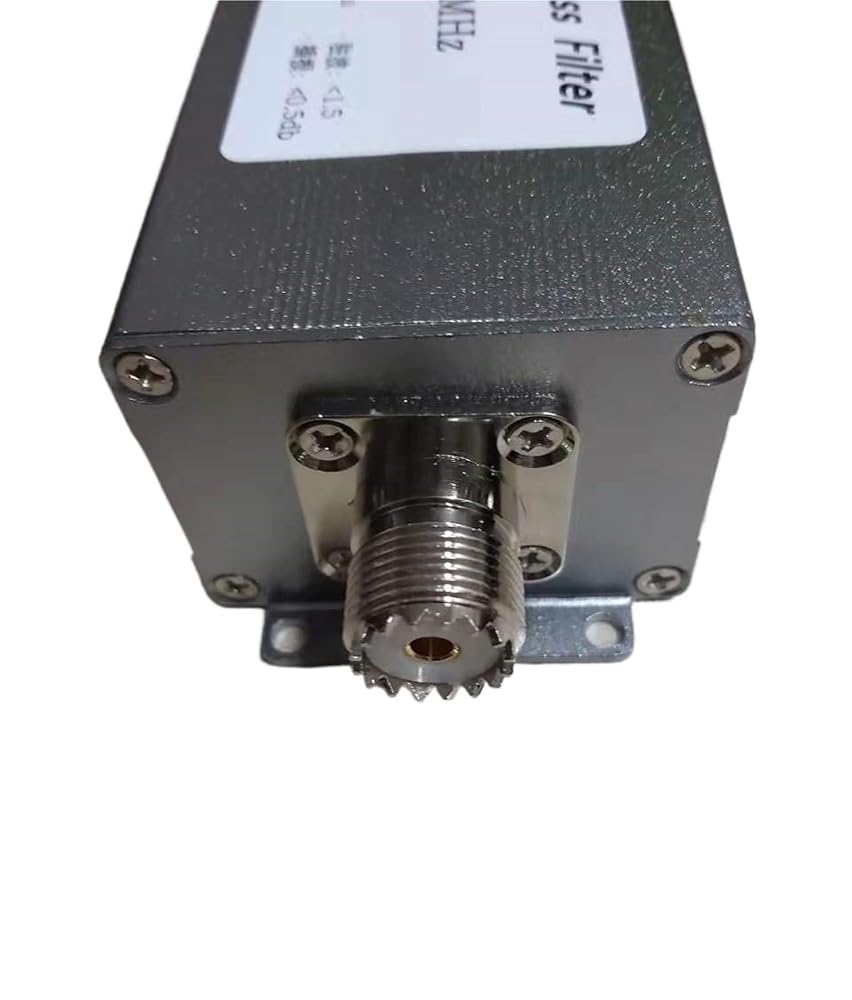

8. Interface: SL16-F (M seat)
9. Net weight: 190 grams
10. External dimensions: 140*53*38mm
