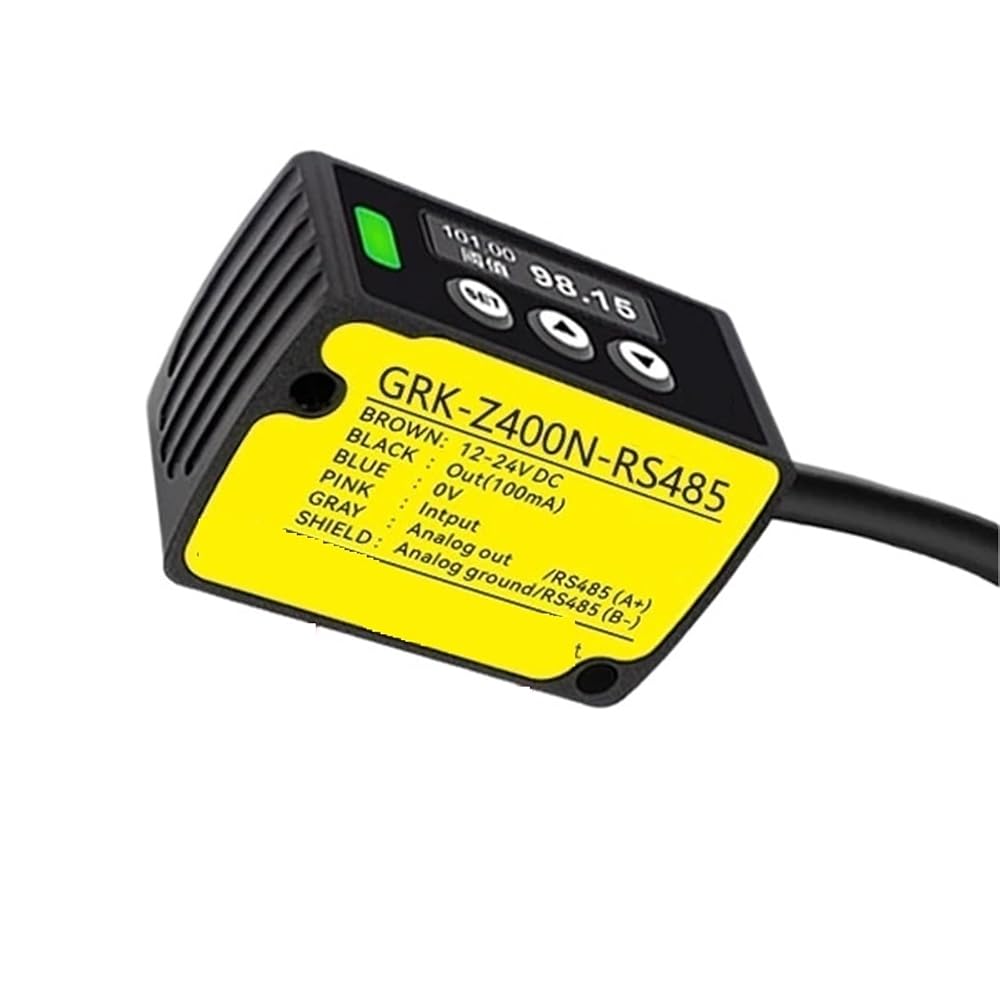

1PCS Distance 400mm RS485 displacements switch displacement sensor
Use : Position Sensor
Measuring center distance : 400mm
Measuring range : ±80mm
Repeatability : 400m-800m
Straightness : ±0.2%F.S.
Temperature characteristic : 0.03%F.S./
Supply voltage : 12~24V DC±10%, pulsation P-P10%
Output action : ON in light/ON in non-light can be switched
Reaction time : 1.5ms/5ms/10ms can be switched
Ambient humidity : 35%~85%RH, storage :35%~85%RH
Cable : With 0.15mm 5-core composite cable 2m
