Radio Frequency Filters

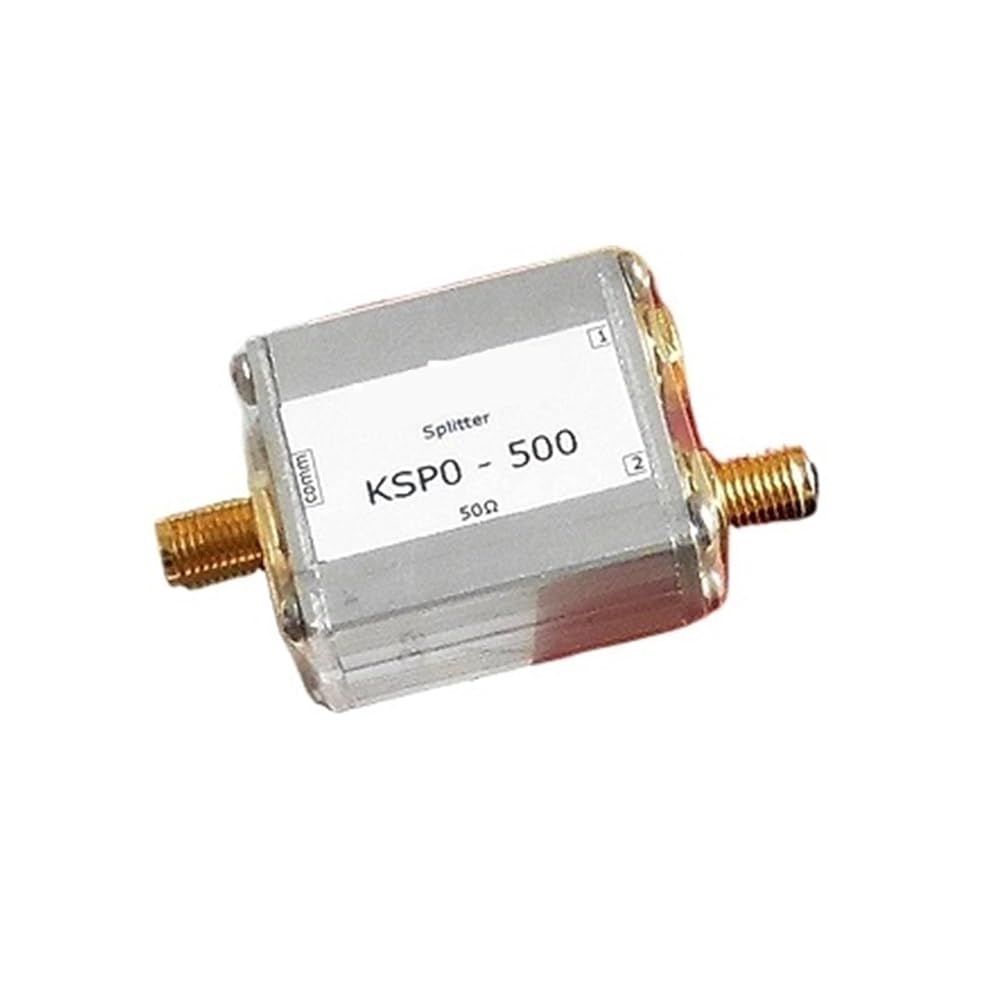

Model: KSP0-500
Working frequency: 420-500 MHz (center frequency: 470 MHz)
Port isolation (between branch ports): >= 20 dB
-- Blue and yellow lines (basic coincidence in figure) are the insertion loss of public ports to branch ports, and purple lines are the separation degree of branch ports:
Reflection loss: > 17 dB (common port), >= 25 dB (branch port)
Comm end: 1: SMA-F
1, 2 ends: 2, 3: SMA-F
