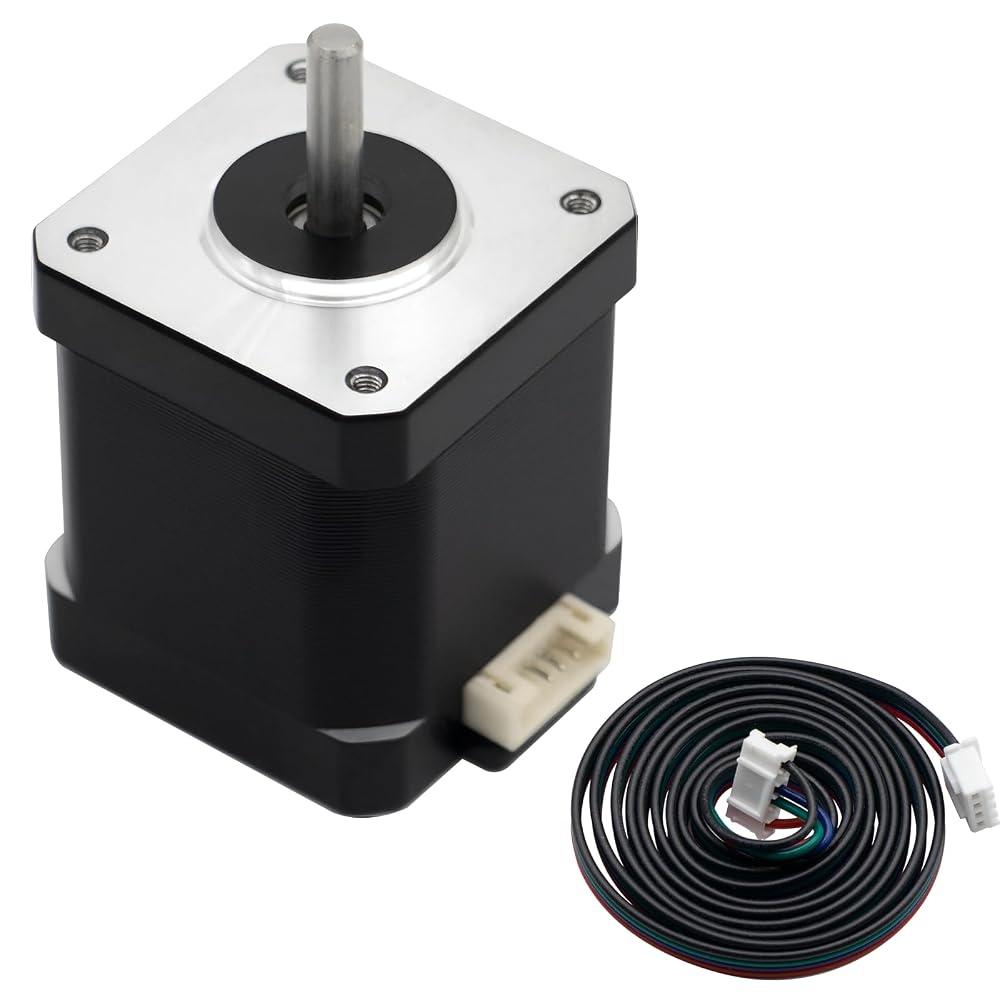

HXH Nema 17 Stepper Motor 1.8° 1.0A 3.9V, 130mN.m (18.4oz·in) Holding Torque 23mm Body,42 2-Phase Hybrid Stepper Motor with 39.4Inch Cable for 3D Printer CNC in Saudi Arabia

17-48 1

SAR 53
Size17-48
Number of Items1
– 1 +

Special Features

  • 【Key Specifications】: Step Angle: 1.8°; Phases: 2; Rated Current: 1.0A; Rated Voltage: 3.9V; Holding Torque: 130mN.m (18.4oz·in); Body Length: 23mm; Cable: 39.4inch 4‑lead.
  • 【High Precision Control】: 1.8° step angle NEMA 17 bipolar stepping motor provides accurate positioning and stable motion for 3D printers, automation gear, and small engraving machines.
  • 【Easy Wiring Connection】: Standard 4-lead design with 39.4inch cable and assembled connector, no soldering required, easy to install with compatible stepper driver and controller.

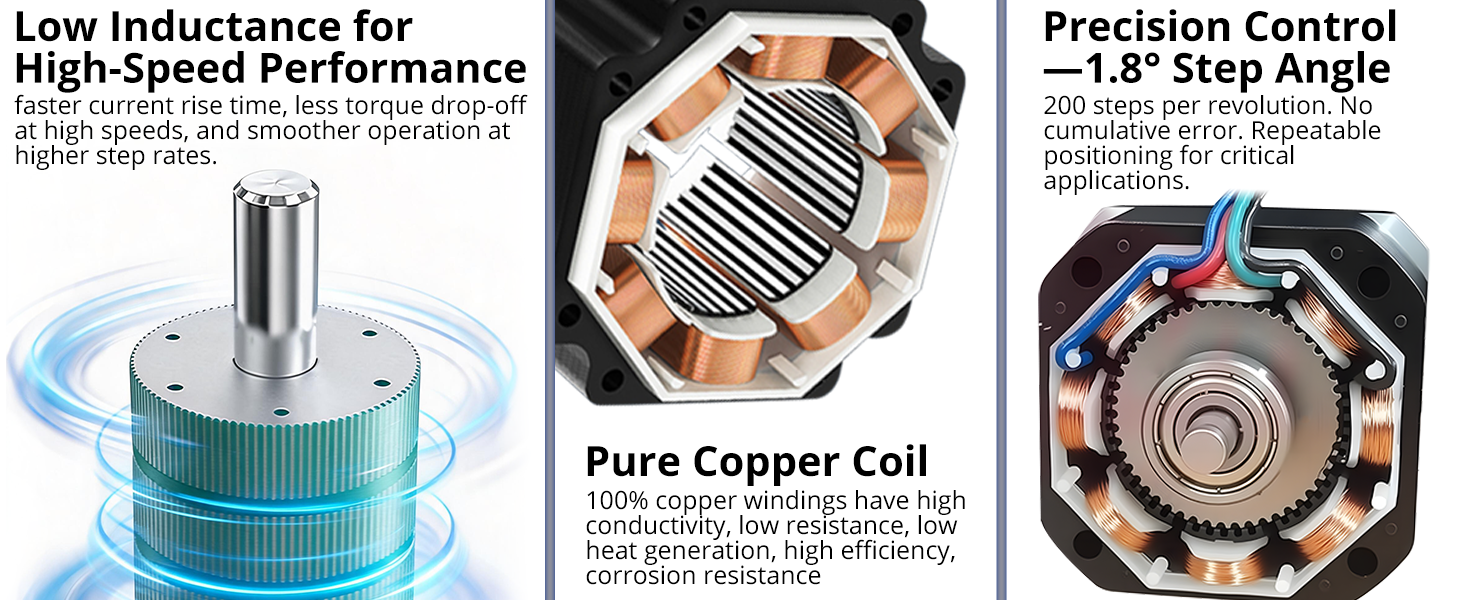

  • 【Reliable Long‑Life Performance】: This two-phase hybrid stepper motor features high-quality copper coils and a sturdy structure. It provides low noise, low vibration, 10,000-hour service life, Class B insulation, and wide operating temperature range from -24℃ to 80℃.
  • 【Wide Compatibility】: The NEMA17 stepper motor is ideal for FDM 3D printers, RepRap systems, DIY robots, hobby automation, and small mechanical control projects.
