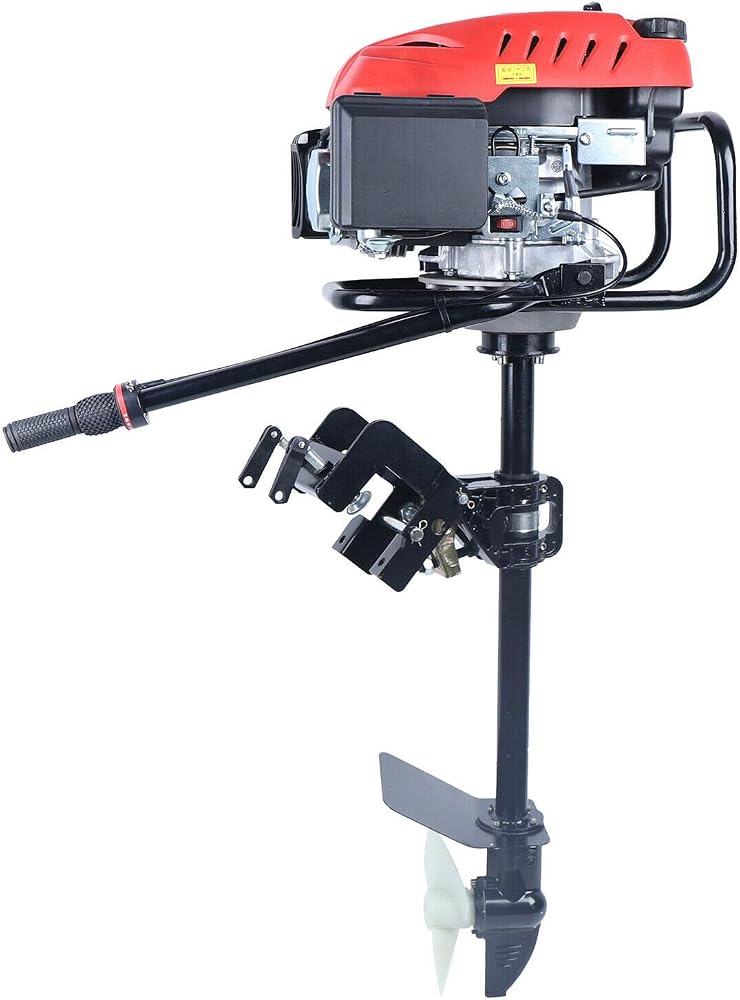

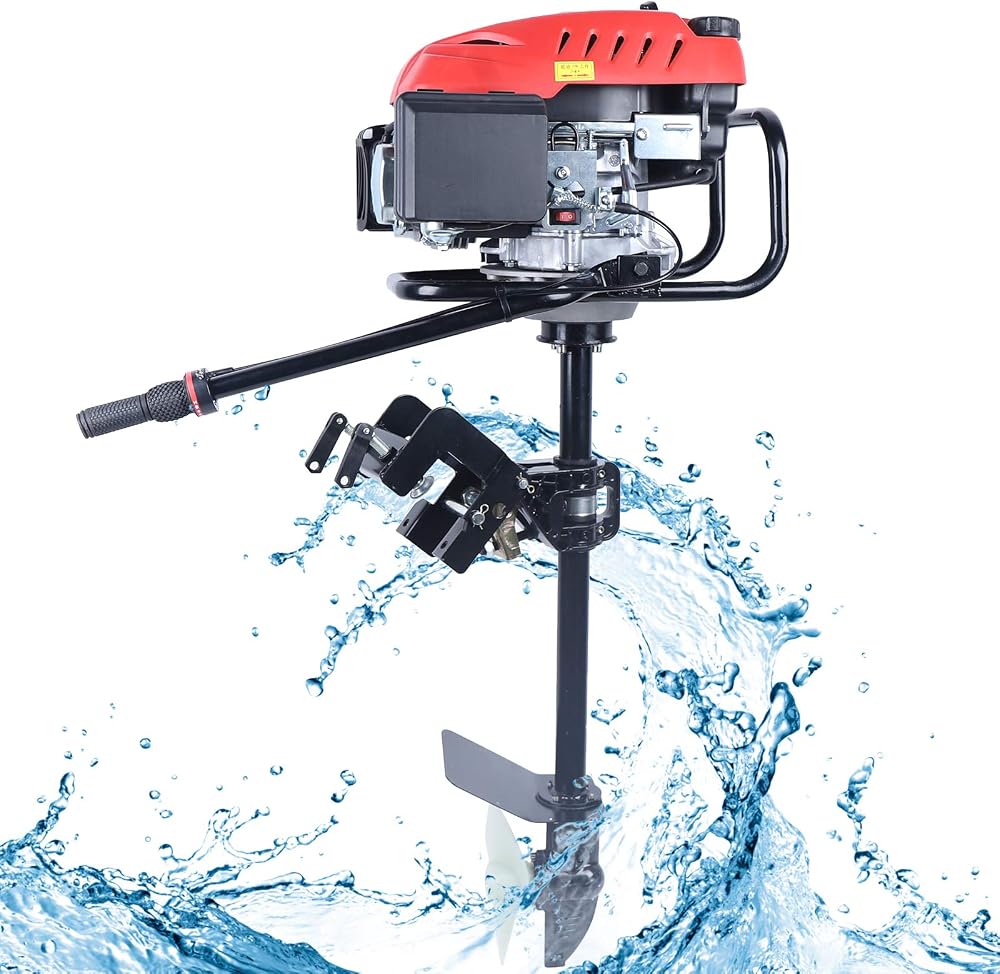

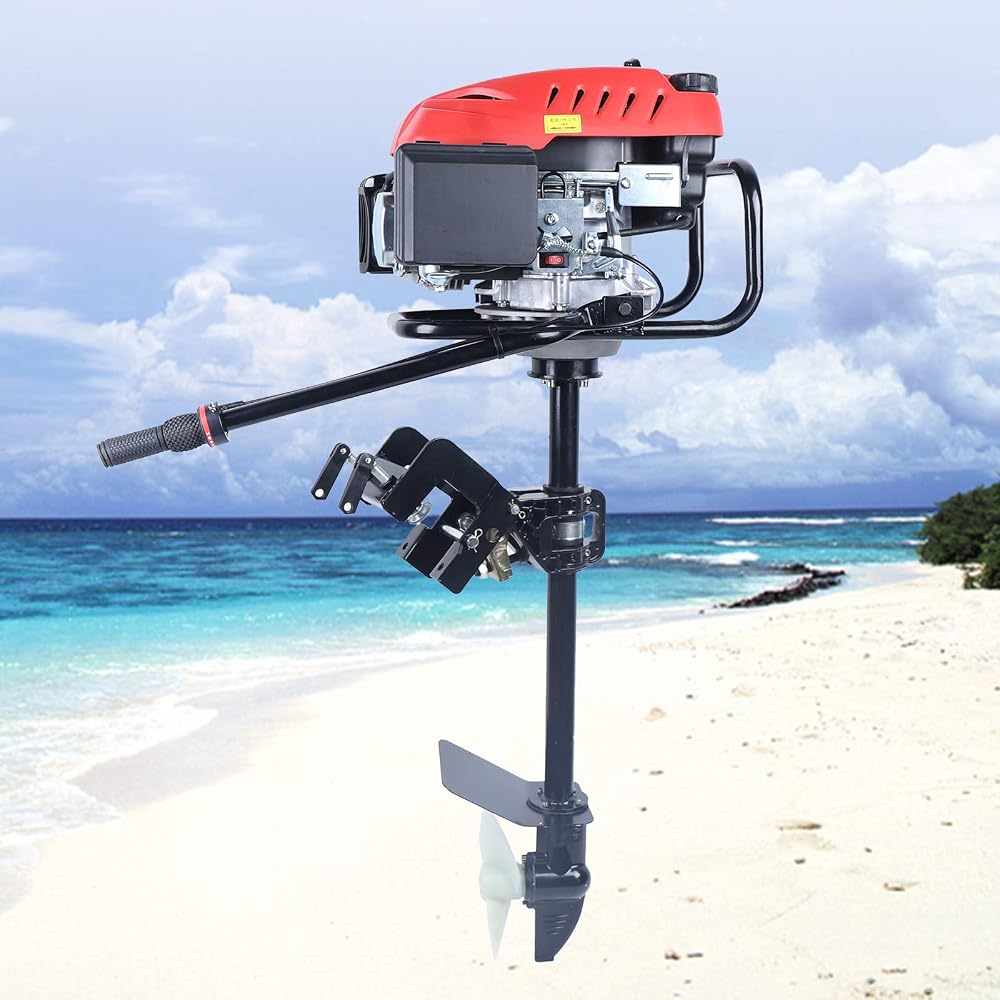

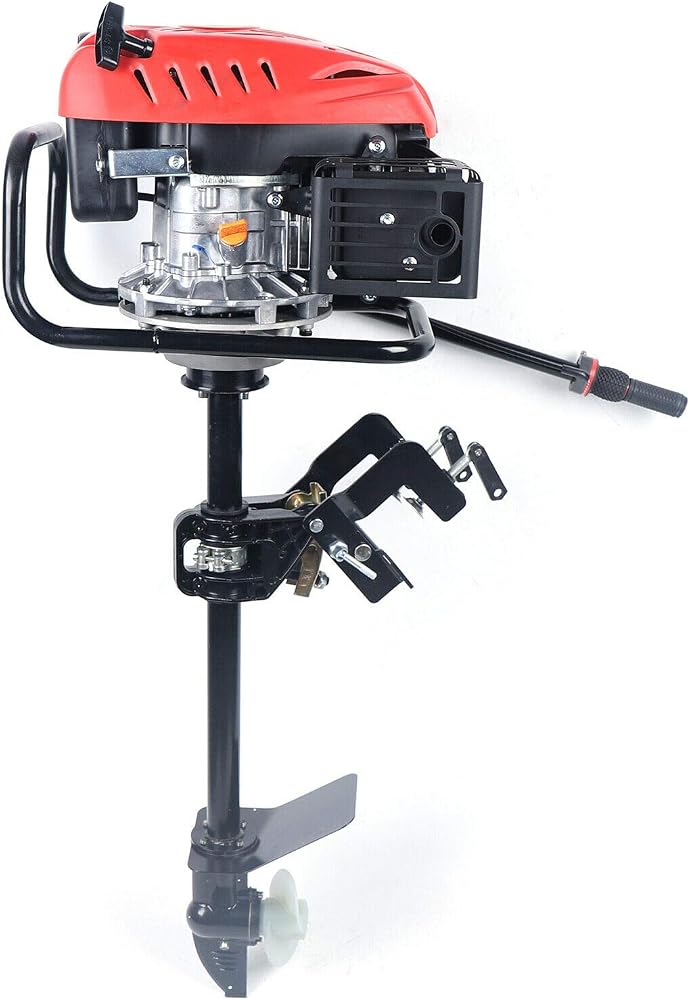

4 Stroke 6HP Outboard Motor, 170 CC Fishing Boat Motor Engine with Air Cooling Single Cylinder Heavy Duty Boat Engine Marine Engines with TAS Ignition System, 3600 r/min,3.2KW

SAR 1,805
Brand
VPABES
– 1 +

Special Features

  • 【Premium Material】: Fishing boat engine uses high-quality aluminum materials with a plastic painting process, making it impact-resistant, anti-rust, and solid, and can withstand freshwater and saltwater environments.With many heat dissipation holes on the engine and a forced air cooling system, this engine has a great heat dissipation effect and long service life.
  • 【High Efficiency】: With a 4-stroke engine, OHV design, 3.2KW strong power output, and 3600r/min high speed, this outboard boat motor has a strong torque output (9.0N.m/2) and is more energy-saving and durable.It can run for about 1 hour when the fuel tank is full. The maximum speed is 15 kilometers per hour, and the minimum speed is 8 kilometers.
  • 【Stepless Speed Regulation】: The step-less speed regulation, without the abrupt sense of shifting gears, allows for a smooth and easily controlled ride. The anti-swirl plate can reduce the eddy current generated during the operation of the outboard motor boat engine.

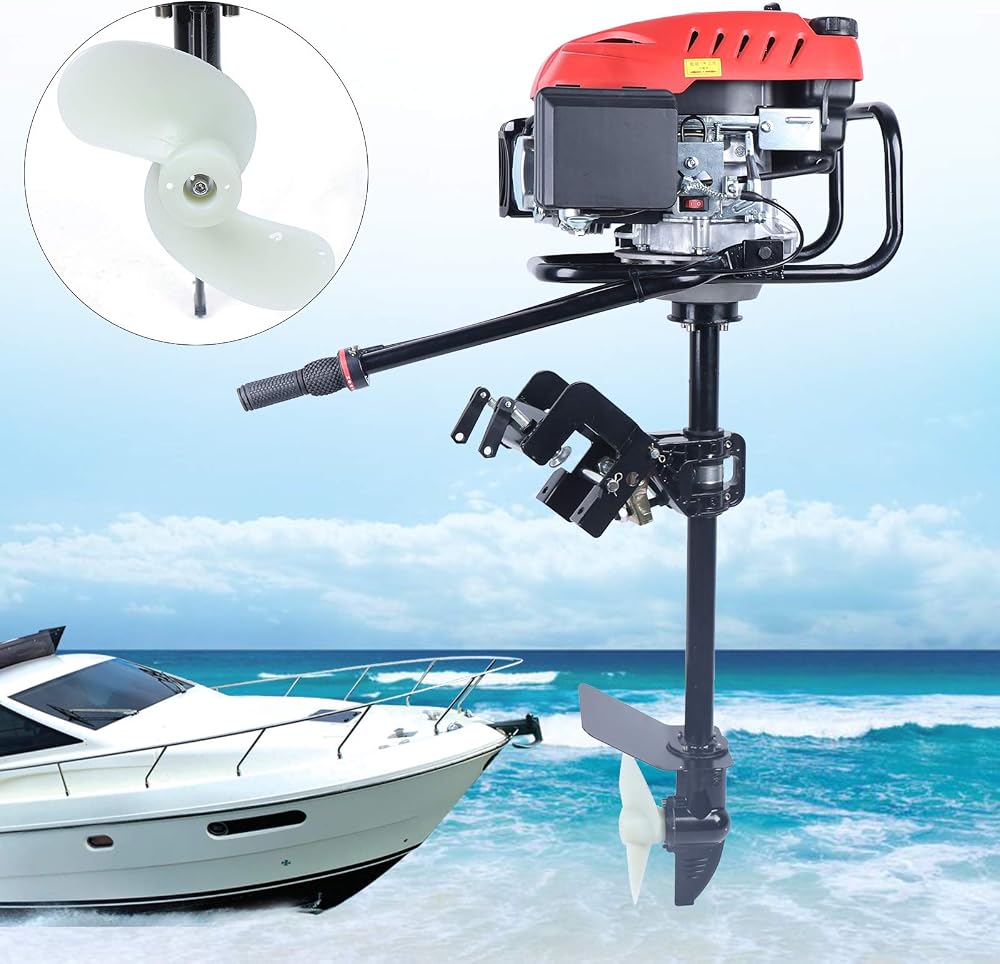

  • 【Exhaust Muffler Method】: The muffler design can reduce noise, providing you with a comfortable user experience. The reinforced propeller with two blades is more durable and impact-resistant. Marine motor has a good anti-entanglement effect and can cut off water plants with high-speed rotation.
  • 【Fast Ignition】: Using a titanium alloy spark plug and pull start mode, this boat engine motor features fast ignition, energy and fuel saving, and power improvement.With the switch button, pull start mode, and 360° rotatable design, you can easily operate this engine.

Description

Specifications

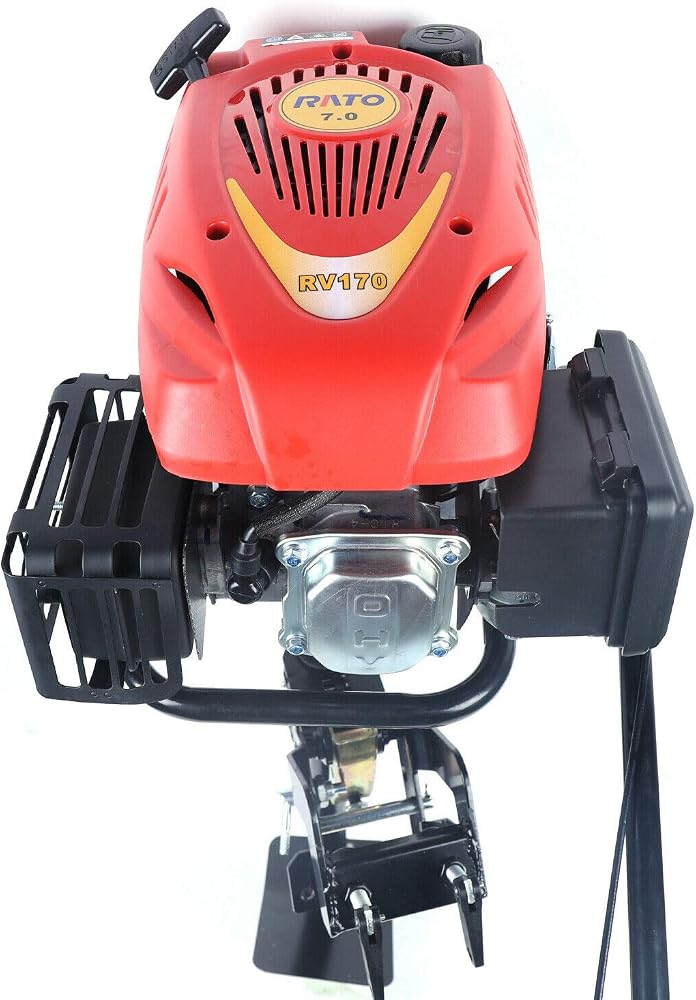

Model: RV170
Color: Black, Red
Material: Aluminum
Spark Plug Material: Titanium Alloy
Surface Treatment: Plastic Painting
Recommended Uses for Product: For Fishing Boats
Gasoline Engine Type: Single Cylinder Horizontal, Four-stroke, OHV
Recommended Fuel: 92# or Above Gasoline
Recommended Lubricant: 4-stroke Lubricant Oil
Hypoid Gear Oil: SAE90
Starting Mode: Pull Start
Transmission Mode: Spline Transmission
Cooling System: Forced Air Cooling
Ignition System: Capacitance Discharge Type
Power Output Mode: Vertical Shaft Output
Power: 3.2KW
Reduction Ratio: 22:15
Displacement: 170cc
Exhaust Volume: 173.3ml/5.86oz
Bore*Stroke: 70*45mm/2.75*1.77inch
Theoretical Power: 3.2kw/3600r/min
Recommended Power: 2.4kw/3000r/min
Torque: 9.0N.m/2, 500r/min
Fuel Consumption: 395g/kw.h
Spark Plug Gap: 0.7-0.8mm/0.027-0.03inch
Carburetor Idle Speed: 1900±100r/min
Valve Clearance (Cold Engine): Intake: 0.15±0.02mm; Exhaust: 0.20±0.02mm
Suspension Height: Suspension Point to Propeller 60-70-80cm/23.6-27.56-31.5inch
Oil Tank Capacity: About 1.2L/40.57oz
Applicable Temperature: 80-110℃/176-230℉
Applicable Boat Length: 3-7m/9.8-22.9ft
Flat Water Load-bearing Capacity: 1T/2204lbs
Heavy Current Load-bearing Capacity: 750kg/1653lbs
Max. Speed: 15km/h
Min. Speed: 8km/h
Product Size: 39.5*34.8*115cm/15.55*13.7*45.27inch
Net Weight: 26kg/57.3lbs

Package Included
1* Outboard Engine
1* Throttle Main Line
1Set* Tools
1* Manual
