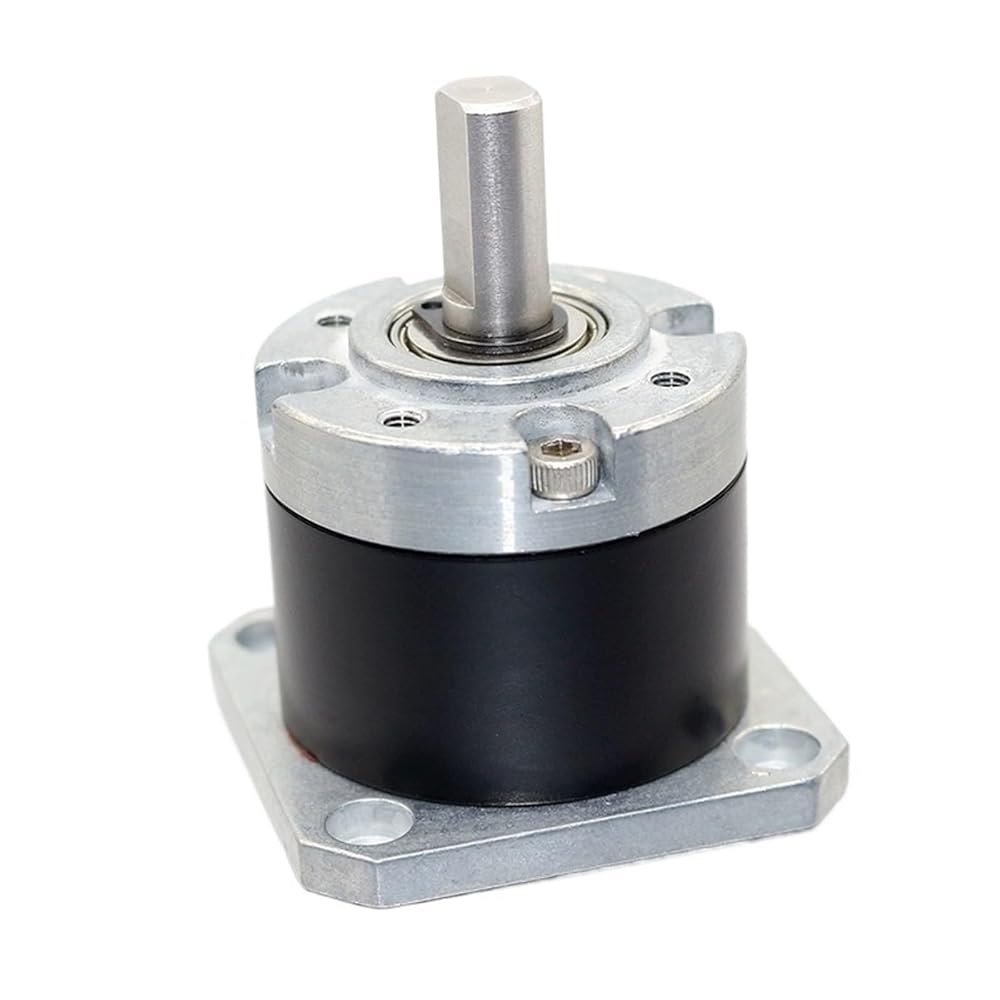

42 stepper motor reducer precision planetary gear reducer 36mm CM36 planetary motor reducer gearbox
Basic principle After a highspeed motor is matched with a gearbox. speed ÷ reduction ratio = output speed after installation.
Gearbox diameter: 36MM
Mounting plate diameter: 42mm
Reduction ratio:
Reduction ratio 1:3.7
Reduction ratio 1: 13.7
Reduction ratio 1: 19.2
Reduction ratio 1:51
Reduction ratio 1:71
Reduction ratio 1:99.5
Reduction ratio 1: 188.6
Reduction ratio 1: 263.7
Reduction ratio 1: 368.7
Reduction ratio 1: 515.6
Installation Requirements :
Installation Requirements----------------------
Motor Mounting Dimensions:
Motor Bore Spacing: 31MM
Motor Shaft Mounting Length: 10-11.5MM from motor housing plane to shaft end plane
Motor Shaft Requirements---------------
Motor Shaft Diameter: 5.0mm
