1 قطعة 35 36 38 الأسنان HTD 5M توقيت بكرة BF تتحمل 8/10/12/14/15/16 HTD5M عرض الحزام 15/20/25 مللي متر 35T 36T 38T(10 مللي متر-(شكل BF) ، 36 T_15MM) in Saudi Arabia

10 مللي متر--(شكل BF) 38 T_20 مللي متر

SAR 141
ماركة
XYNLHZQ
فئة
أحزمة
اللون10 ملم--(شكل فرنك بلجيكي)
مقاس38 طن_20 ملم
– 1 +

مميزات خاصة

  • Accurate tooth profile design, closely meshing with the synchronous belt, smooth transmission without slipping, ensuring operational accuracy
  • Made from carefully selected alloys or steel, it is wear-resistant, corrosion-resistant, not easily deformed, and extends its service life
  • Designed with a barrier edge structure, effectively preventing the synchronous belt from falling off or shifting during operation
  • Easy to install, compatible with multiple types and widths of synchronous belts, meeting the assembly needs of different equipment
  • Widely used in 3D printers, industrial transmission equipment, motors, automation machinery and other scenarios

وصف

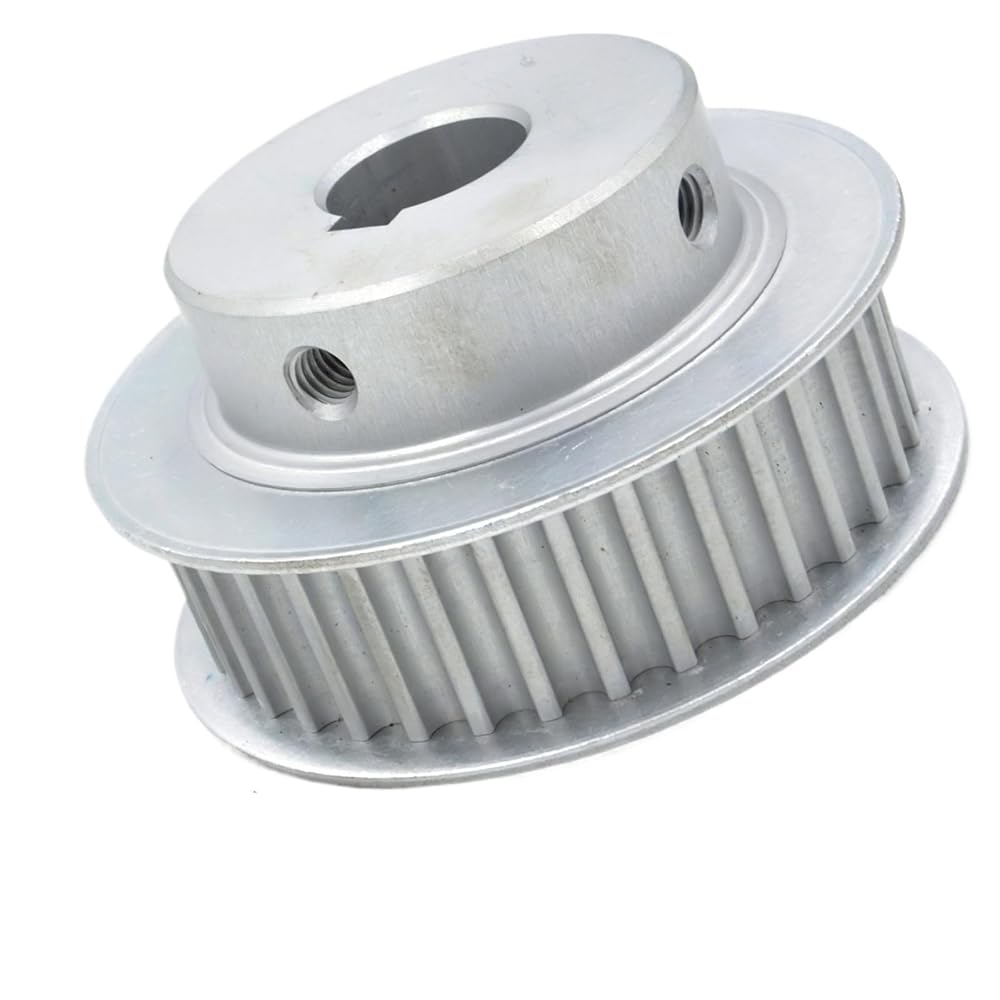

HTD5M 35 36 38 teeth 5M
Synchronous Timing pulley BF/CF Shape
Bore 8/9.525/10/12/12.7/14/15/16mm
35Teeth 36Teeth 38Teeth Aluminum alloy 6061 Pitch 5mm 35T 36T 38T
Belt width 15mm/20mm/25mm
HTD5M
open Timing belt
High-concerned chemical : None
Number of Teeth : 35T 36T 38T
Model Number : 35T 36T 38T HTD5M-(BF shape)
Material : Alloy
Type : Timing pulley
Picth : 5mm
Teeth Number : 35Teeth 36Teeth 38Teeth
Outside Diameter (OD) : 54.56mm/56.16mm/59.34mm
Fit for belt width : 15mm/20mm/25mm
Bore : 8/9.525/10/12/12.7/14/15/16mm
Flange : Double flange
Screw hole : 2*M5
Material : Aluminium Alloy6061
Shape : BF
