مميزات خاصة

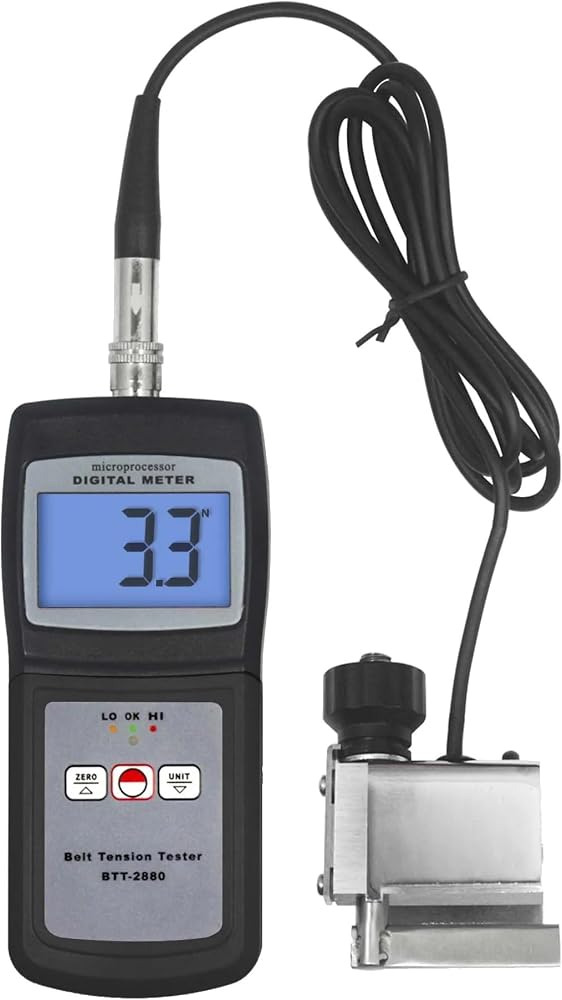

* This Belt Tension Tester used the exclusive computer LSI circuit and crystal time base to offer high accuracy measurement.
* It can be used to measure and adjust the tension of timing and auxiliary belts fitted to motor vehicles and other machines.
* Tension can be displayed in a variety of standard and manufacturers' units.
* Tension limits can be set into the instrument, either manually or automatically. During belt tension measurement and adjustment, the belt tension is displayed. A visual and audible indication of whether the tension is within or outside the set limits is also given. This avoids the user having to read the display whilst adjusting the belt.
* The selected tension limits, measurement units and calibration parameters are stored in The memory of the tester, and will be remembered even when the instrument is switched off and the batteries removed.

وصف

* Use "USB data output" and "RS-232 data output" to connect with PC.
* Provide "Bluetooth data output" choice.
Note: Tension checking should always be carried out in accordance with the vehicle manufacturers' instructions.
Display4 Digits 10 mm LCD, With Colored LED Indication of High, Low and OK
Measurement Range
0 ~ 750 N ( Newtons )
0 ~ 120 lb ( Pounds )
0 ~ 77 kg ( Kilograms )
0 ~ 114 Seems
Belt WidthUp to 36 mm
Overload Alarm750 N
Maximum Load850 N
Resolution± 1 Newton or 1 Least Significant Digit of Other Units
Accuracy± 5 % of full-scale
Data OutputUSB, RS-232, Bluetooth
Audible WarningPiezoelectric Sounder
Power Supply4 x 1.5 AAA Size (UM-4) Battery
Dimensions135 x 62 x 33 mm
Weight335 g ( Not Including Batteries )
Standard Accessories:
1. Main Unit
2. Measuring Head
3. Carrying Case
4. Operation Manual
Optional Accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
