Details

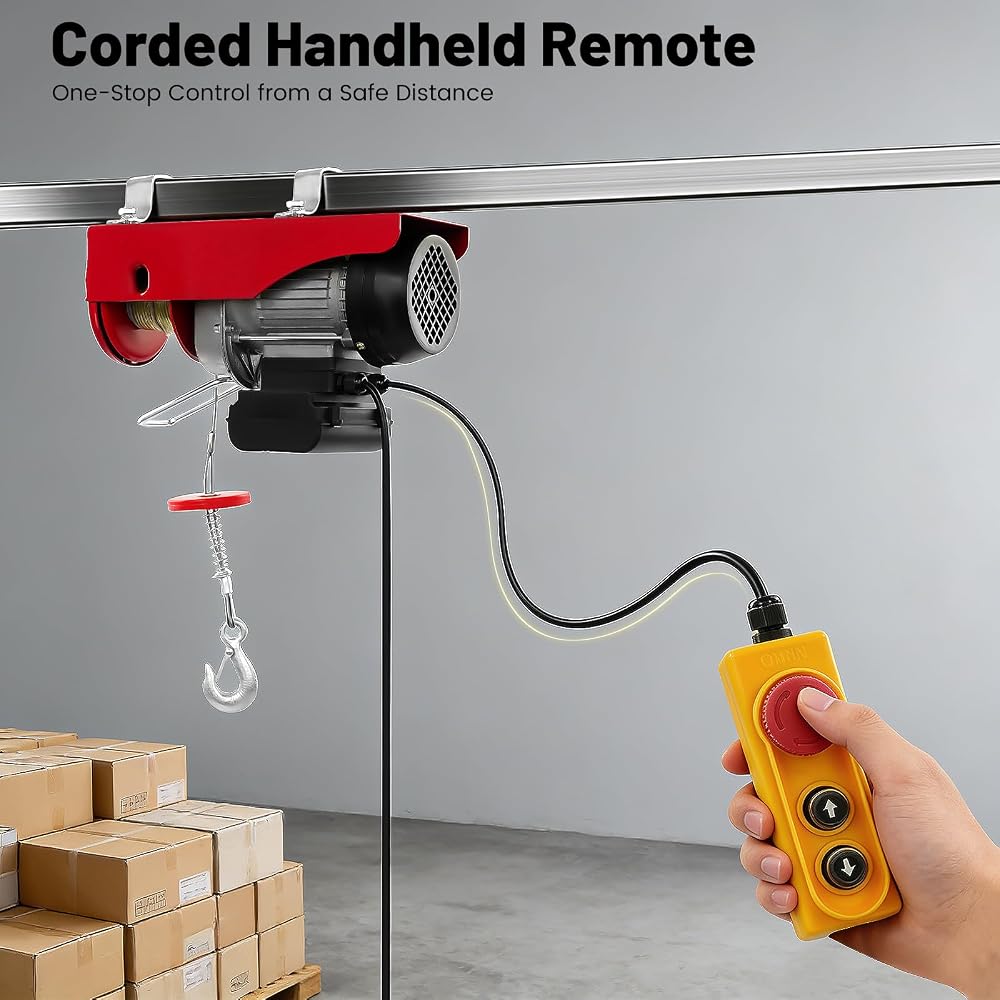

Corded Handheld Remote: Wired control allows safe distance operation for lifting/lowering, with a red emergency stop button for quick shutdown.

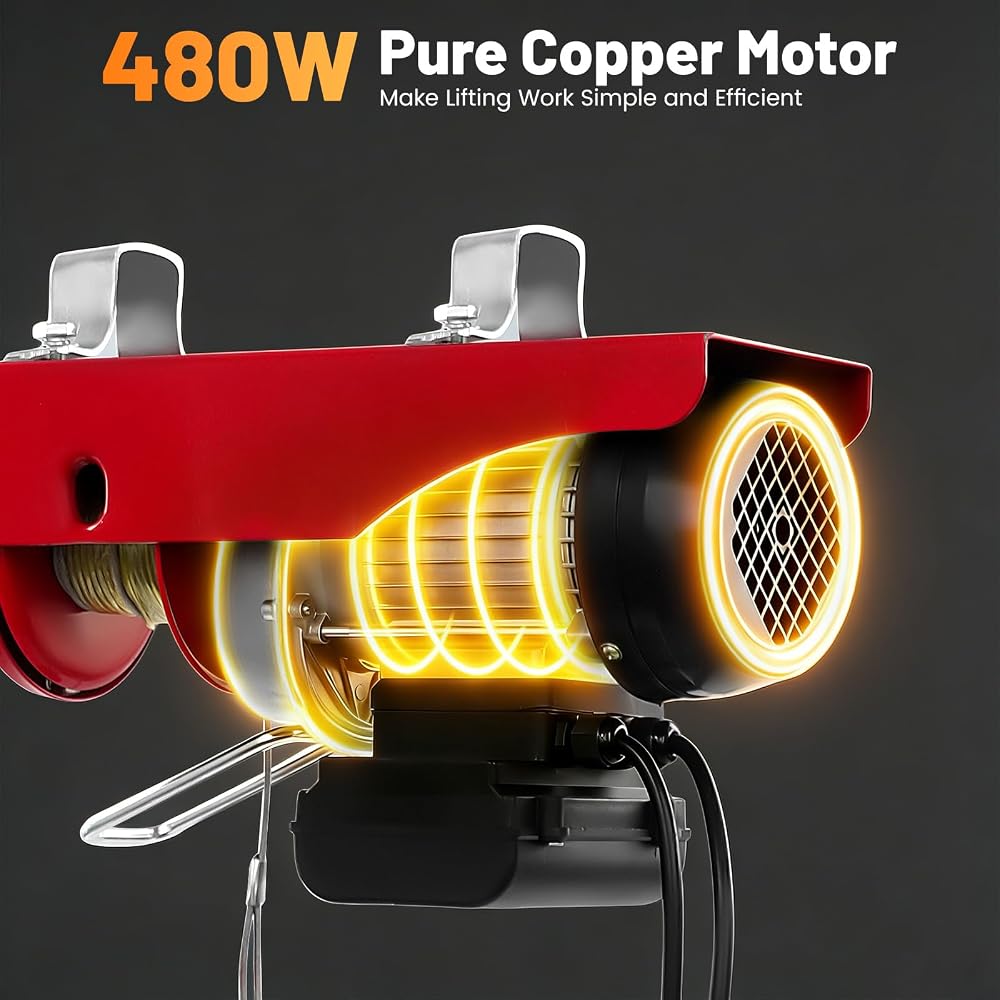

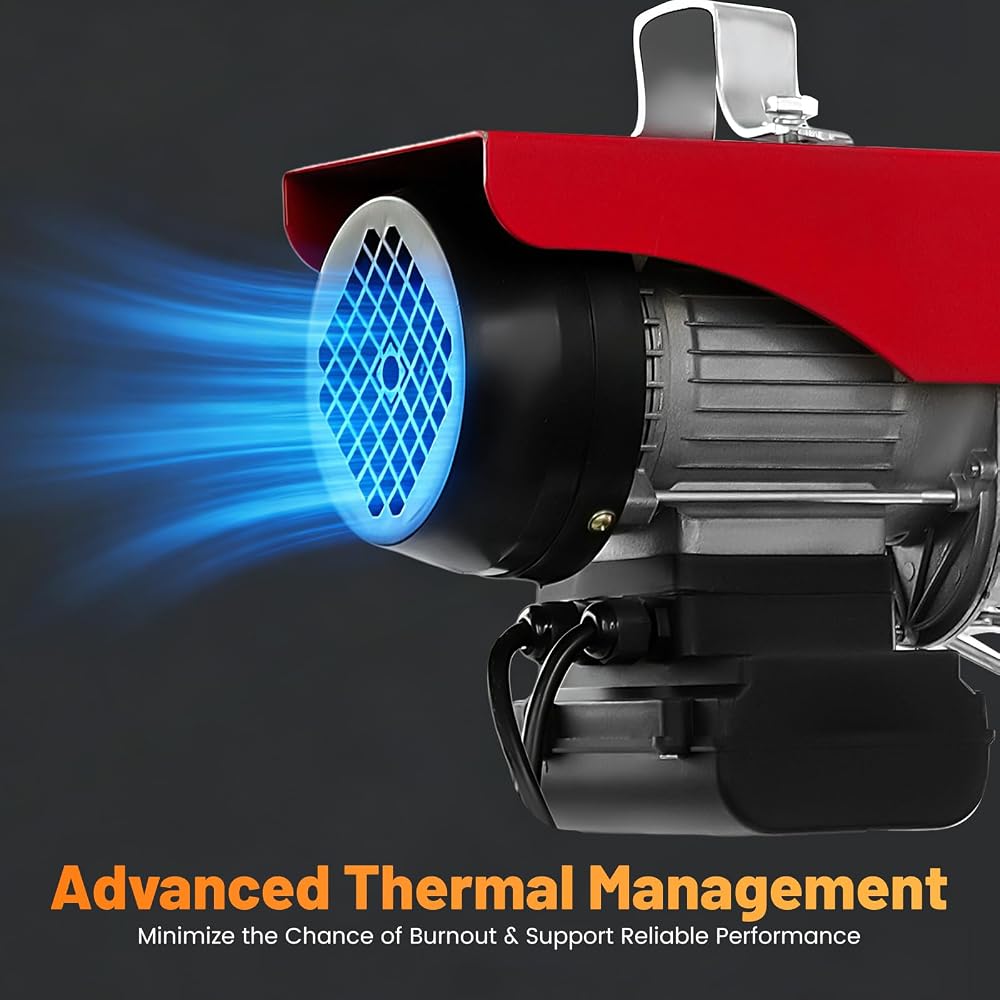

Pure Copper Motor: 480W copper motor with strong power, good heat dissipation, stable performance, and low noise.

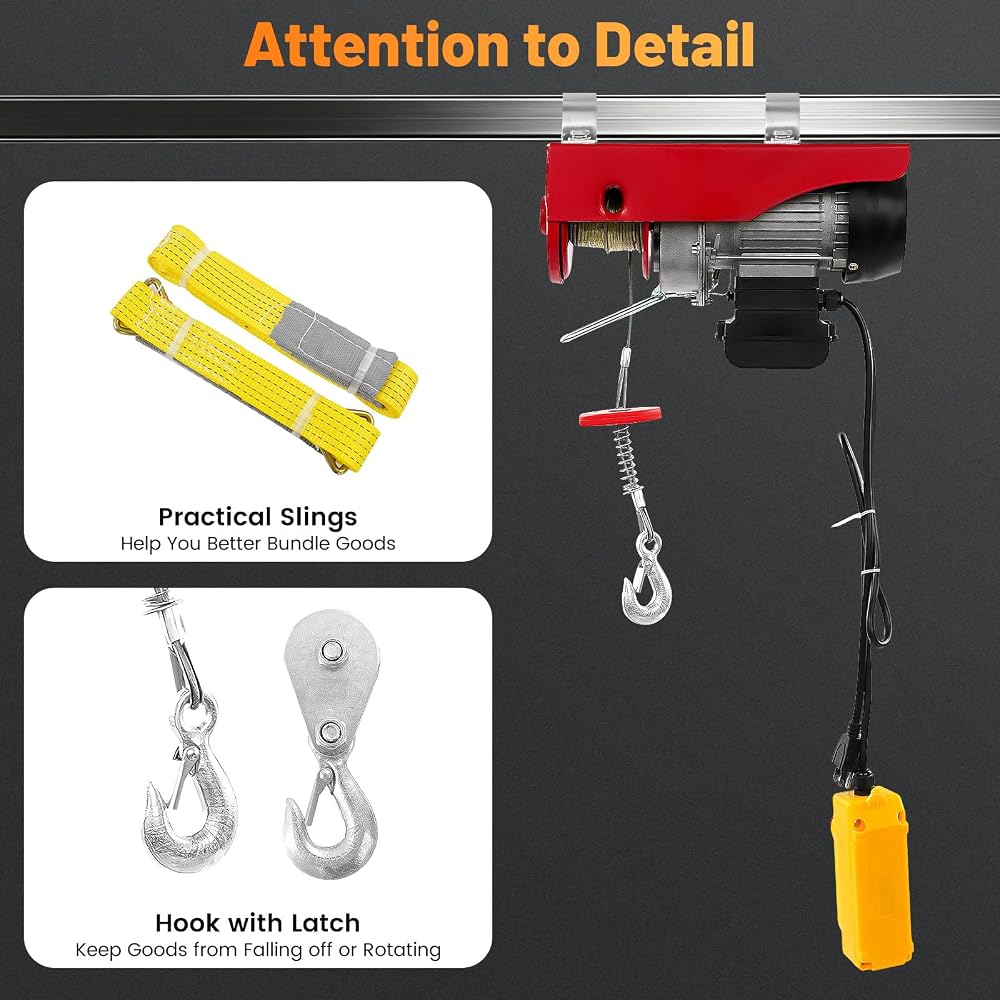

Multi-Purpose Lifting Belts: Includes 2 lifting belts for securing irregular loads, reducing the need for extra purchases.

Application
Suitable for factories, docks, warehouses, logistics, construction sites, railways, car plants, garages, ceilings, attics, barns, and lofts for lifting regular or irregular objects. Compatible with various lifting systems such as single-column, wall-mounted, and cranes.

Specifications
Housing Material: Carbon Steel
Finish: Plastic Spray
Hook Material: Galvanised Alloy Steel
Cable Material: Galvanised Carbon Steel
Motor Housing Material: Aluminum
Motor Type: Pure Copper Motor
Model: PA100
Plug Type: US Plug
Voltage: 110V-60Hz
Power: 480W

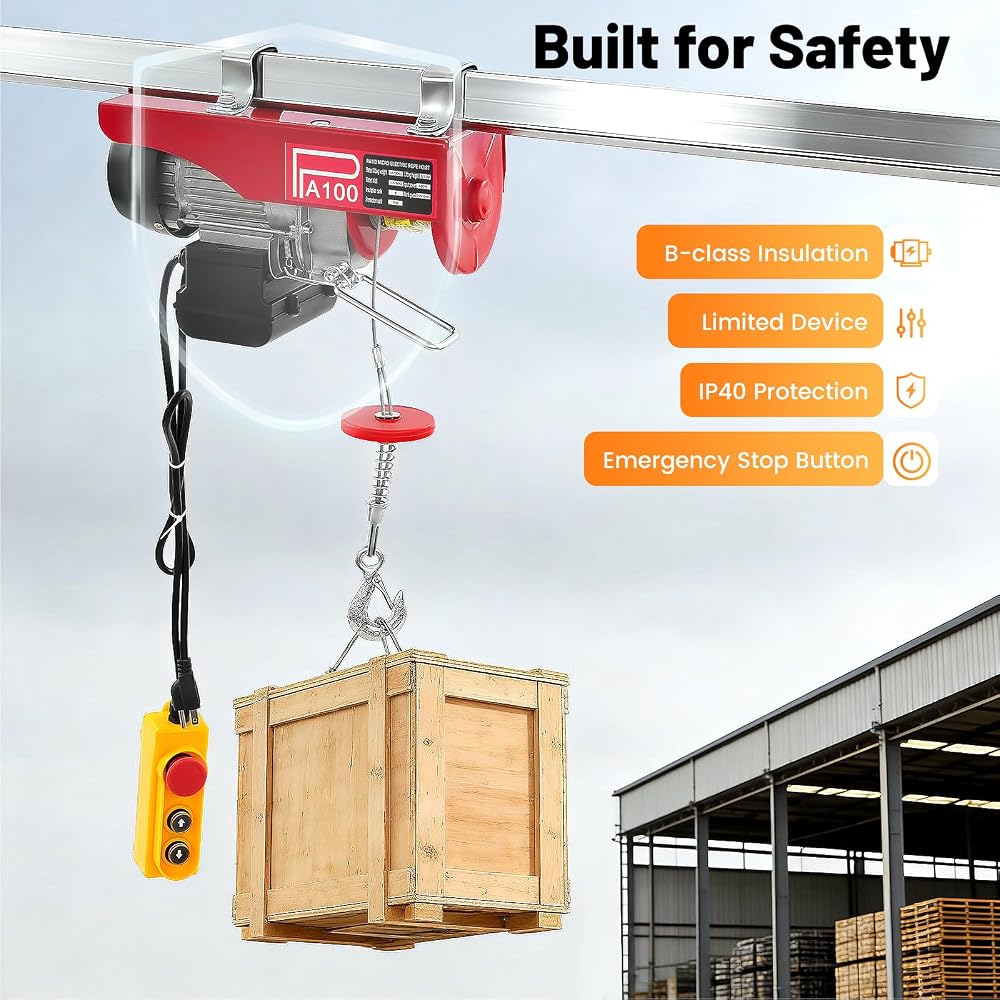

Insulation Rank: B
Protection Rank: IP40

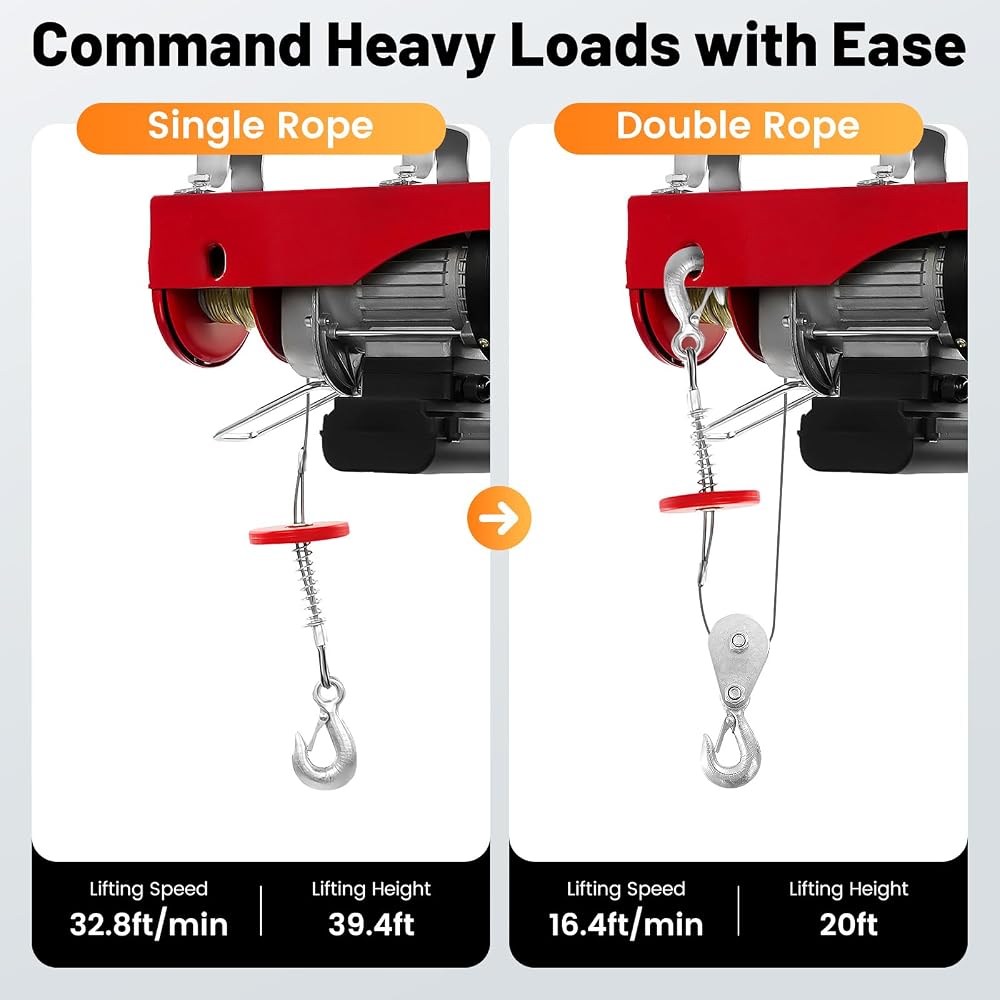

Load Capacity: 50kg/110lbs(Single Cable), 100kg/220lbs(Double Cable)
Lifting Speed: 32.8ft/min (Single Cable) , 16.4ft/min (Double Cable)
Lifting Height: 12m/39.4ft(Single Cable), 6 m/20 ft(Double Cable)
Work Quota: 20%10min
Product Size: 32.5*13*11.93cm/12.8*5.12*4.7in
Large Hook Length: 20.32cm/8in
Small Hook Length: 15cm/5.91in

Package Included
1 * Electric Hoist
2 * Lifting Straps
1 * Hook

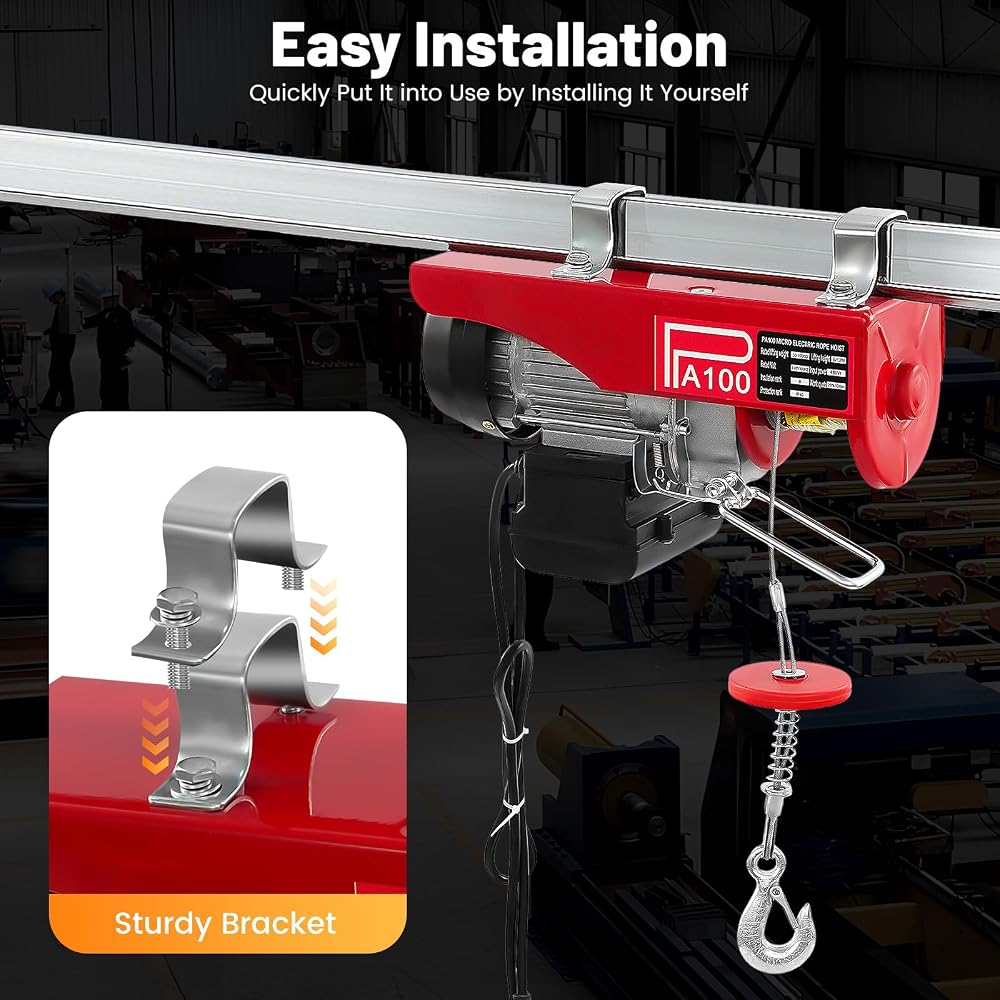

2 *Mounting Clamp Brackets
1* Wired Remote Control
1* English Manual

Notes
1.Ensure the boom width and height do not exceed the mounting bracket's internal dimensions.
2.If the load is too large or cannot be directly hooked, use a longer webbing to secure it before lifting.
3.Warn all nearby people before lifting; set a safety zone if necessary.
4.Choose an electric hoist rated for the required load.
5.Do not use if the hook is cracked/deformed or the wire rope is kinked/corroded.
6.Do not leave lifted loads unattended for long periods.
7.Read all safety instructions in the manual before use.
