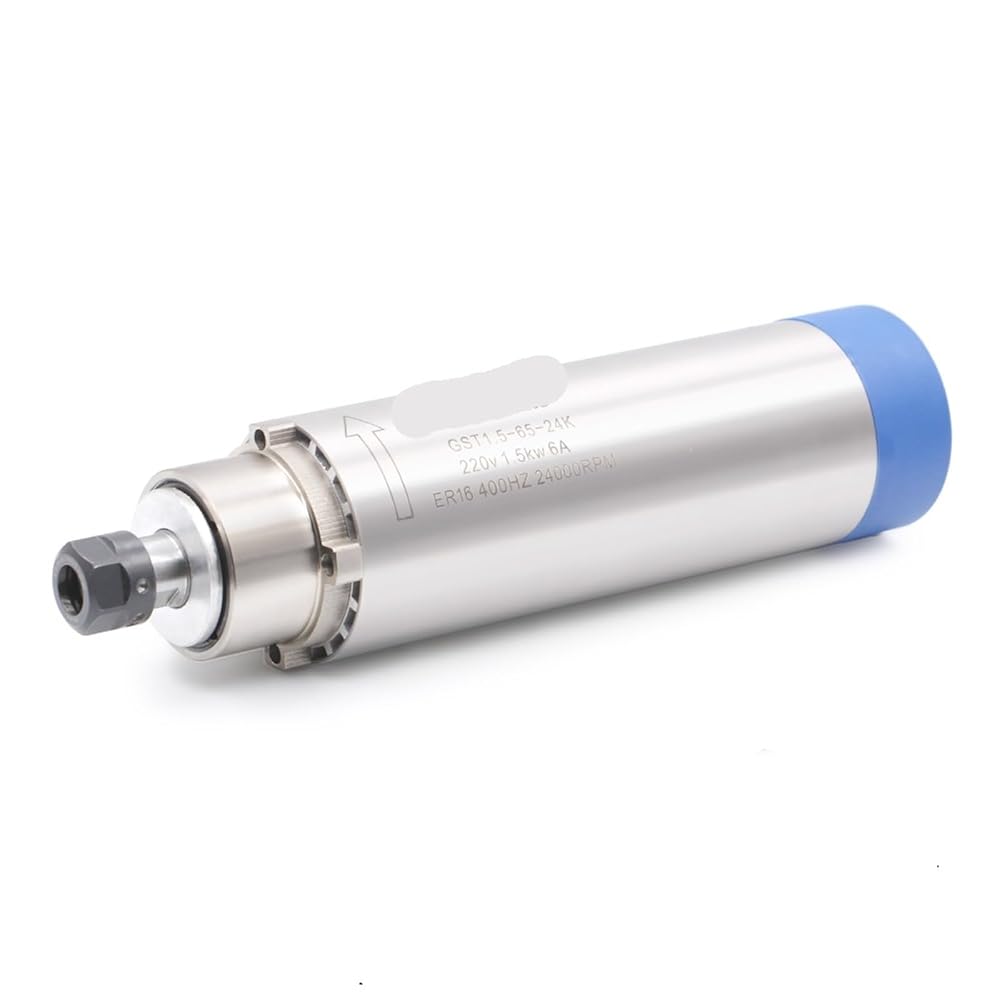

1 pcs &15kw ER16 D65 Air Cooled Spindle Motor Engraving Milling Grinding65x258mm 4pcs Bearings
Basic parameter
Size65x258mm Body diameter65mm; Length:258mm)
Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling:Air cooling
Power:1.5kw(1HP=0.735kw)
Voltage:110v/220v/380v
Frequency:0-400Hz
Speed:0-24000rpm
Runout Off:0.01mm
4pcs full sealed P4 angular contact ballbearings
Bearing Type:2×7004P4 DT&2 7000P4 DT
Air Cooling ER16 collet chunk
Clip Knife diameter 10mm9mm8mm7mm635mm6mm,5mm,4mm,3.175mm,3mm,2mm,1mm
