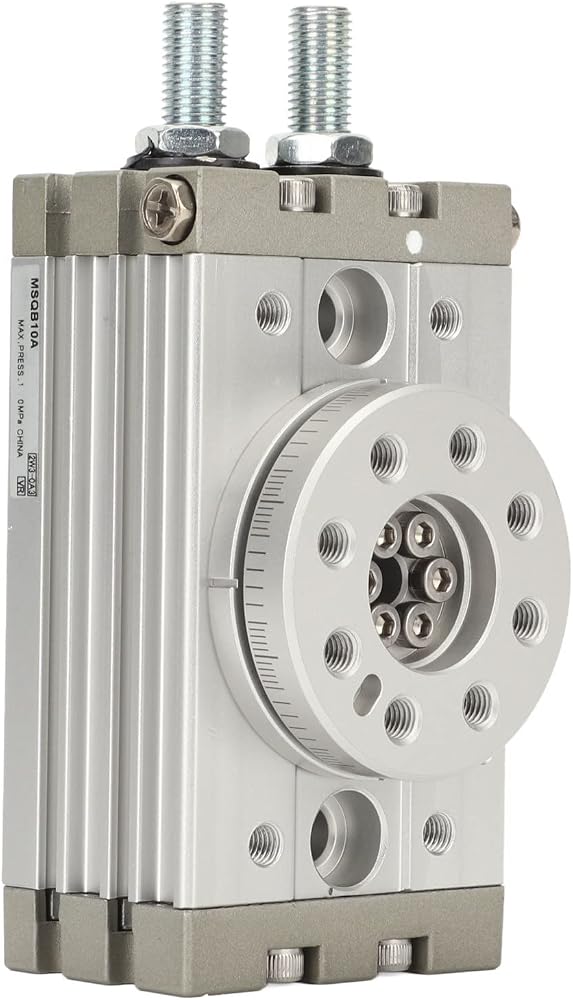

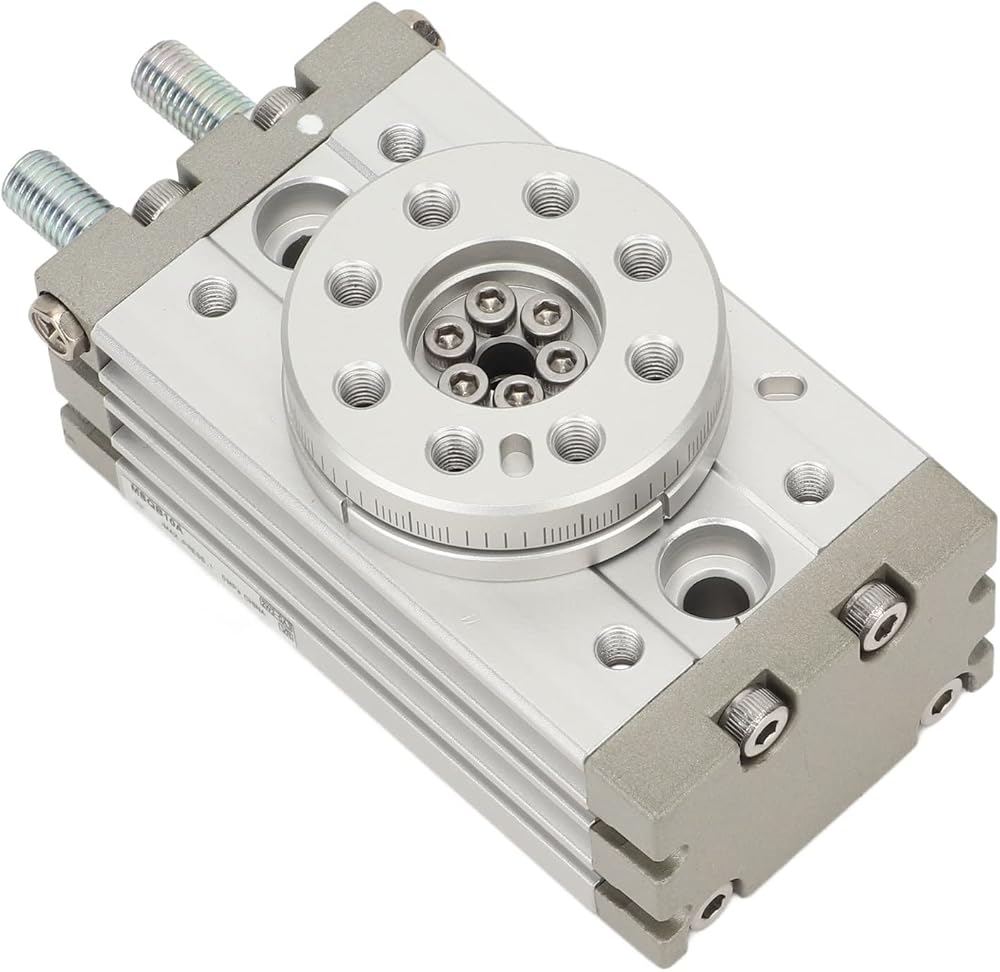

Pneumatic Rotary Actuator, 10A 20A 30A 190 Degree Adjustable Rotary Pneumatic Air Cylinder, M5 Air Cylinder, 0.1-1.0MPa, Angle Adjustment Range 0-190° (MSQB-10A)

SAR 235
Brand
Focket
Weight
0.6 kg
– 1 +

Special Features

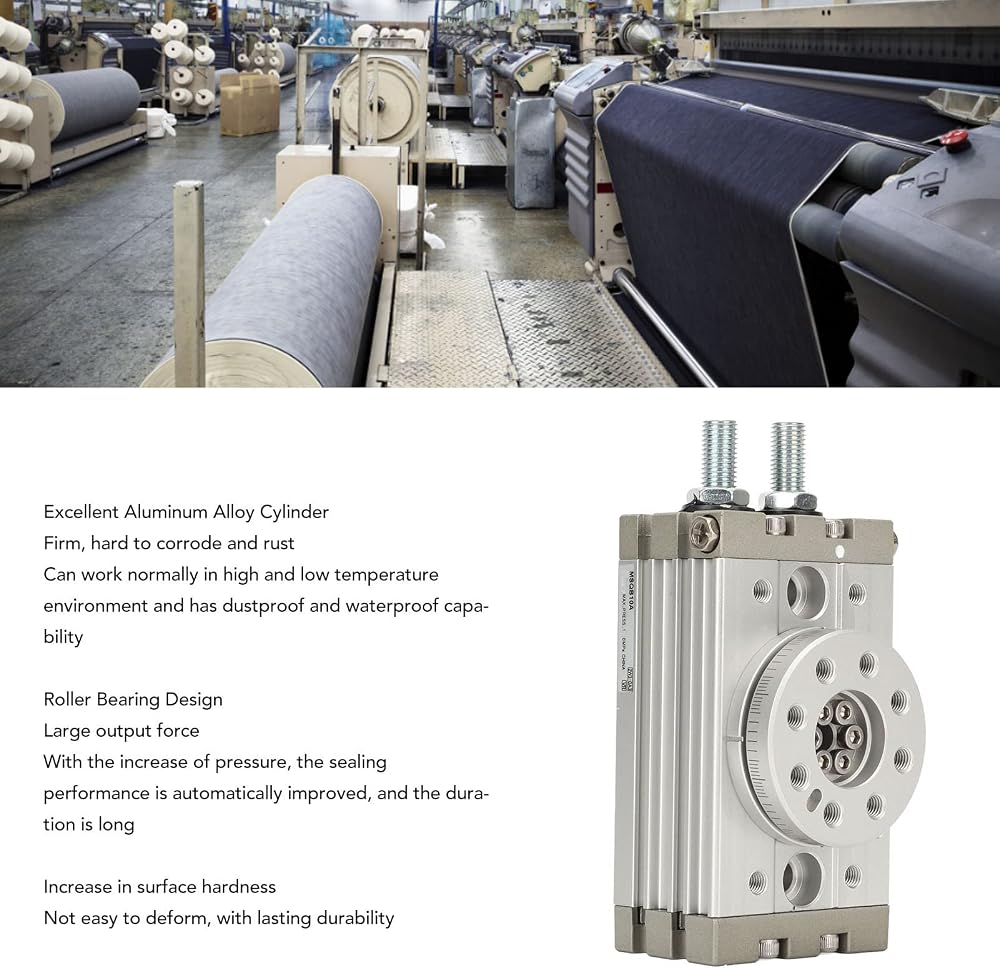

  • [Aluminum Alloy Made] The cylinder is made of aluminum alloy, which is sturdy, hard to corrode and rust, can work normally in high and low temperature environment.
  • [Large Output Force] The air cylinder is designed with roller bearing, with large output force, the sealing performance will be improved automatically with the increase of pressure.
  • [Wide Application] Cylinder is widely used in automation equipment in light industry, chemical industry, textile, electronics, machinery and other industries.

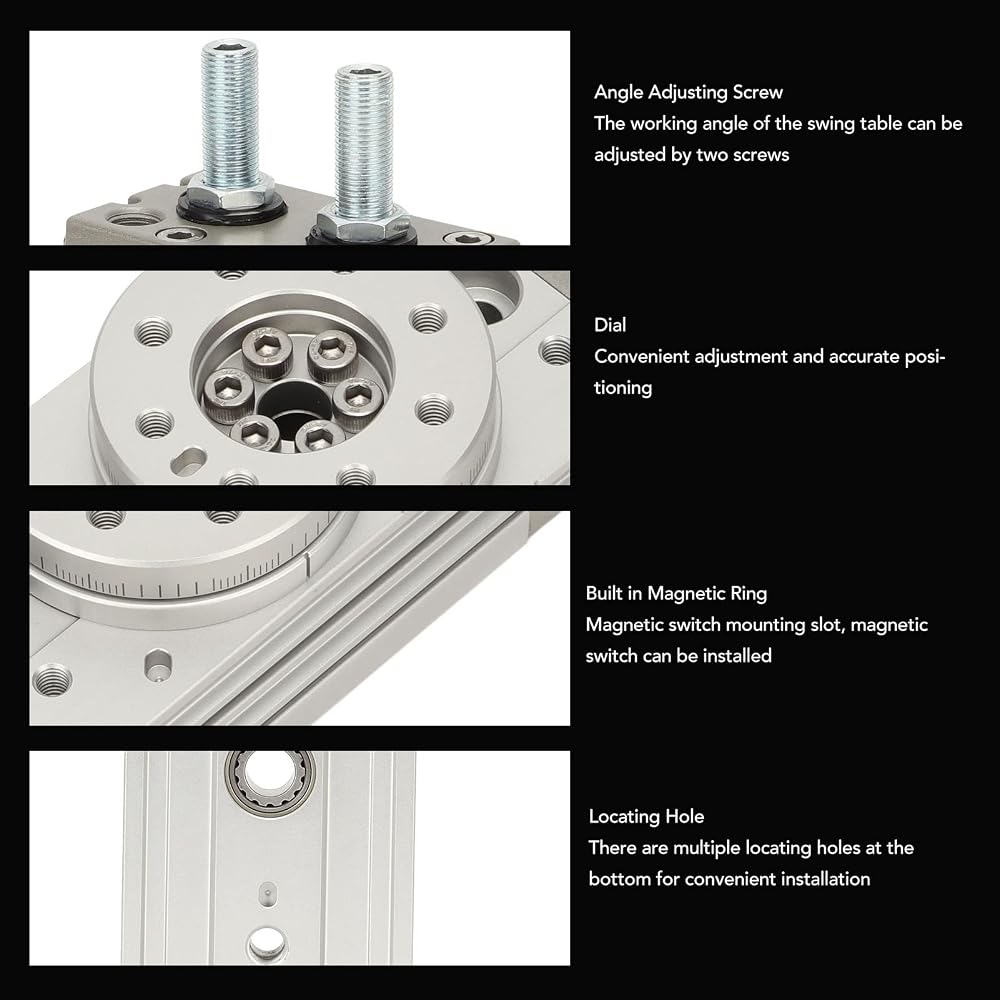

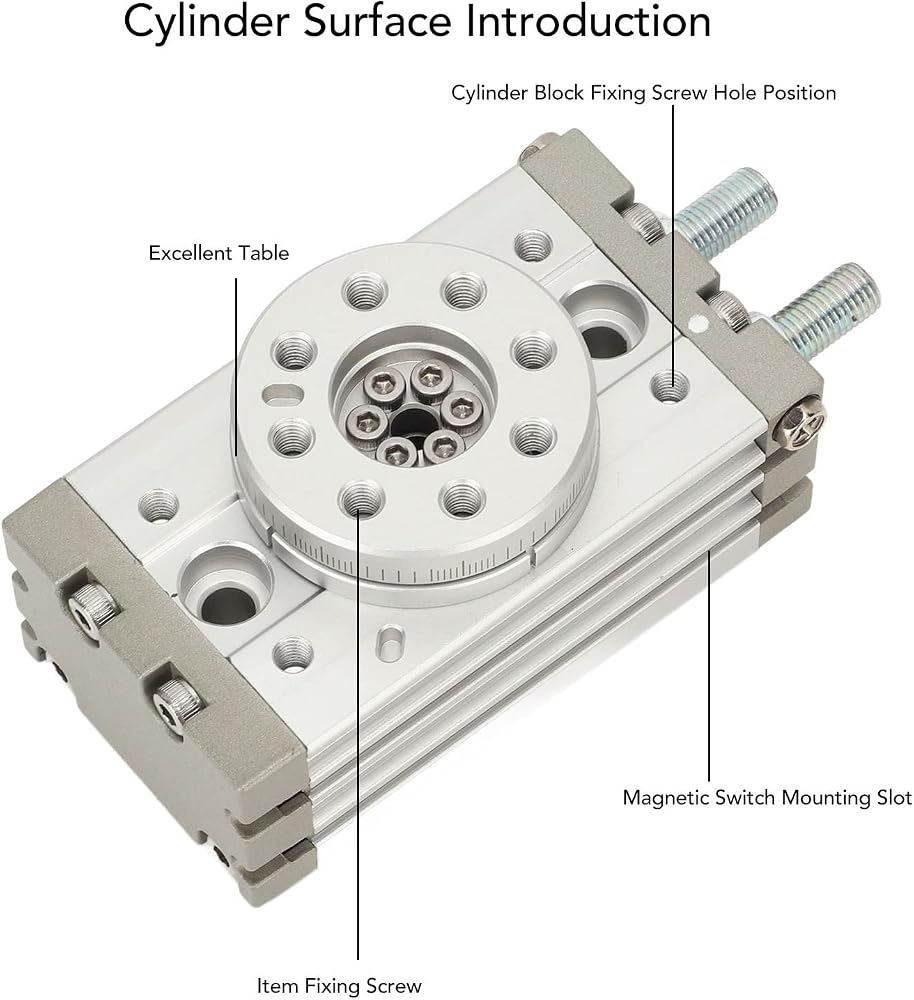

  • [Design Feature] Built in magnetic ring, can be installed with magnetic switch. The cylinder is double acting, alternating air supply from both sides of the piston, one or two way output force.

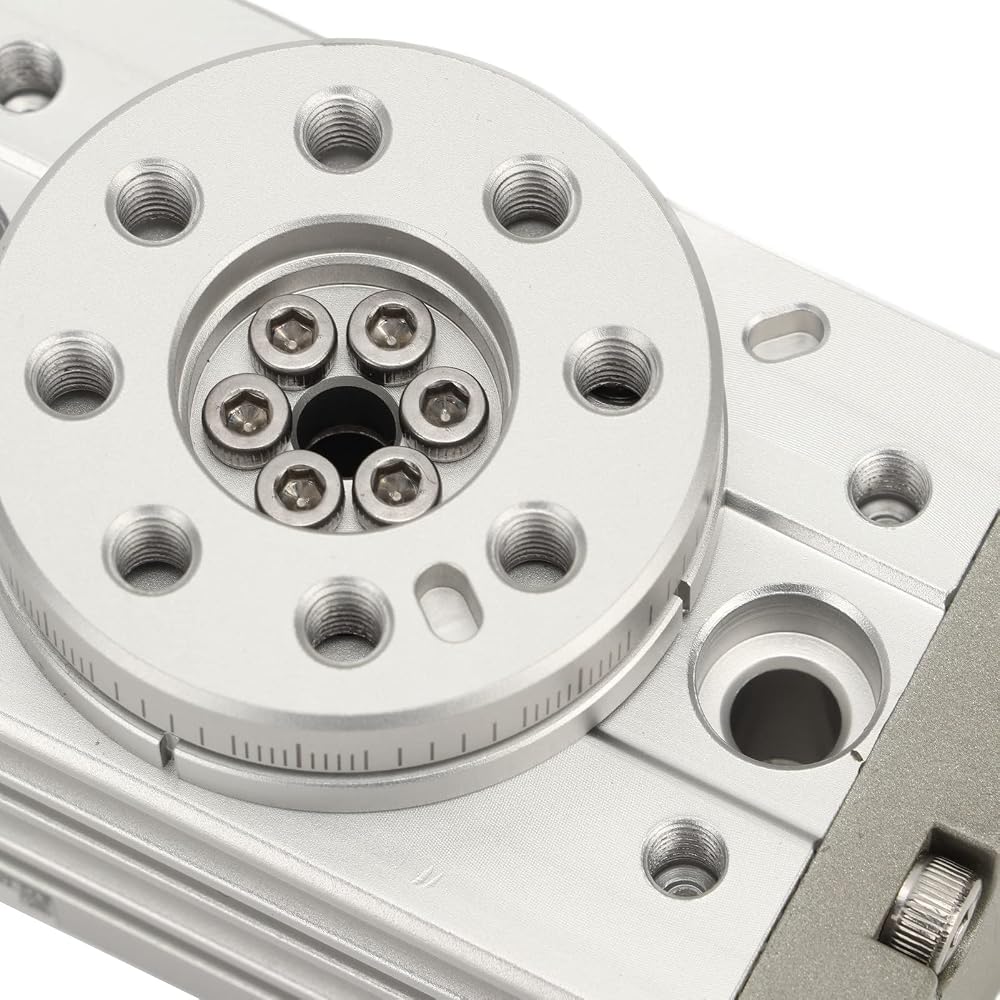

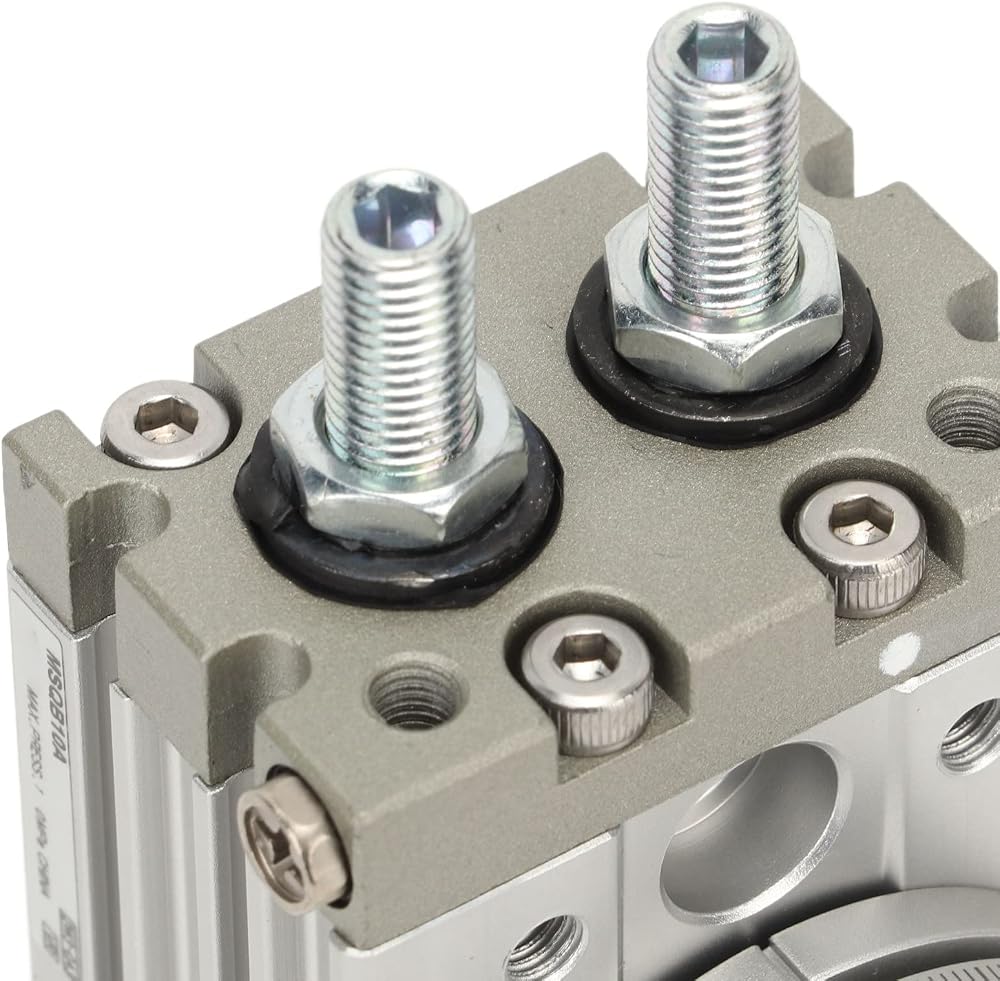

  • [Angle Adjustable] The rotary cylinder uses an angle adjustment unit, and can be adjusted by 0 to 190 degree, the swing is smoothly and accurate.

Description

Spec:
Item Type: Rotary Pneumatic Air Cylinder
Material: Aluminum Alloy

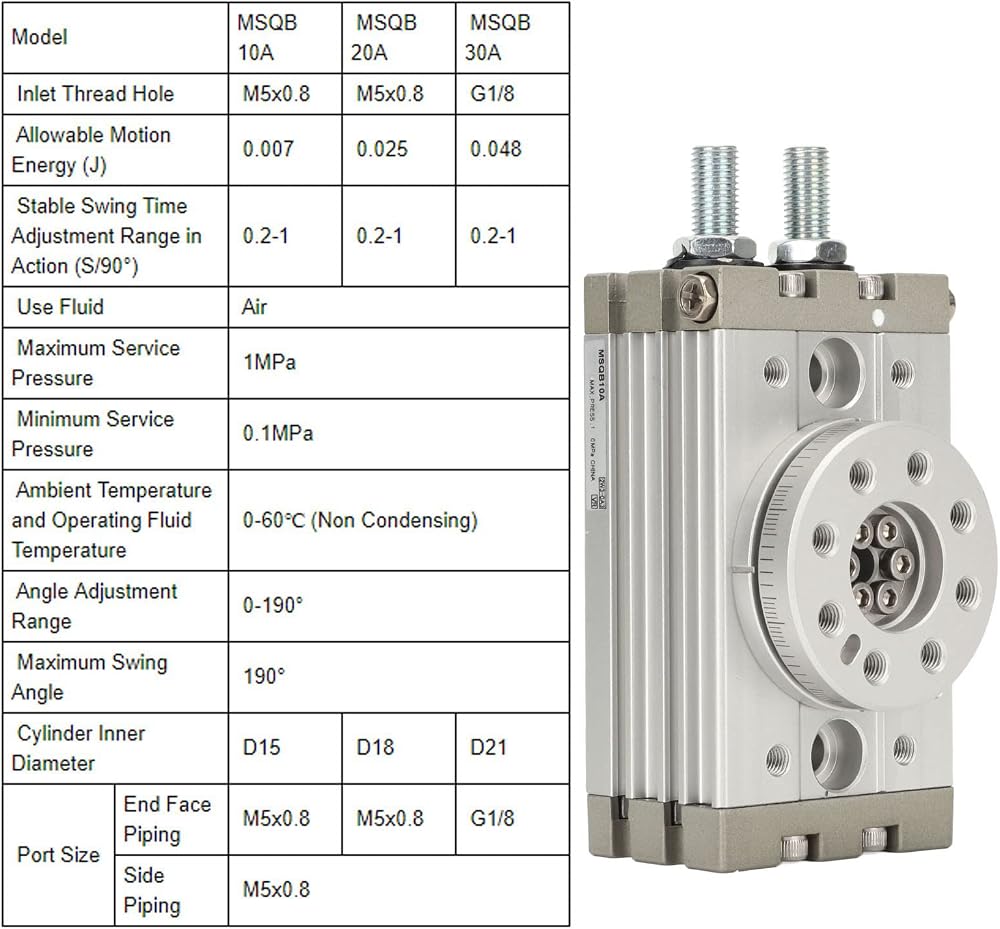

Model MSQB 10A MSQB 20A MSQB 30A
Inlet Thread Hole M5x0.8 M5x0.8 G1/8
Allowable Motion Energy (J) 0.007 0.025 0.048
Stable Swing Time Adjustment Range in Action (S/90°) 0.2-1 0.2-1 0.2-1
Use Fluid Air
Maximum Service Pressure 1MPa
Minimum Service Pressure 0.1MPa
Ambient Temperature and Operating Fluid Temperature 0-60℃ (Non Condensing)
Angle Adjustment Range 0-190°
Maximum Swing Angle 190°
Cylinder Inner Diameter D15 D18
Port Size End Face Piping M5x0.8 M5x0.8 G1/8
Side Piping M5x0.8

How to Use:
Take out the product and use it after installation.

PackageList:
1 x Rotary Pneumatic Air Cylinder
