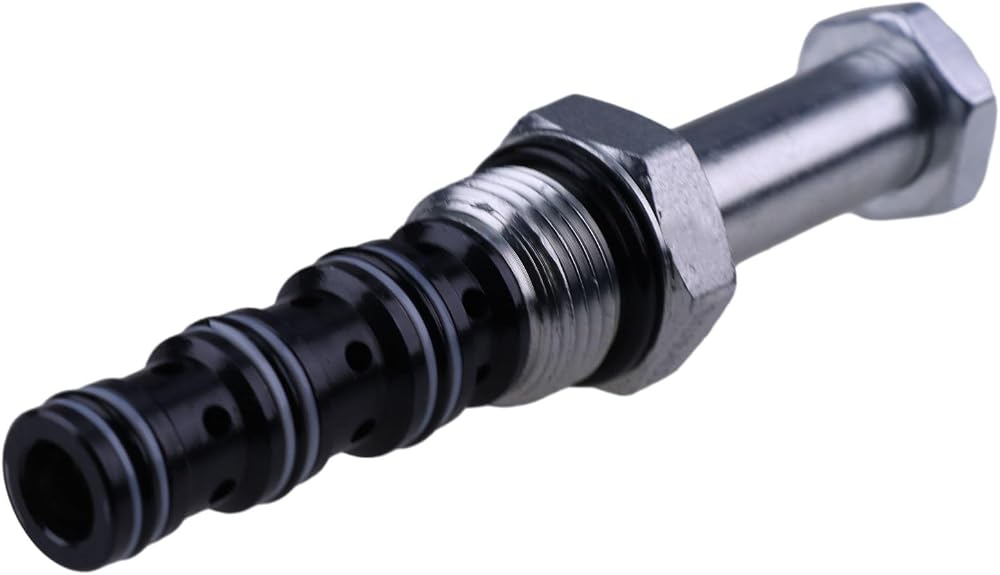

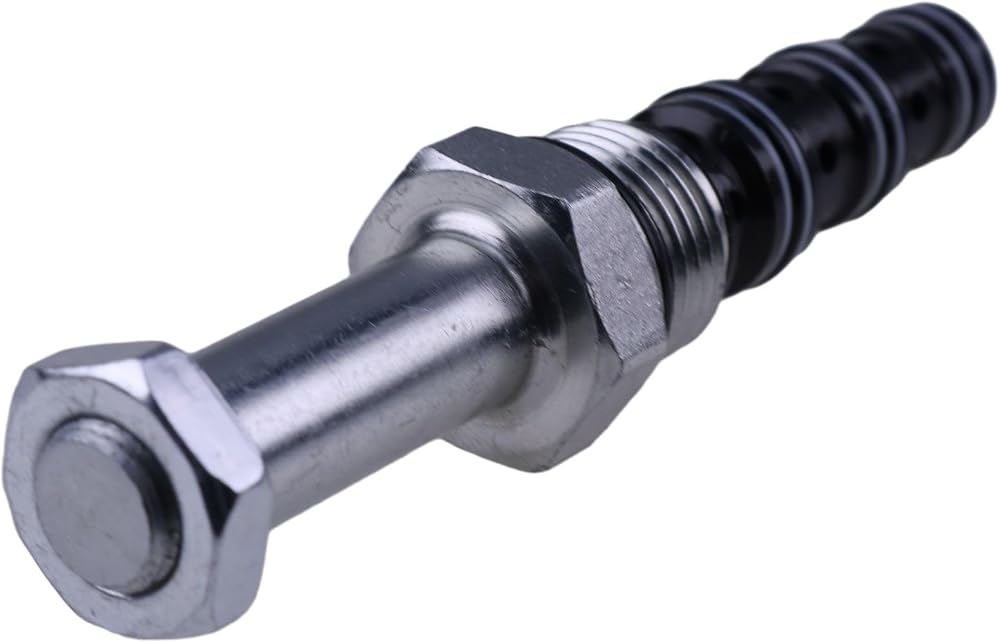

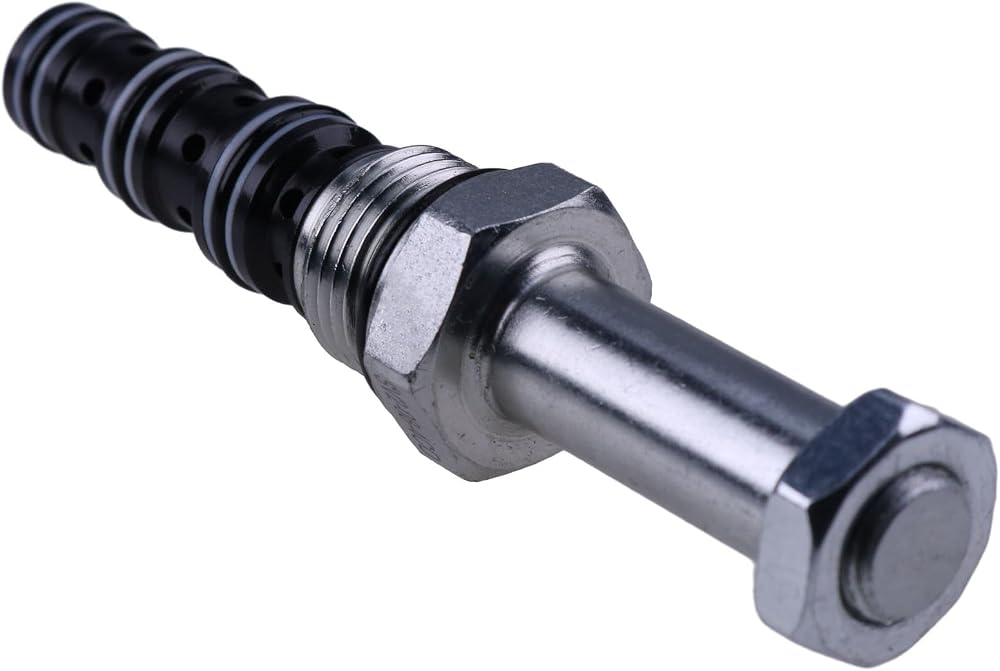

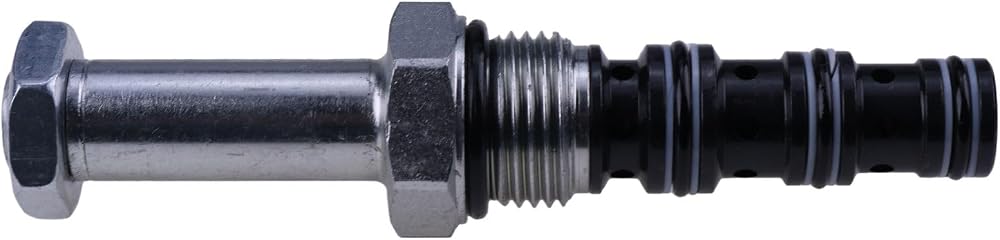

Part Number:
DSV2-080-4CO-N-C25

Application: Compatible with Deltrol Cartridge Valve

Specification:
Pressure Max psi: 3000
Pressure Max bar: 207
Flow gpm: 3.0
Flow lpm: 11.4
Cavity: 080-4
Coil: Series 8 K-Coils (External Frame); Series 8 S-Coils (Internal Frame)
Valve Style: Spool
Operating Pressure: 3000 PSI (207 Bar)
Internal Leakage: (Per land) 5 in3/min. (82 cc/min.) max. at 3000 PSI (207 Bar)
Temperature: -30°F to +250°F (-35°C to +120°C)
Coil Duty Rating: Continuous from 85% to 110% of rated voltage.
Current Draw: 12 VDC is 1.3 amps.
Minimum Pull-In Voltage: 85% of rated voltage at 3000 PSI (207 Bar)
Response Time: 80% of final change of state with 100% voltage supplied at 100% of nominal flow rating.
Pull-In: 12 VDC 12 m. sec.
Drop-Out: 12 VDC 7 m. sec.
Recommended Filtration: ISO 17/15/13
Fluids: Mineral-based fluids. For other fluid compatibility, consult factory.
In-Line Body Material: Anodized 6061T6 aluminum alloy rated at 3000 PSI (207 Bar)
