Special Features

【Used】: Ideal for radius, depth, and step measurements on automotive parts,and construction materials. Suitable for both inner and outer circle measurements, serving professionals in machining, woodworking, metalworking, and industrial inspection
【Dual Model Options】: Available in two specialized sizes: Model 1 (5–700mm radius, 0–15.8mm length) and Model 2 (450–2500mm radius, 0–50.8mm length). Both offer a fine resolution of 0.005mm, providing flexibility for different project scales and precision needs
【LCD Display for Easy Reading】: Features a digital LCD screen that ensures quick and accurate measurement reading. The high-visibility display provides instant,reducing parallax errors and simplifying operation in various working environments
【Accuracy 】: Delivers high-precision measurements with radius error ≤0.01×R and linear error ≤0.02mm. Features one-touch switching between mm and inch units, making it adaptable to international standards and diverse measurement requirements
【Interchangeable Jaw Systems】: Includes five measuring jaws (10/20/30/60/100mm) to handle various arc sizes and geometries. This modular design allows quick adaptation to different tasks, ensuring optimal accuracy across mechanical,fabrication applications

Description

Specifications:

Model-KJ-R:
Accuracy: 0.003
Measuring Range: 5-700mm
Measurement Jaw Configuration: 5pcs (10mm / 20mm / 30mm / 60mm / 100mm)

Model-KJ-R50:
Accuracy: 0.003
Measuring Range: 450-2500mm
Measurement Jaw Configuration: 1 (200mm)

General Parameters:
Display Mode: LCD Digital Display
Maximum Measurement Speed: ＞1.5m/s
Power Supply: 3V Large-Capacity Battery
Data Output: Usb Interface (Data Cable Needs to Be Purchased Separately)
Sensor Type: Glass Grid Sensor

Packing List:

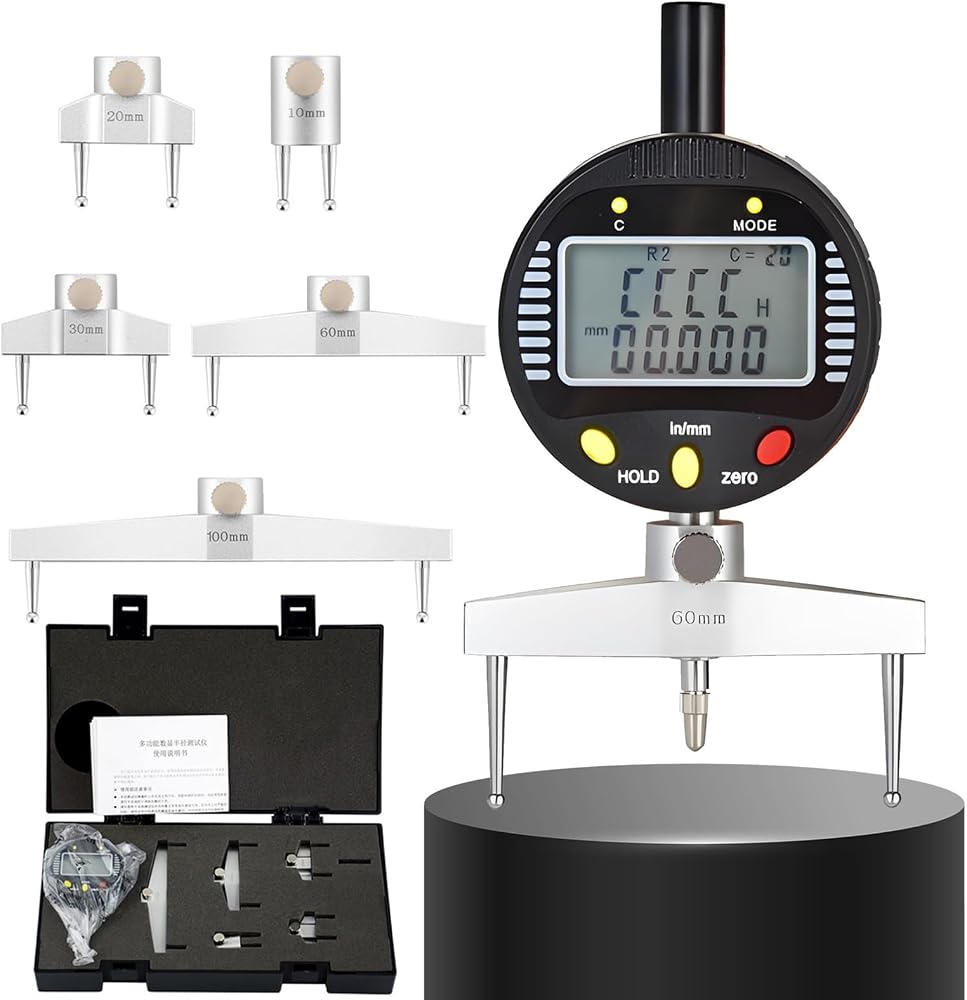

1 × Electronic Digital Display Radius Gauge Host
1 × or 5 × Matching Measuring Claws (Depending On The Model)
1 × 3V Battery
1 × Protective Portable Storage Box
