Wide Frequency Range:Generates signals from 1Hz to 500KHz, suitable for various electronic applications.
Random Reference Generator|Dds Question|DDS Technology:Utilizes advanced DDS technology for precise frequency generation and stability.
Portable Design:Compact and lightweight, ideal for on-the-go signal generation tasks.
Ease of Use:Simple operation with an LCD1602 display and USB power adapter for convenience.
Versatile Waveform Output:Offers sine, square, triangular, and sawtooth waveforms for diverse testing needs.
Description
The main output waveform : sine wave and square-wave, Triangular wave, sawtooth wave.
Maximum output amplitude : +/- 10Vpp (no-load)
Output impedance : 50Ohm+/-10%
Dc bias : +/- 10V (no-load)
Display : LCD1602
Material:metal
Resolution : 1 Hz
Power supply : DC 3. 5-10V
Output frequency range :
Sine wave : 1Hz-500KHz
Square-wave : 1 Hz - 20kHz (the valid range)
Triangular wave : 1 Hz - 20KHz (the valid range)
Sawtooth wave : 1 Hz - 20kHz (the valid range)
Package includes:

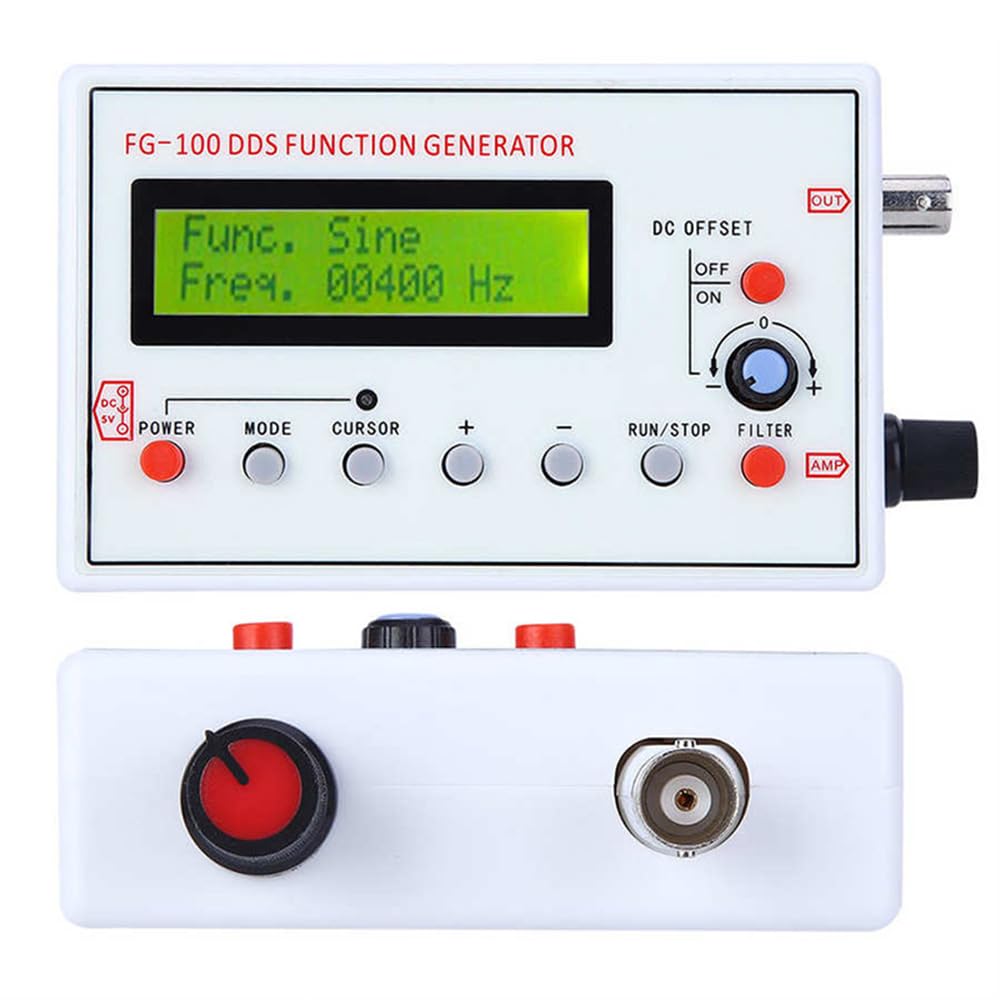

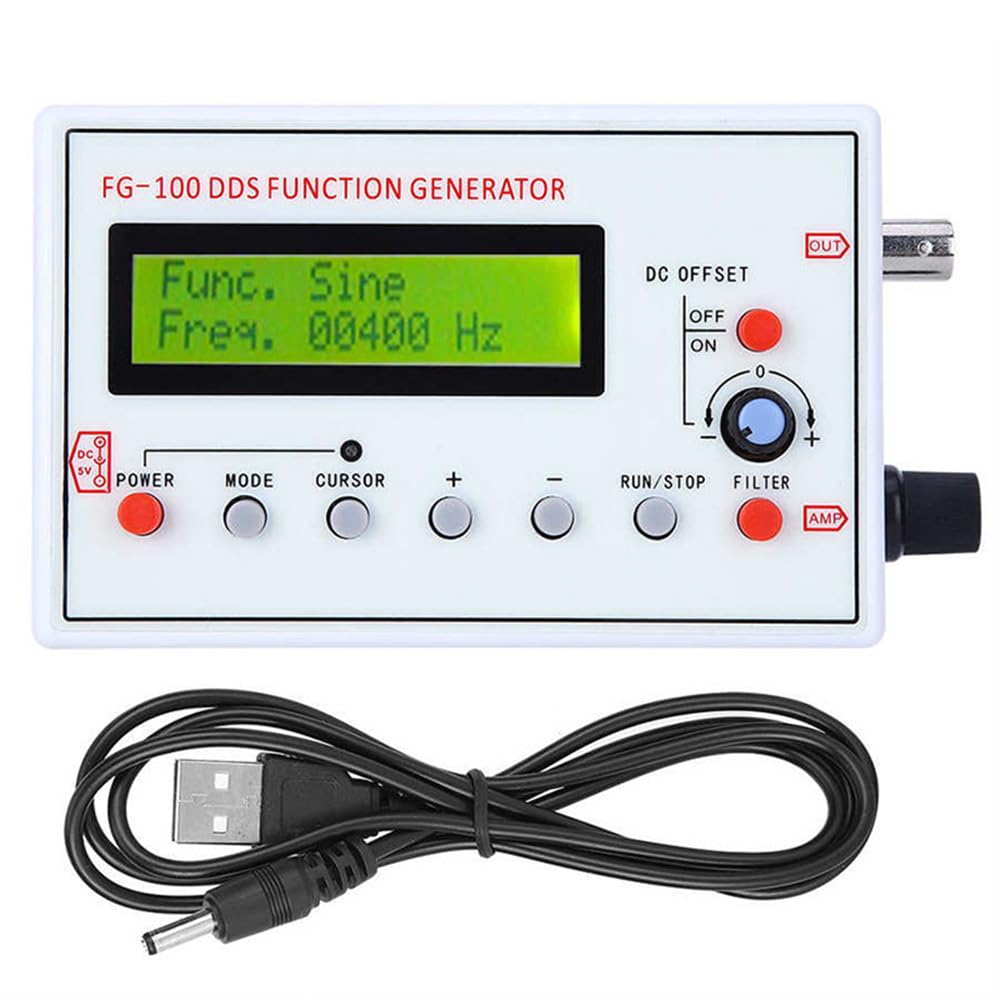

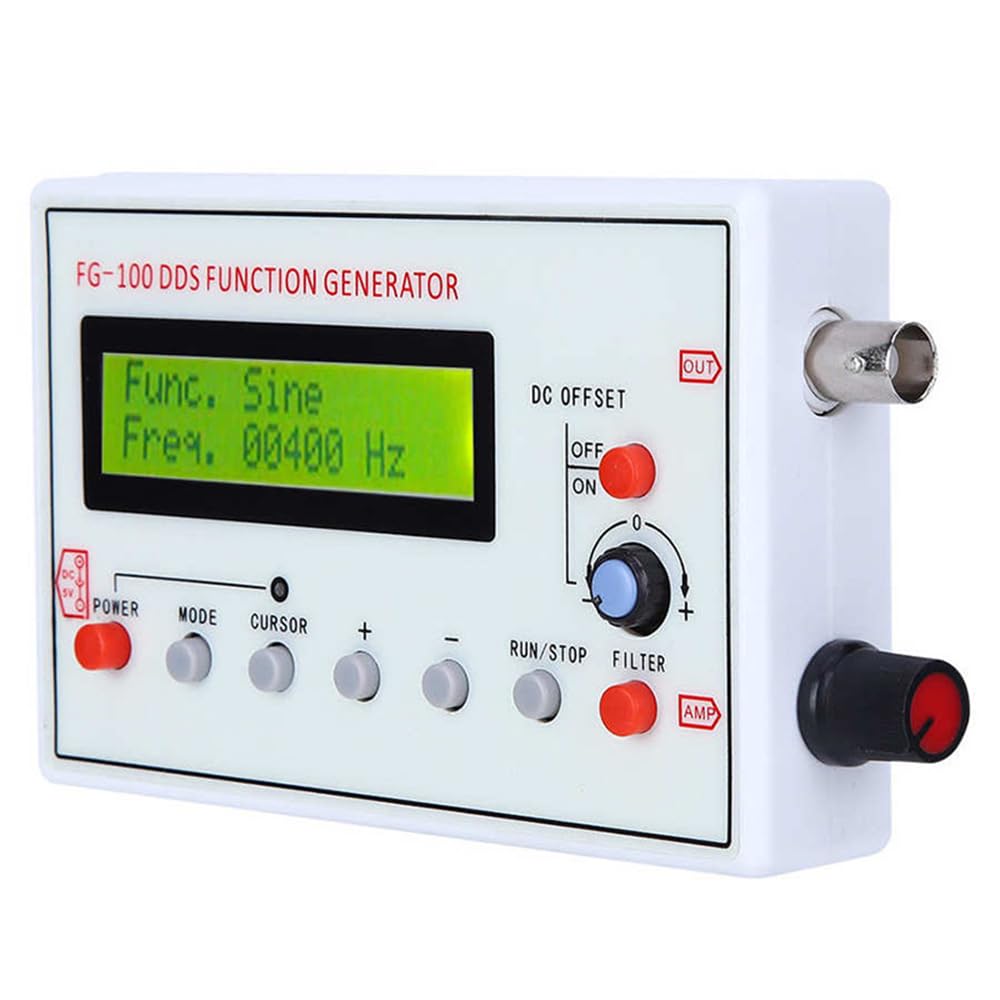

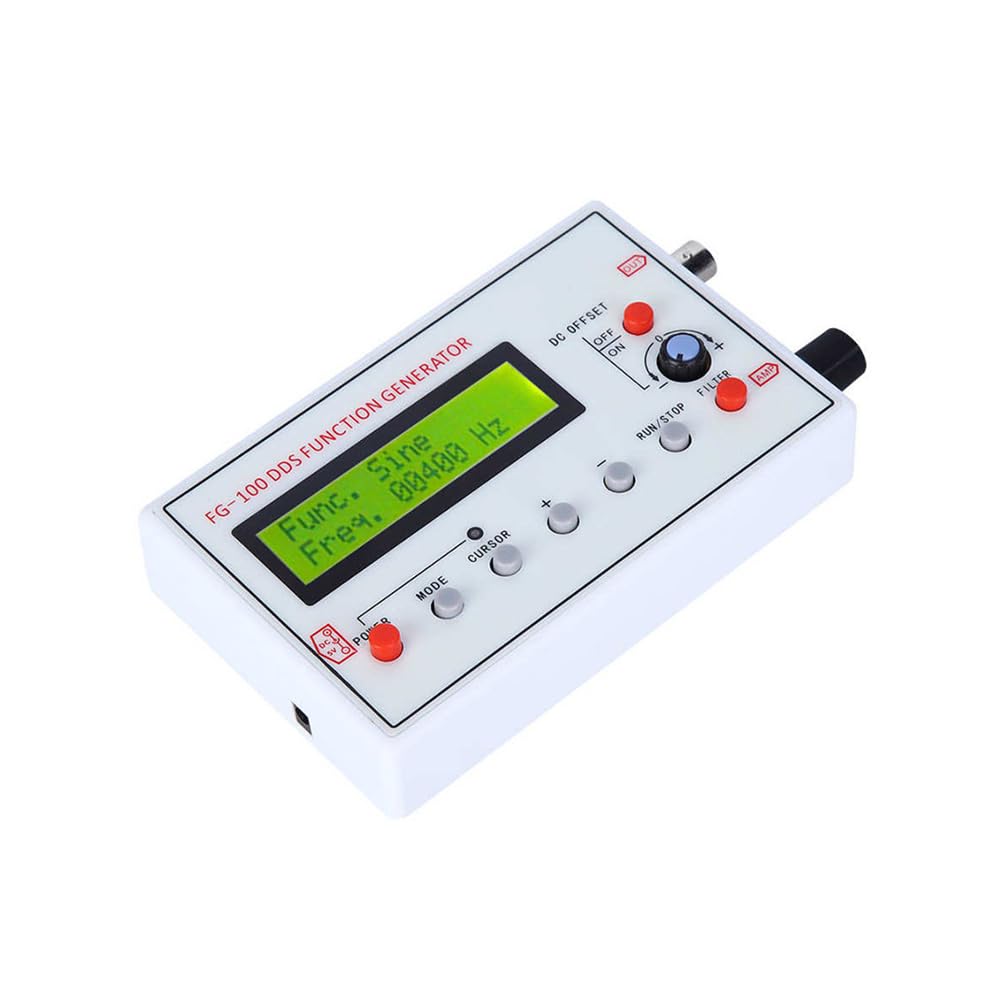

1 x FG-100 DDS Function Signal Generator
1 x USB power adapter cable
