Heating

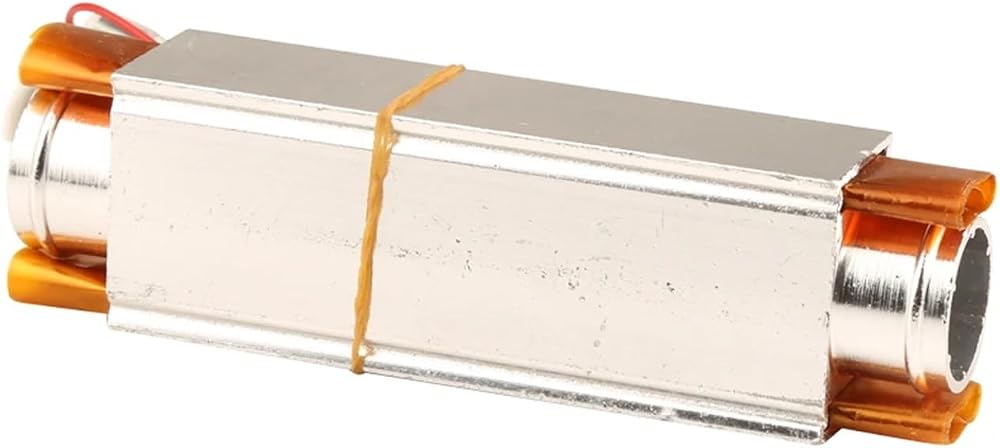

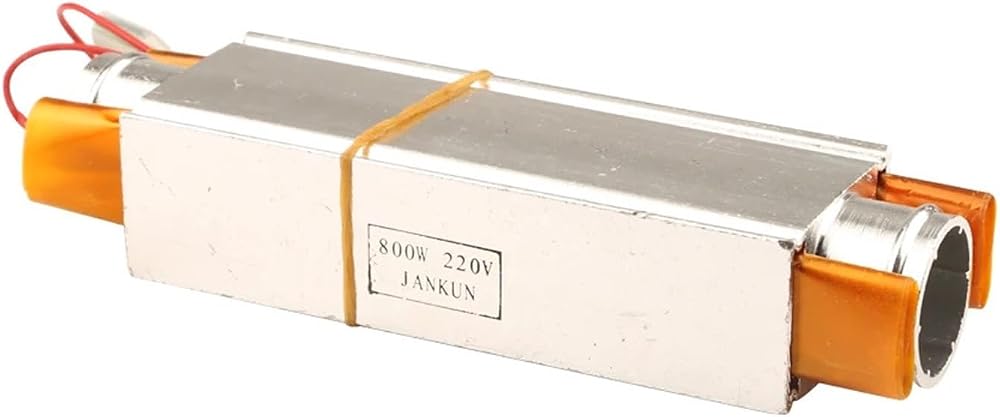

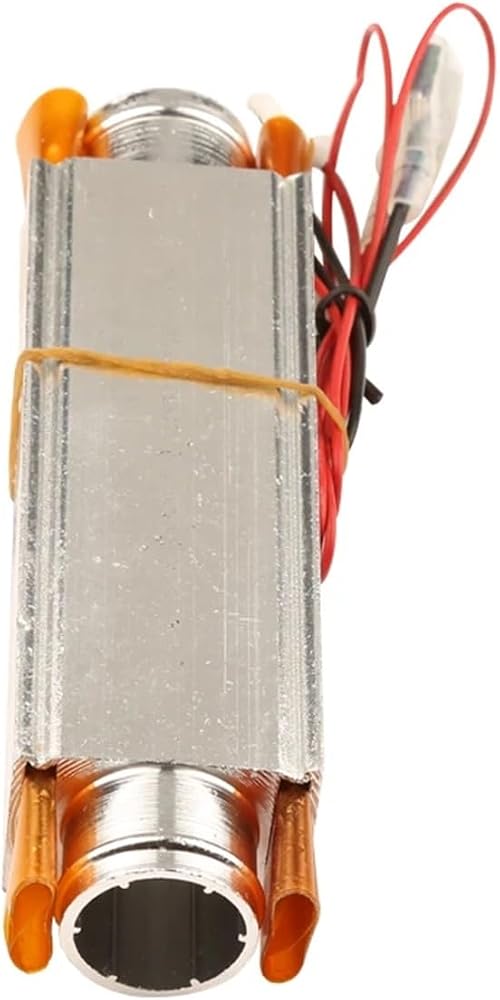

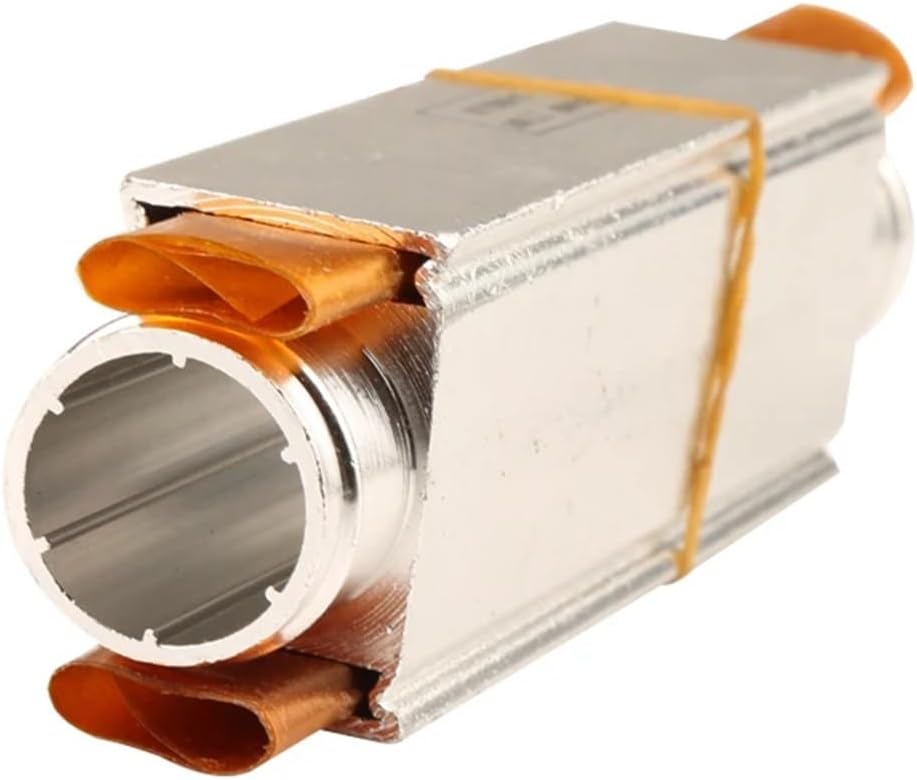

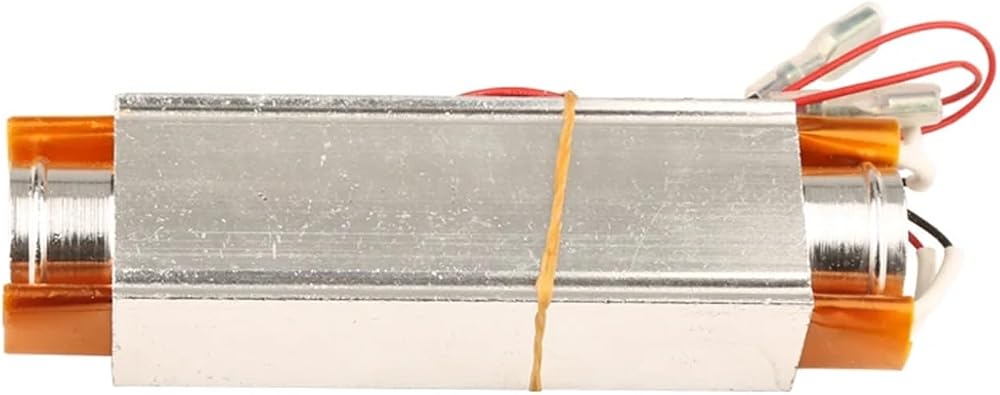

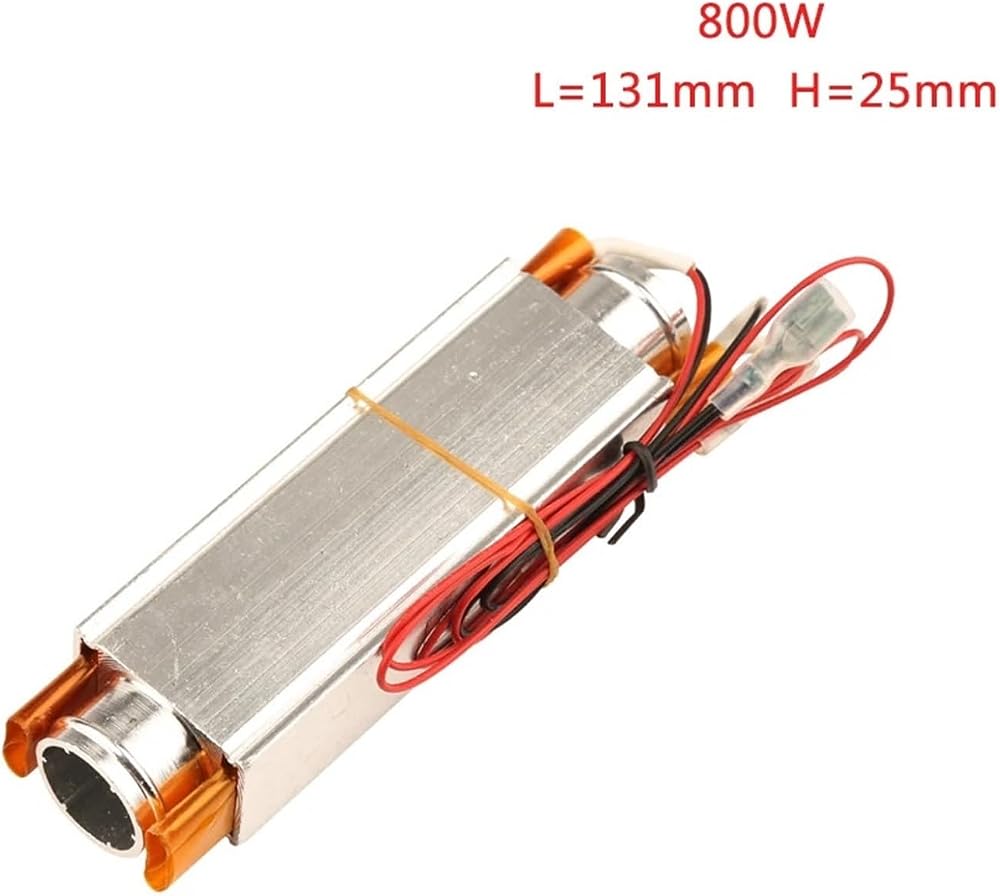

131X25mm small heating elements for footbath 800W
Characteristicsof the heating tube of the foot washbasin:
1.it is mainly used in the foot bath products with static and special heating, or on the top of the heated foot bath products.
2. the leakage current is small, the life is long, the use and installation is convenient, and it is not easy to damage.
3. when heated liquid (such as water), after the liquid is dried, the heating body will not be damaged, and the product quality will be at the leading level in the industry.
Technical characteristicsof the fever tube of the foot washbasin:
:Positive Temperature Coefficient
Material: Aluminum
Specification: double side heating
Size: 23mm*105mm
Power: 700W+5%-10%
Pressure resistance: 3750V
Leakage current: >2MA
Impact current: >5A
The production processof the aluminum heating pipe in the foot bath is as follows:
heating sheet is made up of a heating pipe according to the requirement of the process, then 60 tons of hydraulic press is pressed and formed. After forming, it is tested by a multimeter to test whether there is a leakage - --- dry burning (with 1.5 times the voltage of 1.5 times the dry burning for 3 minutes) - - - -- the test power (when the water temperature reaches 40 C is 1000W+ 5%-10%) - -- - -- high pressure test of 3750V The pressure is 2 seconds, and the leakage current is within 2MA.
The foot bath heating pipe is suitable for foot bath tub, foot bath apparatus, washbasin and electric heater.
==========
Model Number : fb800
Type : Electric Heater Parts
