Power Quality Analyzer, KF-22 Electric Spark Leak Detector 0.05-10mm Rechargeable Holiday Pinhole Tester Metal Anticorrosive Coating Testing(High Voltage) in Saudi Arabia

Power Quality Analyzer, KF-22 Electric Spark Leak Detector 0.05-10mm Rechargeable Holiday Pinhole Tester Metal Anticorrosive Coating Testing(High Voltage)

SAR 3,760
Brand
HUIWOSEN
Weight
2.5 kg
ColorHigh Voltage
– 1 +

Special Features

  • High Voltage and Low Voltage Options: Features adjustable output from 3KV-30KV and 0-6KV, catering to a variety of testing needs.
  • Wide Detection Range: Capable of detecting thickness from 0.05mm to 10mm, ensuring versatility for different metal coatings.
  • Smart Alarm System: Equipped with an intelligent alarm that alerts users to potential leaks or pinholes in the anti-corrosion layer.
  • Safe and Efficient Operation: Designed with safety in mind, the device operates with low power consumption and features a user-friendly pointer display.
  • Portable and Rechargeable: Comes with a 3500mA Ni-MH battery, making it easy to use in various locations without the need for constant power supply.

Description

Specifications:

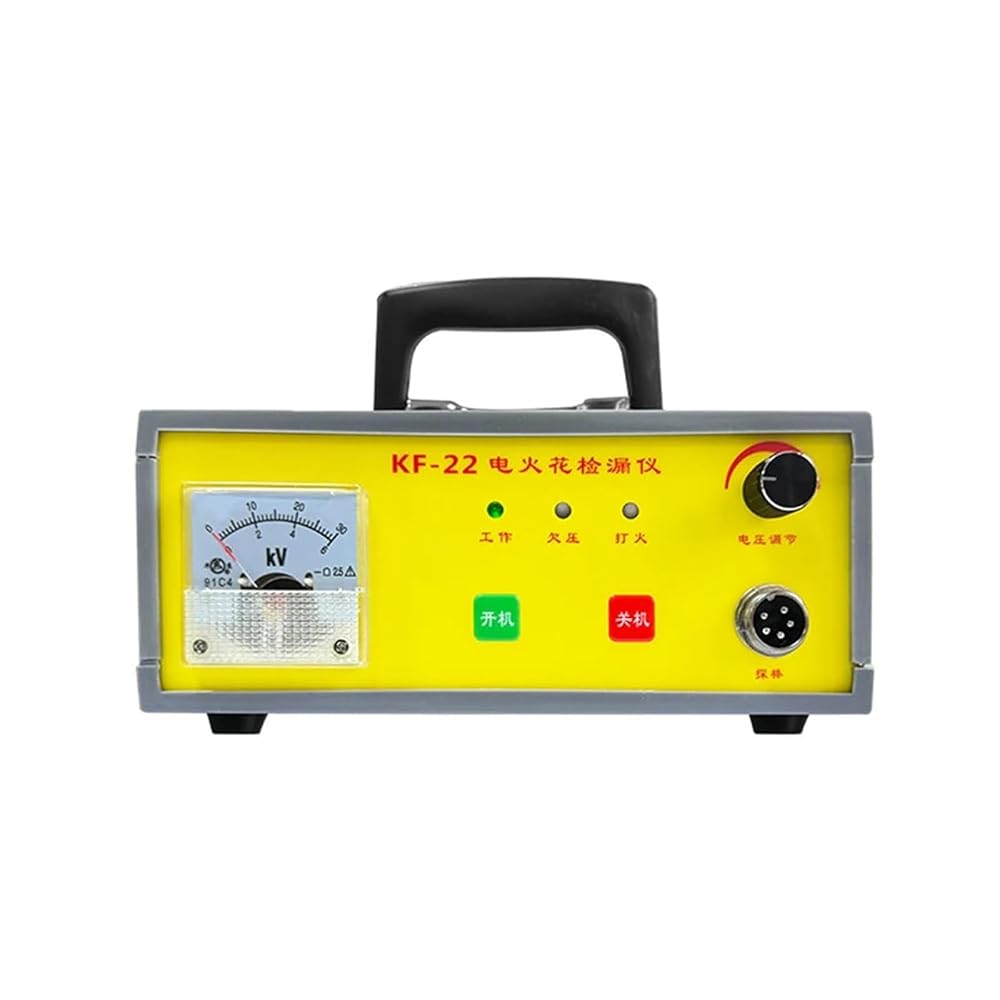

Name: KF-22 Electric Spark Leak Detector
Type: high voltage rod 3KV-30KV / low voltage rod 0-6KV
DC power supply: 12V
Power consumption: about 6W
Battery capacity: 3500mA Ni-MH battery
Detection thickness: 0.05-10mm
Output high voltage: 3KV-30KV (±10%) continuously adjustable
Low output voltage: 0-6KV continuously adjustable
Host volume: 170 * 160 * 70mm
Product features:
Smart alarm
Wide range of applications
Safe operation
Power saving design
Pointer display
Working principle
The electric spark detector is used to add a certain amount of pulse highvoltage
to the surface of each conductive substrate anti-corrosion layer.If the anti-
corrosion layer is too thin, metal leakage or pinhole leakage,when the pulse high
voltage electricity passes through, it will form a gapbreakdown and produce
Sparkdischarge, and send the pulse signal to thealarm circuit to issue an alarm
and sound an alarm to achieve the purposeof detecting the anti-corrosion layer.
Package included:
Electric Spark Leak Detector*1
