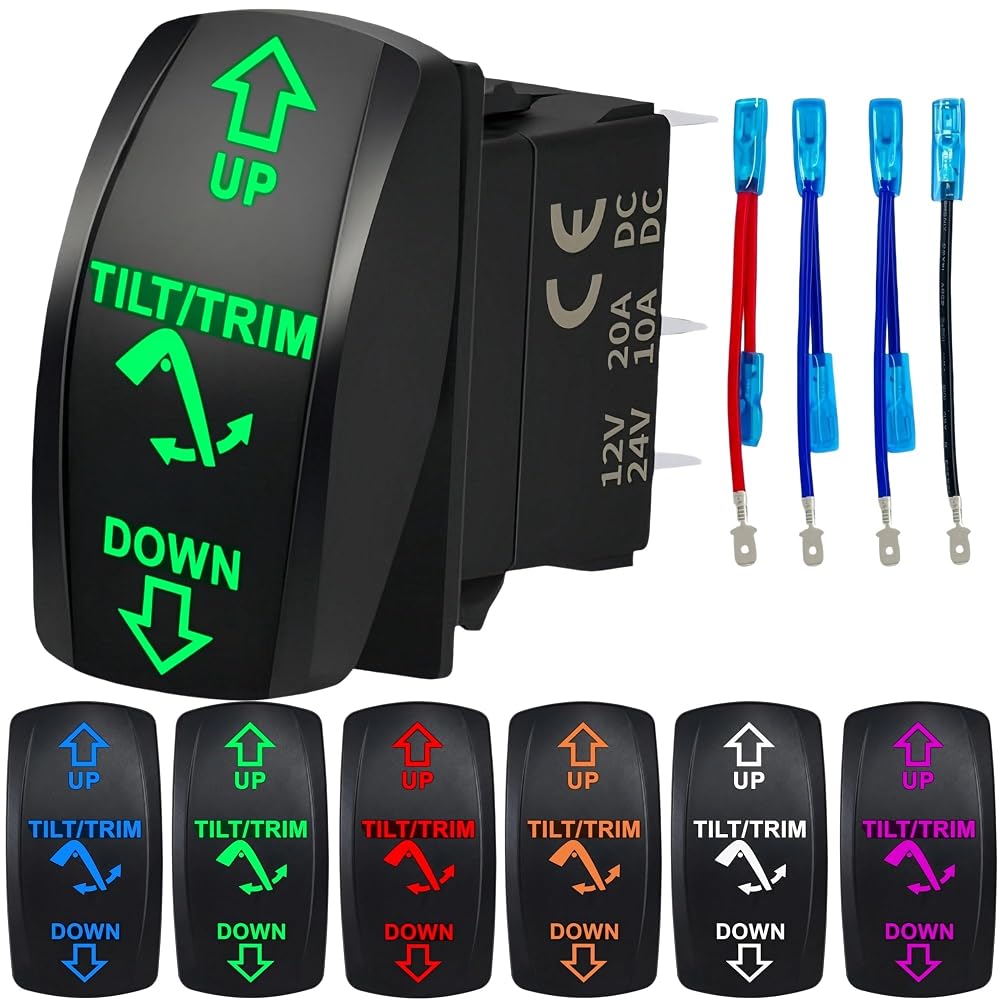

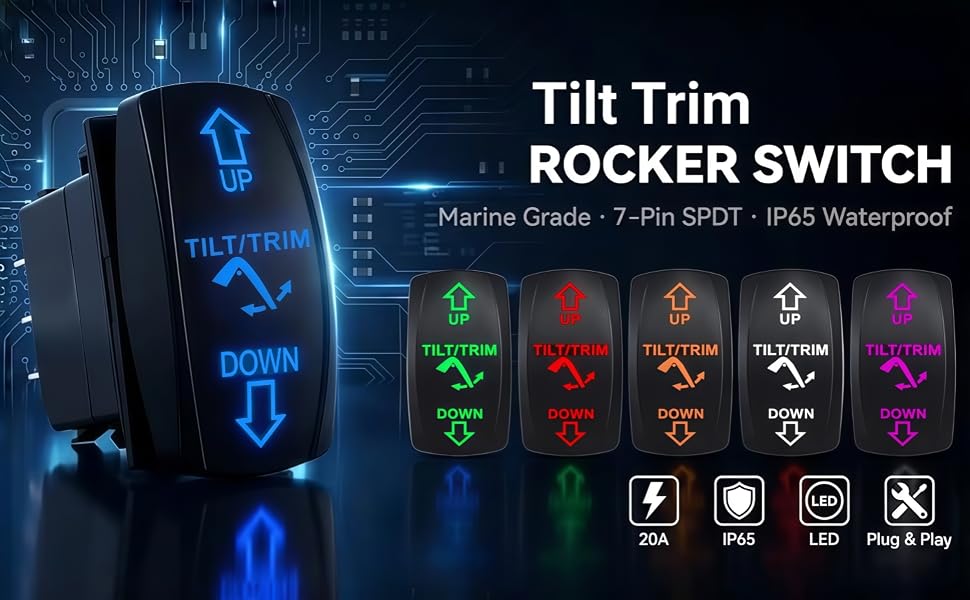

Marine Tilt Trim Rocker Switch 12V-24V, Heavy Duty 7 Pin DPDT 3 Position (ON)-Off-(ON) Waterproof Momentary Switch, Boat Control Trim Up Down Toggle Switch with Jumper Wires & LED Indicator (Red) in Saudi Arabia

Green

SAR 67
Brand
Generic
Weight
80 g
ColorGreen
– 1 +

Special Features

  • 1. Tilt Trim rocker switch has 3 position: Momentary (ON)-OFF-(ON), The 'UP' and 'DOWN' position will return back to the 'OFF' position when you remove your finger. The switch has to be hold for working. It can be horizontally or vertically mounted for rv jack, window control, turn signal light, deck lift, tilt trim, electric hoists, crane, etc
  • 2. GLOW IN THE NIGHT. Up down rocker toggle switch has two built-in LEDs which stay on When your finger presses the up and down position. They can be easily found in the dark. No more fumbling around
  • 3. Rated at 20 amp/12V DC and 10 amp/24V DC; Required mounting hole size: 37.2 mm x 21.2 mm(1.46'' x 0.83''); Face Surface Size: 49mm x 25mm(1.91'' x 0.98''); Electric life: 50000 cycles. Mechanical life: 50000. Operating temperature: -4℉ to +140℉. Waterproof rating: IP66
  • 4. Marine Trim Tabs Toggle Switch is made of high quality metal and ABS plastics. The laser etched switch cover will not fade easily and will last a long time. We have updated the jumper wire set. It can be easily removed from the switch by pressing the clip and will not pull out the pin

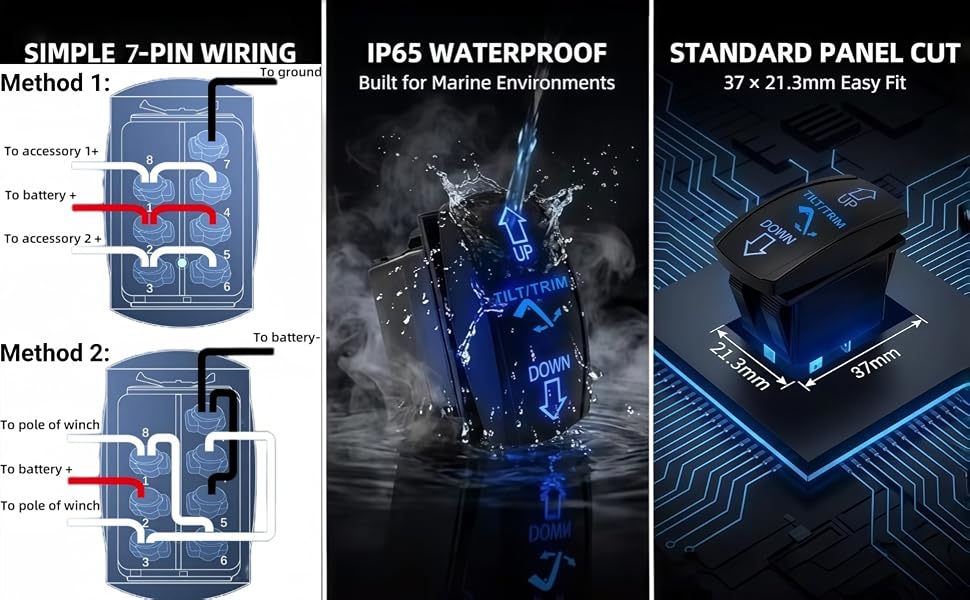

  • 5. Support reverse polarity. 7 Pin DPDT momentary rocker switch can be horizontally or vertically mounted for all sorts of DC motor reversing applications, such as camper trailer jacks, RV Power Jack, winch controls for in/out operation, door opening/closing, lift gate up/down, winch on a lawn tractor, awning extend/retract, etc
