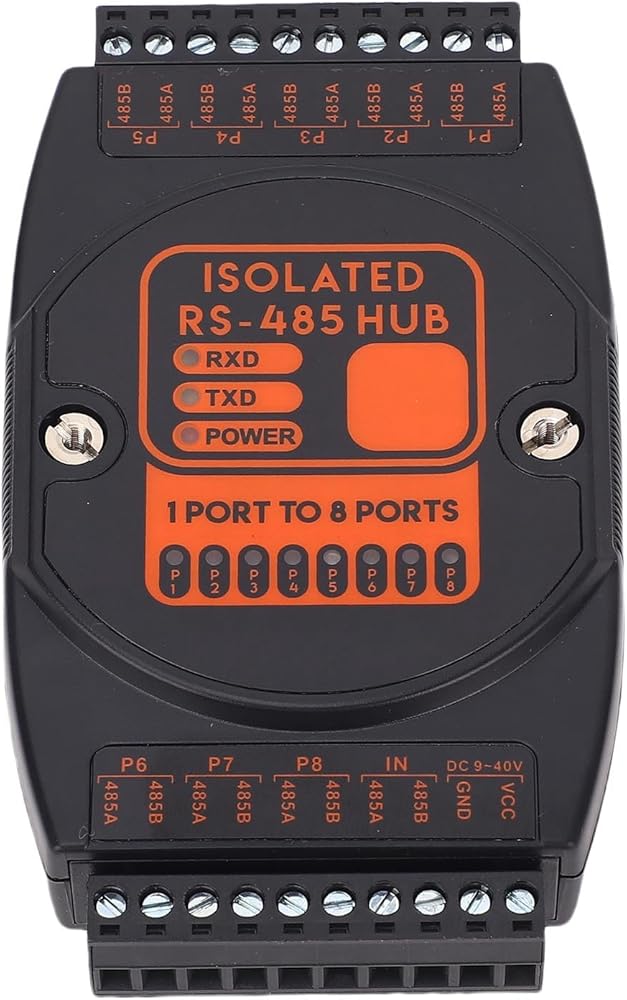

1. [1 in 8 Out] This hub adopts 1 channel 485 input, 8 channel 485 output, each channel is isolated and supports up to 128 nodes.

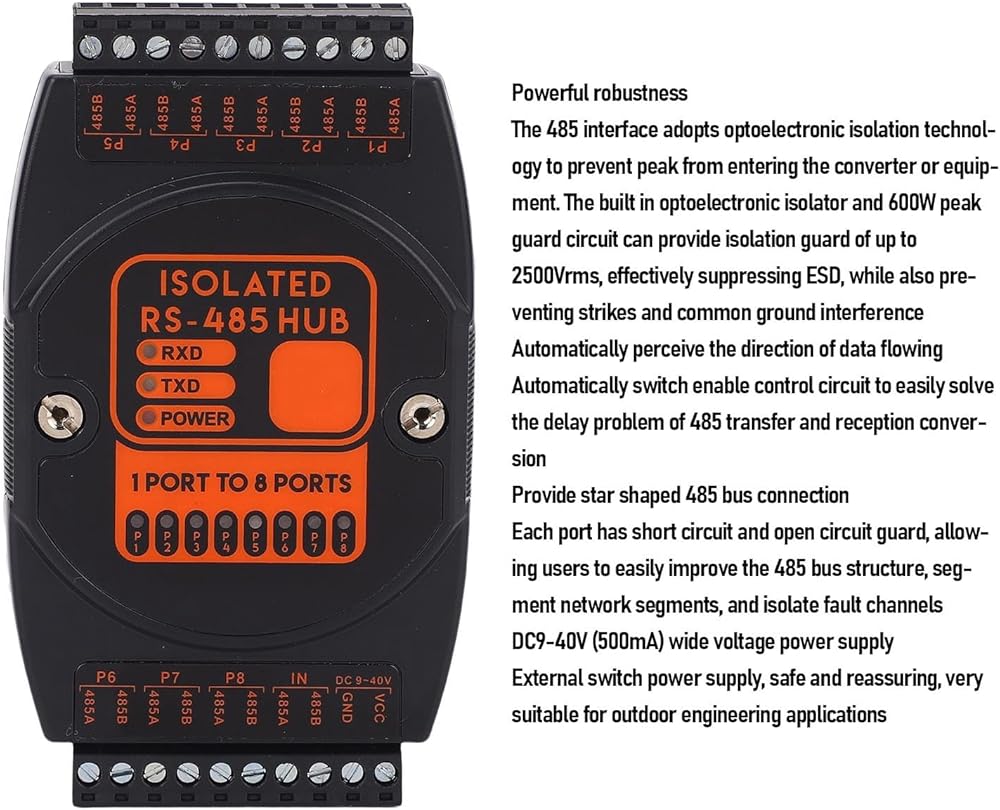

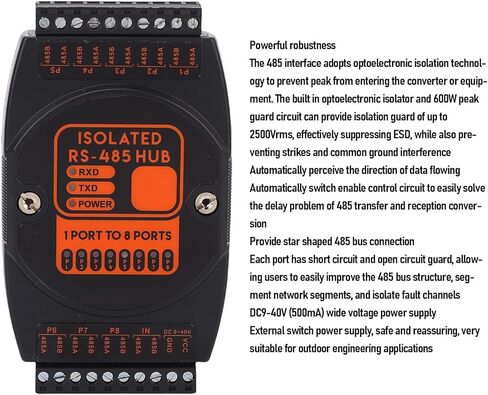

2. [Powerful Robustness] The built in optoelectronic isolator and 600W peakage guard circuit can provide isolation guard of up to 2500Vrms, effectively suppressing ESD, while also preventing strikes and common ground interference.
3. [Automatic Switching] This 485 hub can automatically switch enable control circuit to easily solve the delay problem of 485 transfer and reception conversion.
4. [Short Open Circuit Guards] Each port has short circuit and open circuit guard, allowing users to easily improve the 485 bus structure, segment network segments, and isolate fault channels.
5. [Wide Voltage Power Supply] DC9-40V (500mA) wide voltage external switch power supply, suitable for outdoor engineering applications.

Specification:

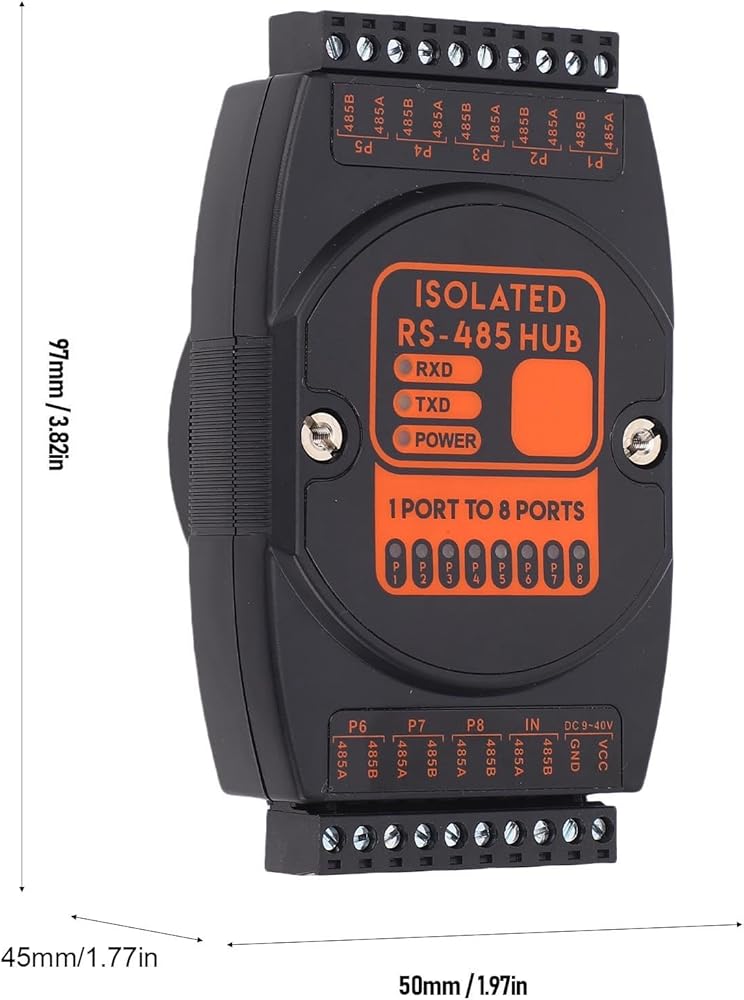

Item Type: 485 Hub

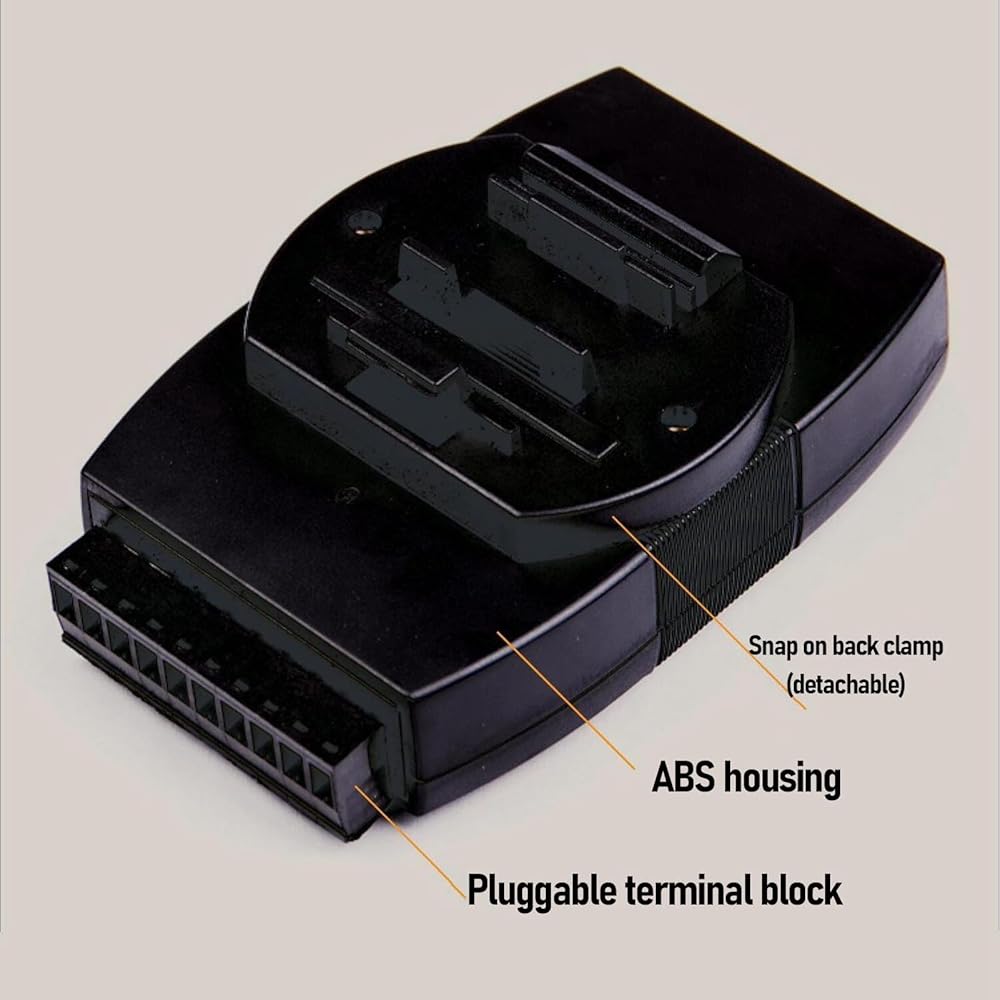

Material: ABS
Power Supply: 9-40V DC
Interface Feature: Compatible with 485 TIA/EIA standard

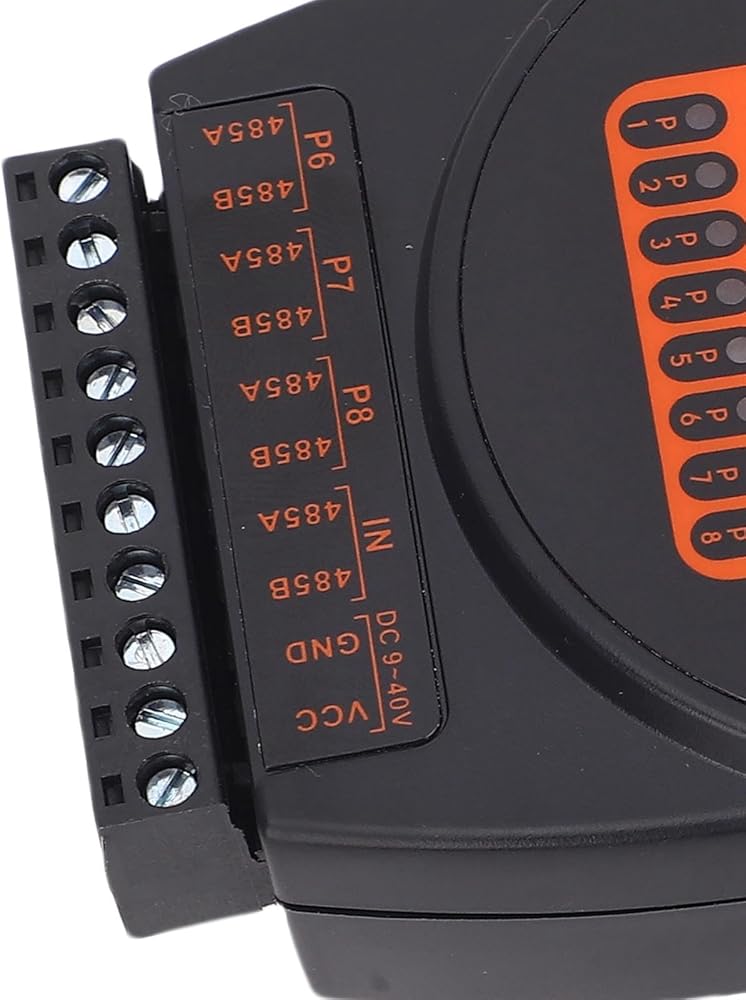

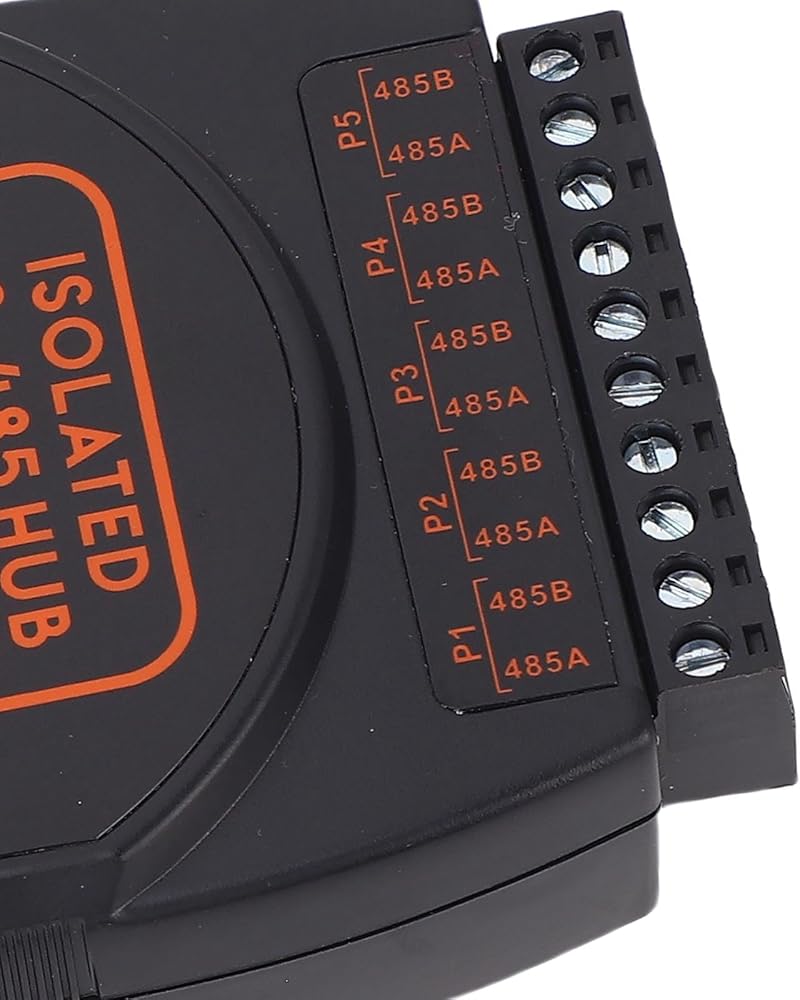

Electrical Interface: Power interface: 2 terminal blocks, 485 interface: 18 terminal blocks
Signal Input: 1 channel 485 (isolated communication)
Signal Output: 8 channels 485 (each channel with isolated communication)

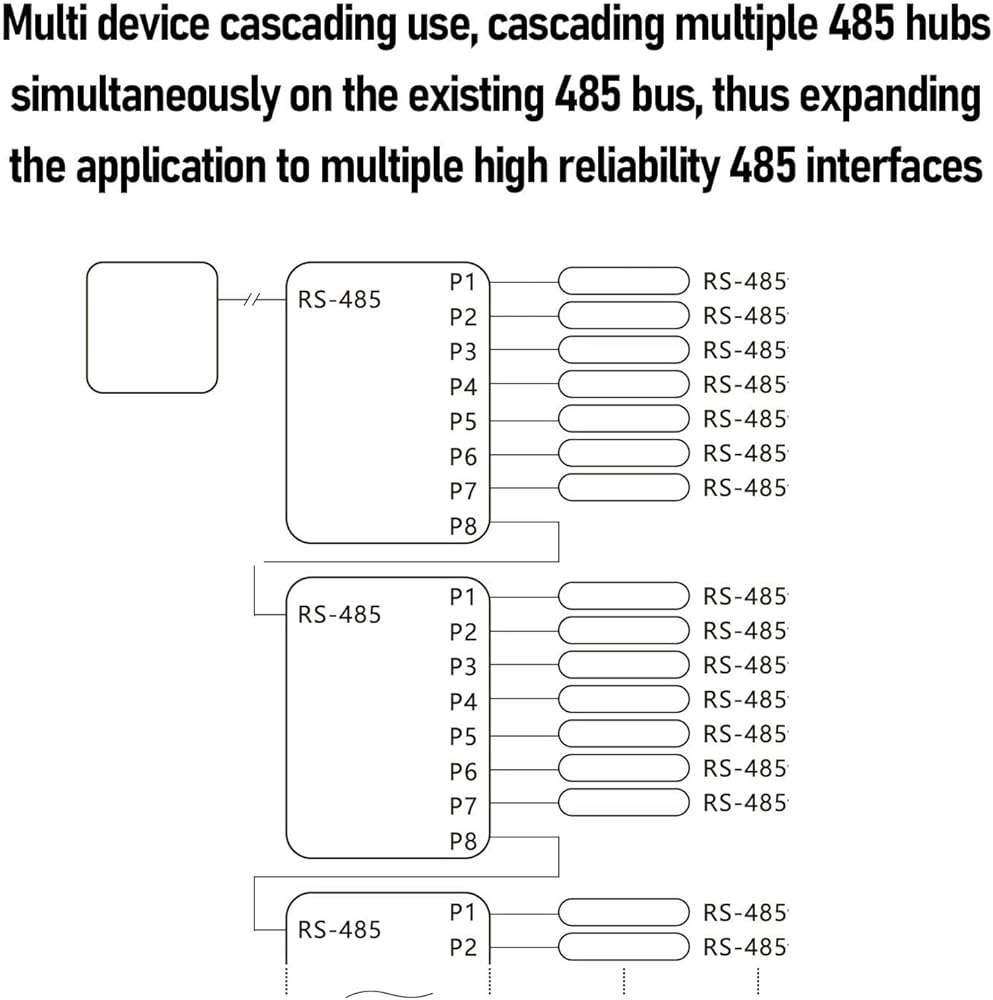

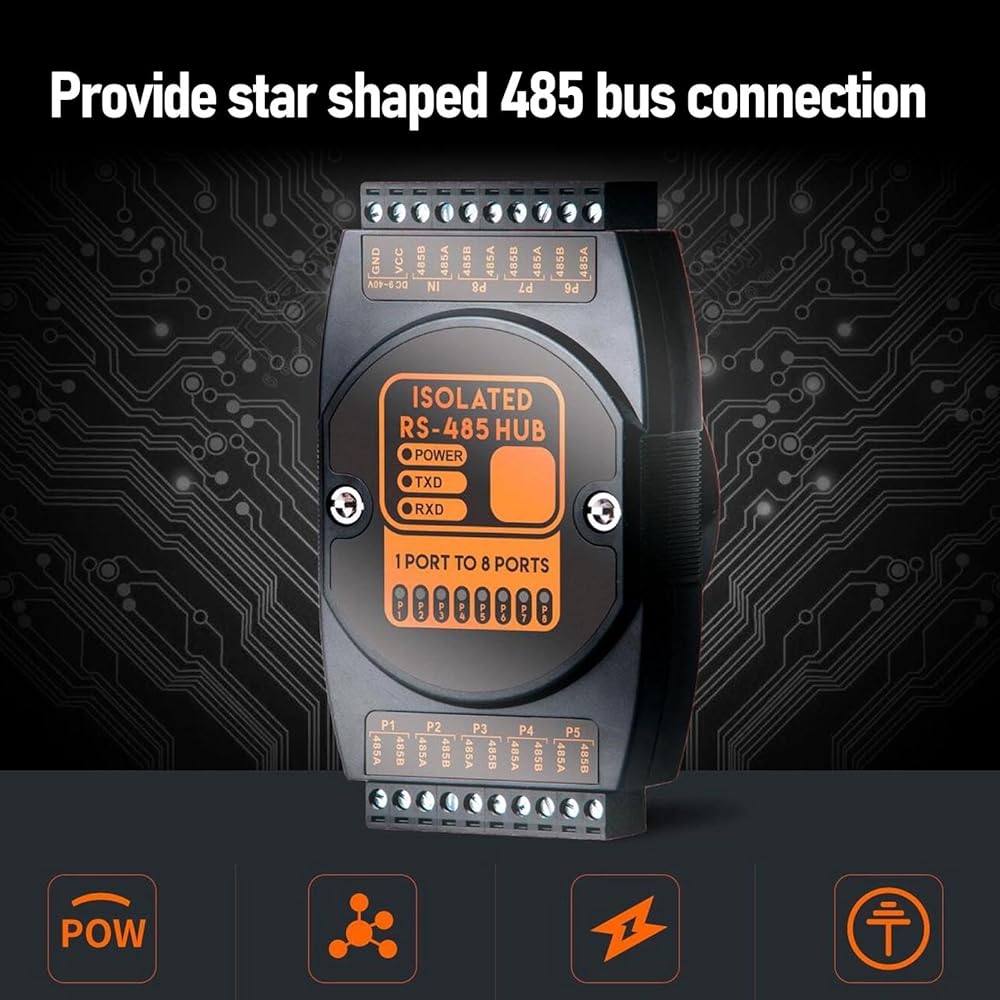

Networking Mode: 485 star bus structure
Node Support: Each 485 channel supports 128 nodes
Transfer Medium: Twisted pair or shielded line
Operating Mode: Asynchronous half duplex (bidirectional communication)
Operating Power: DC9-40V 500mA (recommended 24V 1A)

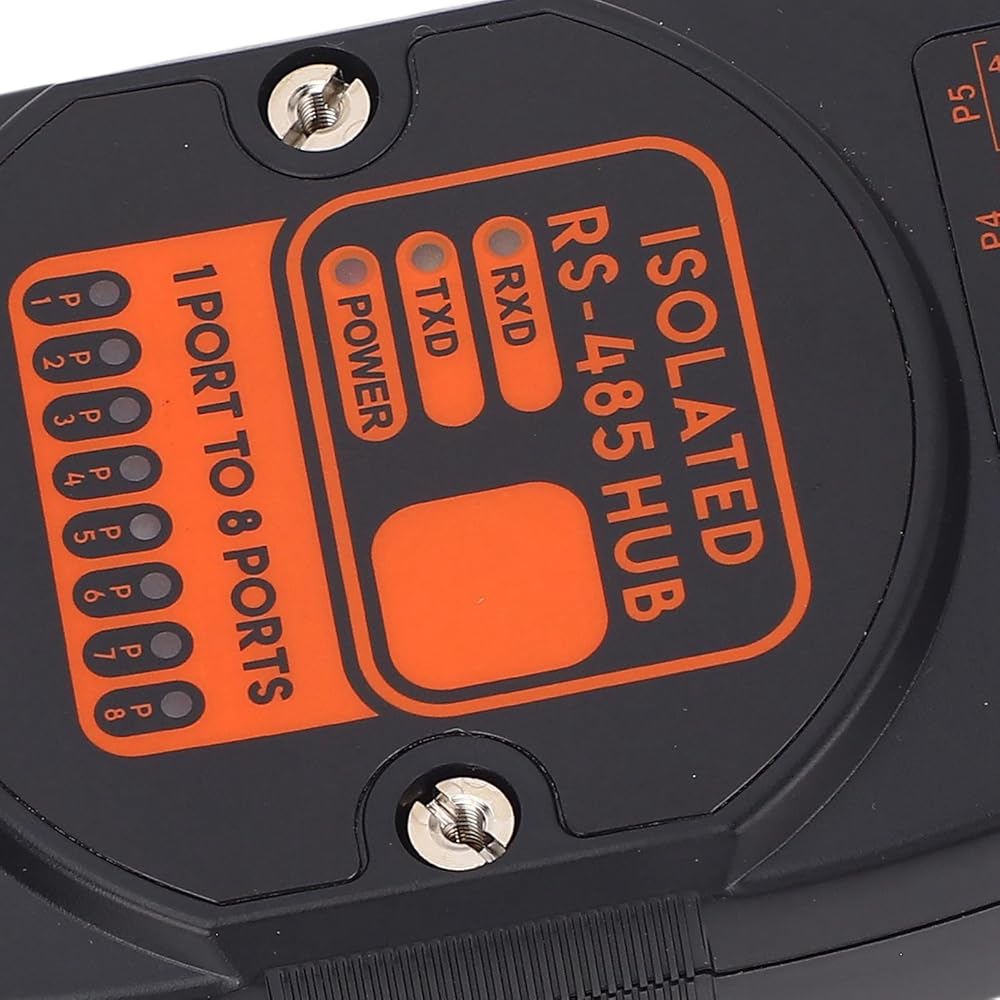

Signal Indication: 11 signal indicators: Power (PWR), Transmit (TXD), Receive (RXD), 8 channel status (P1-P8)
Isolation Level: Isolation voltage 2500Vrms, 500VDC, continuous DC/DC module
Guard Level: ±15KV ESD guard, 485 interface: 600W per line peakage guard
Compatible Communication: All serial communication software used, plug and play
Transfer Rate: 300bps-115.2Kbps (baud rate adaptive, not limited by communication protocol)
Transfer
