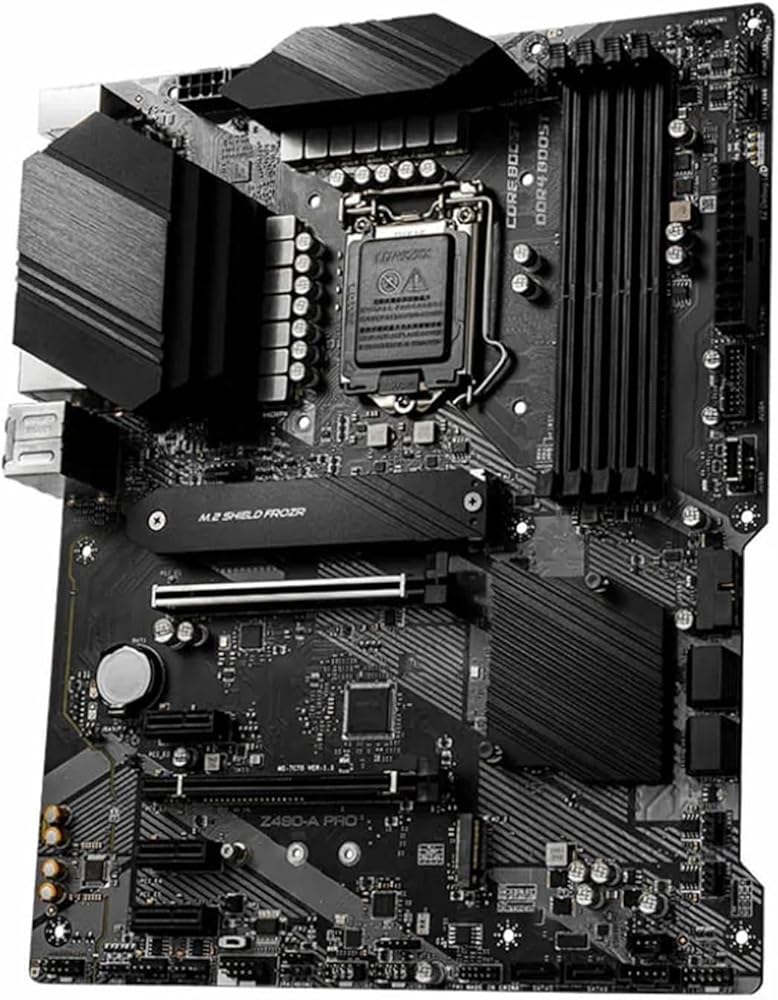

Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket1 2 3
Intel Z490 Chipset
MEMORY
4 x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/2666/2933 MHz 1
1DPC 1R Max speed up to 5000+ MHz
1DPC 2R Max speed up to 4500+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
1x PCIe 3.0 x16 slot (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
1x PCIe 3.0 x16 slot (from chipset, supports x4 mode)
3x PCIe x1 slots (from chipset)
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
STORAGE
6x SATA 6Gb/s ports 1
2x M.2 slots (Key M)
M2_1 slot
CPU support mode (From 11th Gen Intel CPU only)- supports PCIe 4.0 x4/3.0 x4
Chipset support mode-supports PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices1
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2
Intel Optane Memory Ready 3
Supports Intel Smart Response Technology for Intel Core processors
RAID
Intel Z490 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
Intel Z490 Chipset
2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel)
7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
6x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
6x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x serial port connector
1x TPM module connector
1x TBT connector 1
Thunderbolt card need support RTD3
USB 2.0
USB 3.2 Gen 2 10Gbps Type-A + Type-C
USB 3.2 Gen 1 5Gbps Type-A
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
==========
RAID Supported : No
Processor compatibility : 10th Intel Core i7,10th Intel Core i5,10th Intel Core i9
Usage Scenario : Gaming,Audio & Video,Office,Video Production

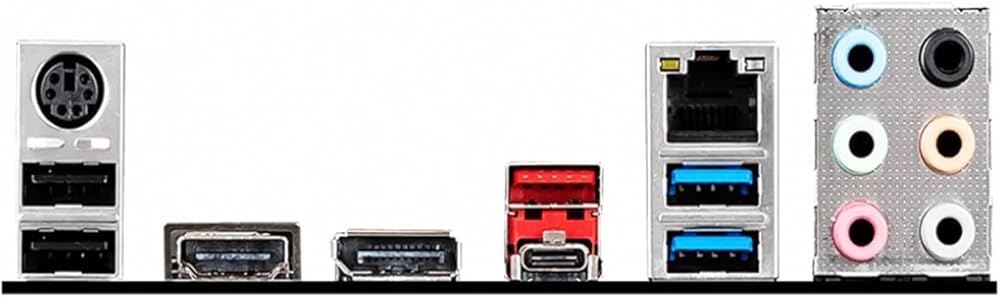

Back I/O Ports : 1x RJ45,Disply Port,HDMI 1.4
Onboard LAN : 1x RJ45
Storage Interface Type : SATA,M.2 (NVMe)
Number of PCI : 3
PCI - E standards : PCI-E 4.0
Support Memory Type : DDR4
Maximum Ram Capacity : 128 GB
Chipset Manufacturer : Intel
Battery Included : No
Chipset : Z490
Application : Desktop
Socket Type : LGA1200
