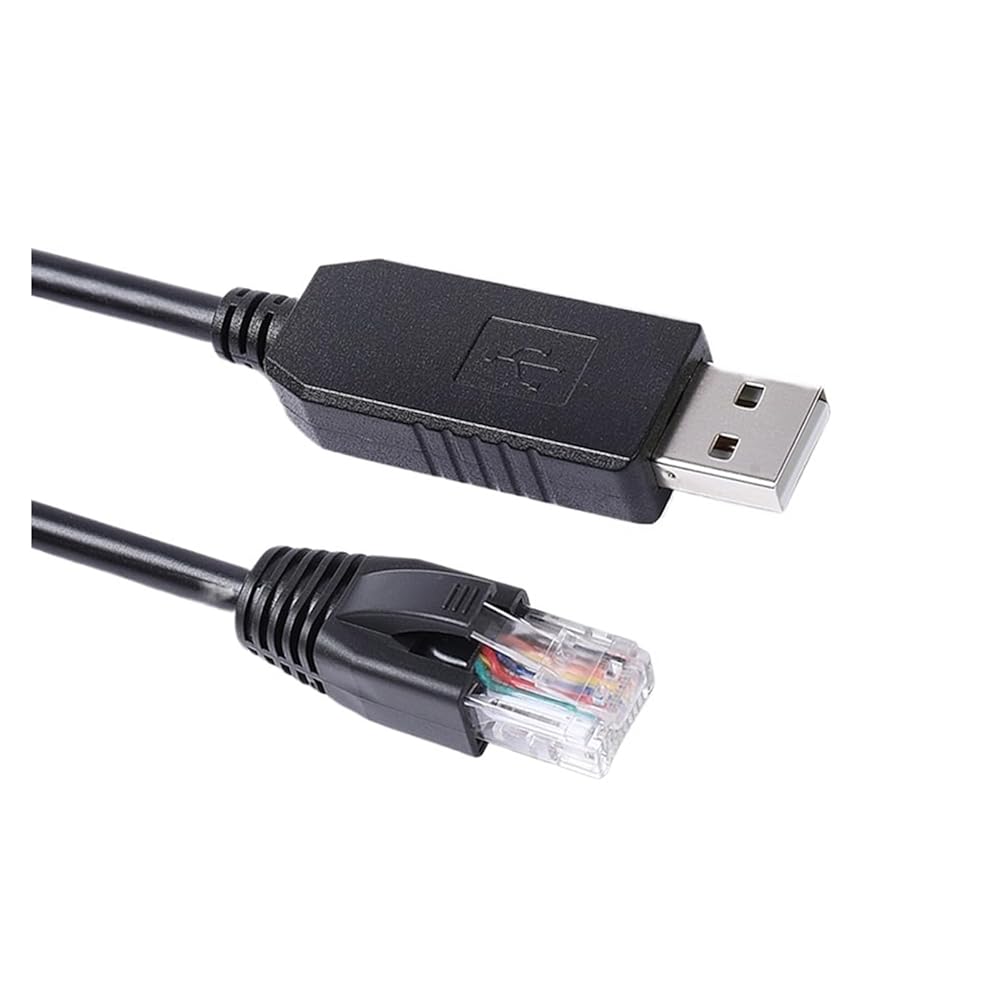

CP2102 USB RS232 to RJ45 8P8C Cable for PowMr Inverter RS232 Serial PC Communication And Monitoring
Material: P-VC outer jacket
Cable: 28AWG*3C, OD3.8
Color: Black
Cable Length: 1.0M, 1.8M, 300cm,
Connector A: USB 2.0 TY>pe A male
Connector B: RJ45 8P8C
Chipset: Sil~con labs CP2102
Application: USB RS232 PC Communication for PowMr Inverter
About CP2102
Single-Chip USB to UART Data Transfer
- Integrated USB transceiver; no external resistors required
- Integrated clock; no external crystal required
- Internal 1024-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- EEPROM (CP2102)
- EPROM (One-time programmable) (CP2109)
- On-chip power-on reset circuit
- On-chip voltage regulator
- 3.3 V output (CP2102)
- 3.45 V output (CP2109)
- pin and software compatible with CP2101
USB Function Controller
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend states supported via SUSPEND pins
Asynchronous Serial Data BUS (UART)
- All handshaking and modem interface signals
- Data formats supported:
- Data bits: 5, 6, 7, and 8
- Stop bits: 1, 1.5, and 2
- Parity: odd, even, mark, space, no parity
- Baud rates: 300 bps to 1 Mbps
- 576 Byte receive buffer; 640 byte transmit buffer
- Hardware or X-On/X-Off handshaking supported
- Event character support
- Line break transmission
Virtual COM Port Device Drivers
- Works with existing COM port PC Applications
- Royalty-free distribution license
- 8/7/Vista/Server 2003/XP/2000
- OS-X/OS-9
- Linux
USBXpress Direct Driver Support
- Royalty-Free Distribution License
- 8/7/Vista/Server 2003/XP/2000
- CE
Example Applications
- Upgrade of RS-232 devices to USB
- Cellular USB interface cable
- USB interface cable
- USB to RS-232 serial adapter
