Model KP-ICCF536
Optical Magnification 40X-1600X
Electronic Amplification 91X-2280X

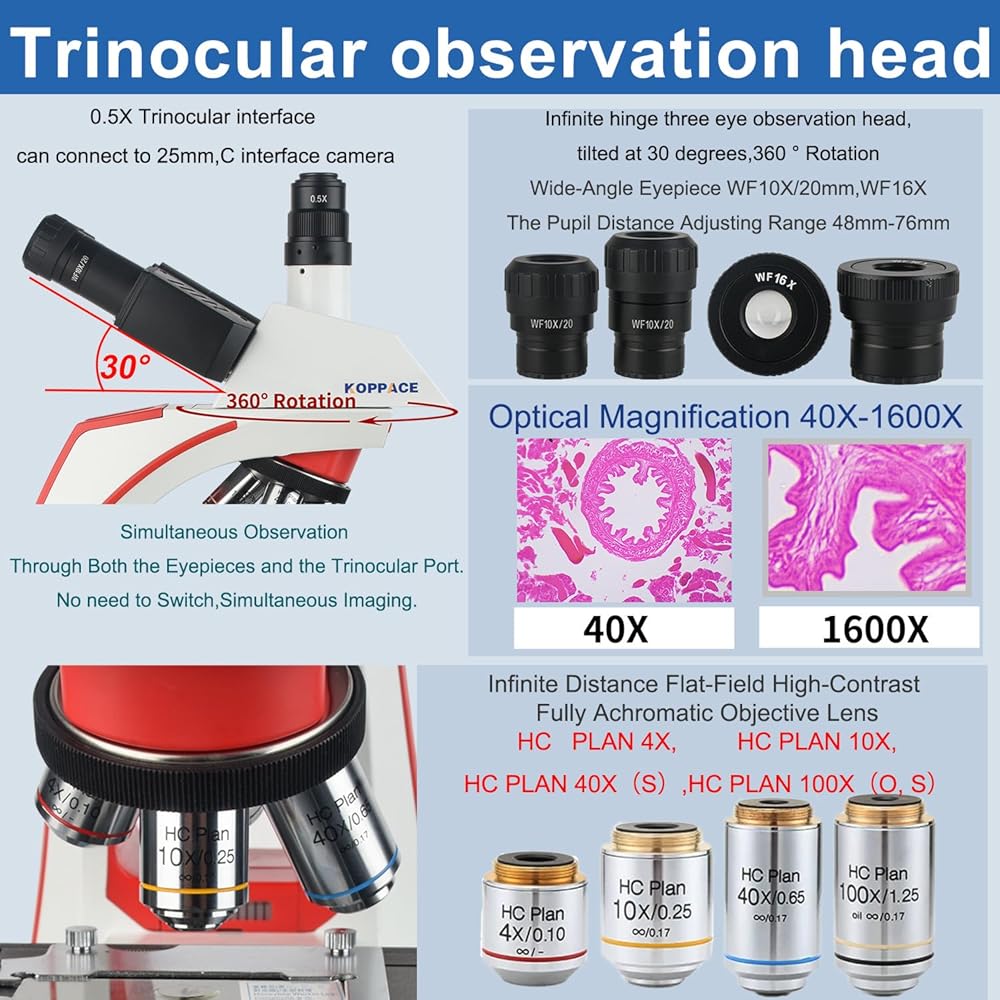

Observation Tube Infinity hinged trinoculars: 30 °tilt,360 °Rotatable interpupillary distance: 48-76mm （Simultaneous Observation Through Both the Eyepieces and the Trinocular Port.No need to Switch,Simultaneous Imaging.）
Eyepiece High eye point,wide Angle WF10X/20mm,WF16X/16mm,adjustable vision.
Objective Lens Infinite Distance Flat-Field High-Contrast Fully Achromatic Objective Lens
HC PLAN 4X,
HC PLAN 10X,
HC PLAN 40X(S)),
HC PLAN 100X(O, S)
Converter Four holes inclined,steel ball positioning

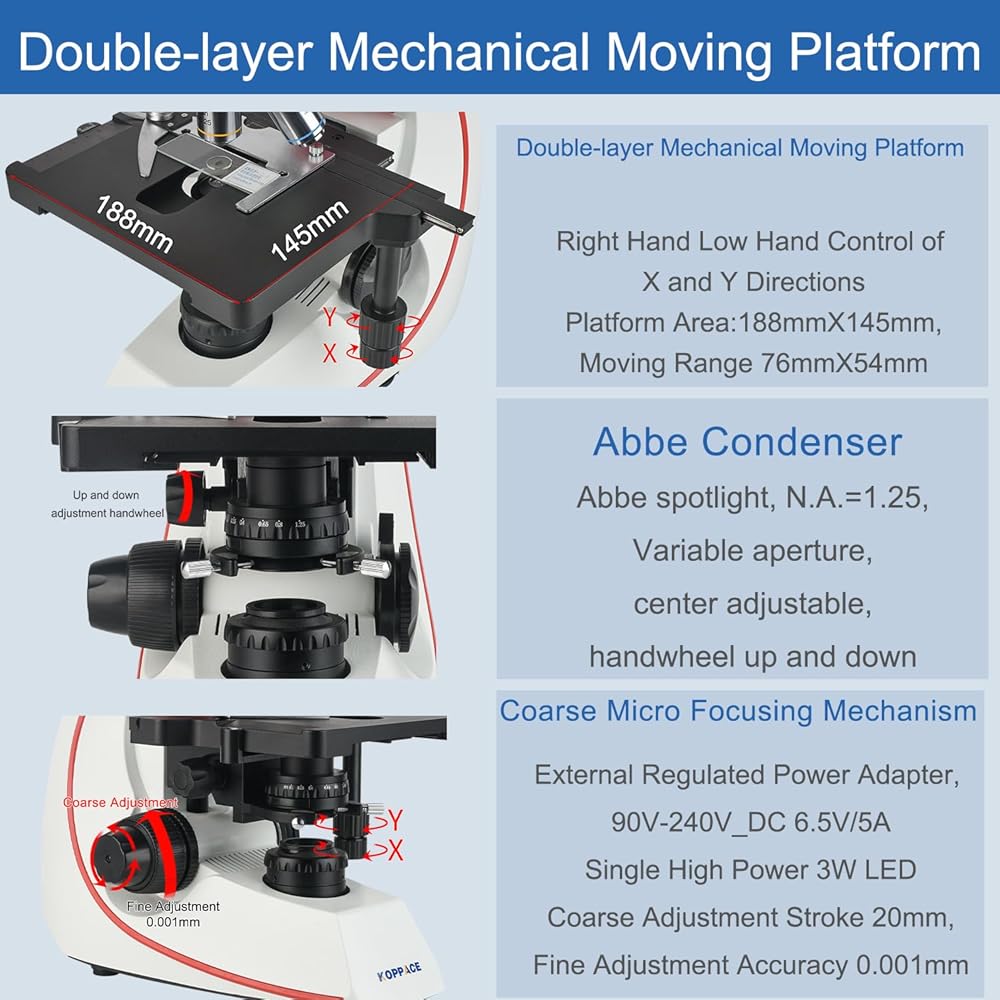

Operating Platform Double layer Mechanical Moving platform,Triangular steel Column guide rail up and down,area:188mmX145mm,Moving range:76mmX54mm
Coarse Micro Focusing Mechanism Coaxial roughing and fine-tuning,with hand wheel tightening adjustment and limit device,coarse-tuning 20mm,fine-tuning accuracy 0.001mm
Condenser Full Kela abbe convergent lens,N.A=1.25, up and down,adjustable center,variable diaphragm
Light Source LED cold light source,3W,precision stepless dimming,no flicker
Power External switch stabilized power supply,input ac90-240v,output DC 6.5V/5A
Trinocular Interface 0.5X
Pixel 5 Million Pixels 11.6"
Output Method HDMI (You Can Connect a TV or Monitor With an HDMI Interface.)
Sensor 5M 1/2.8" CMOS
Photographic Resolution 2592x1944 in JPG format,with 60 frames
Video Resolution 1080P 30 frames (1920X1080) MP4 format
Pixel Size 2μmx2μm
Color Adjustment R、G、B Independently Adjustable
White Balance Automatic/One-click

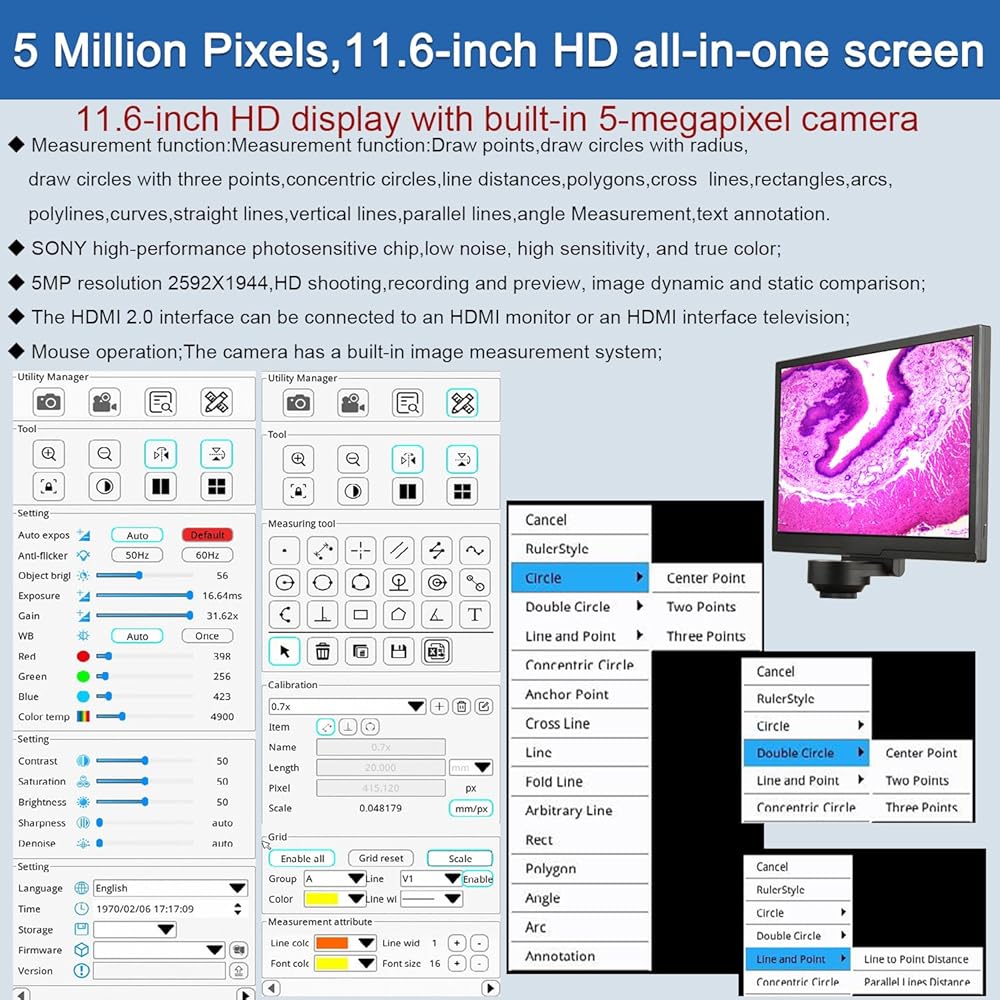

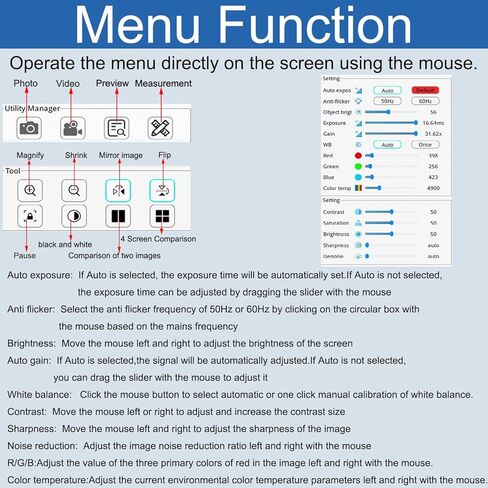

Image Adjustment Exposure value,saturation, brightness,contrast,sharpness,noise reduction, black and white, supports image freezing and flipping,crosshair,supports horizontal/vertical flipping,supports 10X digital magnification,supports Chinese,English, and multiple languages
Storage Mode U Disk Storage,Photo Taking,Video Recording and Measurement
HDMI It can be connected to a monitor or an HDMI interface TV through the HDMI port.
Power Supply AC100V-240V DC-12V

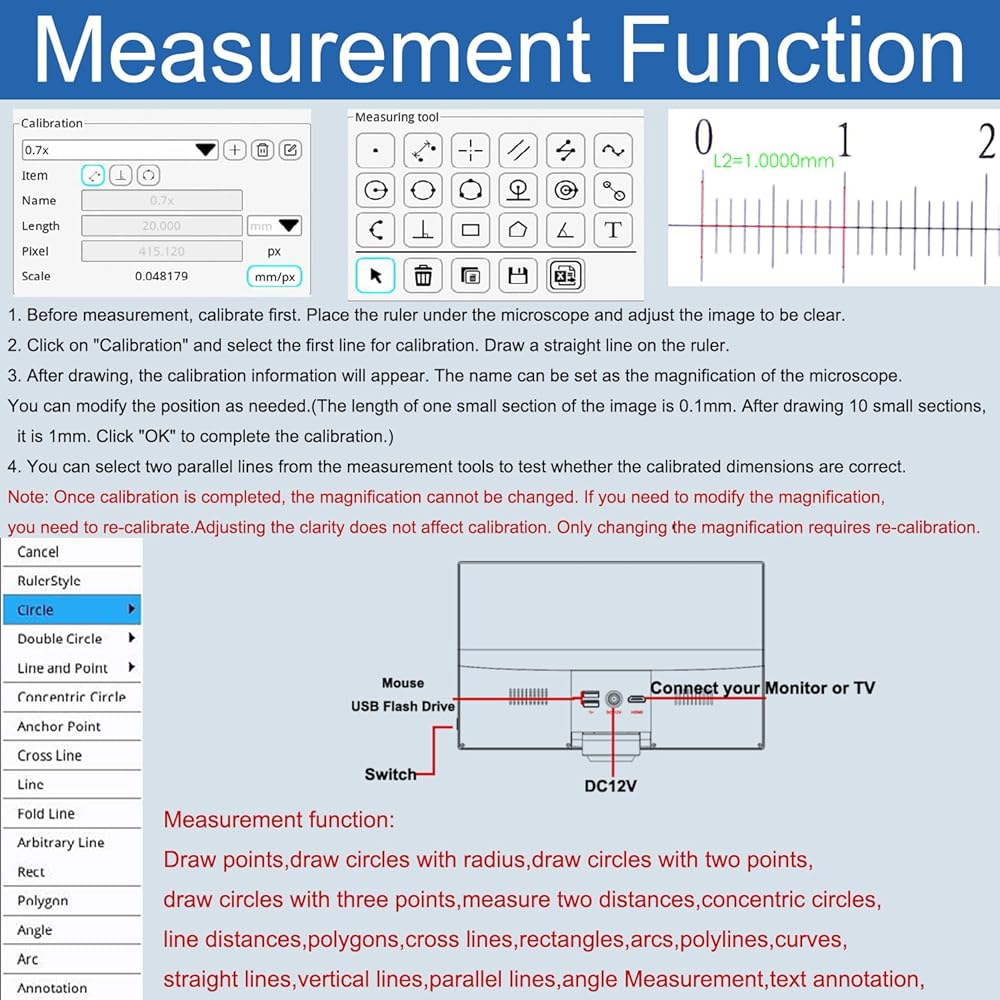

Measuring Function Draw points,draw circles with radius,draw circles with two points,draw circles with three points,measure two distances,concentric circles,line distances,polygons,cross lines,rectangles,arcs,polylines,curves,straight lines,vertical lines,parallel lines,angle Measurement,text annotation.

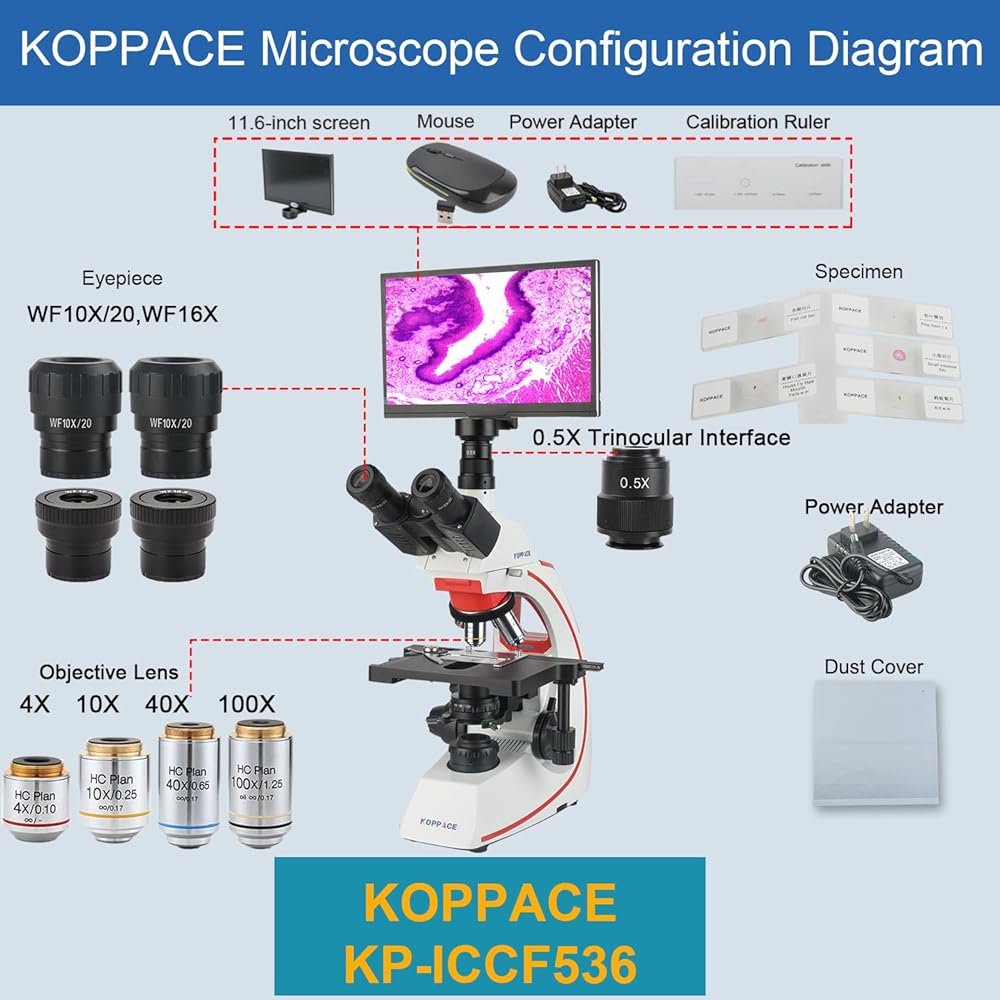

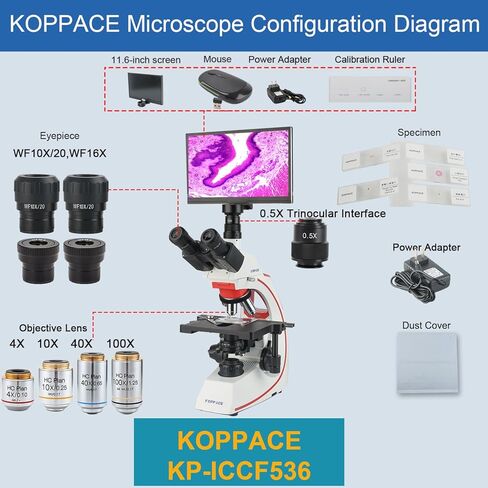

Packing List:
1、Eyepiece WF10X/20 *2
2、Eyepiece WF16X *2
3、Objective lens HC PLAN 4X *1
4、Objective lens HC PLAN 10X *1
5、Objective lens HC PLAN 40X *1
6、Objective lens HC PLAN 100X *1
7、Trinocular Microscope Body *1
8、0.5X Trinocular Interface *1
9、Power adapter *1
10、5 Pieces Specimen *1
11、Dust Cover *1
12、Mouse *1
13、The Camera Power Adapter *1
14、Calibrating Ruler *1
15、11.6" camera *1
