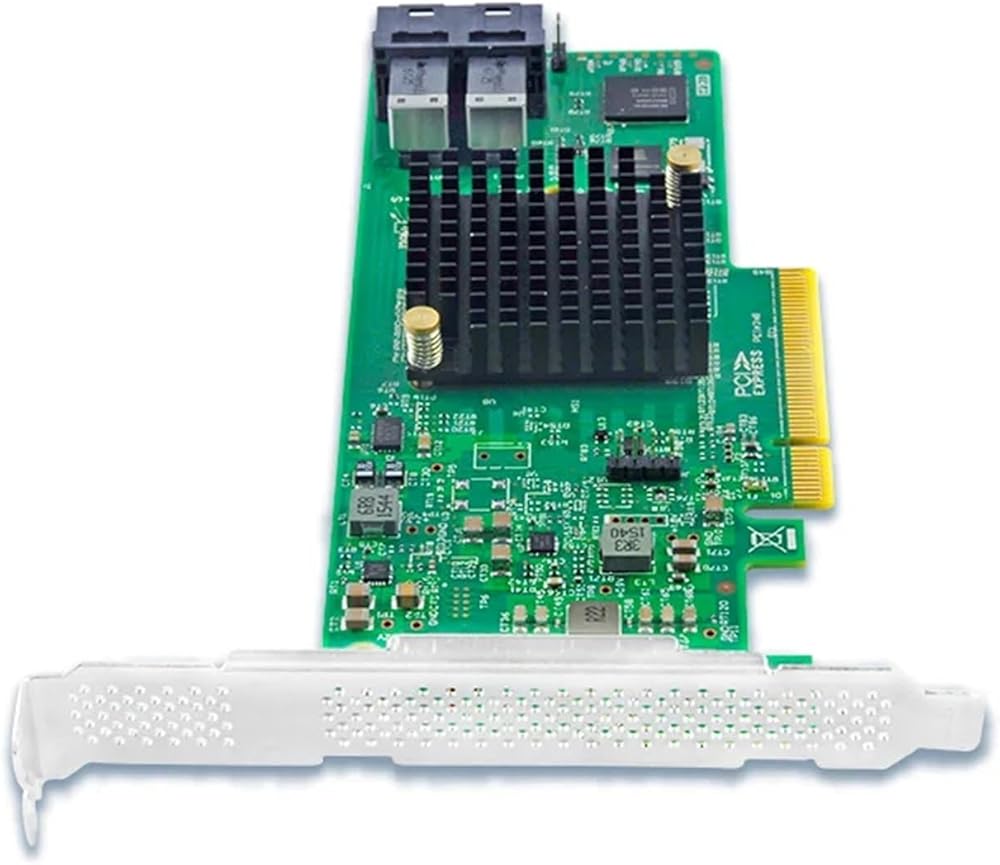

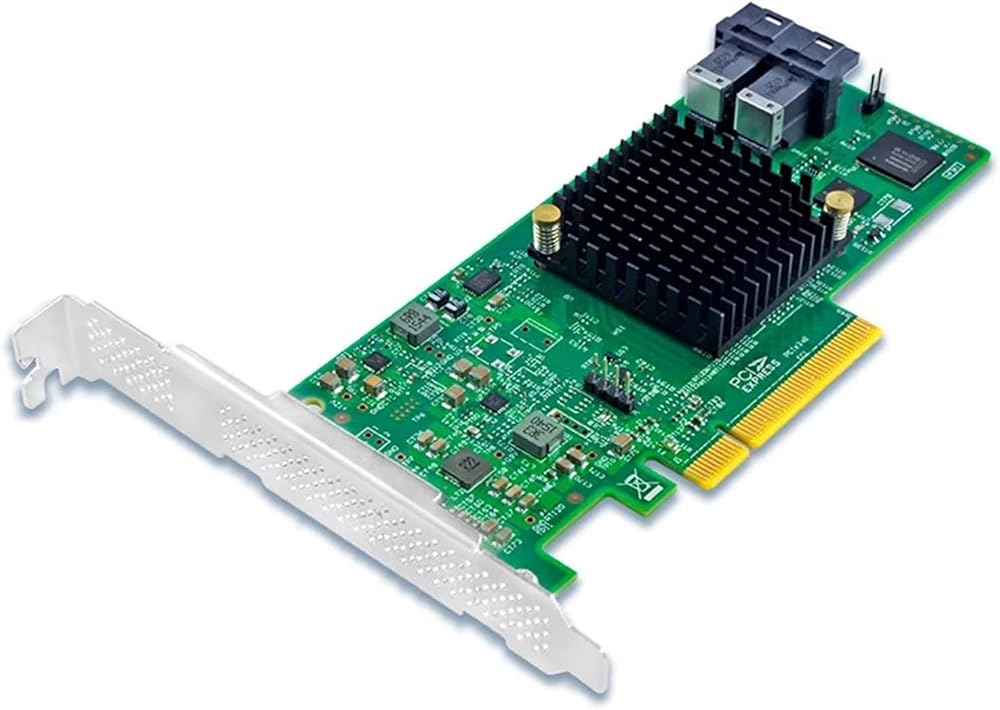

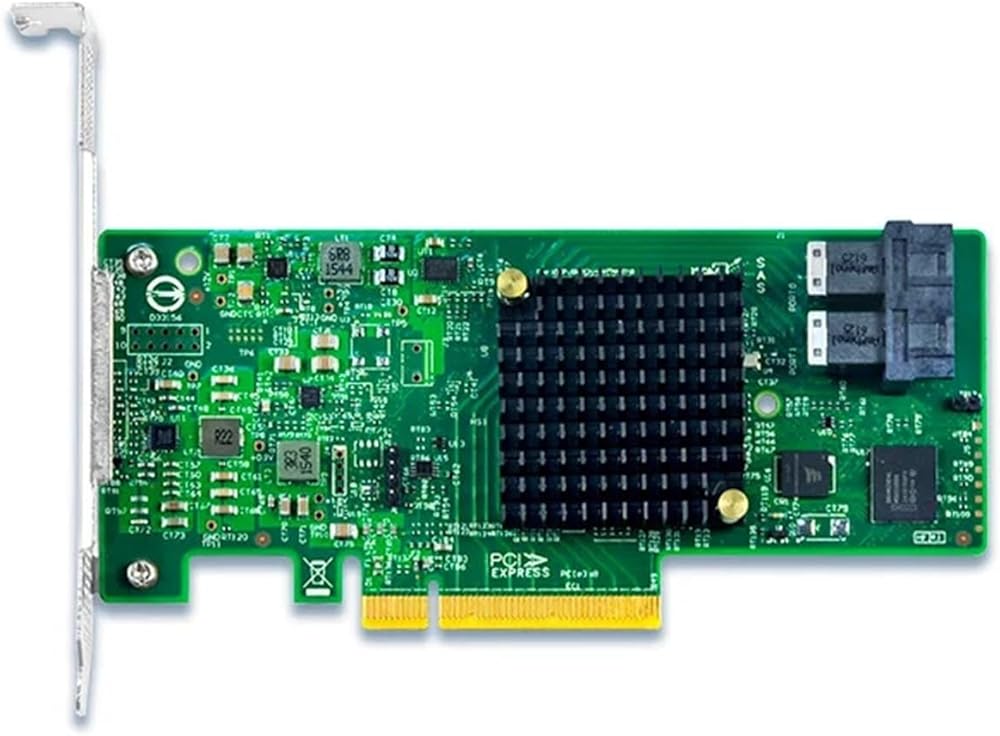

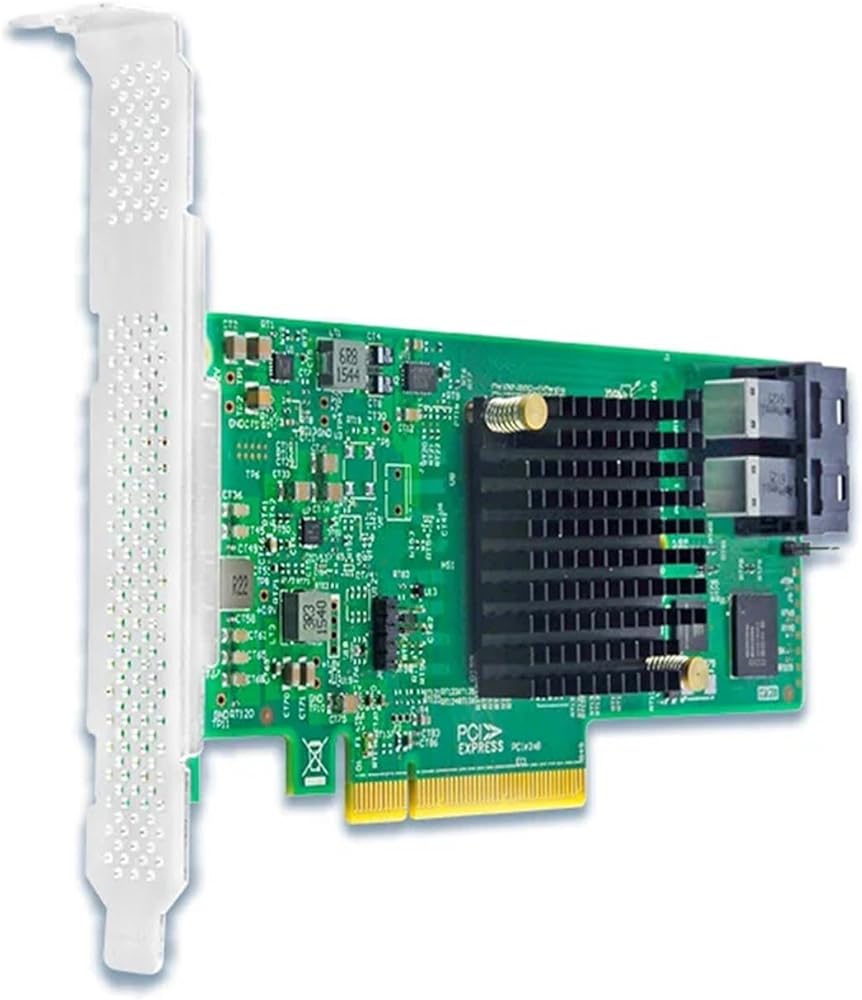

SAS3008-8I
PCIe3.0 8-ports 12Gb/s SAS RAID Card
Overview
The SAS3008-8I8-port, 12Gb/s SAS host bus adapter provide increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures.
The SAS3008-8IHBA is based on the SAS 3008 IO controller,integrating the latest enhancements in SAS and PCI Express technology. Each host bus adapter also supports 8SAS ports operating at 12Gb/s data transfer rates, and can over 1 million IOPs. The SAS3008-8Iadapter supports 8 PCI Express lanes that comply with the latest PCI Express 3.0 specifications. In addition, these adapters are backwards compatible with previous SAS and PCIe generations through automatic negotiation, and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane, and SATA data transfer rates of 6 and 3Gb/s per lane.
The SAS3008-8Iadapter offers Integrated RAID (0, 1, 1E, and 10) support. Due to simplifying the configuration options and offering a IR firmware support for its 6Gb/s SAS host adapters, these integrated RAID solutions provide a low cost option for the server or workstation market which requires the extra performance, storage capacity, and/or redundancy of a RAID configuration. Integrated RAID offers distinct performance and reliability advantages, including reduced CPU levels on your host computer, and also volumes that are OS agnostic.
The Integrated RAID solution includes the following RAID features:
The Integrated Mirroring solution, which provides features of RAID 1
The Integrated Mirroring + Striping solution, which provides features of RAID 10
The Integrated Mirroring Enhanced solution, which provides features of RAID 1
The Integrated Striping solution, which provides features of RAID 0
Key Features
Eightr ports of 12Gb/s SAS + SATA ports
Eight lanes of PCI Express 3.0
Low-profile form factor
Mini-SAS HD connectors
SAS 3008 12Gb/s SAS+SATA controller
Supports SSDs, HDDs, and tape drives
Offers Integrated RAID (0, 1, 1E and 10) Key Advantages
Key Advantages
Provides connectivity in a low-profile form factor
8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications
High performance with 12Gb/s SAS data transfer rates
Product Type
SAS3008-8I
IO Controller
SAS 3008
Port Count
8 port, internal
Connectors
Mini SAS HD
SFF8643 Two (x4)
Storage Connectivity Data
Transfer Rates
12Gb/s SAS 3.0 Compliant
Host Bus
x8 lane, PCIe 3.0
Physical Dimensions
68.9mm*154mm
Brackets
Full Height and low profile vented
SGPIO
SFF-8485 (SGPIO) compliant
Operating Voltage
+12V +/-8%; 3.3V +/-9%
Integrated RAID (IR)
14 spread across 2 volumes
RAID 010 per volume
RAID 1 2 per volume plus spare
RAID 1E 10 per volume
RAID 10 10 per volume
Environmental
Operating: 0°C to 55°C
Storage: -40°C to 70°C
5 to 90% non-condensing
Airflow: 200 LFM
OS Support
Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD;
==========
High-concerned chemical : None
Model Number : SAS3008-8I
Package : Yes
Function : Single
Interface Type : PCI Express
Origin : Mainland
Installation : Internal
Type : Add On Cards
