Central Processing unit
Supports Intel Socket 1151 7th / 6th generation Core i7/ Core i5/ Core i3/ Pentium / Celeron processors
Whether the support for Intel Turbo Boost 2.0 technology varies depending on the processor type.
Supports Intel 14nm processors
Support Intel Turbo Boost 2.0 technology
Chipset
Supports Intel Z270
Memory
2 x DIMM, with a capacity up to 32GB DDR4 3733 (overclocking) / 4266 (O.C.) / 3600 (overclocking) / 4133 (O.C.) / 3466 (overclocking) / 4000 (O.C.) / 3400 (overclocking) / 3866 (O.C.) / 3333 (overclocking) / 3300 (overclocking) / 3200 (overclocking) / 3000 (overclocking) / 2800 (Overclocked)/2666(Overclocked)/2400/2133 MHz Non-ECC, Un-buffered memory
Graphic display
Support display output: HDMI/DisplayPort interface
- Supports DisplayPort: The display resolution can reach 4096 x 2304@60 Hz
- Supports HDMI: The display resolution can reach 4096 x 2160 @ 24Hz
Expansion slot
1 x PCIe 3.0/2.0 x16 expansion card slot
Storage function (subject to shipment)
1 x M.2 slot 3, with M key, supports 2242/2260/2280 storage devices (SATA & PCIE 30 x 4 mode1
Intel Z270 chip
1 x M.2 slot 3, with M key, supports 2242/2260/2280 storage devices (PCIE 3.0 x 4 mode)*1
Intel Optane Memory Technology *3
Support Intel Smart Response Technology *2
Support Raid 0, 1, 5, 10
4 x SATA 6Gb/s interface
USB interface
6 x USB 3.0 connection ports (4 located on the rear side panel, blue, 2 located in the center of the motherboard)
ASMedia USB 3.1 Controller: *6
1 x USB 3.1 Front panel connection port Connection port
Intel Z270 chip
4 x USB 2.0 connection port
4 x USB 3.1 Gen 1 interface Type-A + USB Type-CTM *8
4 x USB 2.0 interface
1 x HDMI interface
1 x optical fiber S/PDIF digital audio output interface
5x audio jack
1 x DisplayPort interface
1 x system panel interface
1 x Clear the CMOS jumper
1 x USB 3.1 Front panel interface
Slot 3 of 1 x M.2 has the M key and supports 2242/2260/2280 storage devices (SATA & PCIE 30 x 4 mode
Slot 3 of 1 x M2 has the M key and supports 2242/2260/2280 storage devices (PCIE 3.0 x 4 mode)
The 1 x USB 3.0 interface can be expanded with 2 sets of external USB 3.0 interfaces
1 x RGB light strip interface
4 x SATA 6Gb/s device connection socket
1 x chassis fan interface
1 x Front Panel Audio Interface (AAFP)
1 x AIO_ Water pump interface
1 x thermal sensitive connector
Accessories
1 x Driver and application CD
M.2 2242 mounting kit
1 x 10 in 1 ROG cable label
1 x panel connection
2 x M.2 screw package
1 x CPU installation tool
I/O baffle
4 x SATA 6.0Gb/s data cable
1 x ROG Strix sticker
1 x RGB light strip extension line (80 cm)
1 x ROG coasters
Mini ITX type
6.7 inches x 6.7 inches (17 centimeters x 17 centimeters)
==========
RAID Supported : No
Processor compatibility : Intel Core i7,6th Intel Core i7,6th Intel Core i3,7th Intel Core i3,6th Intel Core i5,7th Intel Core i7,7th Intel Core i5,7th Intel Core i9
Usage Scenario : Gaming,Audio & Video,Office

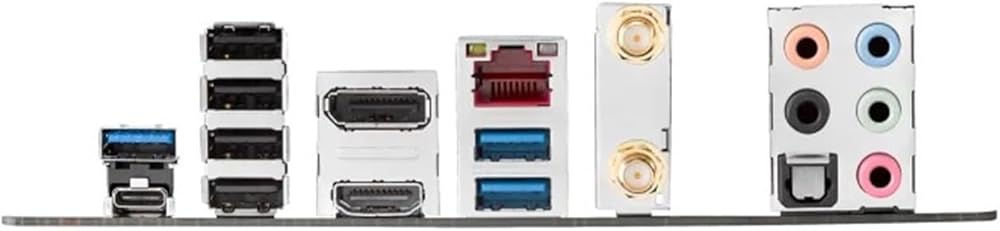

Back I/O Ports : 1x RJ45,4x USB 3.2/3.1 Gen 1,USB Type-C,4 x USB 2.0,HDMI 1.4
Onboard LAN : 1x RJ45
Storage Interface Type : SATA 3,M.2 (NVMe)
Number of PCI : 1
PCI - E standards : PCI-E 3.0
Support Memory Type : DDR4
Maximum Ram Capacity : 32 GB
Chipset Manufacturer : Intel
Battery Included : No
Chipset : Intel Z270
Application : Desktop
Socket Type : LGA 1151
