Special Features

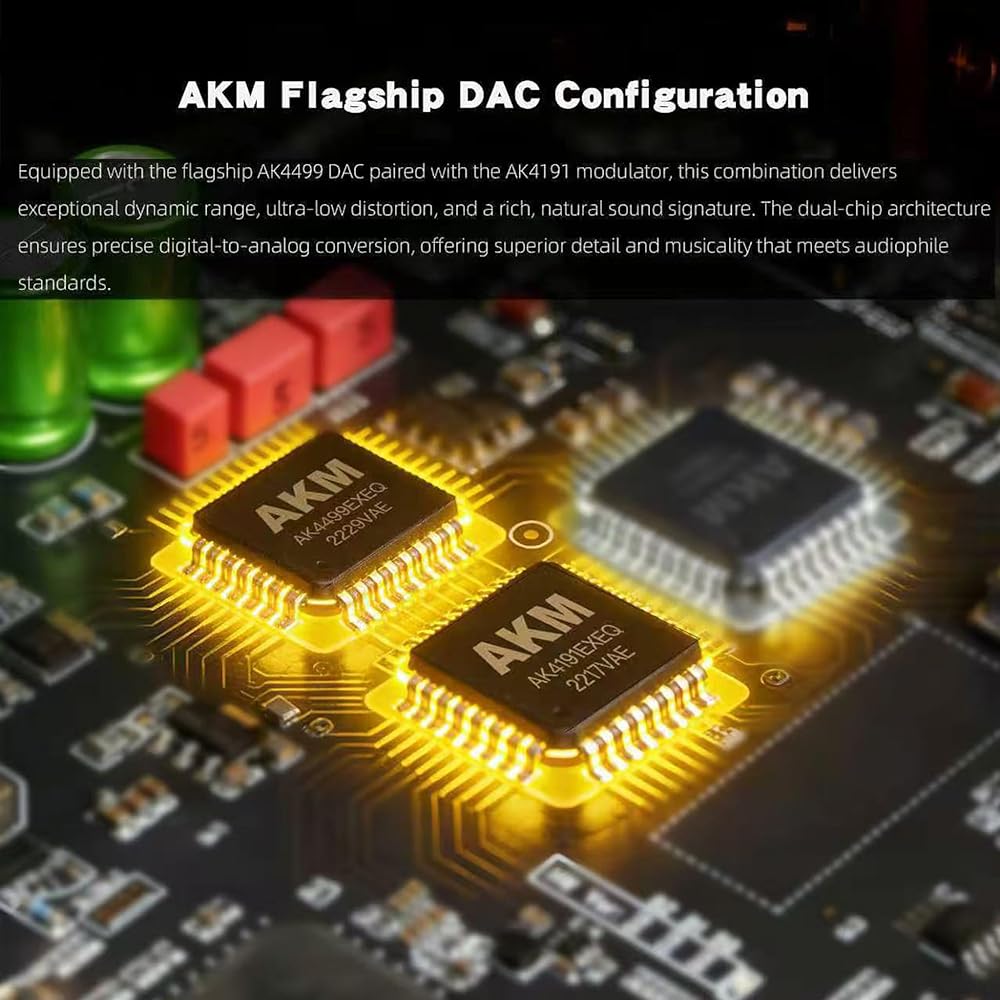

The X9 uses the AK4499EX + AK4191EQ DAC chipset with the XMOS 316 processor, delivering fast data processing, low distortion, and highly detailed sound. Supports DSD512 Native, PCM 768kHz/32bit, and DoP64 / 192kHz optical & coaxial. An OPA1612-stabilized DAC reference ensures accuracy, achieving THD+N –120dB.

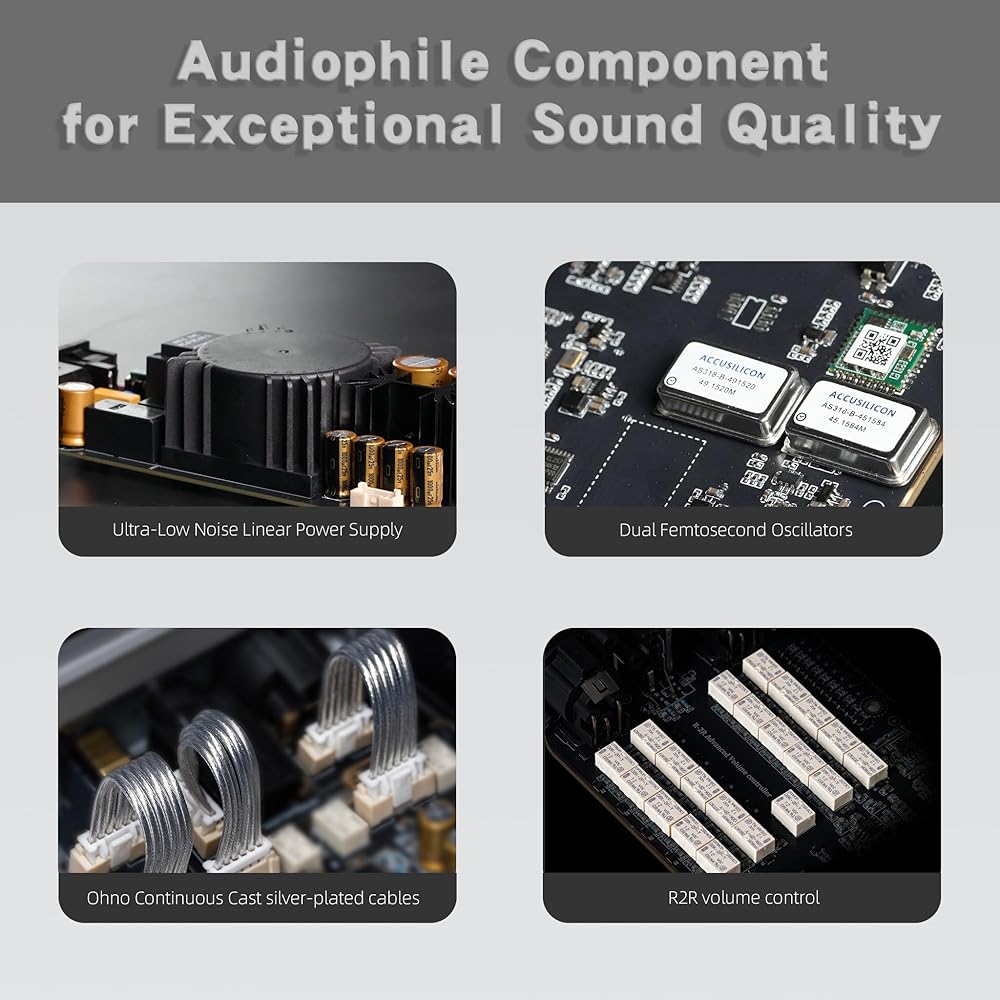

Equipped with an ultra-low-noise linear power supply with only 40nV ripple and a star-shaped voltage distribution circuit that separates digital and analog power paths. Premium components including gold-plated connectors and OCC silver-plated wiring help maintain exceptional clarity, resolution, and dynamic performance.
The entire signal chain is fully balanced, from DAC decoding to IV conversion and LPF filtering. The R2R volume control system includes 20 Omron micro relays and 88 precision metal-film resistors, delivering up to 1024 ultra-fine steps for smooth volume transitions and 0.1dB left–right channel balance. Functions as a reference-grade DAC, headphone amplifier, and preamplifier with accurate imaging and an immersive listening experience.

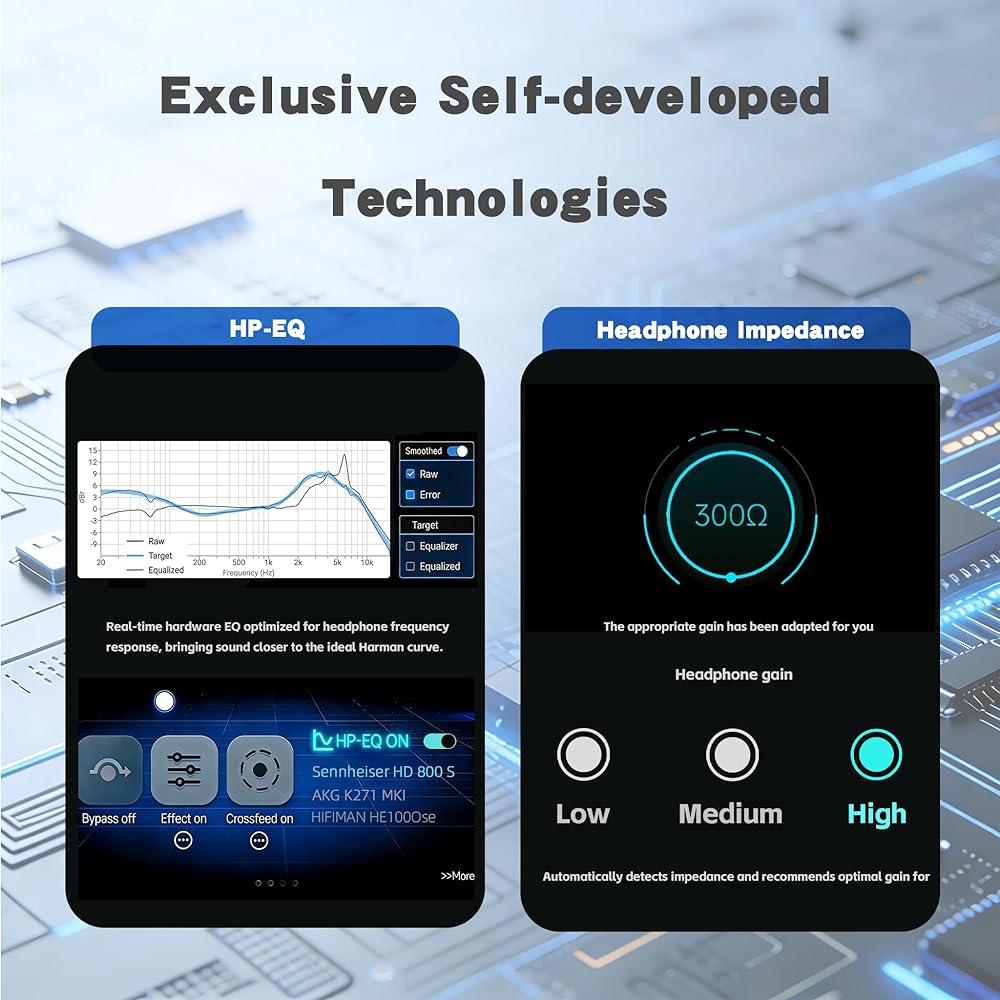

The X9 introduces HP-EQ, a hardware-level headphone equalization system that adjusts in real time based on each headphone's frequency response to achieve a Harman-aligned sound signature. It supports creating and sharing custom EQ profiles, backed by a database of 2500+ headphone models. Features include automatic impedance detection with intelligent gain recommendation, digital crossfeed for natural speaker-like presentation, and adjustable soundstage, all processed digitally with zero added distortion.

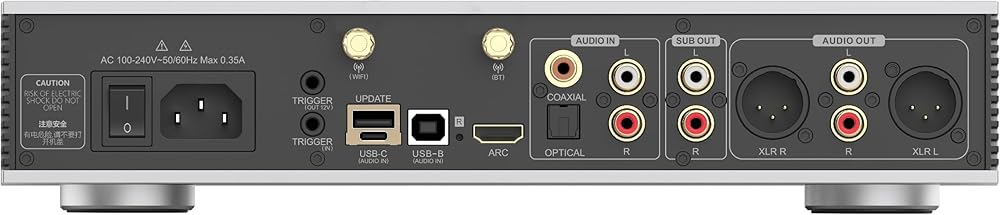

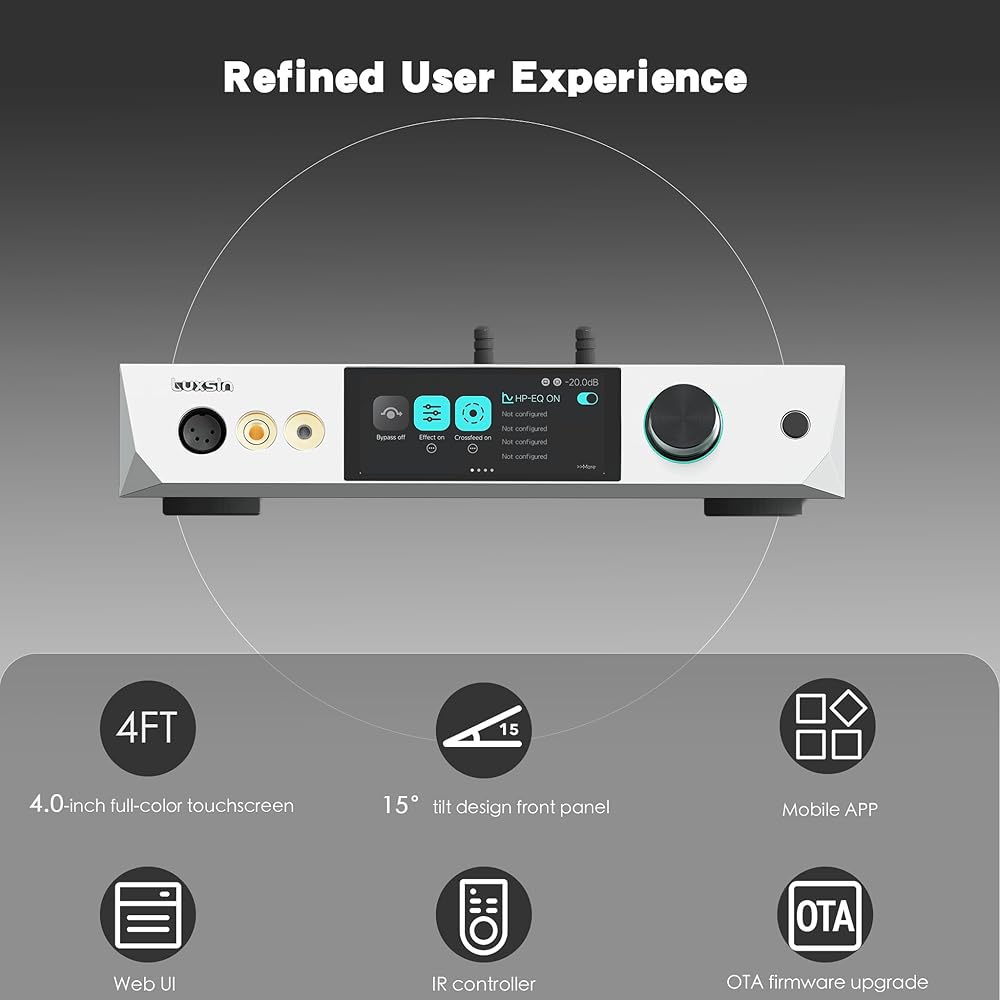

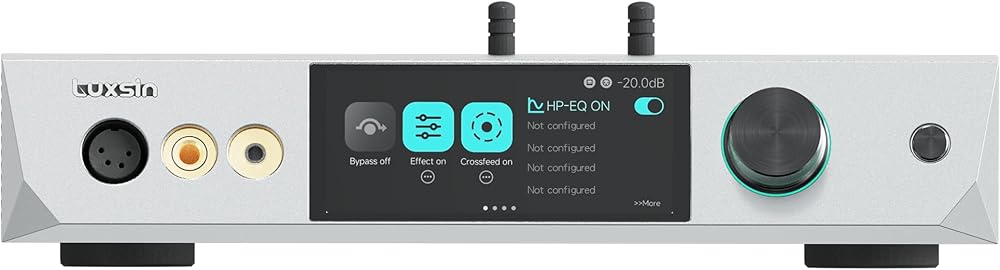

Built with high-end WIMA capacitors, premium electrolytic and non-polar capacitors, and 0.1% precision resistors. The 4.0-inch 1080P touchscreen and 15° diamond-cut front panel ensure intuitive and comfortable interaction, while the CNC-machined aluminum chassis provides durability and excellent heat dissipation. Connectivity includes HDMI ARC, USB-B/USB-C, optical, coaxial, analog inputs, dual sub outputs, and a 12V trigger. Supports IR remote, wireless phone/PC control, and OTA firmware updates.
Description
After two years of meticulous research and development, Luxsin officially unveils its first desktop audio product - the X9, is a reference-grade all-in-one device that integrates DAC, headphone amplifier, and preamplifier functions. Beyond offering exceptional fundamental performance, the X9 incorporates a series of industry-first technologies independently developed by Luxsin, delivering unparalleled audio quality and distinctive character.
