Item Type: Post Test Motherboard Analyzer Diagnostic Card
Color: Black
Interface: PCI E, LPC
Support: For ASUS, for Ggigabyte, for MSI, for ASRock, etc.

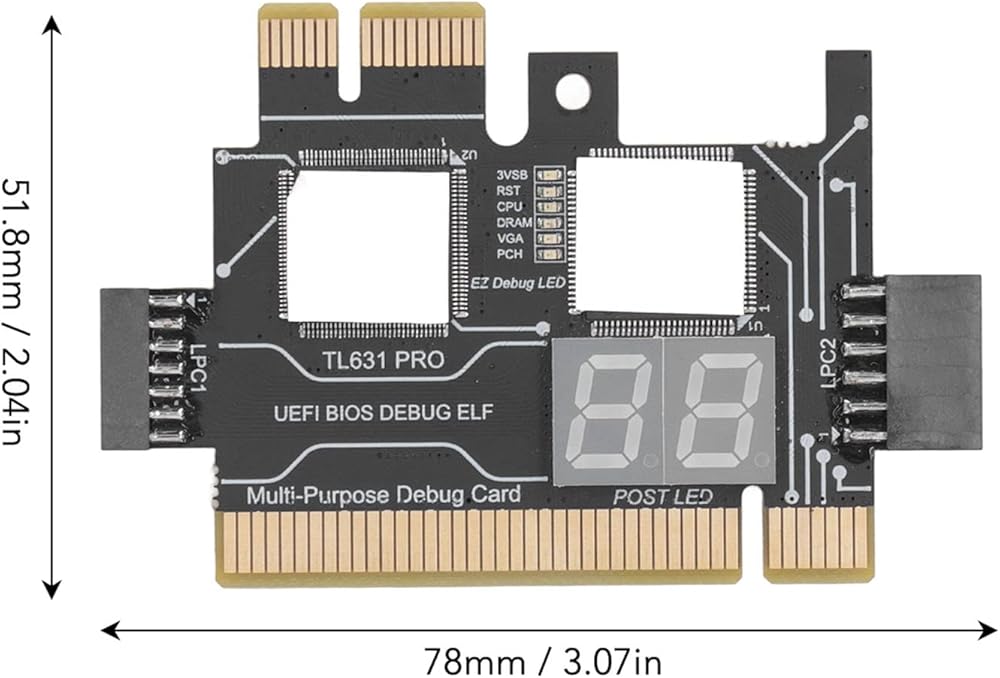

Size: 78 x 51.8mm / 3.07 x 2.04in

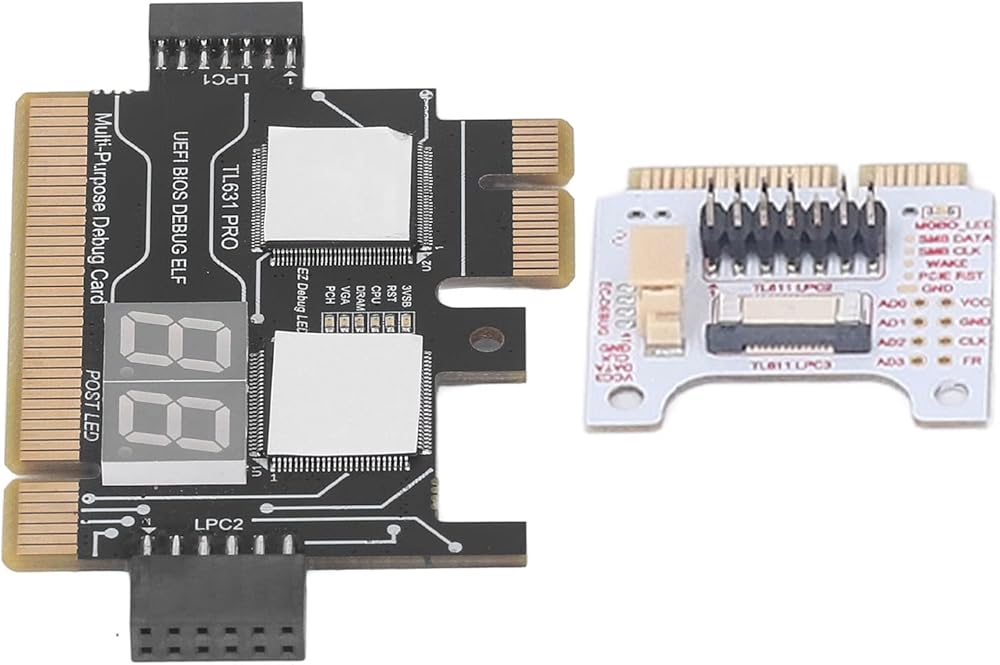

The diagnostic card has the following settings:
1. LPC1 shared high speed channel equals to connect to motherboard 2.0 small pin header plus MINI PCIE.
2. PCI High Speed Channel equals to support all PCI slots.
3. LPC2 shared high speed channel equals to connect to motherboard with 2.54 large pin header plus ultra mini SPI.
4. PCIEX1 high speed channel equals to be able to test gigabyte motherboard without PCI.
5. LPC3 shared high speed channel is equal to connect laptop for MINI PCIE, for A DEBUG converter card for ForASUS DEBUG CON, for EC DEBUG.
6. 3VSB power indicator, check if the power supply is normal.
7. MOBO motherboard indicator, check whether the motherboard is normal.
8. CPU indicator, for checking whether the CPU module is normal.
9. DRAM memory indicator, to check whether the memory module is normal.
10. VGA graphics card indicator, check whether the graphics module is normal.
11. PCH south bridge indicator, check whether the south bridge module is normal.
12. Portable round hole design, can be tied tightly with gold rope or key chain.
13. DP decimal point, CLK signal display.

Package List：

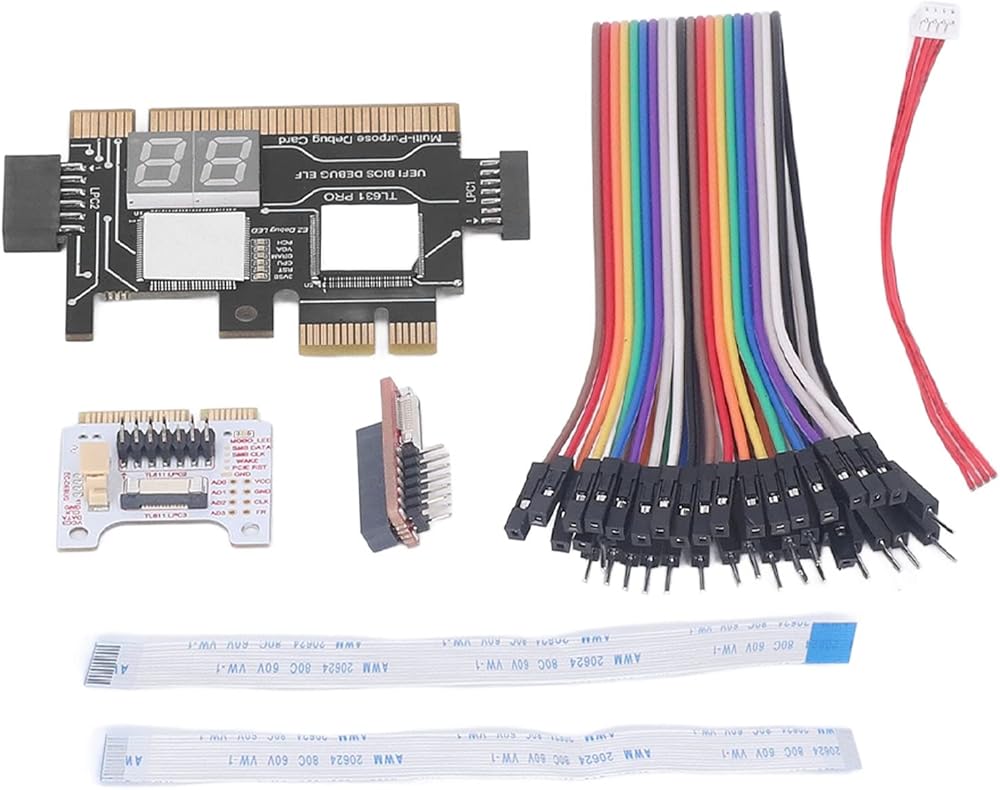

1 x Diagnostic Card
1 x Connecting Wire
1 x Terminal
1 x Adapter Card
1 x Terminal Wire
2 x Flat Cable

Note:
1. The actual color of the item may be slightly different from the color shown on the picture due to different display and lighting effects. Thank you very much.
2. Due to manual measurement, please allow 1‑3mm measurement deviation.
