Special Features

supports multiple types of CPUs and is equipped with advanced chipsets. It has fast data processing speed and can easily handle multitasking and complex calculations, providing a stable performance core for your computer.
equipped with a variety of interfaces, including multiple USB interfaces, high-speed SATA interfaces, and high-performance network card interfaces, which can easily connect various external devices and achieve efficient data transfer.
Supporting high-speed memory, the dual channel design further improves memory read and write speed, making the system more responsive and capable of running large games and professional software with ease.
The motherboard adopts high-quality electronic components and advanced manufacturing processes, with excellent heat dissipation performance, effectively reducing motherboard temperature, ensuring long-term stable operation, and extending service life. Supports multiple operating systems, whether it is Windows series or Linux system, it can be perfectly compatible to meet the usage habits and needs of different users.
Choose our computer motherboard to upgrade your computer and embark on an efficient and stable computing journey!

Description

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Model Z270-A PRO
Supported CPU
CPU Socket Type LGA 1151
CPU Type Supports 7th/6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
Chipsets
Chipset Intel Z270
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Number of Memory Slots 4x288pin (DDR4)
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 2 x PCIe 3.0 x16 slots (support x16/x4 mode)
PCI Express x1 4 x PCIe 3.0 x1 slots
M.2 1 x M.2 slot (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/2260/2280/22110 storage devices
Video Ports 1 x VGA port
1 x DVI-D port
DisplayPort 1 x DisplayPort
USB 3.1 4 x USB 3.1 Gen1 Type-A ports
USB 1.1/2.0 2 x USB 2.0
Audio Ports 6 Ports
Onboard USB 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x Clear CMOS jumper
Form Factor ATX
Dimensions (W x L) 12.0" x 8.9"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
==========
RAID Supported : No
Processor compatibility : 6th Intel Core i3,7th Intel Core i3,6th Intel Core i5,7th Intel Core i7,7th Intel Core i5
Usage Scenario : Enthusiast & Overclocking,Audio & Video

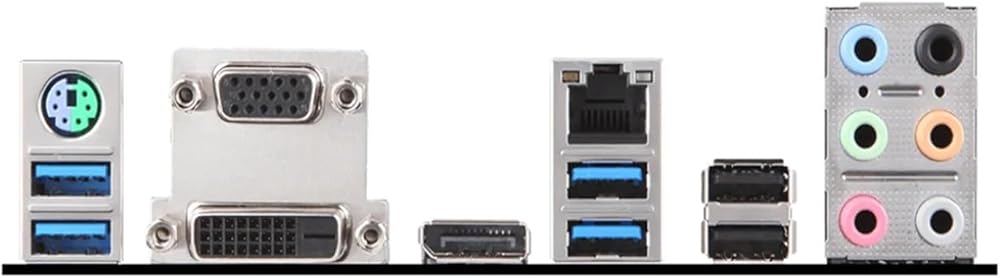

Back I/O Ports : 1x RJ45,VGA (D-Sub),Disply Port,DVI-D
Onboard LAN : 1x RJ45
Storage Interface Type : SATA,M.2 (NVMe)
Number of PCI : 1
PCI - E standards : PCI-E 3.0
Support Memory Type : DDR4
Maximum Ram Capacity : 64 GB
Chipset Manufacturer : Intel
Battery Included : No
Chipset : Intel Z270
Application : Desktop
Socket Type : LGA 1151
