High-Performance 2.4GHz Wireless Data Transmission Module with PA and LNA

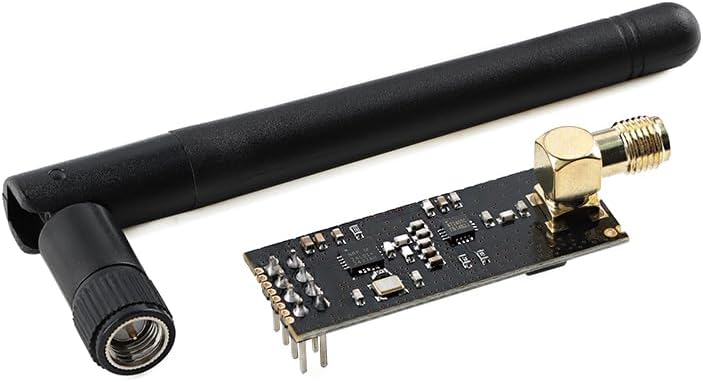

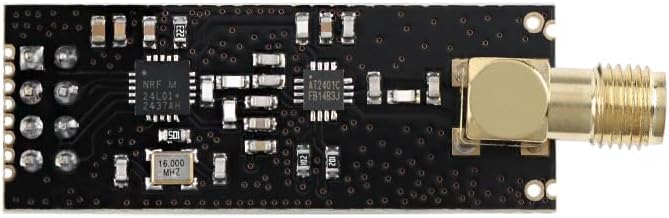

The NRF24L01+ PA + LNA wireless module is a high-performance, ultra-long-range data transmission solution. It operates in the license-free 2.4GHz ISM band and can be used for point-to-point or star network applications. This module integrates a high-power PA (Power Amplifier) and LNA (Low Noise Amplifier), RF switches, and band-pass filters, significantly extending the effective communication distance.

Key Features:
- Ultra-Long Range: The integrated PA and LNA extend the communication range, making it ideal for long-distance applications.
- High Stability: Optimized RF matching and filtering minimize harmonic interference, ensuring stable and reliable performance.
- Compact Size: With dimensions of only 41mm x 15.5mm, this module is easy to integrate into space-constrained products.
- Easy Integration: Simply connect an MCU via the SPI port to control the module, reducing R&D costs and shortening development time.
- Multi-Channel Support: Supports up to six channels of data reception, providing flexibility for various applications.
- Low Power Consumption: Operates at 3-3.6V with a maximum current of 115mA, making it energy-efficient.

Technical Specifications:
- Frequency: 2.4GHz - 2.5GHz
- Operating Voltage: 3V - 3.6V
- Current: 115mA
- Channels: 125 selectable channels
- Data Rates: 250kbps, 1Mbps, 2Mbps

Package Includes:

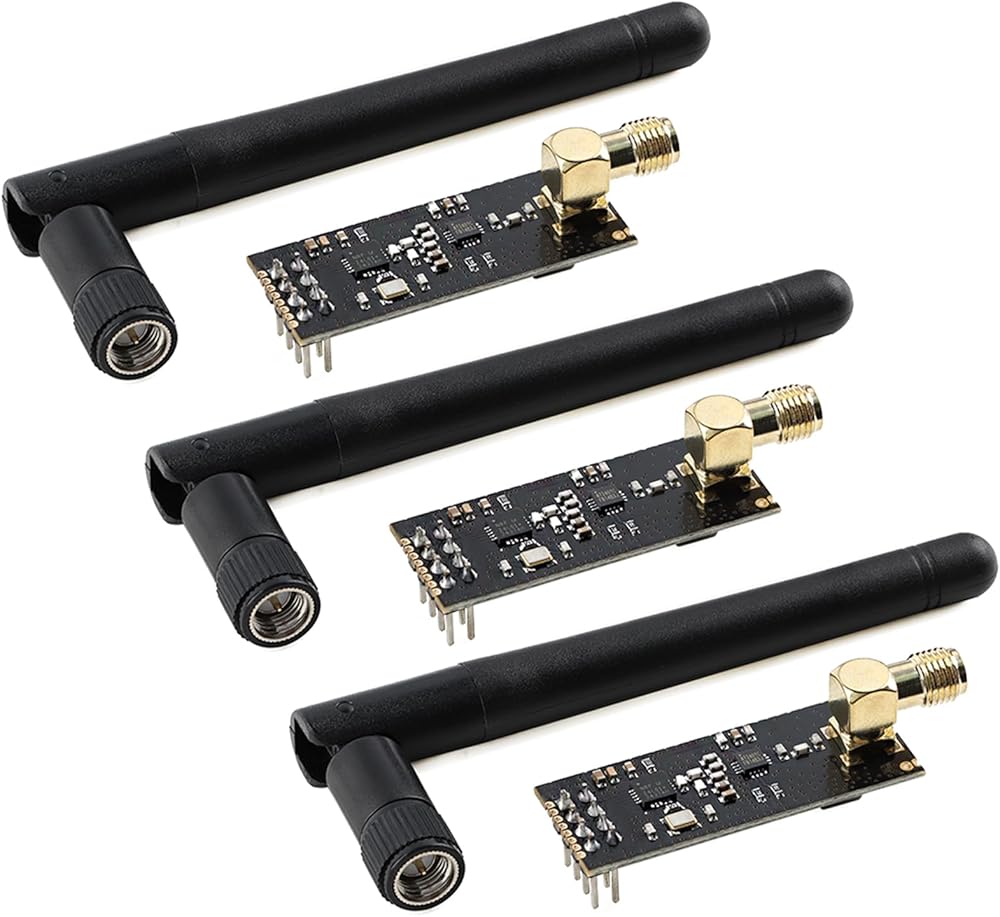

- 3 x NRF24L01+ PA + LNA Wireless Transceiver Modules
- 3 x SMA Antennas
