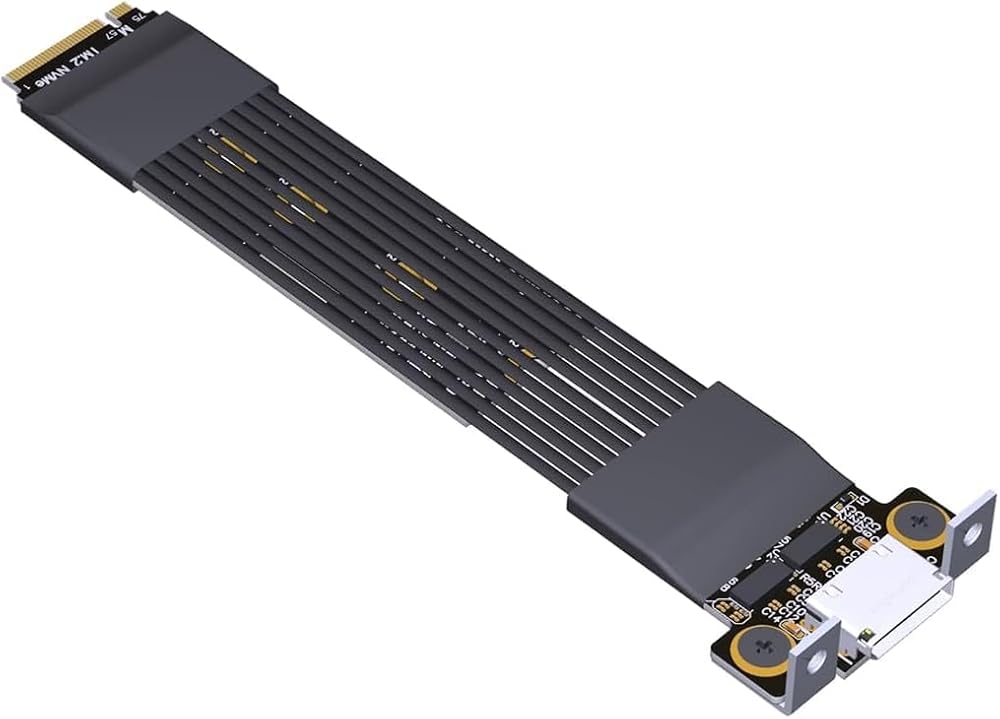

JMT ADT-K49SQ M.2 NVMe to OcuLink SFF-8611/8612 External Cable PCIe 5.0 x4 Adapter 128Gbps with Chip for Graphics Card

Product detail:
Product Model: K49SQ-BK

Product Name: PCIe 5.0 M.2 NVMe to SFF-8611/8612 Adapter Cable

Bandwidth Speed: PCIe 5.0 x4 Gen5; 128Gbps (Max.)

Cable Length: Custom lengths available

Cable Length Note:
The cable length specified refers solely to the cable section, excluding PCB and connectors.

Important Notes:
Model K49SQ incorporates a chip featuring a PCIe Redriver signal repeater(RepeaterIC). This chip regenerates signals, enhances signal quality, and reduces transmission error rates.

Model Specifications:
K49SQ-BK: M.2 NVMe to SFF-8611/8612 Adapter Cable with Chip, PCIe 5.0 x4 Bandwidth
K49SQ-BK-01: M.2 NVMe to SFF-8611/8612 Adapter Cable with Chip, Includes Half-Height Bracket, PCIe 5.0 x4 Bandwidth
K49SQ-BK-02: M.2 NVMe to SFF-8611/8612 Adapter Cable with Chip, Includes Full-Height Bracket, PCIe 5.0 x4 Bandwidth

Cable Quality
Features metal layer shielding utilizing advanced EMI shielding conductive polymer. Innovative materials for EMI shielding with flat cable design. This technology enables each cable to be fully covered by electromagnetic interference shielding conductive polymer, preventing incident or radiated emissions at electromagnetic frequencies. Minimizes interference and performance degradation while reducing cable weight.

The cable utilizes our proprietary fifth-generation PCIe-specific black slim cable, 0.8mm thick. The cable is flexible and bendable without affecting functionality, but should not be pulled.

Hole Pitch: All holes are spaced at 25mm intervals. Fixed terminals are secured with M3 screws by default.
