Features:

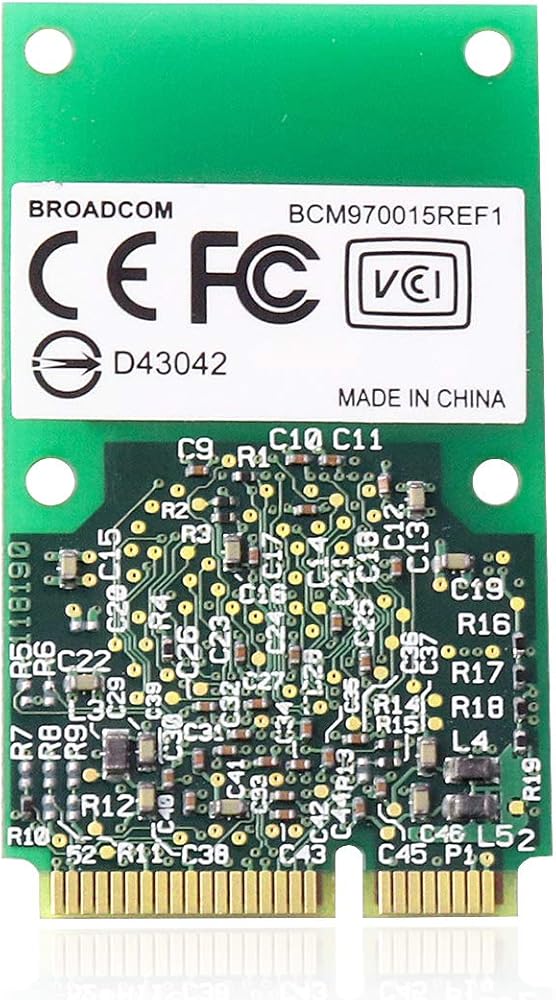

◆The BCM70015(marked as BCM970015 in the old version) Crystal HD is a video/audio hardware decoder in the PCIe Mini Card half-height form factor. It is designed to reduce CPU utilization and allows for full HD real-time decoding support for mobile platform solutions. The BCM70015 single-chip Crystal HD advanced media processor is a low cost, low power (less than 1 W energy consumption), highly integrated solution for high definition (HD) video playback applications.
◆It is targeted for multimedia applications such as HD playback and broadcast and other TV sources.
◆It is excellent for use in small form factor systems that require high-end graphics support but can't compromise power consumption or platform footprint.

Specifications:

◆Form Factor: PCI Express Mini Card (half-height with extension adapter)
◆Chipset: AVC, DivX, MPEG-2/4, VC-1 Video/Audio Decoder: BCM70015
◆Supported Resolution: QCIF up to 1920 x 1088
◆HD Video Decoding Formats:
H.264/AVC HP @ L4.2 1080p60, 40 Mb/sec.
VC-1 Advanced Profile @ L3.0, 45 Mb/sec.
SMPTE VC-1 AP @ L3, 45 Mb/sec.
WMV9 (VC-1 SP @ ML and MP @ HL)
MPEG-4 Part-2 SP and ASP 1080p30
MPEG-2 MP @ HL, LL, and ML, 80 Mb/sec.
DivX 3.11, 4.1, 5.X, 6.X, XviD
◆Security:
AACS, AACS+
Support for various DRM implementations
◆Firmware verification
Secure (encrypted) external EEPROM memory storage for content and keys
DRAM protection
PCIe bus
