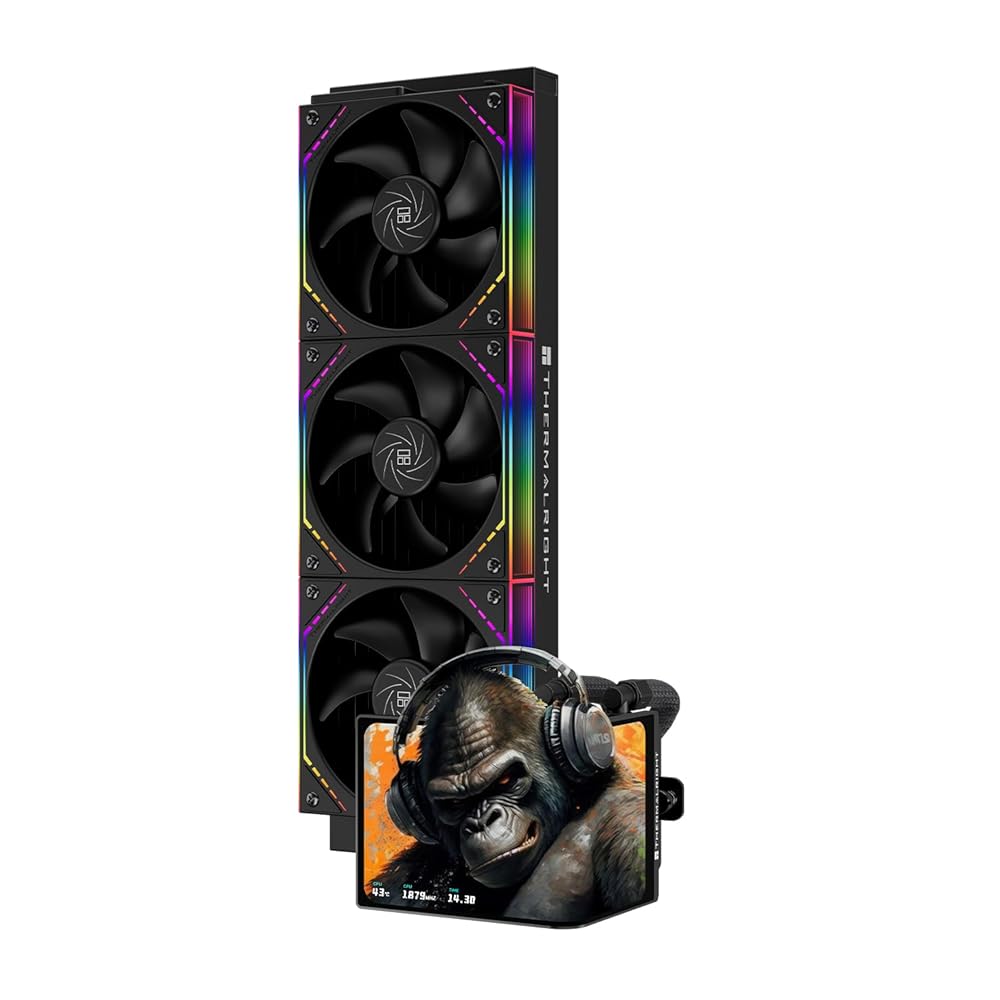

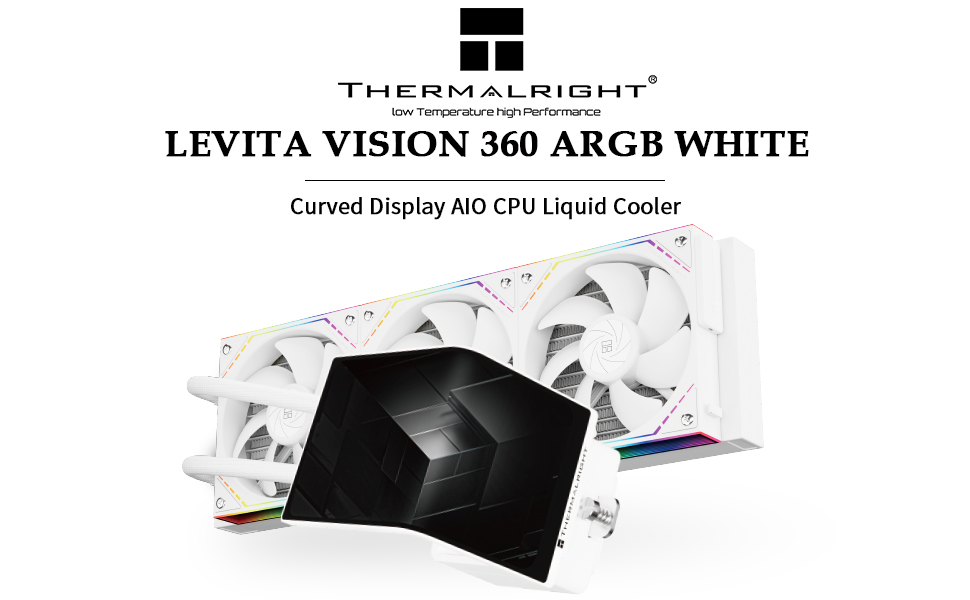

[Heat Sink Parameters] The size of the CPU heat sink is 397x120x52mm (including the fan), the cooling head is 112.9x77.5x98mm, the water pump speed is 3000RPM ± 10%, the voltage is DC 12V, and with the cooperation of three fans at 2000RPM, it can ensure that the cooler cools the CPU temperature well
[PWM Fan Parameters] Model: TL-M12QW, fan size 124x120x25mm, speed: 2000RPM±10%, noise≤28.2DBA, interface: 4pin PWM, ARGB interface: 3pin ARGB (+5V), air pressure: 2.21mmH2O (MAX), air volume: 68.9CFM (MAX), equipped with PWM intelligent temperature control function, can automatically adjust the speed according to temperature
[Wireless Splicing Design] Paired with TL-M12QW CPU fan, it has PWM temperature control function, ARGB line embellishment, and infinite mirror lighting effects at the top and bottom, enhancing the appearance of the PC fan. The brand new power module control line transmits signals and power between fans through contacts. S-FDB bearings and noise reducing fan blades ensure long-term heat dissipation of the pwm fan.
[Free DIY Theme] The 3D curved screen supports the display of 3D, 2D videos, dynamic/static images, with a visual ratio of 5.5:4.5, paired with AMOLED high-resolution panels, providing a good visual experience. You can freely DIY the theme and display various parameters of the monitoring system. Through TRCC software, a wide range of gameplay can be presented. For more detailed analysis, click on the "?" icon in the upper right corner of the software.

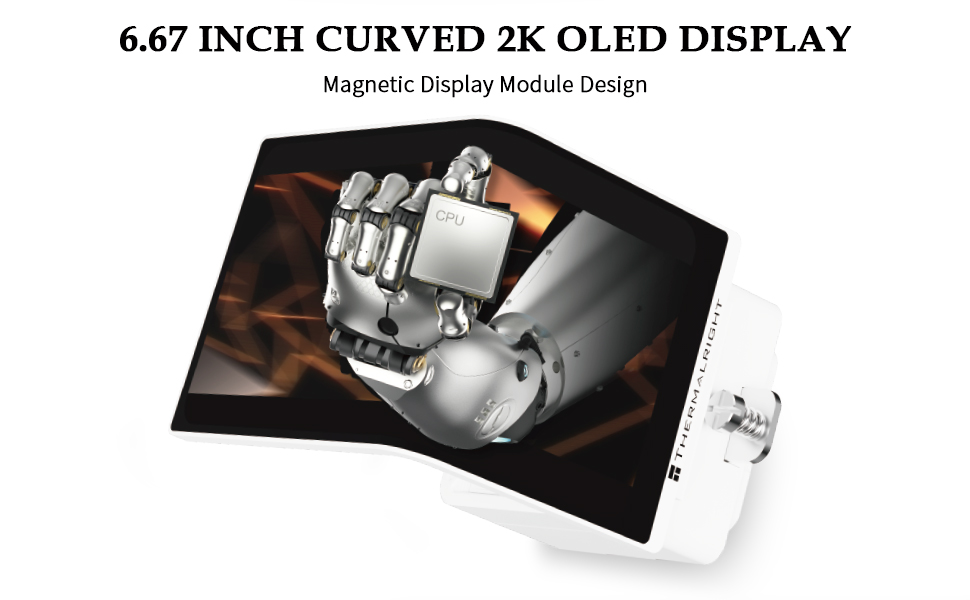

[6.67-inch 3D Curved Screen] The curved screen with magnetic suction cooling head is easy to disassemble, with a visual ratio of 5.5:4.5, 2K 60HZ, and 2400x1080 resolution. It has good viewing angle stability and can accurately restore colors, making the picture more realistic and delicate, and has good visual stability
[Wide Compatibility] CPU liquid heat sink supports Intel: LGA 1150/1151/1155/1156/1200/1700/2011/2066; AMD:AM4/AM5, Equipped with dual platform installation clips for easy installation, it is recommended to install in conjunction with installation videos or instructions. (Note: The installation of AMD platform requires the use of the original motherboard backplane for installation, which is not included with the product)
