1) This cable can be used to connect internal devices, e.g. a backplane with Slim Line SAS connector to a controller with Slim SAS SFF-8654 8i 74pin connector.Ultraport SlimSAS 4i 74Pos Cable Assembly
2) It transmits PCI Express 4.0 signals using the PCIE protocol; Support PCIE 4.0 data transmission, Data transfer rate up to 64Gbps, Support connecting GPU graphics card, SSD, expansion card, etc., backward compatible with PCIE 3.0.

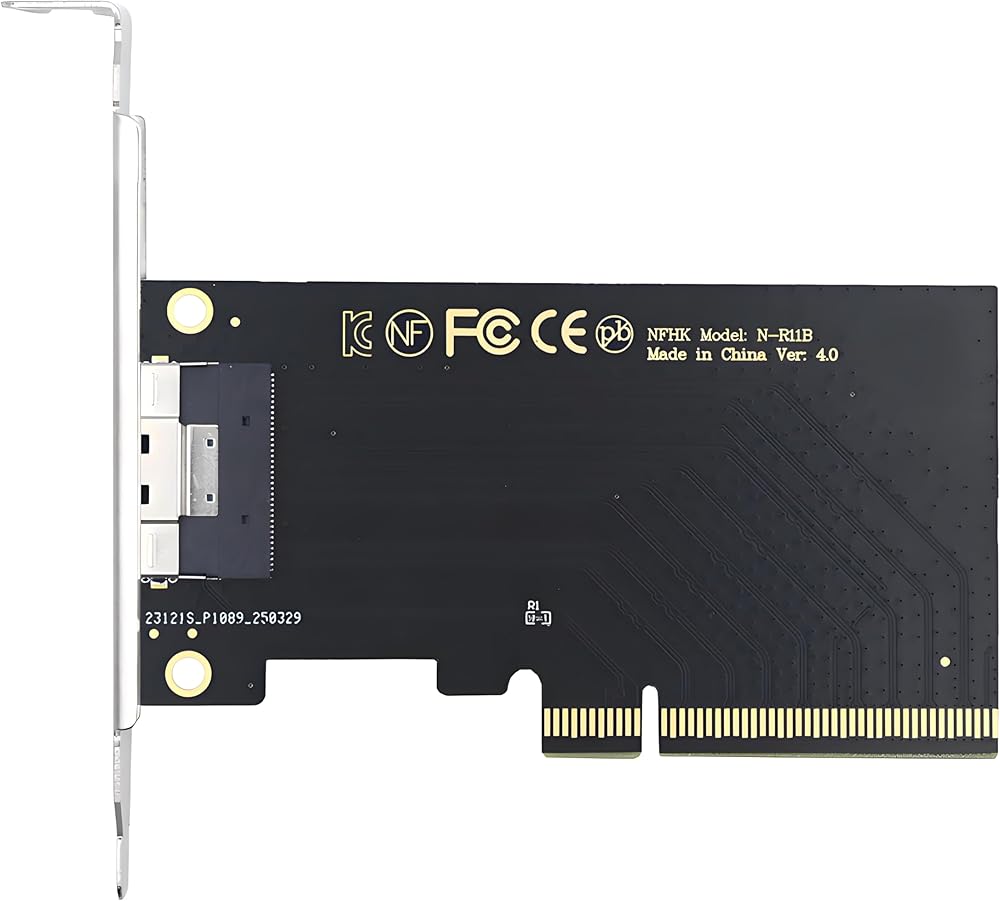

3) It can be connected e.g. one SSD or eGPU Graphics Card by using an optional cable. Suitable for small hosts, desktops, laptops, etc. to convert PCIE sockets to SFF-8654 8X sockets, with fixing holes for fixing.
4) High-speed data transfer : The adapter cable is designed for use with ssd that use SFF-8654 8x connectors, allowing for fast and reliable data transfer at speeds of up to 64Gbps.
5) Only supports motherboards with detachable PCI-E channels; Control the operation of four disks based on the motherboard PCIE channel,The motherboard without PCIE signal split can only recognize one disk.

وصف

PCI-E Slim Line SAS 4.0 SFF-8654 8i 74pin Host to SFF-8654 Slim SAS Target Cable 50cm

This SAS cable can be used to connect internal devices, e.g. a backplane with Slim Line SAS connector to a controller with Slim SAS SFF-8654 8i 74pin connector.

Ultraport SlimSAS 4i 74Pos Cable Assembly

Slim SAS 8i Straight to Slim Line SAS

Length: 50cm

Connector 1: Slim SAS 8i 74pin

Connector 2: Slim SAS 8i 74pin

Applications for Servers,Data Storage,Workstation

Meet PCIe Gen3 and SAS4.0 specification

Features and Benefits:

1.Smaller size connector and cable saves device space

2.Provide four channels signal transmission as per industry standard

3.Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel

4.Meet SAS4.0, Ultraport SlimSAS SFF-8654 specification
