Micro SATA Cables Slim SAS SFF-8654 4i Straight to SFF-8639 U.2 Cable in Saudi Arabia

Micro SATA Cables Slim SAS SFF-8654 4i Straight to SFF-8639 U.2 Cable

SAR 182
Weight
11 g
– 1 +

Special Features

  • This cable supports high-speed data transfer between devices with Slim SAS SFF-8654 4i and SFF-8639 U.2 interfaces, ensuring efficient data transmission for storage arrays, servers, and external storage solutions.
  • The cable features durable connectors and high-quality shielding to minimize signal interference and ensure stable data transmission over long distances. It provides a reliable connection between devices, reducing the risk of data loss or corruption.
  • With its slim and flexible design, this cable is suitable for use in space-constrained environments such as server racks, storage enclosures, and small form factor systems. It allows for efficient cable management and optimal use of available space.
  • Compatible with devices featuring Slim SAS SFF-8654 4i and SFF-8639 U.2 interfaces, this cable offers broad compatibility with a variety of storage devices, including SSDs and HDDs. It allows users to leverage existing storage solutions and easily upgrade
  • Micro SATA Cables PN# SLM-2187-U2

Description

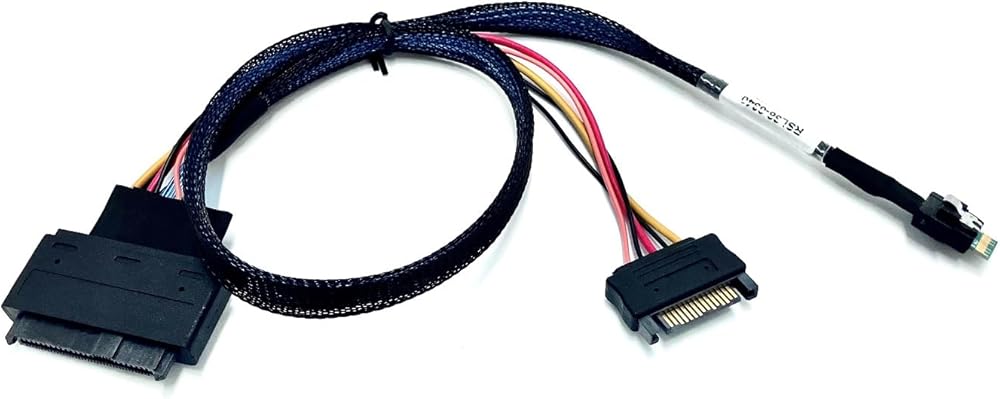

Slim SAS SFF-8654 4i Straight to SFF-8639 U.2 Cable (50cm)
RSL38-0340
Description: This U.2 (SFF-8639) to SFF-8654
Slim SAS SFF-8654 4i Straight to SFF-8639 U.2 Cable
Applications
Servers
Data Storage
Workstation
Features and Benefits
Smaller size connector and cable saves device space
Provide four channels signal transmission as per industry standard
Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel
Meet SAS3.0, Ultraport SlimSAS SFF-8654 specification
Mechanical Performance
Ultraport SlimSAS 4i plug
Mating Force: 150N maximum
Unmating Force: 50N maximum
Rated durability cycles: 250 cycles minimum
Mating Force: 150N maximum
Unmating Force: 50N maximum
Rated durability cycles: 250 cycles minimum
Electrical Performance
Voltage: 30VDC per contact
Ultraport SlimSAS 4i plug: 80mohm max. initial, 20mohm maximum.
HD Mini SAS 4i plug: 30mohm max. initial, 20mohm maximum.
Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
Mated Connector Impedance: 85 ±10% ohm or 100+/-10% ohm
Common Mode Impedance: meet PCIe Gen3 and SAS4.0 specification
Insertion loss: meet PCIe Gen3 and SAS4.0 specification
Maximum Crosstalk: meet PCIe Gen3 and SAS4.0 specification
Product Environmental Compliance
RoHS2.0: Compliant
ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Cable length approx. 50cm
Micro SATA Cables PN # SLM-2187-U2
